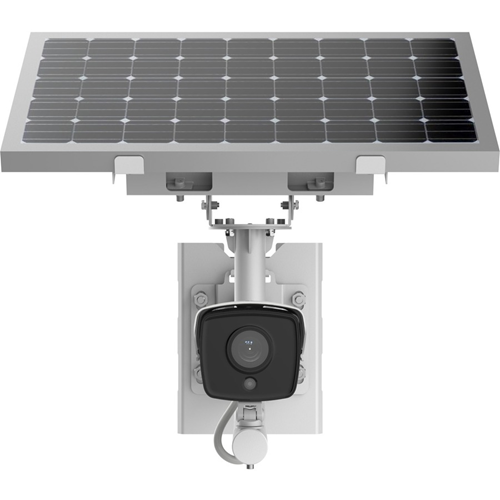

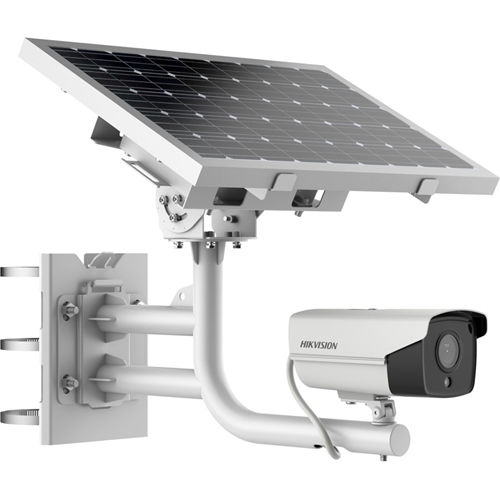

Hikvision DS-2XS6A25G0-I/CH20S40 Outdoor Solar Security IP Camera
Hikvision DS-2XS6A25G0-I/CH20S40 Outdoor HD Solar Powered 4G Bullet IP Camera w/ 4mm Lens, 30m Night Vision & Alarm (2 MP)
The Hikvision DS-2XS6A25G0-I/CH20S40 Outdoor HD Solar Power 4G Bullet IP Camera is designed to be used in areas that are not suitable for laying wired network and electric supply lines, or in tough environments with high demand for device stability. It can be used for monitoring farms, electric power cables, water and river systems, oil pipelines and key forest areas. It can also be used in temporary monitoring scenes, such as large-scale competitions, sudden public activity, temporary traffic control and city construction.
Hikvision DS-2XS6A25G0-I/CH20S40 Outdoor HD Solar Powered 4G Bullet IP Camera w/ 4mm Lens, 30m Night Vision & Alarm (2 MP)
Hikvision DS-2XS6A25G0-I/CH20S40 Outdoor Solar Security IP Camera
The Hikvision DS-2XS6A25G0-I/CH20S40 Outdoor HD Solar Power 4G Bullet IP Camera is designed to be used in areas that are not suitable for laying wired network and electric supply lines, or in tough environments with high demand for device stability. It can be used for monitoring farms, electric power cables, water and river systems, oil pipelines and key forest areas. It can also be used in temporary monitoring scenes, such as large-scale competitions, sudden public activity, temporary traffic control and city construction.
Key Features
- High quality imaging with 2 MP (1920 × 1080 @ 30 fps) resolution.
- Clear imaging against strong back light due to 120 dB true WDR (Wide Dynamic Range) technology.
- The solar panel battery can work up to seven days (in low consumption mode) in rainy or cloudy days if it is fully charged.*
- 40 W photovoltaic panel, 20 Ah chargeable lithium battery (sold separately, see accessories tab).
- Supports battery management, battery display, battery high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wakeup.
- LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission, support Micro SIM card.
- Camera: Water and dust resistant (IP67).
Specifications
Image Sensor
- 1/2.8″ Progressive Scan CMOS
Min. Illumination
- Colour: 0.004 Lux @ (F1.4, AGC ON),
- B/W: 0.002 Lux @ (F1.4, AGC ON), 0 Lux with IR on
Shutter Speed
- 1 s to 1/100,000 s
Slow Shutter
- Yes
P/N
- P/N
Wide Dynamic Range
- 120 dB
Day & Night
- IR cut filter
Lens
Lens Type
- Fixed Focus Lens
FOV (@F1.4)
- Horizontal: 86°
- Vertical: 46°
- Diagonal: 102°
Lens Mount
- M12
DORI
DORI
- D 53 m / O 21 m / R 11 m / I 5 m
Illuminator
IR Range
- Up to 30 m
Wavelength
- 850 nm
Smart Supplement Light
- Yes
Video
Max. Resolution
- 1920 × 1080
Main Stream
- 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
- 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
- 50Hz: 25fps (704 × 576, 640 × 480)
- 60Hz: 30fps (704 × 480, 640 × 480)
Third Stream
- 50Hz: 1fps (1280 × 720, 640 × 480)
- 60Hz: 1fps (1280 × 720, 640 × 480)
Video Compression
- Main stream: H.265+/H.265/H.264+/ H.264
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
Video Bit Rate
- 32 Kbps to 8 Mbps
H.264 Type
- Baseline Profile/Main Profile/High Profile
H.265 Type
- Main Profile
H.264+
- Main Stream supports
H.265+
- Main Stream supports
Bit Rate Control
- CBR/VBR
Stream Type
- Main stream/Sub-stream/third stream
Scalable Video Coding (SVC)
- H.265 and H.264 support
Region of Interest (ROI)
- 4 fixed regions for each stream
Network
Simultaneous Live View
- Up to 6 channels
API
- Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
Protocols
- TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
User/Host
- Up to 32 users. 3 user levels: administrator, operator and user
Security
- Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, TLS 1.2
Network Storage
- microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
- iVMS-4200, Hik-Connect, Hik-Central
Web Browser
- Plug-in required live view: IE8+
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
- Local service: Chrome 41.0+, Firefox 30.0+
4G
4G Frequency
- LTE-TDD: Band38/40/41;
- LTE-FDD: Band1/3/5/7/8/20/28;
- WCDMA: Band1/5/8
- GSM: Band3/5/8
4G Standard
- LTE-TDD/LTE-FDD/WCDMA/GSM
Smart IR
- The IR LEDs on camera should support Smart IR function to automatically adjust power to avoid image overexposure.
Day/Night Switch
- Day, Night, Auto, Schedule
Target Cropping
- Yes
Picture Overlay
- LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Image Enhancement
- BLC (Back Light Compensation), HLC (High Light Compensation), 3D DNR (Digital Noise Reduction), Defog
Image Parameters Switch
- Yes
Image Settings
- Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
SNR
- >52 dB
Privacy Mask
- 4 regions of privacy mask
Interface
RS-485
- 1 RS-485(half duplex)
On-board Storage
- Built-in micro SD slot, up to 256GB
Hardware Reset
- Yes
Communication Interface
- RJ45 10M/100M self-adaptive Ethernet port
4G
- micro SIM card
Event
Basic Event
- Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event (only supported in full power mode)
- Line Crossing Detection, up to 4 regions configurable
- Intrusion detection, up to 4 regions configurable
- Region entrance detection, up to 4 regions configurable
- Region exiting detection, up to 4 regions configurable
- Unattended baggage detection, up to 4 regions configurable
- Object removal detection, up to 4 regions configurable
- Scene change detection
General
Linkage Method
- Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
- Trigger recording: memory card, network storage, pre-record and post-record
- Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email
- Trigger notification: HTTP, ISAPI, Email
Online Upgrade
- Yes
Dual Backup
- Yes
Firmware Version
- V5.5.111
Web Client Language
- 33 languages
- English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
- Anti- flicker, 3 streams heartbeat, mirror, privacy masks,flash log, password reset via e-mail, pixel counter
Software Reset
- Yes
Storage Conditions
- -30 °C to 60 °C. Humidity 95% or less (non-condensing)
Startup and Operating Conditions
- -15 °C to 55 °C. Humidity 95% or less (non-condensing)
Power Supply
- 12 VDC ± 20%
Power Consumption and Current
- 1. On rainy or cloudy day, the camera battery life is up to 7 days (in low consumption mode) or 4.5 days (in high consumption mode) if it has been fully charged.
- 2. The daily effective sunlight is 1.77 hour and the camera can be online always (if it works continuously according to the 24-hour average power consumption).
Power Interface
- Ø5.5 mm coaxial power plug
Camera Material
- Front cover: metal
- Camera body: plastic
- Screw Material SUS304

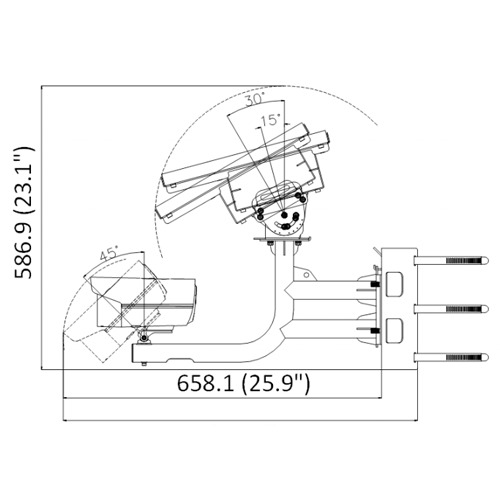

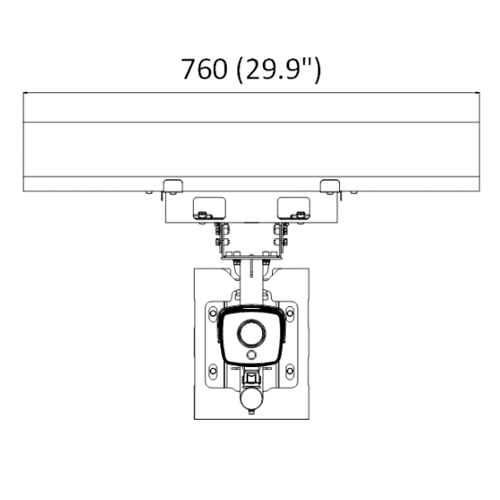

Camera Dimension
- 760 × 732.6 × 586.9 mm (29.9″ × 28.8″ × 23.1″) (Max. size of the camera after it is completely assembled)
Camera Weight
- Approx. 12964g (28.58 lb.)
With Package Weight
- Approx. 16861g (37.17 lb.)
Battery (sold separately, see accessories tab)
Battery Type
- Lithium
Capacity
- 20 Ah
Max. Charging Voltage
- 12.6 V
Operating Temperature
- -5 °C to 60 °C (23 °F to 140 °F)
Battery Voltage
- 10.8 V
Protection
- IP67
Battery Life
- More than 800 cycles
Approval
Class
- Class B
EMC
- CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015);
RF
- CE-RED (EN 301489-1 V2.2.3; EN 301489-52 V1.1.0; EN 62311:2008); ICASA (EN 301 489-1 V2.2.3; EN 301 489-52 V1.1.0;EN 62311:2008)
Safety
- CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013;IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013;EN 62368-1:2014+A11:2017);
Environment
- CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection
- Camera: IP67(IEC 60529-2013)
Function
EXIR Fixed Bullet Solar Power 4G Network Camera
It can be used in the areas that are not suitable for laying wired network and electric supply lines, or used for the scenes that feature tough environment and have high demanding for device stability. It can be used for monitoring the farms, electric power cables, water and river system, oil pipelines and key forest areas. It also can be used in the temporary monitoring scenes, such as the large-scale competitions, the sudden public activity, the temporary traffic control and the city construction.
- High quality imaging with 2 MP(1920 × 1080 @30 fps) resolution
- Clear imaging against strong back light due to 120 dB true WDR technology
- On rainy or cloudy day, the battery life is up to 5 days if it has been fully charged (when the camera works continuously under the 24-hour average power
- 40 W photovoltaic panel, 20 Ah chargeable lithium battery
- Support battery management, battery display, battery high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wakeup
- LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission, support Micro SIM card
- Camera: Water and dust resistant (IP66)

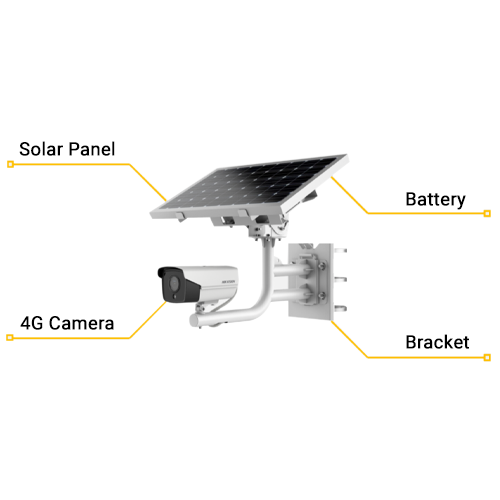

Standalone Security Site 4G Solar Panel Kit
This DS-2XS6A25G0-I/CH20S40 kit includes a 4G camera, a solar panel, and a bracket, and can provide one-stop monitoring in remote environments. This means providers can deliver connected security to scenarios such as agriculture, animal and forest observation, as well as temporary monitoring of construction sites.
No Power, No Network, No Problem
Having no power or network is no longer a problem with this kit, which provides power to the camera through the solar panel and connectivity through 4G. It sends data to a communication station and then on to the security monitoring centre, where it can be managed using HikCentral Professional or the Hik-Connect app. This means both monitoring and management activities, like viewing footage live, can be done remotely over the 4G network.
Lightweight Design
Its lightweight design makes the kit easy to install, so just one person can install it with a pole mount. The IP67 rating provides protection against most adverse weather conditions, and it also survives well against strong winds often experienced in remote areas.
This DS-2XS6A25G0-I/CH20S40 demonstrates long endurance, detecting power levels and automatically adjusting to power-saving mode when they are low. This means it can work continuously for up to seven days in cloudy and rainy weather when fully charged.
*We recommend to charge the solar panel for 12 hours before the installation in case the camera cannot start up due to the low battery
Warranty is invalidated by the incorrect installation of the product. In particular, failure to make correct use of the weather-proof gland will cause oxidation of the connector pins, resulting in irreparable damage to the camera.
