Hikvision DarkFighter 4MP Varifocal Bullet Network Camera DS-2CD5A46G0-IZHS(2.8-12mm)

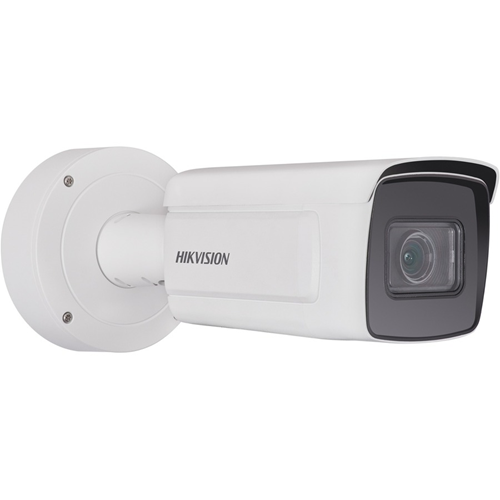

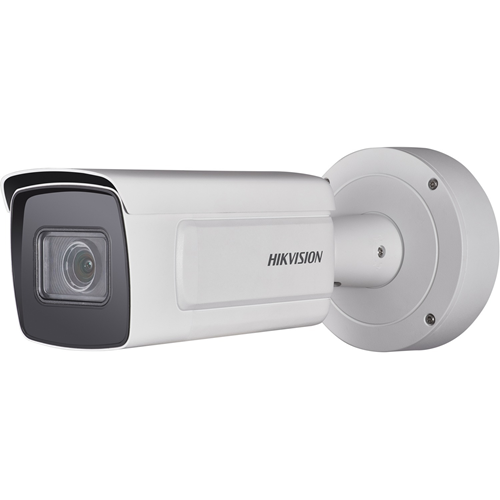

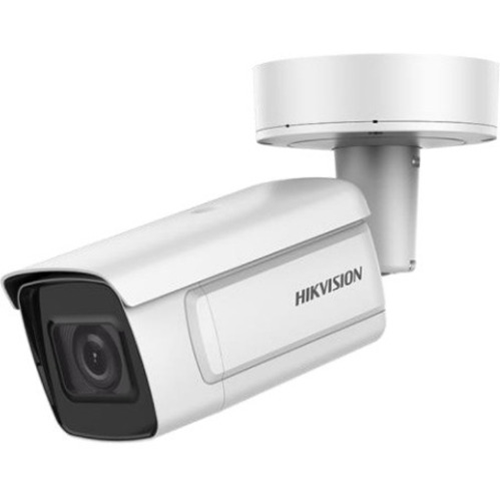

Hikvision DS-2CD5A46G0-IZHS(2.8-12mm) Varifocal Bullet Network Camera

The Hikvision DS-2CD5A46G0-IZHS(2.8-12mm) Varifocal Bullet Network Camera  belongs to the DarkFighter camera family. It can be used for wide ranges of high-definition, such as the river, forest, road, railway, airport, port, square, park, scenic spot, station and large venue, etc.

Key Features

• 1/1.8” Progressive Scan CMOS
• 2560 × 1440 @ 30 fps
• MJPEG up to 1920 × 1080 @ 30 fps
• 2.8 to 12 mm, 8 mm to 32 mm motorised lens
• H.265, H.265+, H.264, H.264+
• 5 defined streams and up to 5 custom streams
• 140dB WDR
• Alarm 2 inputs/2 outputs
• IP67, IK10
• Built-in microSD/SDHC/SDXC card slot, up to 256 GB
• Metadata of intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, and object removal are supported.

Specifications

Camera

• Image Sensor: 1/1.8″ Progressive Scan CMOS
• Min. Illumination: Colour: 0.002 Lux @ (F1.2, AGC ON), 0.005 Lux @ (F1.8, AGC ON), 0 Lux with IR on
• Shutter Speed: 1 s to 1/100,000 s
• Slow Shutter: Yes
• Day & Night: IR Cut Filter
• Wide Dynamic Range: 140 dB
• Digital Noise Reduction: 3D DNR
• Angle Adjustment: Bracket, pan: 0°to 355°, tilt: 0°to 90°, rotate: 0°to 360°

Lens

• Lens Type: Motorised lens, 2.8 to 12 mm
• Aperture: F1.2 to F2.5
• Focus: Auto, semi-auto, manual
• FOV: 2.8 to 12 mm, horizontal FOV 109.2° to 38.9°, vertical FOV 56.2° to 21.9°, diagonal FOV 134.5° to 45°
• Lens Mount: Integrated

Illuminator

• IR Range: Up to 50 m
• Wavelength: 850 nm

Video

• Max. Resolution: 2560 × 1440
• Video Stream: 5 defined streams and up to 5 custom stream
• Main Stream:
  – 50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  – 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub Stream:
  – 50Hz: 25fps (704 × 576, 640 × 480)
  – 60Hz: 30fps (704 × 480, 640 × 480)
• Third Stream:
  – 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
  – 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Fourth Stream:
  – 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
  – 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Fifth Stream:
  – 50Hz: 25fps (704 × 576, 640 × 480)
  – 60Hz: 30fps (704 × 480, 640 × 480)
• Custom Stream:
  – 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
  – 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Video Compression:
  – Main stream: H.265/H.264/H.265+/H.264+
  – Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.264+: Main stream supports
• H.265 Type: Main Profile
• H.265+: Main stream supports
• Video Bit Rate: 256 Kbps to 16 Mbps
• Scalable Video Coding (SVC): H.265 and H.264 support

Smart Feature-set

• Smart Event:
  – Line crossing detection, up to 4 lines configurable
  – Intrusion detection, up to 4 regions configurable
  – Region entrance detection, up to 4 regions configurable
  – Region exiting detection, up to 4 regions configurable
  – Unattended baggage detection, up to 4 regions configurable
  – Object removal detection, up to 4 regions configurable
  – Face detection: detects faces and upload images
  – Scene change detection, defocus detection
• Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Statistics: Counting
• Linkage Method: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
• Region of Interest: Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions for each stream and dynamic face tracking


• Image Enhancement: BLC, HLC, 3D DNR, Defog, EIS, Distortion Correction
• Image Setting: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
• Target Cropping: Yes
• Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In
• Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Network

• Network Storage: microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• API: ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• Smooth Streaming: Yes
• Security Measures: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2
• Simultaneous Live View: Up to 20 channels
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser:
  – Plug-in required live view: IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11
  – Plug-in free live view: Chrome 45+, Mozilla Firefox52+

Interface

• Communication Interface: 1 RJ45 10M/100M/1000M Ethernet port
• Alarm: 2 inputs, 2 outputs (24 VAC/VDC, 1A max)
• Video Output: 1Vp-p composite output (75 Ω/CVBS), only for adjustment
• On-board storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
• Interface Style: Socket style interface

General

• Firmware Version: 5.5.90
• Web Client Language: 32 languages – English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• Embedded Open Platform: Yes. The camera supports installation and running up to 4 extra applications.
• General Function: Anti flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, password protection, privacymask, flash log, password reset via e mail, pixel counter, control timeout setting
• Reset: Reset via reset button on camera body, web browser and client software
• Startup and Operating Conditions: -30 °C to 65 °C 22 °F to 149 °F), H: 4 0 °C to 65 °C 40 °F to 149 °, Humidity 95% or less (non condensing)
• Storage Conditions: -30 °C to 65 °C 22 °F to 149 °F), H umidity 95% or less (non condensing)
• Power Supply:
  – 12 VDC20%, two core terminal block , reverse polarity protection
  – PoE (802.3at, class 4)
• Power Consumption and Current: 12 VDC, 1.13 A, max. 13.5 W; PoE (802.3at, 42.5V to 57 V), 0.42 A to 0.32 A, max. 18 W
• Heater: Yes
• Material: Metal
• Dimensions:
  – Camera: Φ144 × 347 mm ( Φ 5.7 ″ × 13.7″)
  – With package: 405 × 190 × 180 mm (15.9 ″ × 7.5 ″ × 7.1
• Weight:
  – Camera: approx. 2.45 kg (5.40 lb.)
  – With package: approx. 2.70 kg (5.95 lb.)

Approval

• EMC: 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 610003 2: 2014, EN 61000 3 3: 2013, EN 50130 4:2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES 003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
• Safety: UL 609501, IEC 60950 1:2005 + Am 1:2009 + Am 2:2013, EN 60950 1:2005 + Am 1:2009 + Am2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
• Chemistry: 2011/65/EU, 2012/19/EU, Regulation (EC) No1907/2006
• Protection: Ingress protection:IK10 (IEC 62262:2002), IP67 (IEC 60529 2013)

Function

4MP DarkFighter Moto Varifocal Bullet Network Camera

• High quality imaging with 4 MP resolution
• Excellent low-light performance via DarkFighter technology
• Clear imaging against strong back light due to LightFighter technology
• Efficient H.265+ compression technology to save bandwidth and storage
• Advanced streaming technology enables smooth live view and data self-correction in poor networks
• 5 streams and up to 5 custom streams to meet a wide variety of applications
• Hikvision embedded open platform allows third party applications to be installed in Hikvision network cameras
• 6 behavior analyses, 3 exception detection, and face detection
• Water and dust resistant and vandal proof (IP67 and IK10).
