Camera

Image Sensor

• 1/2.4″ Progressive Scan CMOS

Min. Illumination

• Colour: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Shutter Speed

• 1/3 s to 1/100,000 s

Slow Shutter

• Yes

Wide Dynamic Range

• 120 dB

P/N

• P/N

Day & Night

• IR cut filter

Angle Adjustment

• Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Lens Type

• Fixed focal lens

Focal Length

• 2.8 mm

Field of View

• Horizontal: 105.1°; vertical: 53.4°; diagonal: 128.6°

Iris Type

• Fixed

Aperture

• F1.6

Lens Mount

• M12

DORI

DORI

• D: 78.6 m
• O: 31.2 m
• R: 15.7 m
• I: 7.9 m

Illuminator

Supplement Light Type

• IR

Smart Supplement Light

• Yes

IR Range

• Up to 60 m

IR Wavelength

• 850 nm

Video

Max. Resolution

• 3200 x 1800

Main Stream

• 50 Hz: 25 fps (3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720)
• 60 Hz: 30 fps (3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720)

Sub-Stream

• 50 Hz: 25 fps (640 x 480, 640 x 360)
• 60 Hz: 30 fps (640 x 480, 640 x 360)

Third Stream

• 50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
• 60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
  • Note: Third stream is supported under certain settings.

Video Compression

• Main stream: H.265/H.264/H.264+/H.265+
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264
  • Note: Third stream is supported under certain settings.

Video Bit Rate

• 32 Kbps to 16 Mbps

H.264 Type

• Baseline Profile/Main Profile/High Profile

H.265 Type

• Main Profile

H.264+

• Main stream supports

H.265+

• Main stream supports

Bit Rate Control

• CBR/VBR

Scalable Video Coding (SVC)

• H.264 and H.265 encoding

Region of Interest (ROI)

• 1 fixed region for main stream and sub-stream

Network

Simultaneous Live View

• Up to 6 channels

API

• Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK

Protocols

• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP

User/Host

• Up to 32 users
• 3 user levels: administrator, operator and user

Security

• Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Network Storage

• NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

• iVMS-4200, Hik-Connect, Hik-Central

Web Browser

• Plug-in required live view: IE 10+
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+
• Local service: Chrome 57.0+, Firefox 52.0+


Image Parameters Switch

• Yes

SNR

• > 52 dB

Target Cropping

• Yes

Day/Night Switch

• Day, Night, Auto, Schedule

Image Enhancement

• BLC, HLC, 3D DNR

Image Settings

• Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

On-Board Storage

• Built-in memory card slot, support microSD card, up to 256 GB

Reset Key

• Yes

Ethernet Interface

• 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic Event

• Motion detection (human and vehicle targets classification), video tampering alarm, exception

Smart Event

• Scene change detection

Deep Learning Function

Face Capture

• Yes

Perimeter Protection

• Line crossing detection, intrusion detection, region entrance detection, region exiting detection
• Supports human and vehicle targets classification

General

Linkage Method

• Upload to FTP/NAS/memory card, notify surveillance centre, send email, trigger recording, trigger capture

Firmware Version

• V5.5.113

Software Reset

• Yes

Power Interface

• Ø 5.5 mm coaxial power plug

Language

• 33 languages
  • Bulgarian
  • Chinese (Traditional)
  • Croatian
  • Czech
  • Danish
  • Dutch
  • English
  • Estonian
  • Finnish
  • French
  • German
  • Greek
  • Hungarian
  • Italian
  • Japanese
  • Korean
  • Latvian
  • Lithuanian
  • Norwegian
  • Polish
  • Portuguese (Brazil)
  • Portuguese (Europe)
  • Romanian
  • Russian
  • Serbian
  • Slovak
  • Slovenian
  • Spanish
  • Swedish
  • Thai
  • Turkish
  • Ukrainian
  • Vietnamese

General Function

• Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Startup and Operating Temperature

• -30°C to 60°C (-22°F to 140°F)

Startup and Operating Humidity

• 95% or less (non-condensing)

Storage Temperature

• -30°C to 60°C (-22°F to 140°F)

Storage Humidity

• 95% or less (non-condensing)

Power Supply

• 12 VDC ± 25%, reverse polarity protection
• PoE: 802.3af, Class 3

Power Consumption and Current

• 12 VDC, 0.63 A, max. 7.5 W
• PoE (802.3af, 36 V to 57 V), 0.25 A to 0.16 A, max. 9 W

Material

• Metal

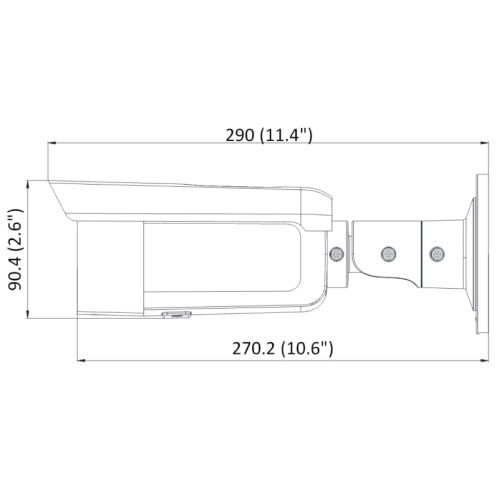

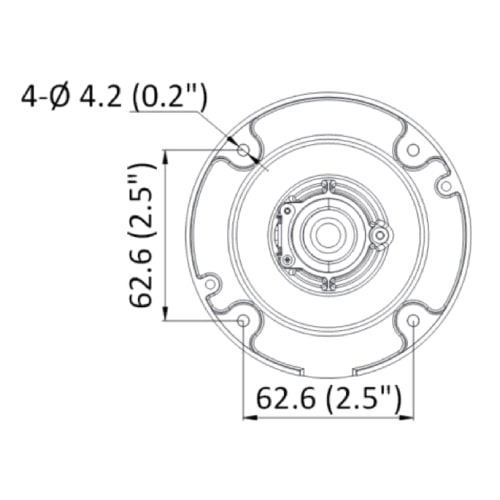

Dimension

• Ø 105 x 290 mm (Ø 4.1 x 11.4 in.)

Weight

• Approx. 1085 g (2.4 lb.)

Approval

EMC

• FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)

Safety

• UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)

Environment

• CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

• IP67 (IEC 60529-2013)

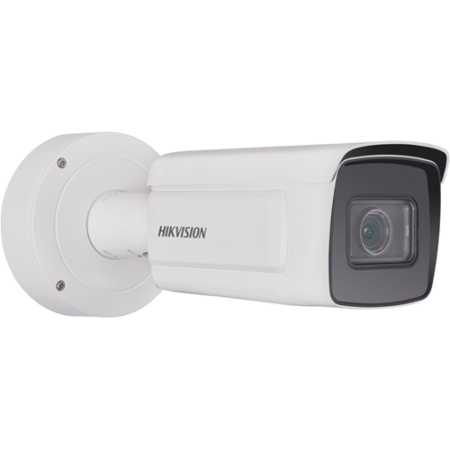

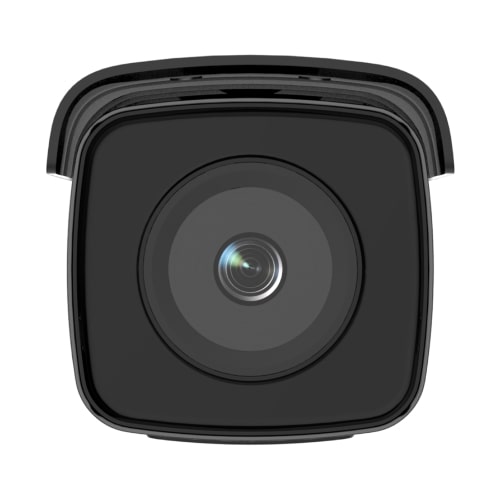

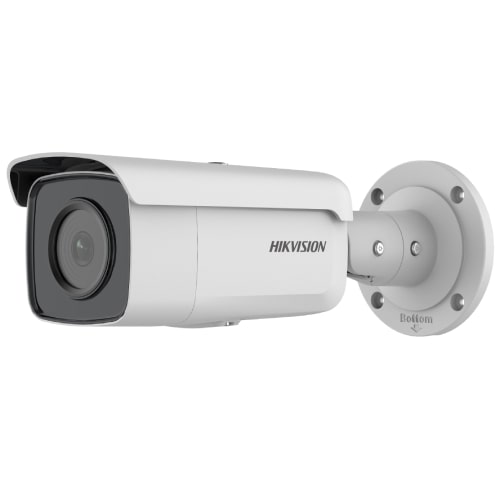

6 MP AcuSense Fixed Bullet Network Camera

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Water and dust resistant (IP67)
