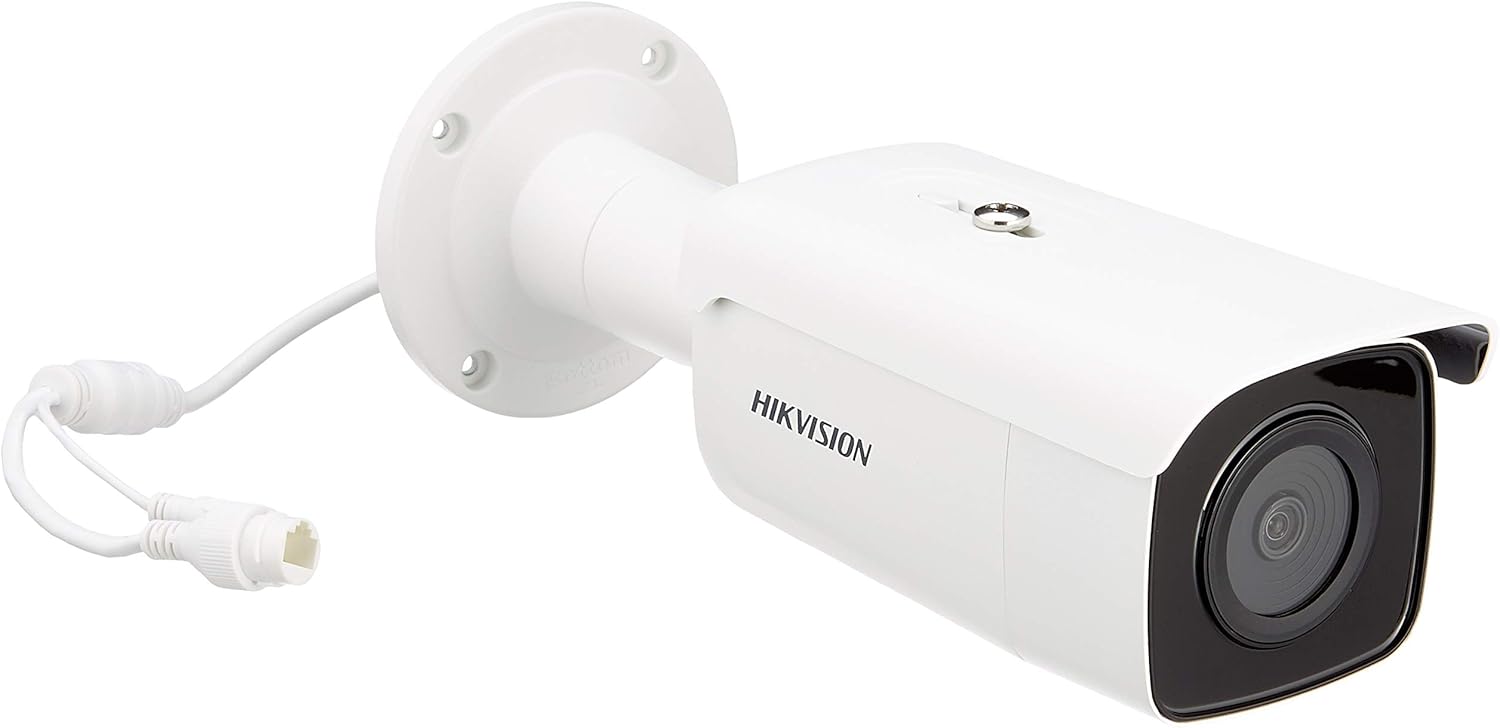

HikVision DS-2CD2T65G1-I8 Fixed Bullet Network Camera

HikVision 6 MP IR Fixed Bullet Network Camera (DS-2CD2T65G1-I8)

HikVision DS-2CD2T65G1-I8 Fixed Bullet Network Camera

The HikVision DS-2CD2T65G1-I8 Fixed Bullet Network Camera belongs to the DarkFighter camera family. It can be used for wide ranges of high-definition, such as the river, forest, road, railway, airport, port, square, park, scenic spot, station and large venue, etc.

Key Features

• Up to 6 megapixel high resolution
• Max. 3072 × 2048 @20fps
• 2.8 mm/4 mm/6 mm fixed lens, optional
• H.265, H.265+, H.264+, H.264
• 120dB WDR
• Powered by Darkfighter
• 12 VDC & PoE (802.3af, class 3)
• Support on-board storage, up to 128 GB
• IP67
• BLC/3D DNR/ROI/HLC
• Colour: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)

Specifications

Camera

• Image Sensor: 1/2.4″ Progressive Scan CMOS
• Min. Illumination: Colour: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Focal length: 2.8/4/6 mm
• Focus: Fixed
• Lens:
  – 2.8 mm, horizontal FOV: 99°, vertical FOV: 61°, diagonal FOV: 128°
  – 4 mm, horizontal FOV: 80°, vertical FOV: 51°, diagonal FOV: 101°
  – 6 mm, horizontal FOV: 60°, vertical FOV: 38°
• Lens Mount: M12
• Aperture: F1.6
• Day & Night: IR cut filter
• DNR: 3D DNR
• Wide Dynamic Range: 120dB
• 3-Axis Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Compression Standard

• Video Compression:
  – Main stream: H.265/H.264
  – Sub-stream: H.265/H.264/MJPEG
  – Third stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Main stream supports
• H.265 Type: Main Profile
• H.265+: Main stream supports
• Video Bit Rate: 32 Kbps to 16 Mbps


• Max. Resolution: 3072 × 2048
• Main Stream:
  – 50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 ×720)
  – 60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30 fps (2560 × 1440, 1920 × 1080, 1280 ×720)
• Sub-Stream:
  – 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
  – 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream:
  – 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
  – 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
• Image Enhancement: BLC/3D DNR/HLC
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
• ROI (Region of Interest): Support 1 fixed region for main stream and sub-stream separately
• Day/Night Switch: Day/Night/Auto/Schedule

* Note: When the main stream resolution is 2944 × 1656 and above, max frame rate is 20 fps for all streams.

Network

• Network Storage: Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
• Alarm Trigger: Motion detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• General Function: One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Firmware Version: V5.5.80
• API: ONVIF (PROFILE S, PROFILE G), ISAPI
• Simultaneous Live View: Up to 6 channels
• User/Host:
  – Up to 32 users
  – 3 levels: Administrator, Operator and User
• Client: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
• Web Browser:
  – Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
  – Plug-in free live view: Chrome 45.0+, Firefox 52.0+

Interface

• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• On-board Storage: Built-in micro SD/SDHC/SDXC slot, up to 128 GB
• Reset Button: Yes

Smart Feature-set

• Behavior Analysis: Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
• Exception Detection: Scene change detection
• Face Detection: Yes

General

• Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
• Power Supply:
  – 12 VDC ± 25%, 5.5 mm coaxial power plug
  -PoE (802.3af, class 3)
• Power Consumption: 12 VDC, 1.0 A, max: 11 W, PoE: (802.3af, 36 VDC to 57 VDC), 0.4 A to 0.1 A, max: 12.9 W
• IR Range: Up to 80 m
• Wavelength: 850 nm
• Protection Level: IP67
• Material: Front cover: metal, back cover: metal
• Dimensions: Camera: Φ105 × 289.5 mm (4.1″ × 11.4″)
• Weight:
  – Camera: 1000 g (2.2 lb.)
  – With package: 1500 g (3.3 lb.)

6 MP Powered-by-DarkFighter Fixed Bullet Network Camera

• High quality imaging with 6 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Water and dust resistant (IP67)
• Robust structure design with full metal materials.
