Camera

Image Sensor

• 1/2.8″ Progressive Scan CMOS

Max. Resolution

• 3840 × 2160

Min. Illumination

• Colour: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Shutter Speed

• 1/3 s to 1/100,000 s

Day & Night

• IR cut filter

Angle Adjustment

• Pan: -30° to 30°
• Tilt: 0° to 75°
• Rotate: 0° to 360°

Lens

Lens Type

• 2.8mm, fixed focal lens

Iris Type

• Fixed

Field of View

• Horizontal: 106.4°
• Vertical: 58.4°
• Diagonal: 124.8°

Aperture

• F1.6

Lens Mount

• M12

Depth of Field

• 1.4 m+

DORI

DORI

• D: 88 m
• O: 35 m
• R: 18 m
• I: 9 m

Illuminator

Supplement Light Type

• IR

IR Range

• Up to 30 m

IR Wavelength

• 850 nm

Smart Supplement Light

• Yes

Video

Main Stream

• 50Hz: 20 fps (3840 × 2160), 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• 60Hz: 20 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub Stream

• 50Hz: 25 fps (640 × 480, 640 × 360)
• 60Hz: 30 fps (640 × 480, 640 × 360)

Third Stream

• 50Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Note: Third stream is supported under certain settings.

Video Compression

• Main stream: H.265/H.264/H.264+/H.265+
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264

Note: Third stream is supported under certain settings.

Video Bit Rate

• 32 Kbps to 16 Mbps

H.264 Type

• Baseline Profile/Main Profile/High Profile

H.265 Type

• Main Profile

Bit Rate Control

• CBR/VBR

Scalable Video Coding (SVC)

• H.264 and H.265 encoding

Region of Interest (ROI)

• 1 fixed region for main stream and sub-stream

Audio

Environment Noise Filtering

• Yes

Audio Sampling Rate

• 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Audio Compression

• G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC

Audio Bit Rate

• 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Network

Simultaneous Live View

• Up to 6 channels

API

• Open Network Video Interface (Profile S, Profile G), ISAPI, SDK

Protocols

• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE

User/Host

• Up to 32 users
• 3 user levels: administrator, operator and user

Security

• Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Network Storage

• NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Client

• iVMS-4200, Hik-Connect, Hik-Central

Web Browser

• Plug-in required live view: IE 10, IE 11
• Plug-in free live view : Chrome 57.0+, Firefox 52.0+
• Local service: Chrome 57.0+, Firefox 52.0+


Wide Dynamic Range (WDR)

• 120 dB

SNR

• = 52 dB

Day/Night Switch

• Day, Night, Auto, Schedule

Image Enhancement

• BLC (Backlight Compensation), HLC (Highlight Compensation ), 3D DNR (Digital Noise Reduction)

Image Parameters Switch

• Yes

Image Settings

• Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

Alarm

• 1 input, 1 output (max. 12 VDC, 20 mA)

Audio

• 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K ohms, interface type: non-equilibrium
• 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ohms, interface type: non-equilibrium

Built-in Microphone

• Yes

On-board Storage

• Built-in memory card slot, support microSD card, up to 256 GB

Reset Key

• Yes

Ethernet Interface

• 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic Event

• Motion detection (human and vehicle targets classfication), video tampering alarm, exception

Smart Event

• Line crossing detection, intrusion detection

Linkage

• Upload to FTP/memory card/NAS, notify surveillance centre, trigger recording, trigger capture, send email

Deep Learning Function

Face Capture

• Yes

Perimeter Protection

• Line crossing, intrusion Support alarm triggering by specified target types (human and vehicle)

General

Web Client Language

• 33 languages
  • Bulgarian
  • Chinese (Traditional)
  • Croatian
  • Czech
  • Danish
  • Dutch
  • English
  • Estonian
  • Finnish
  • French
  • German
  • Greek
  • Hungarian
  • Italian
  • Japanese
  • Korean
  • Latvian
  • Lithuanian
  • Norwegian
  • Polish
  • Portuguese (Brazil)
  • Portuguese (Europe)
  • Romanian
  • Russian
  • Serbian
  • Slovak
  • Slovenian
  • Spanish
  • Swedish
  • Thai
  • Turkish
  • Ukrainian
  • Vietnamese

General Function

• Anti-flicker, heartbeat, password reset via e-mail, pixel counter

Storage Conditions

• -30°C to 60°C (-22°F to 140°F)
• Humidity 95% or less (non-condensing)

Startup and Operating Conditions

• -30°C to 60°C (-22°F to 140°F)
• Humidity 95% or less (non-condensing)

Power Supply

• 12 VDC ± 25%, 0.54 A, max. 6.5 W, 5.5 mm coaxial power plug, reverse polarity protection
• PoE: (802.3af, Class 3, 36 V to 57 V), 0.22 A to 0.14 A, max. 8 W

Material

• Base: aluminum, cover: plastic

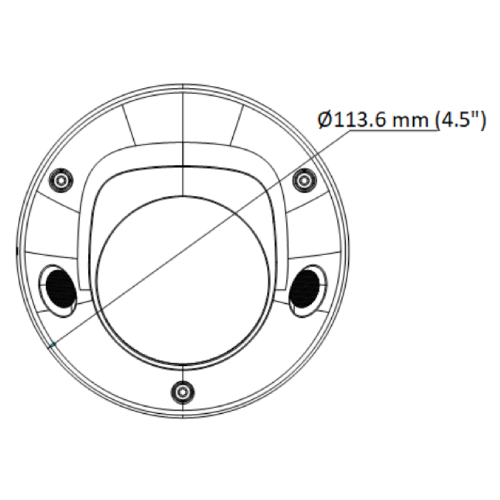

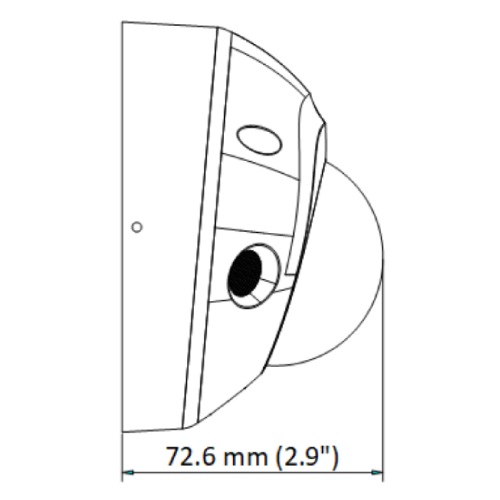

Dimensions

• 113.6 mm × 72.6 mm (4.5 × 2.9 in.)

Weight

• Approx. 400 g (0.9 lb.)

Approval

EMC

• FCC (47 CFR Part 15, Subpart B)
• CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
• RCM (AS/NZS CISPR 32: 2015)
• IC (ICES-003: Issue 7)
• KC (KN32: 2015, KN35: 2015)

Safety

• UL (UL 62368-1)
• CB (IEC 62368-1: 2014+A11)
• CE-LVD (EN 62368-1: 2014/A11: 2017)

Environment

• CE-RoHS (2011/65/EU
• WEEE (2012/19/EU)
• Reach (Regulation (EC) No 1907/2006)

Protection

• IP67 (IEC 60529-2013)
• IK10 (IEC 62262: 2002)

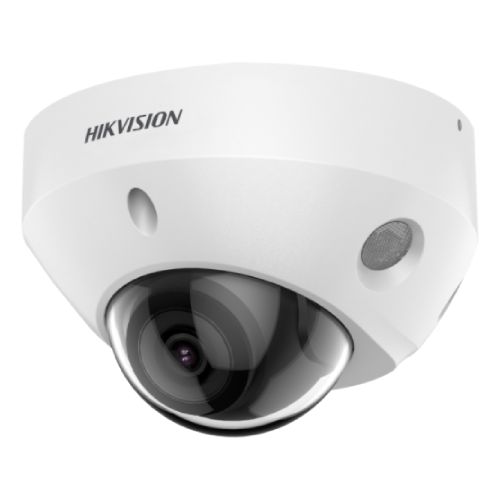

8 MP AcuSense Fixed Mini Dome Network Camera

• High quality imaging with 8 MP resolution
• Clear imaging against strong backlight due to 120 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• -S: Audio and alarm interface available
• Water and dust resistant (IP67) and vandal resistant (IK08)
