HikVision 2 MP IR Varifocal Dome Network Camera DeepinView Series (DS-2CD7126G0-IZS)

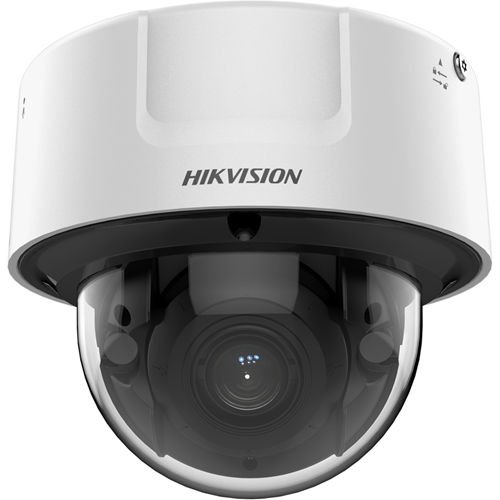

HikVision DS-2CD7126G0-IZS Varifocal Dome Camera

The HikVision DS-2CD7126G0-IZS Varifocal Dome Camera is a 2MP IR Varifocal Dome Network Camera in the Dark Fighter family.

Key Features

• 1/1.8” Progressive Scan CMOS
• 1920 × 1080 @ 60fps
• MJPEG up to 1920 × 1080 @ 30fps
• 2.8 to 12 mm/8 to 32 mm motorised lens
• Colour: 0.002 Lux @ (F1.2, AGC ON), 0.004 Lux @ (F1.6, AGC ON), 0 Lux with IR
• H.265, H.265+, H.264, H.264+
• 140dB WDR
• IR range: up to 30 m
• Alarm 1 input/1 output, audio 1 input/1 output, RS 485
• IK10
• 5 streams and up to 5 custom streams
• 6 behavior analyses, 3 exception detection and face detection
• Built-in microSD/SDHC/SDXC card slot, up to 256 GB
• Metadata of intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection and object removal are supported.

Specifications

Camera

• Image Sensor 1/1.8ʺ Progressive Scan CMOS
• Min. Illumination: Colour: 0.002 Lux @ (F1.2, AGC ON), 0.004 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed: 1 s to 1/100,000 s
• Slow Shutter: Yes
• Day & Night: IR Cut Filter.
• WDR: 140 dB
• Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

• Lens Type: Motorised lens, 2.8 to 12 mm and 8 to 32 mm optional
• Aperture:
  – 2.8 to 12 mm: F1.2 to 2.5
  – 8 to 32 mm: F1.6, Constant F1.6 throughout the zoom range
• Focus: Auto, semi-auto, manual
• FOV:
  – 2.8 to 12 mm, horizontal FOV 103.3° to 38.6°, vertical FOV 54.2° to 21.9°, diagonal FOV 124.2° to 44.3°
  – 8 to 32 mm, horizontal FOV 42.5° to 13.4°, vertical FOV 23.4° to 7.7°, diagonal FOV 49° to 15.3°
• Lens Mount: Integrated

Illuminator

• IR Range: Up to 30 m
• Wavelength: 850 nm

Video

• Max. Resolution: 1920 × 1080
• Video Stream: 5 defined streams and up to 5 custom stream
• Main Stream:
  – 50Hz: 50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720)
  – 60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub Stream:
  – 50Hz: 25fps (704 × 576, 640 × 480)
  – 60Hz: 30fps (704 × 480, 640 × 480)
• Third Stream:
  – 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480)
  – 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
• Fourth Stream:
  – 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
  – 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Fifth Stream:
  – 50Hz: 25fps (704 × 576, 640 × 480)
  – 60Hz: 30fps (704 × 480, 640 × 480)
• Custom Stream:
  – 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
  – 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Video Compression:
  – Main stream: H.265+/H.265/H.264+/H.264
  – Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/ MJPEG

Video

• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.264+: Main stream support
• H.265 Type: Main Profile
• H.265+: Main stream support
• Video Bit Rate: 32 Kbps to 16 Mbps
• Scalable Video Coding (SVC): H.264 and H.265 encoding

Audio

• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)
• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Smart Feature-Set

• Smart Event:
  – Line crossing detection up to 4 lines configurable
  – Intrusion detection up to 4 regions configurable
  – Region entrance detection up to 4 regions configurable
  – Region exiting detection up to 4 regions configurable
  – Unattended baggage detection up to 4 regions configurable
  – Object removal detection up to 4 regions configurable
  – Face detection detects faces and upload images
  – Scene change detection, audio exception detection, defocus detection
• Basic Event: Motion detection video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Face Capture:
  – Face detection performance: detects up to 30 faces at the same time
  – Detectable face position supports swing left and right from -65° to 65°, tilt up and down from -45° to 45°
• Perimeter Protection:
  – Line crossing, intrusion, region entrance, and region exiting
  – Support alarm triggering by specified target types (human and vehicle)
  – Filtering out false alarm caused by target types such as leaf, light, animal, and flag etc.
• Statistics: Counting
• Linkage Method: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
• Region of Interest: Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions and dynamic face tracking for each stream


• Image Enhancement: BLC, HLC, 3D DNR, Defog, EIS, distortion correction
• Image Setting: Rotate mode, Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
• Target Cropping: Yes
• Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In
• Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Network

• Network Storage: microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• API: ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
• Smooth Streaming: Yes
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings security audit log, TLS 1.2
• Simultaneous Live View: Up to 20 channels
• User/Host: Up to 32 users. 3 user levels, administrator, operator and user
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser:
  – Plug-in required live view: IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11
  – Plug-in free live view: Chrome 45+, Mozilla Firefox52+

Interface

• Audio: 1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
• Communication Interface:
  – 1 RJ45 10M/100M/1000M Ethernet port
  – 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Alarm: 1 input, 1 output (max. 24 VDC/VAC, 1A)
• Video Output: 1Vp-p composite output (75 Ω/CVBS), only for adjustment
• Power Output: 12 VDC, max. 200mA
• Interface Style: Socket style interface
• On-board storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB

General

• Firmware Version: 5.5.90
• Web Client Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General Function: Anti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
• Reset: Reset via reset button on camera body, web browser and client software
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
• Power Supply: 12 VDC is recommended, 10 to 48 VDC; reverse polarity protection; two-core terminal block; PoE (802.3af, class 3)
• Power Consumption and Current:
  – With extra load: 12 VDC, 0.8 A, max. 10.5 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, class 3
  – Without extra load: 12 VDC, 0.6 A, max. 8.0 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, class 3 “with extra load” means that an extra device is connected to and powered by the camera.
• Material: Metal
• Dimensions:
  – Camera: Φ140.5 × 122.6 mm (Φ5.5ʺ × 4.8ʺ)
  – With package: 244 × 174 × 173 mm (9.6ʺ × 6.9ʺ × 6.8ʺ)
• Weight:
  – Camera: approx. 950 g (2.09 lb.)
  – With Package: approx. 1300 g (2.87 lb.)

Approval

• EMC: 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
• Safety: UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
• Chemistry: 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
• Protection: Ingress protection: IK10 (IEC 62262:2002)

Function

2 MP DeepinView Indoor Moto Varifocal Dome Camera

• High quality imaging with 2 MP resolution
• Excellent low-light performance via DarkFighter technology
• Clear imaging against strong back light thanks to LightFighter technology
• Intelligent functions based on deep learning
• Efficient H.265+ compression technology to save bandwidth and storage
• Advanced streaming technology enables smooth live view and data self-correction in poor networks
• 5 streams and up to 5 custom streams to meet a wide variety of applications
• 6 behavior analyses, 3 exception detection, and face detection
• Vandal proof (IK10).
