Connectix Black 001-003-003-34 F/FTP Solid Ethernet CAT6a Cable Reel / Box
£341.44 inc.VAT / £284.53 exc.VAT

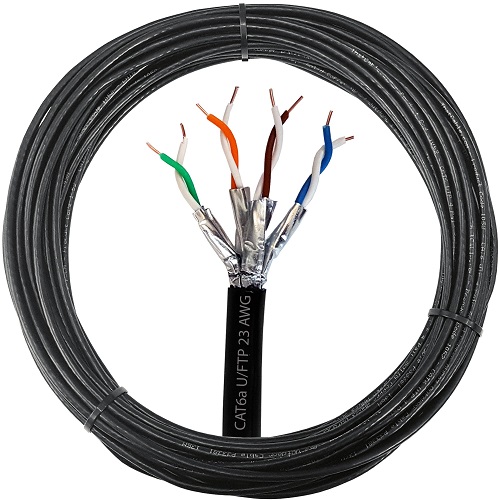

Connectix 001-003-003-34 CAT6a F/FTP Solid Ethernet Cable Reel, 305m, Black, LDPE (Boxed)
Connectix Black 001-003-003-34 F/FTP Solid Ethernet CAT6a Cable Reel / Box has been designed to provide the exceptional performance required to support extremely high speed applications, including 10-Gigabit Ethernet.
Connectix 001-003-003-34 CAT6a F/FTP Solid Ethernet Cable Reel, 305m, Black, LDPE (Boxed)
Connectix Black 001-003-003-34 F/FTP Solid Ethernet CAT6a Cable Reel / Box has been designed to provide the exceptional performance required to support extremely high speed applications, including 10-Gigabit Ethernet.

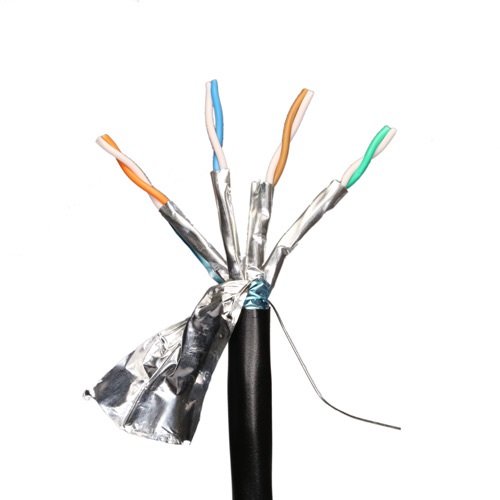

The individually shielded pairs ensure maximum transmission, free from the problems of NEXT and alien cross-talk. The sheath is a Low-density polyethylene (LDPE) material, suitable for use outside.
CAT6A F/UTP means the cable consists of 4 unshielded twisted pairs however it contains an outer foil shield. This is a shielded cable.
There is also S/FTP (screened/foiled twisted pair) cable, normally a CAT7 cable that has four individually shielded pairs and an outer screen braid around all four pairs.
F/UTP (FOILED WITH UNSHIELDED TWISTED PAIRS) Often referred to as FTP, this type of cable features an overall foil shield wrapped around unshielded twisted pairs and a drain wire.When the drain wire is correctly connected, unwanted noise is redirected to ground, offering extra protection against EMI/RFI
Key Features
- CAT6a performance.
- Black LDPE outer sheath.
- Pure copper cores.
- Jacket diameter: 7.5 + 0.4 mm.
- Comes in 305 m box.
| Color | BLACK |
|---|---|
| Length | 305m |
