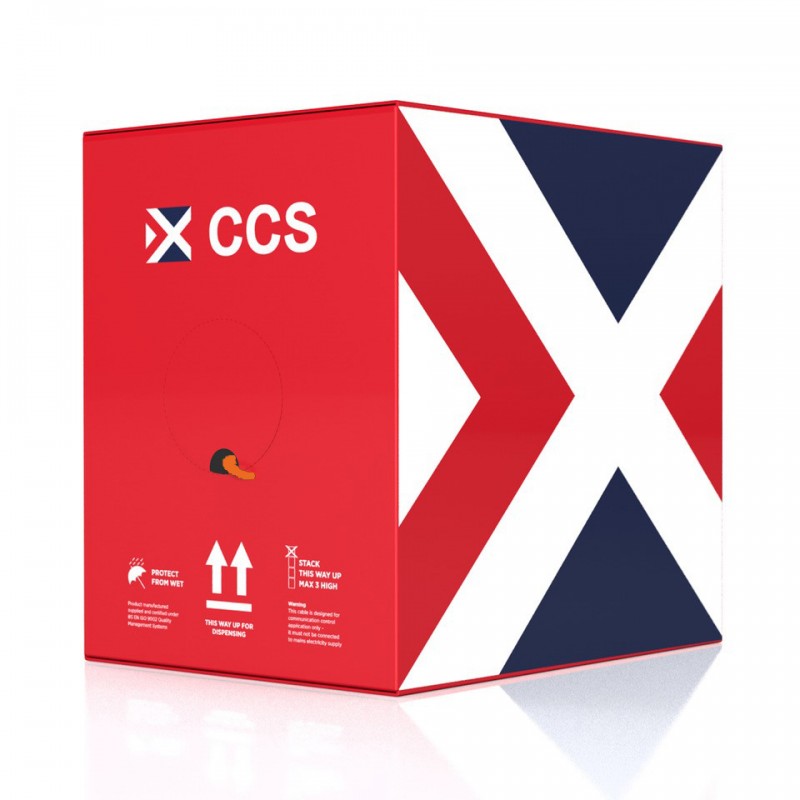

Connectix Orange 001-003-003-08 U/FTP Solid Ethernet CAT6a Cable Reel / Box
£241.20 inc.VAT / £201.00 exc.VAT
Connectix 001-003-003-08 CAT6A U/FTP Solid Ethernet Cable, 305m, Orange, LSZH (Boxed)
Please Note:Â This cable must be terminated to a module
The Connectix 001-003-003-08 Category 6 Unshielded Twisted Pair Cable is designed for use in next generation data communications networks & applications including Gigabit Ethernet.
Connectix 001-003-003-08 CAT6A U/FTP Solid Ethernet Cable, 305m, Orange, LSZH (Boxed)
Connectix Orange 001-003-003-08 U/FTP Solid Ethernet CAT6a Cable Reel / Box
                   Please Note: This cable must be terminated to a module
Connectix Orange 001-003-003-08 U/FTP Solid Ethernet CAT6a Cable Reel / Box is designed for use in next generation data communications networks, and will comfortably support all present applications including Gigabit Ethernet.
Connectix Category 6A U/FTP Cable has been designed to provide the exceptional performance required to support extremely high speed applications, including 10-Gigabit Ethernet.
The B2ca LSZH sheath offers excellent fire performance, making it the ideal choice in public buildings and other high-risk locations.
The individually shielded pairs ensure maximum transmission, free from the problems of NEXT and alien cross-talk.
Key Features
- Suitable for Gigabit Ethernet applications.
- Pure copper cores.
- CAT6a performance.
- Individually shielded pairs ensure maximum transmission.
- UL tested.
- Orange LSZH (Low Smoke Zero Halogen) outer sheath.
- Every box individually tested in the UK.
- Supplied in 305m reel, metre-marked for easy installation.
- Excellent performance exceeding ANSI/TIA Enhanced Category 6A specifications.
Specifications
Operating temperature (T-T)
- -20°C up to +60 °C
Conforms to
- IEEE 802.3: 10Base-T, 100Base-T, 1000Base-T, 10GBase-T standards; ANSI/TIA 568C; ISO/IEC 11801; RoHS2002/95/EC
Fire Rating
- B2ca,s1a,d1,a1
Insulation
- Skin-foam-skin Polyethylene, Ø 1.33 mm
Min. Bending Radius Installation
- 60mm
Min. Bending Radius Installed
- 30mm
Installation temperature (T-T)
- 0°C to +50°C
Conductor
- Bare copper wire (AWG 23)
Drain Wire
- yes
Shield Around Each Pair
- Al/Mylar
Sheath
- FR-LSZH
Outer Diameter
- 7.4mm
Max. Pulling Tension
- 78n
Standard Warranty: N/A
| Color | ORANGE |
|---|---|
| Length | 305m |
