WatchGuard WGA15701 AP125 Dual-Band PoE WiFi 5 Access Point (AC)
£0.00 inc.VAT / £0.00 exc.VAT
WatchGuard AP125 WiFi 5 PoE Access Point w/ 1-Year Basic WiFi (1167Mbps AC) WGA15701
The WatchGuard WGA15701 AP125 Dual-Band WiFi 5 PoE Access Point is exactly what you’ve been looking for – a small and affordable indoor access point that comes equipped with 2×2 802.11ac Wave 2 Multi-User MIMO (MU-MIMO). This access point also offers dual concurrent 5 GHz and 2.4 GHz band radios, and data rates of up to 867 Mbps and 300 Mbps, respectively. Common use cases include lower-density environments such as small schools, distributed remote offices and small meeting rooms.
Out of stock
WatchGuard AP125 WiFi 5 PoE Access Point w/ 1-Year Basic WiFi (1167Mbps AC) WGA15701
WatchGuard WGA15701 AP125 Dual-Band PoE WiFi 5 Access Point (AC)
The WatchGuard WGA15701 AP125 Dual-Band WiFi 5 PoE Access Point is exactly what you’ve been looking for – a small and affordable indoor access point that comes equipped with 2×2 802.11ac Wave 2 Multi-User MIMO (MU-MIMO). This access point also offers dual concurrent 5 GHz and 2.4 GHz band radios, and data rates of up to 867 Mbps and 300 Mbps, respectively. Common use cases include lower-density environments such as small schools, distributed remote offices and small meeting rooms.
Key Features
- Includes a one (1) year subscription to WatchGuard’s Basic WiFi service.
- Wave 2 chipset offers the latest MU-MIMO technology to provide optimal airtime efficiency.
- Measuring under 6 inches (148mm) square, this small access point packs a real punch.
- AP125 takes less than two minutes to activate and configure after connecting to the WiFi Cloud.
- Support for up to eight individual SSIDs per radio allows for maximum flexibility in network design.
- Band steering manages spectrum efficiency, pushing clients to 5 GHz channels for optimal throughput.
Includes Basic WiFi Licence
This WatchGuard Basic WiFi licence provides a 1-year subscription to WatchGuard’s Basic WiFi service. Use the Gateway Wireless Controller on a WatchGuard Firebox to configure, manage and monitor WatchGuard access points directly from the Firebox.
Basic WiFi Includes:
- Management Platform
Requires Firebox appliance with active support contract - Configuration and Management
SSID configuration with VLAN support, band steering, smart steering, fast roaming, user bandwidth control, WiFi traffic dashboard. - Support
Hardware warranty with advance hardware replacement, customer support, and software updates.
Uniquely Effective Approach to Security
The WatchGuard WGA15701 AP125 Dual-Band WiFi 5 PoE Access Point supports the only Wireless Intrusion Prevention System (WIPS) in the industry with high accuracy in classifying access points and client devices. This properly enables automatic prevention of WiFi threats, keeping a network protected from wireless man-in-the middle attacks, evil twins, honeypots, and more.
Flexible Management Options
You can manage the WatchGuard WGA15701 AP125 Dual-Band WiFi 5 PoE Access Point with either a Firebox via the Gateway Wireless Controller (with a lightweight feature set), or with WatchGuard’s WiFi Cloud. With the WiFi Cloud you get an expanded set of features including patented security, social-enabled captive portals, and location-based analytics for optimal business insights. IT pros can also enjoy an entirely controller-less WiFi management experience including setup, configuration, monitoring, troubleshooting, and improved corporate and guest WiFi access, without worrying about the limitations of legacy controller infrastructure. WiFi Cloud environments easily scale from one to an unlimited number of access points across multiple locations. Access points can be grouped in many ways including location, building, floor, and customer to maintain consistent policies.
Performance Without Compromise
Incorporating the latest 802.11ac Wave 2 standards, you’ll have speeds of up to 867 Mbps over the air, without sacrificing security. With MU-MIMO, you get a faster user experience, serving multiple devices (smartphones, tablets, laptops) at the same time, so more clients can utilise the network more efficiently.
Specifications
Physical Specifications
Physical Dimensions
- 148mm x 148mm x 33mm
Weight
- 237g (0.522 lb)
Operating Temperature
- 0ºC – 45ºC (32ºF – 113ºF)
Storage Temperature
- -20ºC – 65ºC (-4ºF – 149ºF)
Humidity
- 5% to 95%, non-condensing
Processor RAM
- Qualcomm IPQ4028 717 MHz quad-core ARM processor with 256 MB RAM and 64 MB Flash

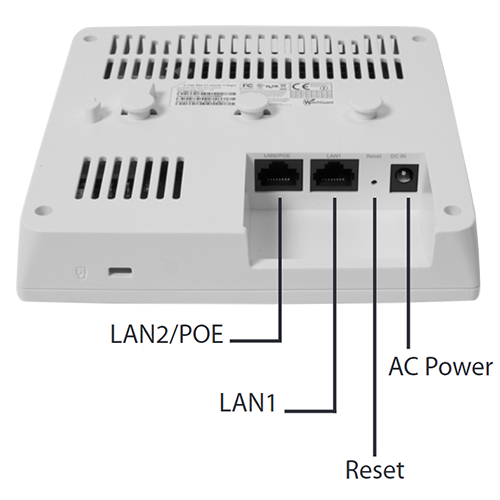

Ports
Power
- Description:
- 12V DC/802.3af (PoE)
- Connector Type:
- 5.5mm overall diameter/2.1mm centre pin/hole
Reset
- Description:
- Reset to factory default settings
- Connector Type:
- Pin hole push button
- Speed/Protocol:
- Hold down and power cycle the device to reset
LAN1
- Description:
- Gigabit Ethernet port that can be used for wired extension for an SSID
- Connector Type:
- RJ-45
- Speed/Protocol:
- 10/100/1000 Mbps Gigabit Ethernet
LAN2/PoE
- Description:
- Gigabit Ethernet port used to connect to the wired LAN and communicate with the WatchGuard Wi-Fi Cloud.
- This port can also be used to power the device using the 802.3af (PoE) standard.
- Connector Type:
- RJ-45
- Speed/Protocol:
- 10/100/1000 Mbps Gigabit Ethernet
- 802.3af Class 0 PoE (PoE input voltage: 48V)
WiFi Specifications (IEEE 802.11b/g/n)
Frequency Band
- Scanning:
- 2400 ~ 2483.5 MHz
- Transmission:
- 2400 ~ 2483.5 MHz
Modulation Type
- DSSS, OFDM
Peak Data Rates
- Up to 300Mbps (MCS 0-15)
Antenna
- Integrated modular high efficiency PIFA antenna x4 (2 per band)
WiFi Specifications (IEEE 802.11a/n/ac)
Frequency Band
- Scanning:
- 4.92 ~ 5.08 GHz
- 5.15 ~ 5.25 GHz
- 5.25 ~ 5.35 GHz
- 5.47 ~ 5.725 GHz
- 5.725 ~ 5.825 GHz
- Transmission:
- 5.15 ~ 5.25 GHz
- 5.25 ~ 5.35 GHz
- 5.47~ 5.725 GHz
Dynamic Frequency Selection
- DFS and DFS2
Modulation Type
- OFDM
Peak Data Rates
- Up to 867 Mbps (MCS 0-15)
Antenna
- Integrated modular high efficiency PIFA omnidirectional antenna
Operational Specifications
Input Power
- 12V DC/1.5A (5.5mm overall diameter/2.1 centre pin/hole)/802.3af (PoE)
Number of Radios
- 2 x radios (one 2.4GHz and 5GHz radio each for simultaneous dual band client access)
Max Clients Supported
- 512 clients per radio (dependent upon cases)
MIMO
- 2×2 for 2.4/5GHz Radios
Number of Spatial Streams
- 2 for 2.4/5GHz Radios
RF Transmit Power
- 20 dBm per radio chain (max)
- Note:Â Actual power for Tx will depend on Country Regulatory Domain
Users in a MU-MIMO group with a 2×2 client
- One (1)
Bandwidth Agility
- Yes
Frequency Bands
- 2.4-2.4835 GHz, 4.9-5.0GHz, 5.15-5.25 GHz; (UNII-1), 5.25-5.35 GHz, 5.47-5.6 GHz, 5.650-5.725 GHz (UNII-2), 5.725-5.85 GHz (UNII-3)
Dynamic Frequency Selection
- Supported in compliance to all latest amendments from FCC, CE, IC, CB, TELEC, KCC regarding certifications.
Maximum Transit Power – 2.4GHz
- 802.11b:
- MCS Index:
- 1 Mbps
- Transmit Power (dBm): 21
- 11 Mbps
- Transmit Power (dBm): 20
- 1 Mbps
- MCS Index:
- 802.11g:
- MCS Index:
- 6 Mbps
- Transmit Power (dBm): 21
- 54 Mbps
- Transmit Power (dBm): 18
- 6 Mbps
- MCS Index:
- 802.11n HT20:
- MCS Index:
- MCS 0
- Transmit Power (dBm): 20
- MCS 7
- Transmit Power (dBm): 18
- MCS 0
- MCS Index:
- 802.11n HT40:
- MCS Index:
- MCS 0
- Transmit Power (dBm): 20
- MCS 7
- Transmit Power (dBm): 18
- MCS 0
- MCS Index:
Maximum Transit Power – 5GHz
- 802.11a:
- MCS Index:
- 6 Mbps
- Transmit Power (dBm): 21
- 54 Mbps
- Transmit Power (dBm): 19
- 6 Mbps
- MCS Index:
- 802.11n HT20:
- MCS Index:
- MCS
- Transmit Power (dBm): 21
- MCS 7
- Transmit Power (dBm): 19
- MCS
- MCS Index:
- 802.11n HT40:
- MCS Index:
- MCS 0
- Transmit Power (dBm): 20
- MCS 7
- Transmit Power (dBm): 18
- MCS 0
- MCS Index:
- 802.11ac VHT80:
- MCS Index:
- MCS 0
- Transmit Power (dBm): 20
- MCS 7
- Transmit Power (dBm): 18
- MCS 8
- Transmit Power (dBm): 17
- MCS 9
- Transmit Power (dBm): 16
- MCS 0
- MCS Index:
Note:Â The actual transmit power will be the lowest of:
- Value specified in the Device Template
- Maximum value allowed in the regulatory domain
- Maximum power supported by the radio
Receive Sensitivity
For 2.4GHz
- 802.11g:
- MCS Index:
- 6 Mbps
- Receive Sensitivity (dBm): -95
- 54 Mbps
- Receive Sensitivity (dBm): -77
- 54 Mbps
- Receive Sensitivity (dBm): -72
- 6 Mbps
- MCS Index:
- 802.11n HT20:
- MCS Index:
- MCS 0
- Receive Sensitivity (dBm): -94
- MCS 7
- Receive Sensitivity (dBm): -74
- MCS 0
- MCS Index:
- 802.11n HT40:
- MCS Index:
- MCS 0
- Receive Sensitivity (dBm): -92
- MCS 7
- Receive Sensitivity (dBm): 71
- MCS 0
- MCS Index:
For 5GHz
- 802.11a:
- MCS Index:
- 6 Mbps
- Receive Sensitivity (dBm): -93
- 54 Mbps
- Receive Sensitivity (dBm): -76
- 6 Mbps
- MCS Index:
- 802.11n HT20:
- MCS Index:
- MCS 0
- Receive Sensitivity (dBm): -93
- MCS 7
- Receive Sensitivity (dBm): -73
- MCS 0
- MCS Index:
- 802.11n HT40:
- MCS 0
- Receive Sensitivity (dBm): -89
- MCS 7
- Receive Sensitivity (dBm): -71
- MCS 0
- 802.11ac HT20:
- MCS Index:
- MCS 8
- Receive Sensitivity (dBm): -68
- MCS 8
- 802.11ac HT20:
- MCS Index:
- MCS 9
- Receive Sensitivity (dBm): -64
- MCS 9
- 802.11ac HT80:
- MCS Index:
- MCS 9
- Receive Sensitivity (dBm): -61
- MCS 9
Access Point Security Modes
- WPA/WPA2 (802.11i) with TKIP or AES-CCMP encryption and PSK or 802.1x authentication
- Integrated WIPS background wireless scanning and Rogue AP prevention
WIPS Sensor Mode
- Dedicated dual-band WIPS scanning for complete 24/7 protection from wireless threats
Regulatory Specifications
RF and Electromagnetic
- CE EN300.328, EN301.893
- Countries covered under Europe certification:
- Austria
- Belgium
- Cyprus
- Czech Republic
- Denmark
- Estonia
- Finland
- France
- Germany
- Greece
- Hungary
- Ireland
- Italy
- Iceland
- Luxembourg
- Latvia
- Lithuania
- Malta
- Netherlands
- Norway
- Poland
- Portugal
- Spain
- Sweden
- Slovakia
- Slovenia
- Switzerland
- United Kingdom
Safety
- EN 60950, RoHS
Renewal Information
Term = 1 Year
Price = £84.52 (Price confirmation at email us info@toolsquad.co.uk)
The WatchGuard WGA15701 AP125 Dual-Band WiFi 5 PoE Access Point is exactly what you’ve been looking for – a small and affordable indoor access point that comes equipped with 2×2 802.11ac Wave 2 Multi-User MIMO (MU-MIMO). This access point also offers dual concurrent 5 GHz and 2.4 GHz band radios, and data rates of up to 867 Mbps and 300 Mbps, respectively. Common use cases include lower-density environments such as small schools, distributed remote offices and small meeting rooms.Further more information call us (+44) 20 4534 3618 or email us at info@toolsquad.co.uk
Standard Warranty: 1-Year
