Ubiquiti USW-Pro-48 UniFi Switch Pro 48
£616.53 inc.VAT / £513.78 exc.VAT
Ubiquiti UniFi Switch Pro 48 (USW-Pro-48)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
The Ubiquiti UniFi Switch Pro 48 is a fully managed Layer 3 switch with 48 Gigabit Ethernet ports. Four 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability.
Ubiquiti UniFi Switch Pro 48 (USW-Pro-48)
The Ubiquiti UniFi Switch Pro 48  is a fully managed Layer 3 switch with 48 Gigabit Ethernet ports. Four 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability.
Ubiquiti UniFi USW-48-PoE Pro Switch key features
- (48) Gigabit RJ45 ports
- (4) 10G SFP+ ports
- Layer 2 and Layer 3 features
- UniFi SmartPower RPS DC input
- Near-silent cooling
- 1.3″ touchscreen display
- Managed by UniFi Network Controller
The UniFi Switch Pro 48 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 48 is an ideal aggregation and access layer switch for any UniFi solution. It combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
Near silent cooling
Ubiquiti’s new airflow design reduces the need for fan usage.
UniFi SmartPower RPS, USP-RPS, is Ubiquiti’s PSU failover system.
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device. One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
Touch screen display
The 1.3″ touchscreen display allows easy monitoring and quick troubleshooting.
Ubiquiti UniFi Switch USW Pro 48 Technical Specification
Product Specifications
- Dimensions: 442.4 x 285.4 x 43.7 mm(17.42 x 11.24 x 1.72″)
- Weight: 4.00 kg (8.82 lb)
- With Brackets: 44.09 kg (9.02 lb)
- Interfaces:
– Networking:Â (48) 10/100/1000 RJ45 Ports
– Management:Â (4) 1/10G SFP+ Ethernet Ports Ethernet In-Band - Total Non-Blocking Throughput: 88 Gbps
- Switching Capacity: 176 Gbps
- Forwarding Rate: 130.944 Mpps
- Power Method:
– Universal Input: 100-240VAC, 50/60 Hz
– USP RPS DC Input:Â 11.5VDC, 5.22A - Power Supply: AC/DC, Internal, 60W
- Voltage Range: 100 to 240VAC
- Max Power Consumption: 60W
- LEDs
– RJ45 Data Ports:Â Speed/Link/Activity
– SFP+ Data Ports: Link/Activity - ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
- Shock and Vibration: ETSI300-019-1.4 Standard
- Operating Temperature-5 to 45° C (23 to 113° F)
- Operating Humidity10 – 90% Noncondensing
- Certifications: CE, FCC, IC
Only logged in customers who have purchased this product may leave a review.
Related Products

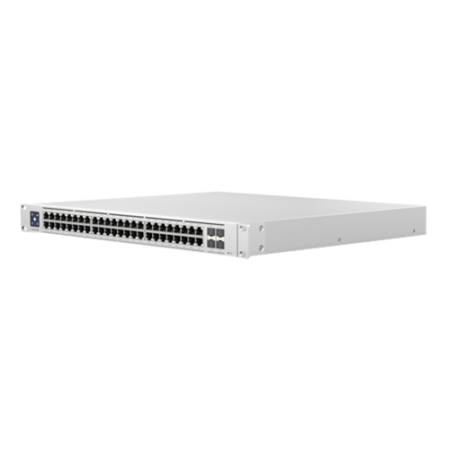

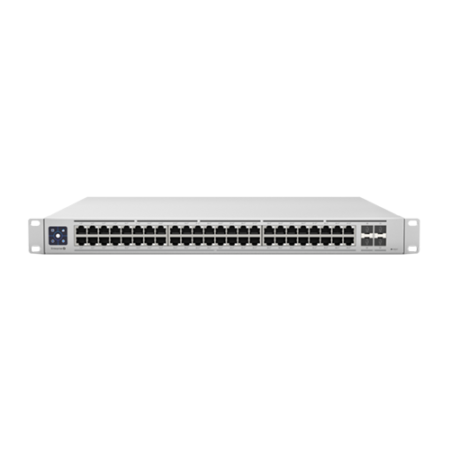

Ubiquiti USW-Enterprise-48-PoE UniFi 48-Port Layer 3 Managed Rackmount 2.5-Gigabit PoE+ Switch w/ 4 x 10GbE SFP+ Ports (720W)
The Ubiquiti USW-Enterprise-48-PoE UniFi 48-Port Layer 3 Managed Rackmount 2.5-Gigabit PoE+ Switch is a configurable Layer 3 switch with auto-sensing 802.3at PoE+ that is designed to build and expand your network. It offers forty-eight (48) 2.5GbE RJ45 Ethernet ports, and four (4) 10GbE SFP+ ports, providing 2.5GbE PoE links to your WiFi 6 APs and 10GbE fibre uplinks to your network. The USW-Enterprise-48-PoE features a 1.3-inch touch LCM. Managed and configured by the UniFi Network application with UniFi Network mobile app support, the USW-Enterprise-48-PoE offers Layer 3 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network application and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Out of stock
Ubiquiti USW-48-PoE UniFi 48-Port Cloud Managed Rackmount Gigabit PoE+ Switch w/ 4 x 1GbE SFP Ports (195W)
Ubiquiti UniFi USW-48-PoEis a configurable Gigabit Layer 2 switch with 48 Gigabit Ethernet ports including 32 auto-sensing 802.3at PoE+ ports, and 4 SFP ports.
488 in stock

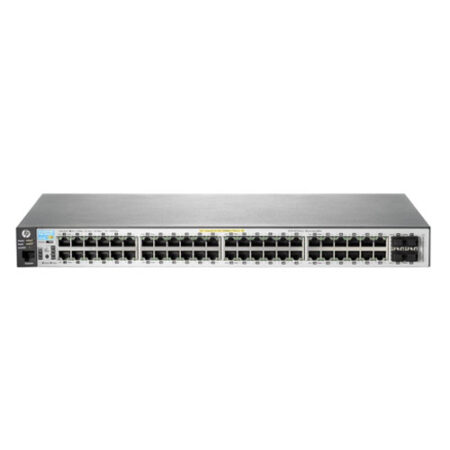

HP 2530-48G-PoE+ 48-Port Layer 2 Managed Gigabit PoE+ Switch w/ 4x SFP Ports (382W) J9772A
The HP 2530-48G-PoE+ ProCurve Switch (J9772A) is a 48-Port managed Layer 2 Gigabit switch that deliver cost-effective, reliable, secure, and easy-to-use connectivity to business networks. Designed for entry-level to midsize enterprise networks, this Gigabit Ethernet switch delivers full Layer 2 capabilities combined with PoE+, enhanced access security, traffic prioritisation, and IPv6 host support. This HP 2530-48G-PoE+ Switch also offers uplink flexibility with four Gigabit Ethernet uplinks for SFPs.
Out of stock

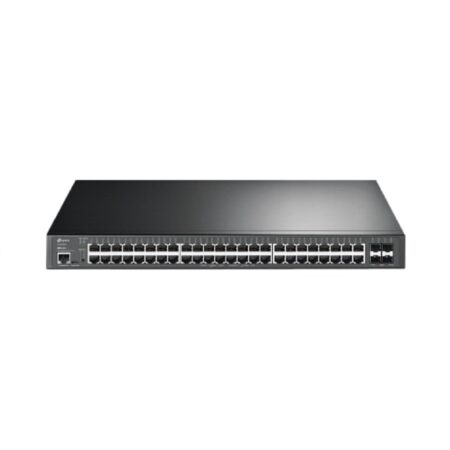

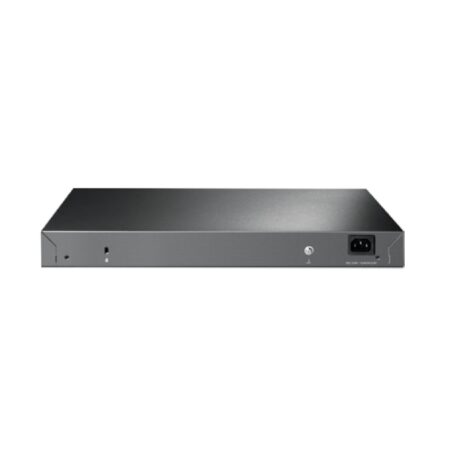

TP-Link TL-SG3452XP JetStream 48-Port Layer 2+ Managed Rackmount Gigabit PoE+ Switch w/ 4 x 10Gbps SFP+ Ports (500W)
TP-Link TL-SG3452XP JetStream Smart Managed 48 Port Gigabit Switch provides high performance and powerful L2, L2+, and L3.
Out of stock
TP-Link TL-SF1048 48-Port Unmanaged Rackmount Fast Ethernet Switch (10/100)
TP-Link TL-SF1048 48-Port Unmanaged Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users.
Out of stock

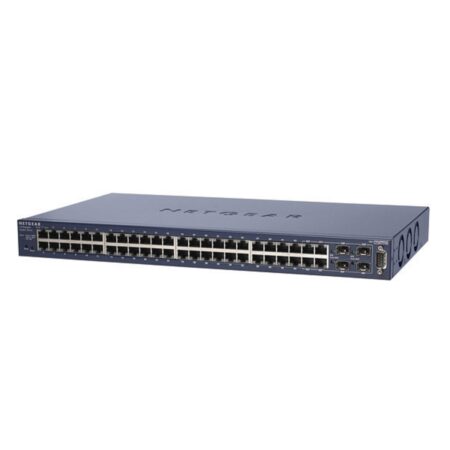

Netgear ProSafe GSM7248-200EUS – M4100-50G Managed Switch
Netgear GSM7248-200EUS – M4100-50G Managed Switch is ideal for all organisations considering reliable, affordable and simple access layer switching with CLI, advanced scripting capabilities and Layer 3 routing.
Out of stock

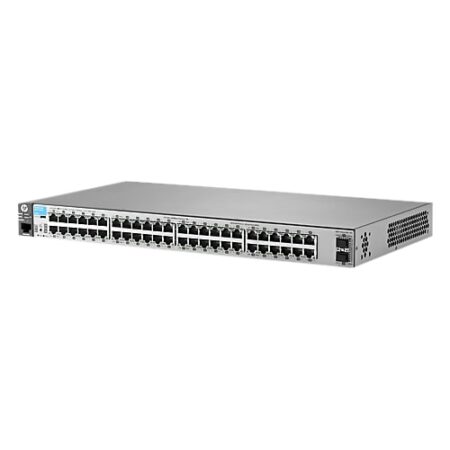

HPE 2530-48G-2SFP+ 48-Port Layer 2 Managed Gigabit Switch w/ 2x Gigabit SFP+ Ports J9855A
The HP 2530-48G-2SFP+ 48-Port Layer 2 Managed Rackmount Gigabit PoE+ Switch provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments.
Out of stock
NETGEAR M4300-48XF (XSM4348FS) ProSAFE Intelligent Edge 48-Port Fully Managed Stackable 10GbE SFP+ Switch w/ 2 x 10GbE RJ45 Uplink Ports & 1 x PSU
NETGEAR M4300-48XF (XSM4348FS) 10GbE SFP+ 48 Port Ethernet Switch delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with SMB core deployments with unrivalled ease of use.
3 in stock
Ubiquiti UniFi 48 Port PoE Pro Switch (USW-Pro-48-POE)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
The Ubiquiti UniFi USW Pro 48 POE is a Gen2, configurable, Gigabit Layer 2 and Layer 3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++.
142 in stock

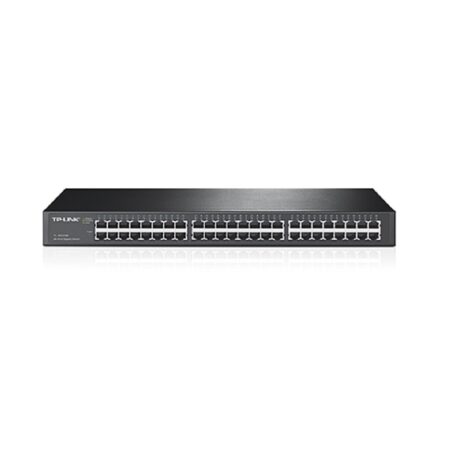

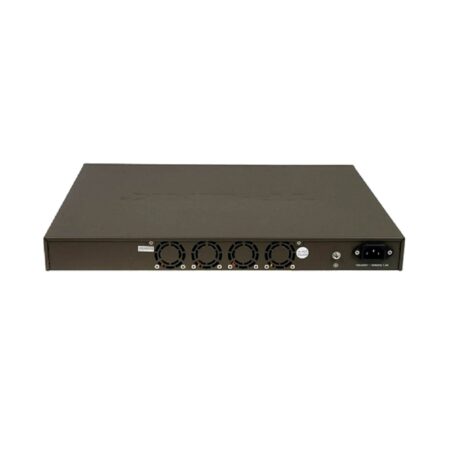

TP-Link TL-SG1048 48-Port Unmanaged Rackmountable Gigabit Switch (Auto-MDI/MDIX function)
TP-Link TL-SG1048 48-Port Unmanaged Rackmountable Gigabit Switch provides an easy way to make the transition to Gigabit Ethernet.
Out of stock

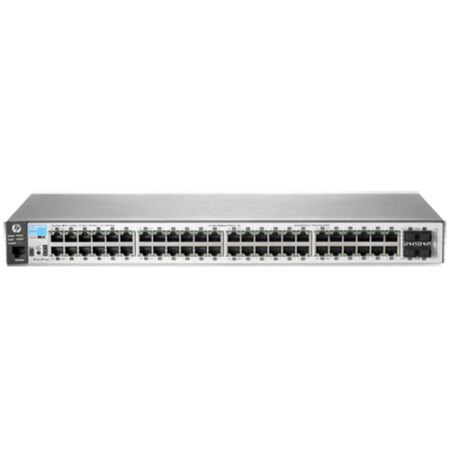

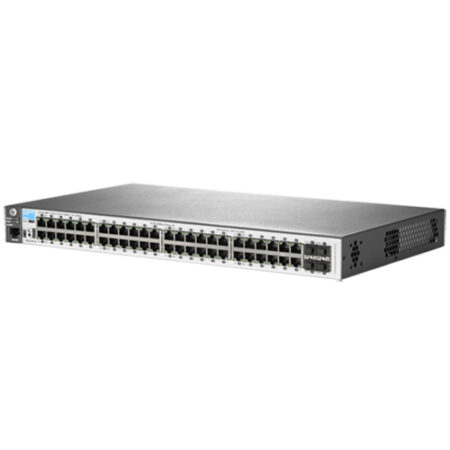

Aruba 2530-48G 48-Port Layer 2 Managed Gigabit Ethernet Switch W/ 4x Gigabit SFP Ports J9775A
The HP 2530-48G 48-Port Layer 2 Managed Gigabit Ethernet Switch (J9775A) delivers a cost-effective, reliable, secure, and easy-to-use connectivity to business networks. Designed for entry-level to midsize enterprise networks, this HP 2530-48G (J9775A) Gigabit Ethernet switch deliver full Layer 2 capabilities with enhanced access security, traffic prioritisation, and IPv6 host support. This HP 2530-48G switch also features four (4) Gigabit SFP ports for network uplinks.
Out of stock

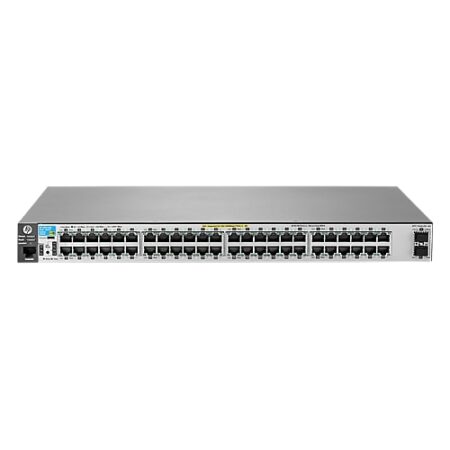

HPE 2530-48G-PoE+-2SFP+ 48-Port Layer 2 Managed Gigabit PoE+ Switch w/ 2x Gigabit SFP+ Ports (382W) J9853A
