Ubiquiti USW-Pro-48-POE UniFi 48 Port PoE Pro Switch

Ubiquiti UniFi 48 Port PoE Pro Switch (USW-Pro-48-POE)

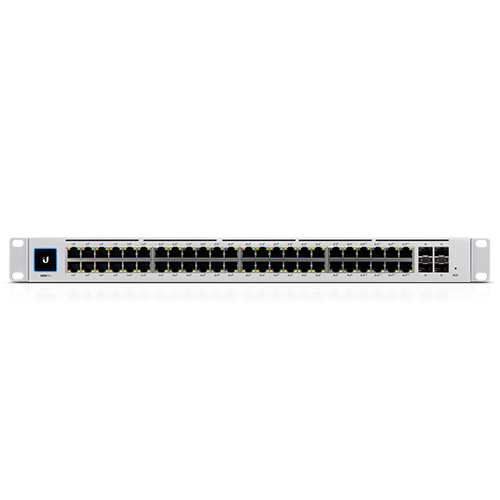

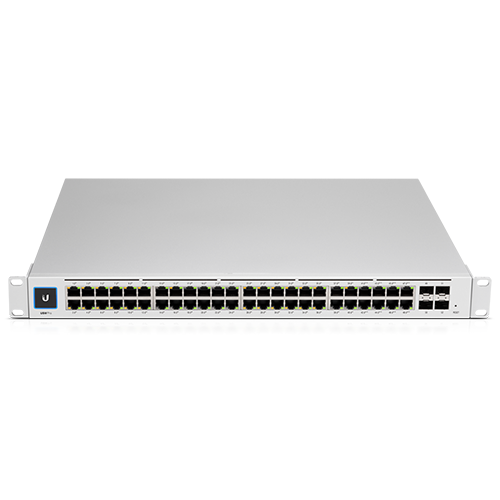

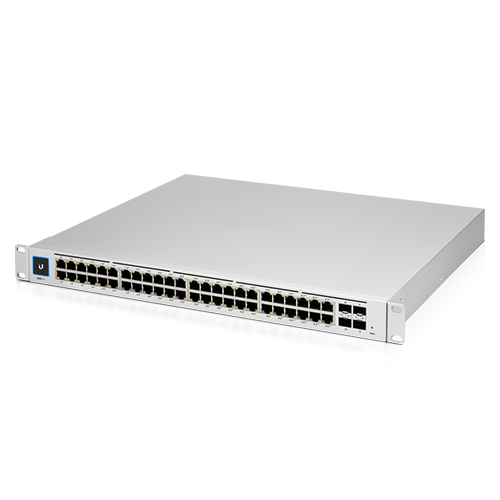

Ubiquiti USW-Pro-48-POE UniFi 48 Port PoE Pro Switch is a Gen2, configurable, Gigabit Layer 2 and Layer 3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++.

Key Features

• 48 x 10/100/1000 RJ45 ports
• (1-40) IEEE 802.3af/at PoE+ ports
• (41-48) 60 W IEEE 802.3bt PoE++ ports
• 4 x 1/10G SFP+ Ethernet Ports
• 1.3” touch LCM to provide status information
• Near-silent cooling
• 40 PoE+ and eight PoE++ RJ45 ethernet ports have total 600W PoE budget, and four SFP+ ports offer 10Gbps uplink options. Other benefits include near-silent cooling and a 1.3″ touch screen LCM display.

Note: Layer3 will be included in later software release.

Near silent cooling

Ubiquiti’s new airflow design reduces the need for fan usage.

Powerful hardware and software

Ubiquiti UniFi Gen2 Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities (*Layer 3 switching will be available in a future software release).

UniFi SmartPower RPS, USP-RPS, is Ubiquiti’s PSU failover system.

In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device. One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.

Touch screen display

The 1.3″ touchscreen display allows easy monitoring and quick troubleshooting.

Ubiquiti UniFi UniFi USW Pro 48 POE Technical Specification

Product Specifications

Dimensions: 442.4 x 399.6 x 43.7 mm (17.42 x 15.73 x 1.72″)

Weight: 6.25 kg (13.78 lb)

Weight with Rackmount Brackets: 6.34 kg (13.98 lb)

Interfaces: (48) 10/100/1000 RJ45 Ports

Networking: (4) 1/10G SFP+ Ethernet Ports

Management: Ethernet In-Band

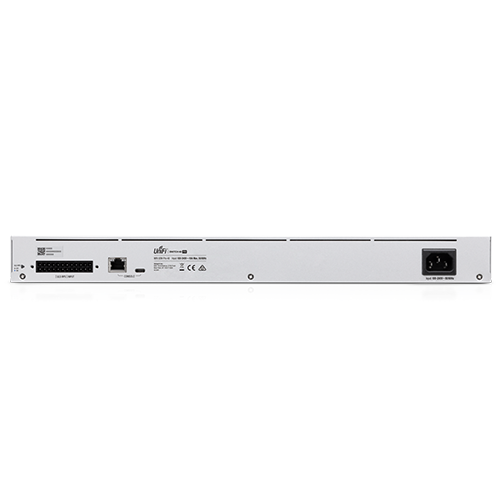

Power Method:
– Universal Input: 100-240VAC/50-60 Hz
– USP RPS DC Input: 52VDC, 11.54A; 11.5VDC, 5.22A

Power Supply: AC/DC, Internal, 120W

Supported Voltage Range: 100 to 240VAC

Max. Power Consumption (Excluding PoE Output): 60W

LEDs:
– System: Status
– RJ45 Data Ports: PoE; Speed/Link/Activity
– SFP Data Ports: Link/Activity

ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV

Shock and Vibration: ETSI300-019-1.4 Standard

Operating Temperature: -5 to 40° C (23 to 104° F)

Operating Humidity: 10 to 90% Noncondensing

Certifications: CE, FCC, IC

Sound level* (* Background noise level: 27.5 dBa)

25% PoE, 25° C: 0.9 dBr

50% PoE, 25° C: 7.3 dBr

100% PoE, 40° C: 22.5 dBr

PoE

PoE Interfaces:
– Ports 1-40: POE+ IEEE 802.3af/at, (pins 1, 2+; 3, 6-)
– Ports 41-48: 60W PoE++ IEEE 802.3bt, (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)

Max. PoE Wattage per Port by PSE:
– 802.3at: 32W
– 802.3bt: 64W

Voltage Range 802.3af Mode: 44-57V

Voltage Range 802.3at Mode: 50-57V
