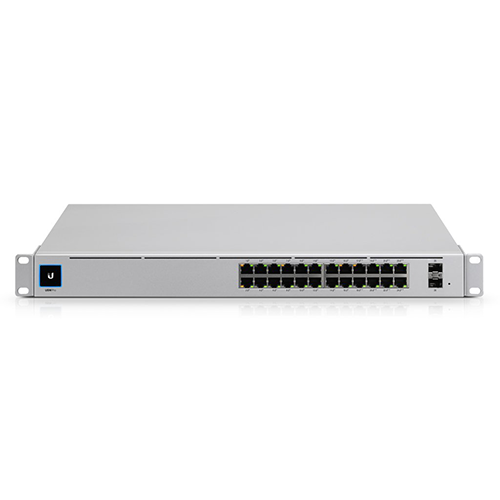

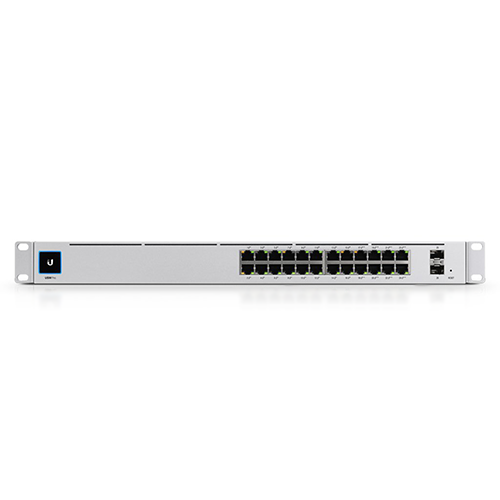

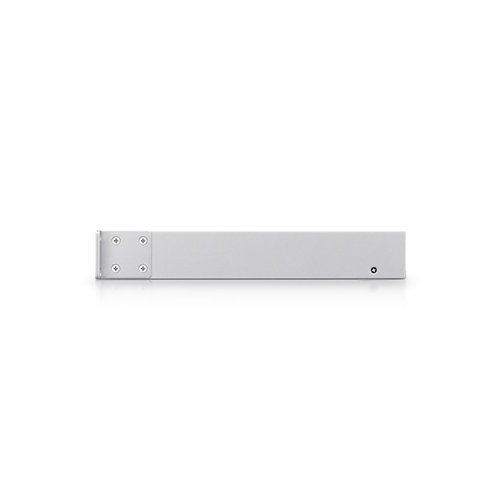

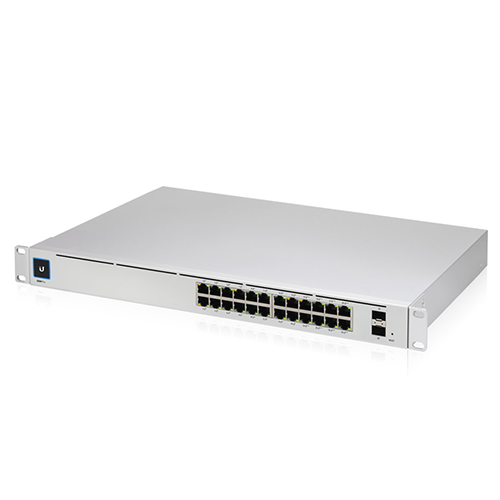

Ubiquiti USW-PRO-24 UniFi Cloud Managed 24 Port Gigabit Switch
£401.41 inc.VAT / £334.51 exc.VAT
Ubiquiti USW-PRO-24 UniFi 24-Port Cloud Managed Rackmount Gigabit Switch w/ 2 x 10GbE SFP+ Ports
                The Ubiquiti USW-PRO-24 UniFi 24-Port Cloud Managed Gigabit Switch is a fully managed Layer 3 switch with twenty-four (24) Gigabit Ethernet ports. The two (2) 10GbE SFP+ uplinks offer link aggregation for higher capacity and increased availability. The USW-PRO-24 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi USW-PRO-24 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. The UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
Ubiquiti USW-PRO-24 UniFi 24-Port Cloud Managed Rackmount Gigabit Switch w/ 2 x 10GbE SFP+ Ports
Ubiquiti USW-PRO-24 UniFi Cloud Managed 24 Port Gigabit Switch
The Ubiquiti USW-PRO-24 UniFi Cloud Managed 24 Port Gigabit Switch is a fully managed Layer 3 switch with twenty-four (24) Gigabit Ethernet ports. The two (2) 10GbE SFP+ uplinks offer link aggregation for higher capacity and increased availability. The Swich features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The Switch is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. The UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
 Key Features
- Twenty-four (24) Gigabit RJ45 ports.
- Two (2) 10GbE SFP+ ports.
- Layer 2 and Layer 3 features.
- UniFi SmartPower RPS DC input.
- Near-silent cooling.
- 1.3-inch touchscreen display.
- Managed by UniFi Network Controller.
Works with UniFi Network Controller
- Manage Your Networks from a Single Control Plane
- Intuitive and Robust Configuration, Control and Monitoring
- Remote Firmware Upgrade
- Users and Guests
- Guest Portal/Hotspot Support
Specifications
Networking Interfaces
- Twenty-four (24) 10/100/1000 RJ45 Ports
- Two (2) 1/10G SFP+ Ethernet Ports
Management Interfaces
- Ethernet In-Band
Total Non-Blocking Throughtput
- 44 Gbps
Switching Capacity
- 88 Gbps
Forwarding Rate
- 65.472 Mpps

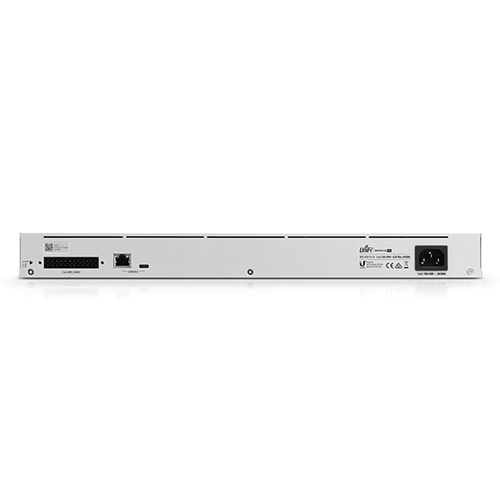

Power Method
- Universal Input: 100-240VAC, 50-60Hz
- USP RPS DC Input: 11.5VDC, 2.61A
Power Supply
- AC/DC, Internal, 36W
Voltage Range
- 100 to 240VAC
Max. Power Consumption
- 30W
LEDs
- RJ45 Data Ports: Speed/Link/Activity
- SFP Data Ports: Link/Activity
ESD/EMP Protection
- Air: ± 16 kV
- Contact: ± 12 kV
Shock and Vibration
- ETSI300-019-1.4 Standard
Operating Temperature
- -5ºC to 45ºC (23ºF to 113ºF)
Operating Humidity
- 10% to 90%, Non-condensing
Certifications
- CE, FCC, IC
Dimensions
- 442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72 in.)
Weight
- 3.50 kg (7.72 lb.)
- With Brackets: 3.59 kg (7.92 lb.)
Standard Warranty: 2-Years
