Ubiquiti USW-Pro-24-POE UniFi 24 Port PoE Pro Switch

Ubiquiti UniFi 24 Port PoE Pro Switch (USW-Pro-24-POE)

Ubiquiti USW-Pro-24-POE UniFi 24 Port PoE Pro Switch

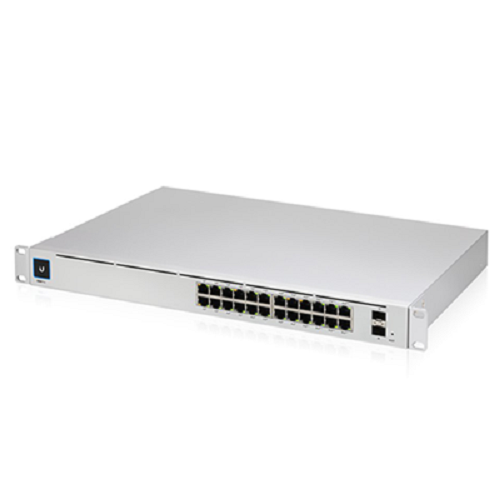

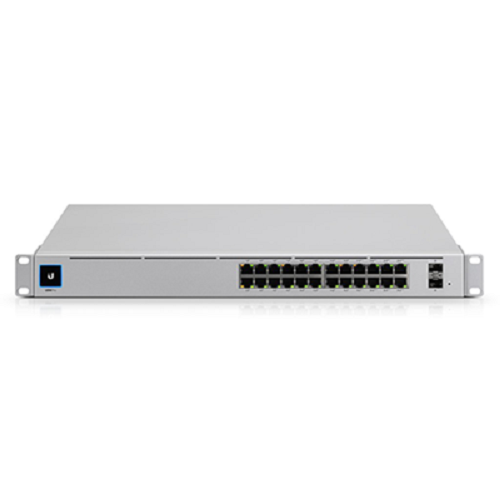

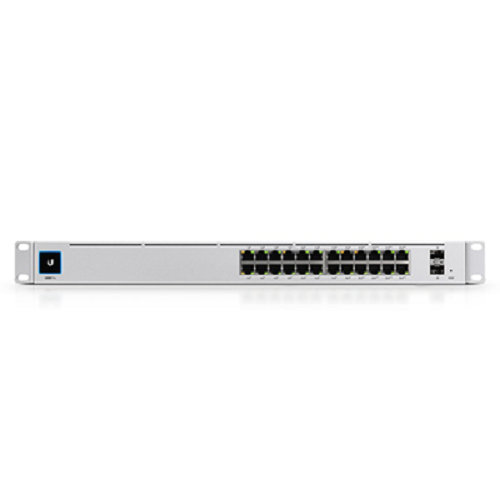

Ubiquiti USW-Pro-24-POE UniFi 24 Port PoE Pro Switch is a configurable, Gigabit Layer 2 and Layer 3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++.

key features

• 24x 10/100/1000 RJ45 ports
• (1-16) IEEE 802.3af/at PoE+ ports
• (17-24) 60W IEEE 802.3bt PoE++ ports
• 2 x 1/10G SFP+ Ethernet Ports
• 1.3” touch LCM to provide status information
• Compact, fan-less design
• 16 PoE+ and eight PoE++ RJ45 ethernet ports have total 400 W PoE budget, and two SFP+ ports offer 10Gbps uplink options. Near-silent cooling and a 1.3″ touch LCM.

Note: Layer3 will be included in later software release

Near silent cooling

Ubiquiti’s new airflow design reduces the need for fan usage.

Powerful hardware and software

Ubiquiti UniFi Gen2 Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities. (*Layer 3 switching will be available in a future software release)

UniFi Smart Power RPS, USP-RPS, is Ubiquiti’s PSU failover system.

In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device. One UniFi Smart Power device can support up to 6 devices until the failed device is replaced.

Touch screen display

The 1.3″ touchscreen display allows easy monitoring and quick troubleshooting

Specification

Product Specifications

Dimensions: 442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72″)

Weight: 4.30 kg

Weight with Rackmount brackets: 4.39 kg

Interfaces: (24) 10/100/1000 RJ45 Ports

Networking: (2) 1/10G SFP+ Ethernet Ports

Management: Ethernet In-Band

Power Method:
– Universal Input: 100-240VAC/50-60 Hz
– USP RPS DC Input: 52VDC, 7.69A; 11.5VDC, 2.61A

Power Supply: AC/DC, Internal, 450W

Supported Voltage Range: 100 to 240VAC

Max. Power Consumption (Excluding PoE Output): 50W

LEDs:
– System: Status
– RJ45 Data Ports: PoE; Speed/Link/Activity
– SFP Data Ports: Link/Activity

ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV

Shock and Vibration: ETSI300-019-1.4 Standard

Operating Temperature: -5 to 40° C (23 to 104° F)

Operating Humidity: 10 to 90% Noncondensing

Certifications: CE, FCC, IC

Sound level* (* Background noise level: 27.5 dBa)

25% PoE, 25° C: 0.9 dBr

50% PoE, 25° C: 7.3 dBr

100% PoE, 40° C: 18.8 dBr

PoE

PoE Interfaces:
– Ports 1-16: POE+ IEEE 802.3af/at, (pins 1, 2+; 3, 6-)
– Ports 17-24: 60W PoE++ IEEE 802.3bt, (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)

Max. PoE Wattage per Port by PSE:
– 802.3at: 32W
– 802.3bt: 64W

Voltage Range 802.3af Mode: 44-57V

Voltage Range 802.3at Mode: 50-57V
