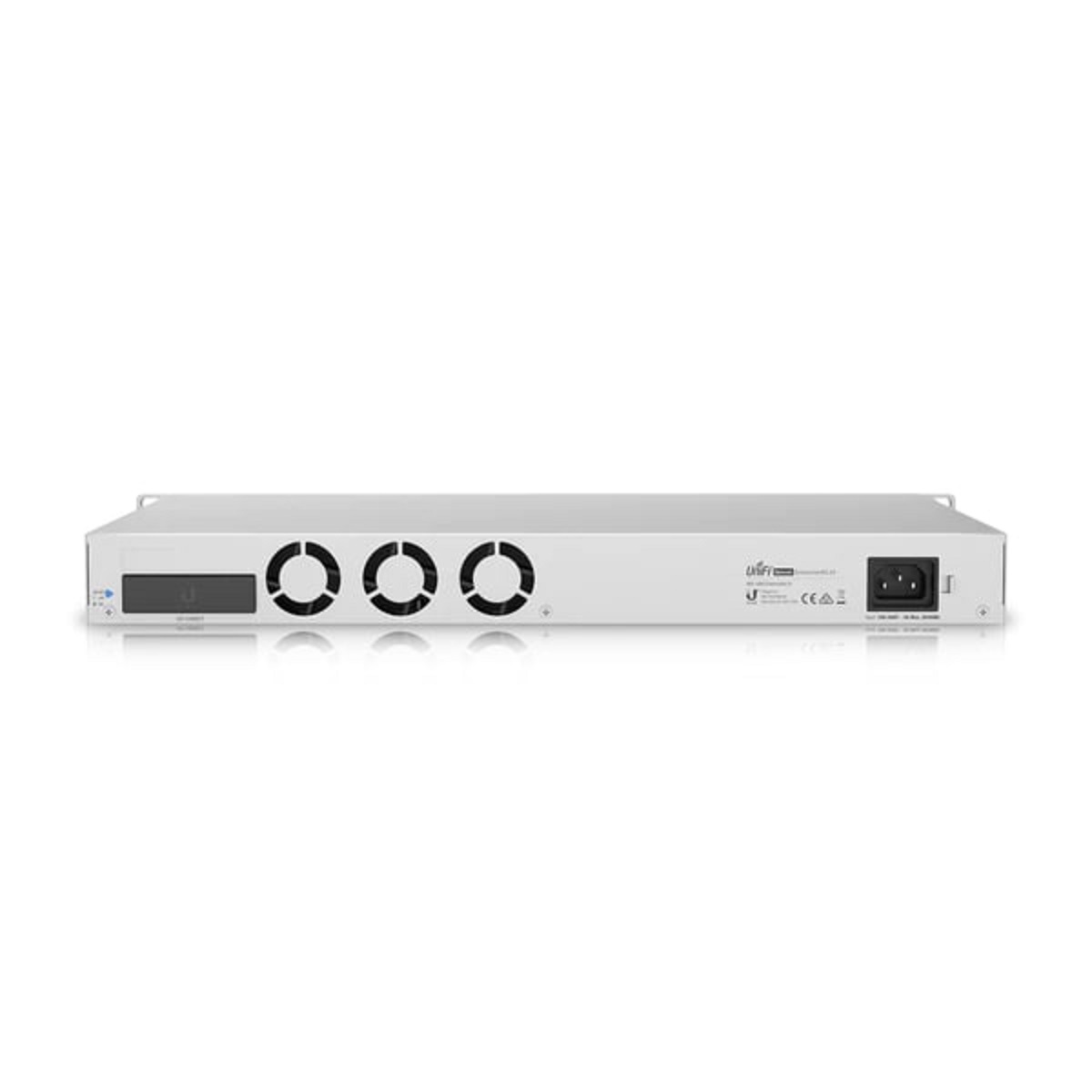

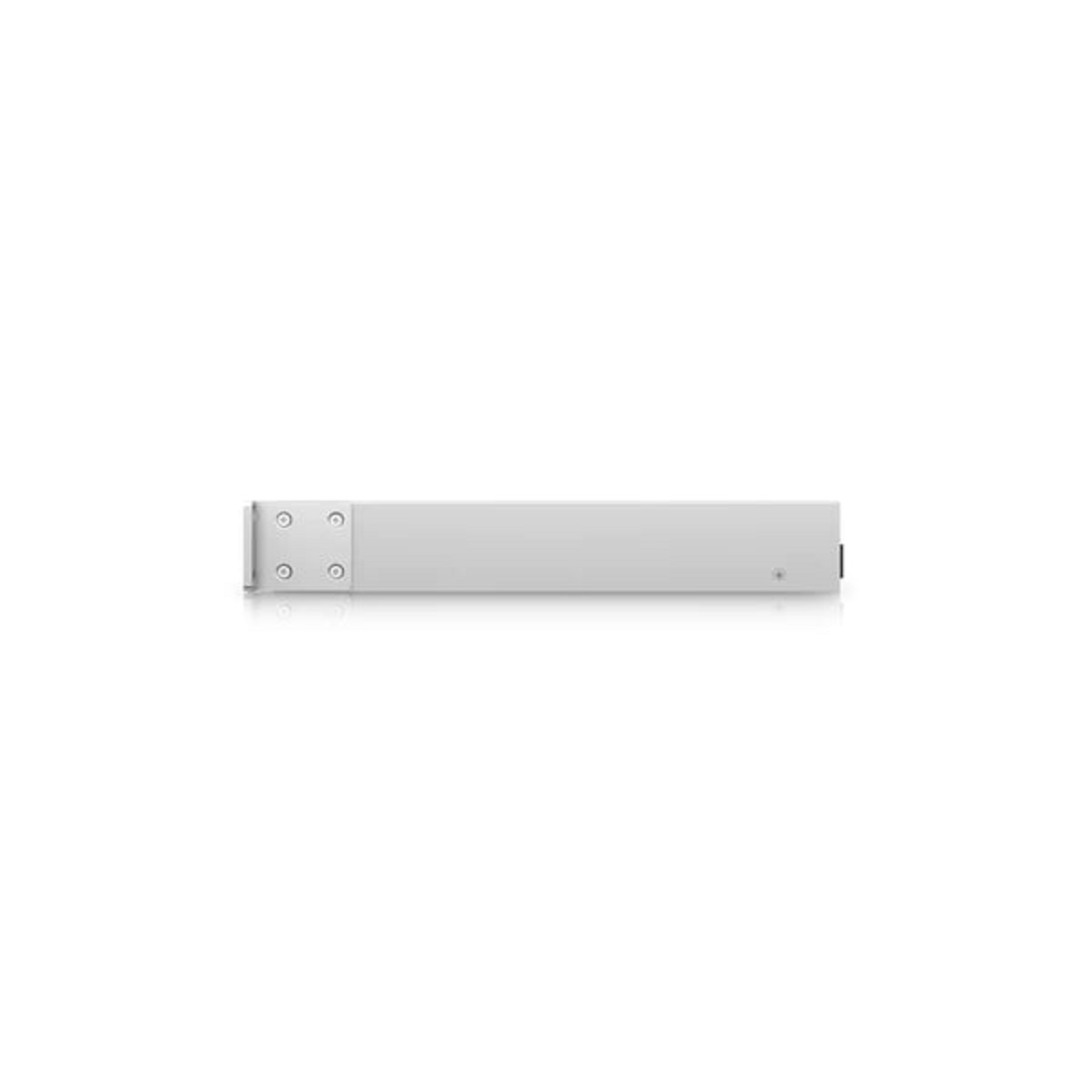

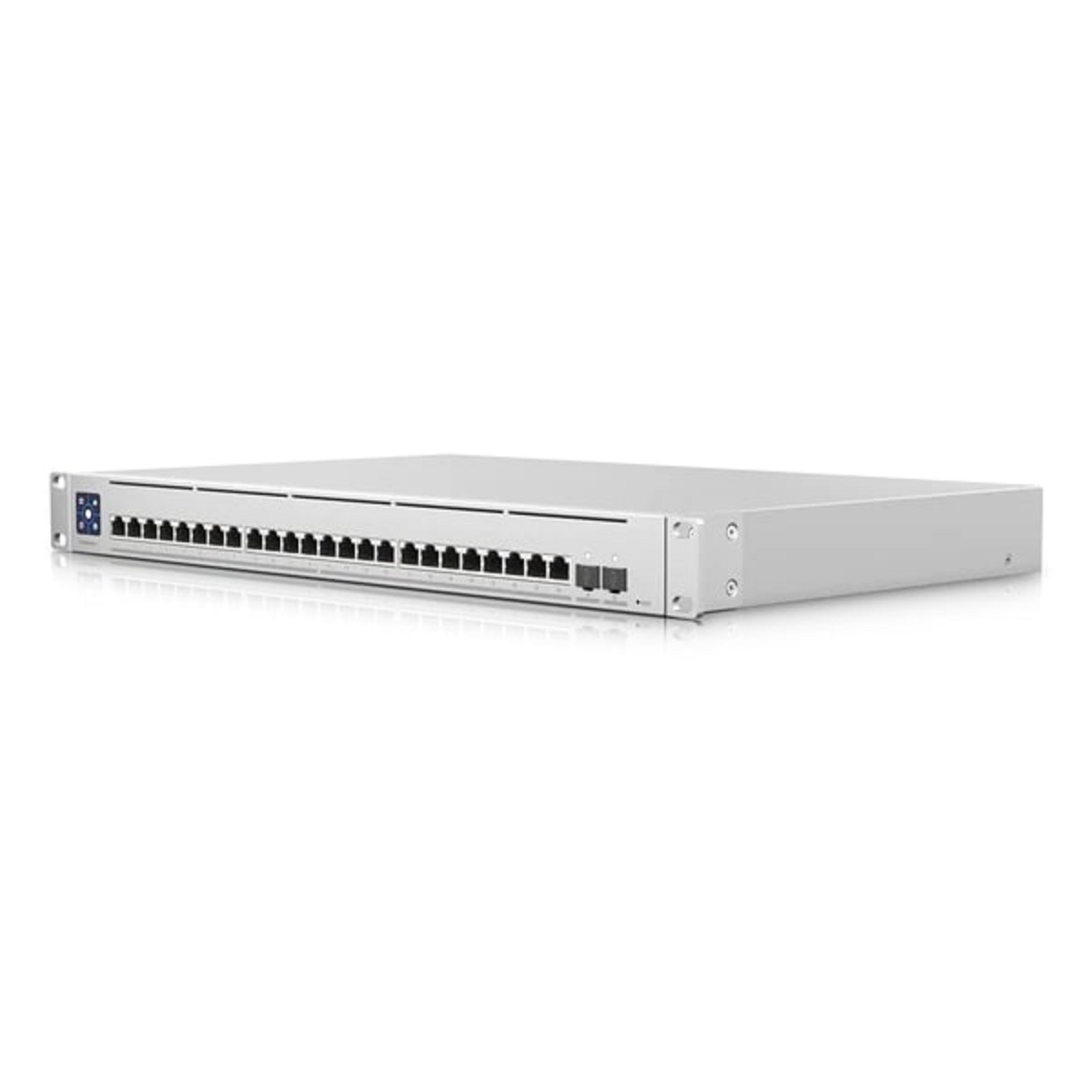

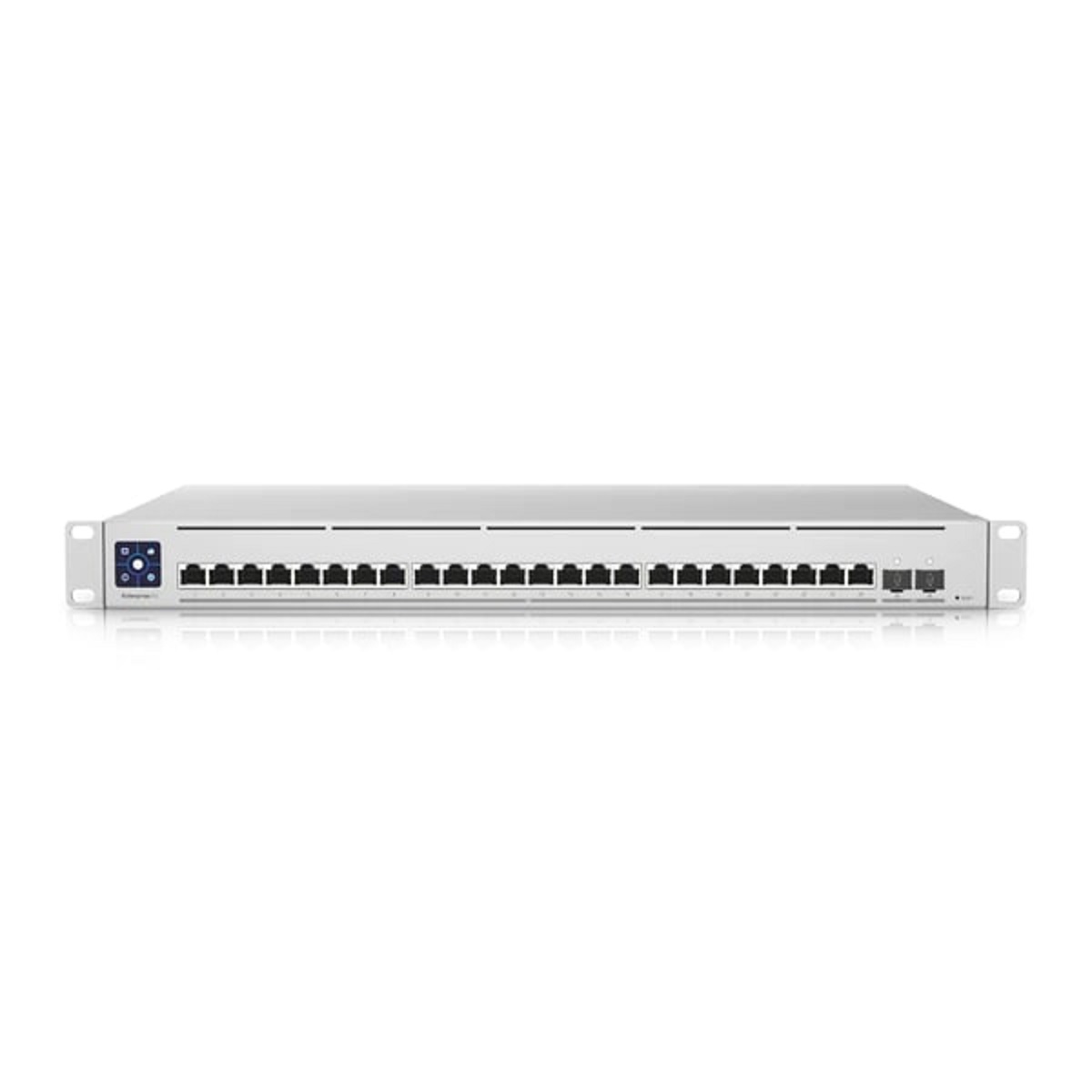

Ubiquiti USW-EnterpriseXG-24 UniFi Layer 3 24 Port 10GbE Switch
£1,265.79 inc.VAT / £1,054.83 exc.VAT
Ubiquiti USW-EnterpriseXG-24 UniFi 24-Port Layer 3 Managed Rackmount 10-Gigabit Switch w/ 2 x 25GbE SFP28 Ports
Twenty-four (24) 10GbE RJ45 Ports,Two (2) 25GbE SFP28 Ports,1.3″ Touchscreen with AR Switch Management.
Ubiquiti USW-EnterpriseXG-24 UniFi 24-Port Layer 3 Managed Rackmount 10-Gigabit Switch w/ 2 x 25GbE SFP28 Ports
Ubiquiti USW-EnterpriseXG-24 UniFi Layer 3 24 Port 10GbE Switch
Ubiquiti USW-EnterpriseXG-24 UniFi Layer 3 24 Port 10GbE Switch is a configurable Layer 3 switch suited for enterprise networks demanding next-in-class performance.
It offers twenty-four (24) 10GbE RJ45 Ethernet ports, and two (2) 25GbE SFP28 ports, providing 25GbE fibre uplinks to your network.
Features include a 1.3″ touchscreen, single-row RJ45 port layout for easy patch panel cable management, and support for the UniFi SmartPower Redundant Power System (USP-RPS – sold separately) for intelligent protection from internal PSU interruption or failure.
Key Features
- Twenty-four (24) 10GbE RJ45 Ports.
- Two (2) 25GbE SFP28 Ports.
- 1.3″ Touchscreen with AR Switch Management.
- UniFi SmartPower RPS DC input.
- Managed with UniFi Network Application Version: 6.1.67 or higher.
Works with UniFi Network Application
- Manage your networks from a single interface.
- Intuitive configuration options, as well as robust device control and monitoring.
- Upgrade device firmware remotely.
- Easily manage network users and guests.
- Personalize the design, architecture, and privacy of guest hotspots.
Specifications
Mechanical
Dimensions
- 442 x 44 x 285 mm (17.4 x 1.7 x 11.2 in.)
Weight
- Without Mount: 4.47 kg (9.85 lb.)
- With Mount: 4.57 kg (11.02 lb.)
Enclosure Materials
- SGCC Steel
Mount Material
- SGCC Steel
Hardware
Total Non-Blocking Throughput
- 290 Gbps
Switching Capacity
- 580 Gbps
Forwarding Rate
- 431.52 Mpps
Max. Power Consumption
- 100W
Power Method
- 1 x Universal AC input: 100-240VAC, 2A Max., 50/60 Hz
- 1 x USP-RPS DC input: 11.5VDC, 8.7A
Power Supply
- AC/DC, Internal, 100W
Management Interface
- Ethernet In-Band
Networking Interfaces
- 24 x 1/2.5/5/10 Gbps RJ45 Ethernet
SFP28 Interfaces
- 2 x 1/10/25 Gbps SFP28
- Note: The two SFP28 ports don’t support mixed speed at 25Gbps mode. Once one of the SFP28 ports is configured at 25Gbps mode, the others will be limited at 25Gbps too. The SFP28 ports only support mixed speed when all ports are at 1Gbps or 10Gbps.
Services
- SMB Layer 3 Gigabit Ethernet Switch
ESD/EMP Protection
- Air: ± 16 kV, Contact: ± 12 kV
LCM Display
- 1.3″ Touchscreen
- Bootup Animation: Bootup in Progress
- Firmware Upgrade Icon: Firmware Upgrading
- Steady White: Factory Defaults, Awaiting Adoption
- Steady Blue: Device is Adopted
Button
- Factory Reset
LEDs
- White: Link or Activity
Operating Temperature
- -5°C to 40°C (23°F to 104°F)
Operating Humidity
- 10% – 95% Non-condensing
Certifications
- CE, FCC, IC
Standard Warranty: 1-Year
