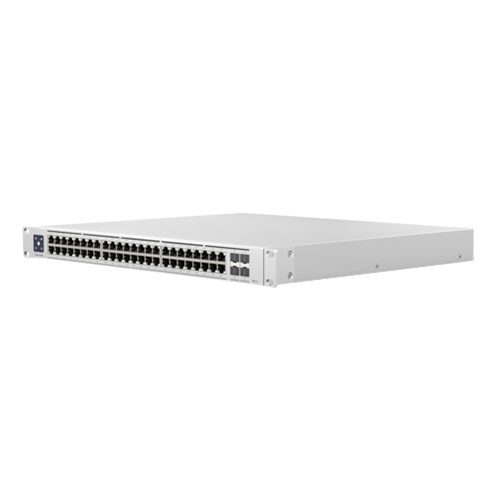

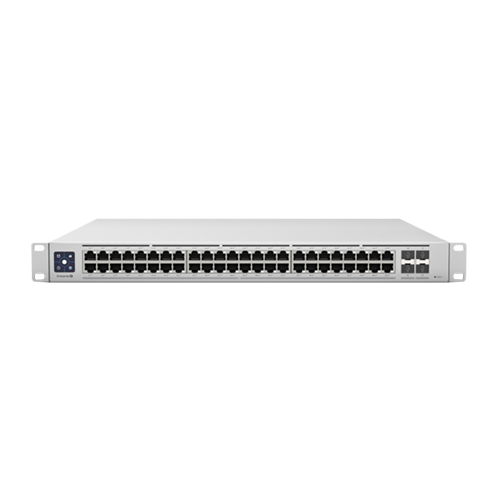

Ubiquiti USW-Enterprise-48-PoE UniFi Layer PoE+ 48 Port Gigabit Switch
£2,104.61 inc.VAT / £1,753.84 exc.VAT
Ubiquiti USW-Enterprise-48-PoE UniFi 48-Port Layer 3 Managed Rackmount 2.5-Gigabit PoE+ Switch w/ 4 x 10GbE SFP+ Ports (720W)
The Ubiquiti USW-Enterprise-48-PoE UniFi 48-Port Layer 3 Managed Rackmount 2.5-Gigabit PoE+ Switch is a configurable Layer 3 switch with auto-sensing 802.3at PoE+ that is designed to build and expand your network. It offers forty-eight (48) 2.5GbE RJ45 Ethernet ports, and four (4) 10GbE SFP+ ports, providing 2.5GbE PoE links to your WiFi 6 APs and 10GbE fibre uplinks to your network. The USW-Enterprise-48-PoE features a 1.3-inch touch LCM. Managed and configured by the UniFi Network application with UniFi Network mobile app support, the USW-Enterprise-48-PoE offers Layer 3 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network application and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Out of stock
Ubiquiti USW-Enterprise-48-PoE UniFi 48-Port Layer 3 Managed Rackmount 2.5-Gigabit PoE+ Switch w/ 4 x 10GbE SFP+ Ports (720W)
Ubiquiti USW-Enterprise-48-PoE UniFi Layer PoE+ 48 Port Gigabit Switch
The Ubiquiti USW-Enterprise-48-PoE UniFi 48-Port Layer 3 Managed Rackmount 2.5-Gigabit PoE+ Switch is a configurable Layer 3 switch with auto-sensing 802.3at PoE+ that is designed to build and expand your network. It offers forty-eight (48) 2.5GbE RJ45 Ethernet ports, and four (4) 10GbE SFP+ ports, providing 2.5GbE PoE links to your WiFi 6 APs and 10GbE fibre uplinks to your network. The USW-Enterprise-48-PoE features a 1.3-inch touch LCM. Managed and configured by the UniFi Network application with UniFi Network mobile app support, the USW-Enterprise-48-PoE offers Layer 3 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network application and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Key Features
- Forty-eight (48) 2.5GbE 802.3af/at PoE+ RJ45 Ports.
- Four (4) 10GbE SFP+ Ports.
- USP RPS Support for Redundant Power Backup (sold separately).
- 720W Maximum PoE Power.
- 1.3-inch Touch LCM with AR Switch Management.
- Managed with UniFi Network Application and Mobile app.
Works with UniFi Network Application
- Manage Your Networks from a Single Control Plane
- Intuitive and Robust Configuration, Control and Monitoring
- Remote Firmware Upgrade
- Users and Guests
- Guest Portal/Hotspot Support
Specifications
Mechanical
Dimensions
- 442 x 44 x 400 mm (17.4 x 1.7 x 15.7 in.)
Weight
- Without Mount: 6.2 kg (13.67 lb.)
- With Mount: 6.3 kg (13.89 lb.)
Enclosure Material
- SGCC Steel
Mount Material
- SGCC Steel
Hardware
Total Non-Blocking Throughput
- 160 Gbps
Switching Capacity
- 320 Gbps
Forwarding Rate
- 238.095 Mpps
Max Power Consumption (Excluding PoE Output)
- 150W
Power Method
- 1 x Universal AC input, 100-240VAC, 10A Max, 50/60 Hz
- 1 x USP-RPS DC input, 52VDC, 13.84A; 11.5VDC, 13A
Power Supply
- AC/DC, Internal, 100-240V, 10A Max.
Management Interface
- Ethernet In-Band
Networking Interfaces
- 48 x 100/1000/2500 Mbps RJ45 Ethernet
SFP+ Interfaces
- 4 x 1/10G SFP+
PoE Interfaces
- 48 x PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Total Available PoE
- 720W
Max. PoE+ Wattage per Port by PSE
- 34.2W
Voltage Range 802.3af Mode
- 44 to 57V
Voltage Range 802.3at Mode
- 50 to 57V
Services
- SMB Layer 3 PoE Gigabit Ethernet Switch
ESD/EMP Protection
- Air: ± 16 kV
- Contact: ± 12 kV
LCM Display
- 1.3-inch Touchscreen
- Bootup Animation: Bootup in Progress
- Firmware Upgrade Icon: Firmware Upgrading
- Steady White: Factory Defaults, Awaiting Adoption
- Steady Blue: Device is Adopted
Button
- Factory Reset
Operating Temperature
- -5°C to 40°C (23°F to 104°F)
Operating Humidity
- 10% – 90% Noncondensing
Certifications
- CE, FCC, IC
LED
Ethernet
- White: Link or Activity
SFP+
- White: Link or Activity
Standard Warranty: 1-Year
