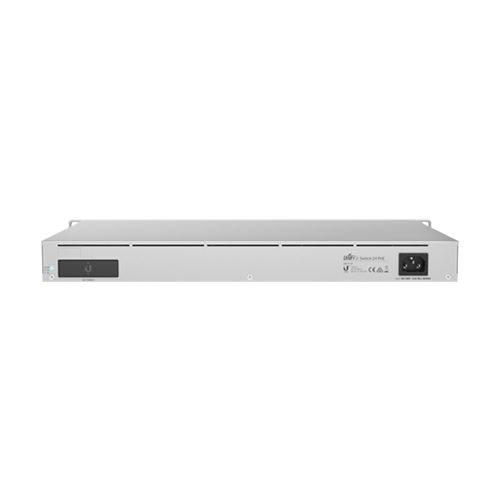

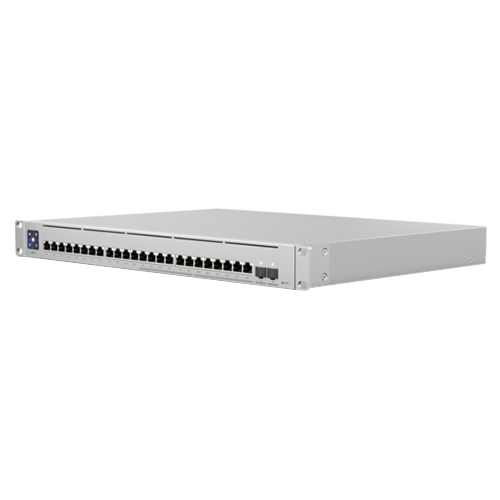

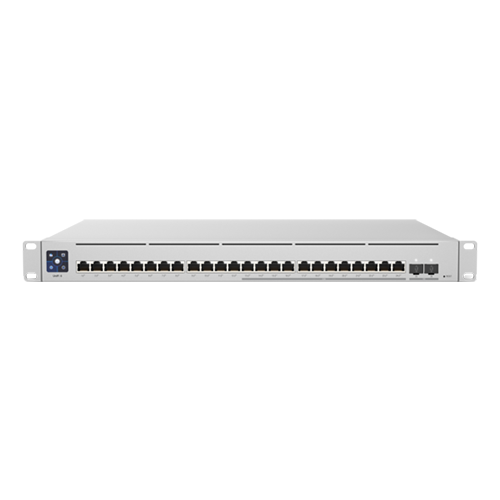

Ubiquiti USW-Enterprise-24-PoE UniFi Layer 3 24 Port Gigabit Switch
£829.24 inc.VAT / £691.03 exc.VAT
Ubiquiti USW-Enterprise-24-PoE UniFi 24-Port Layer 3 Managed Rackmount Gigabit PoE+ Switch w/ 2 x 10GbE SFP+ Ports (400W)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
              The Ubiquiti USW-Enterprise-24-PoE UniFi 24-Port Layer 3 Managed Rackmount Gigabit PoE+ Switch is a configurable Gigabit Layer 3 switch with auto-sensing 802.3at PoE+. It offers twelve (12) 2.5GbE RJ45 Ethernet ports, twelve (12) 1GbE RJ45 Ethernet ports, and (2) 10GbE SFP+ ports, providing 2.5GbE PoE links to your WiFi 6 APs and 10GbE fibre uplinks to your network. Features include a 1.3-inch touchscreen, single-row RJ45 port layout for easy patch panel cable management, and UniFi SmartPower Redundant Power System (USP-RPS – sold separately) support for intelligent protection from internal PSU interruption or failure.
Ubiquiti USW-Enterprise-24-PoE UniFi 24-Port Layer 3 Managed Rackmount Gigabit PoE+ Switch w/ 2 x 10GbE SFP+ Ports (400W)
Ubiquiti USW-Enterprise-24-PoE UniFi Layer 3 24 Port Gigabit Switch
The Ubiquiti USW-Enterprise-24-PoE UniFi 24-Port Layer 3 Managed Rackmount Gigabit PoE+ Switch is a configurable Gigabit Layer 3 switch with auto-sensing 802.3at PoE+. It offers twelve (12) 2.5GbE RJ45 Ethernet ports, twelve (12) 1GbE RJ45 Ethernet ports, and (2) 10GbE SFP+ ports, providing 2.5GbE PoE links to your WiFi 6 APs and 10GbE fibre uplinks to your network. Features include a 1.3-inch touchscreen, single-row RJ45 port layout for easy patch panel cable management, and UniFi SmartPower Redundant Power System (USP-RPS – sold separately) support for intelligent protection from internal PSU interruption or failure.
Key Features
- Twelve (12) 2.5GbE 802.3af/at PoE+ RJ45 ports.
- Twelve (12) 1GbE 802.3af/at PoE+ RJ45 ports.
- Two (2) 10GbE SFP+ ports.
- 400W total PoE capacity.
- 1.3-inch touchscreen with AR switch management.
- UniFi Smart Power RPS DC input (sold separately).
- Managed with UniFi Network Application Version: 5.14.12 or higher.
Works with UniFi Network Application
- Manage Your Networks from a Single Control Plane
- Intuitive and Robust Configuration, Control and Monitoring
- Remote Firmware Upgrade
- Users and Guests
- Guest Portal/Hotspot Support
Specifications
Mechanical
Dimensions
- 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8 in.)
Weight
- Without Mount: 5.11 kg (11.27 lb.)
- With Mount: 5.2 kg (11.46 lb.)
Enclosure Materials
- SGCC Steel
Mount Material
- SGCC Steel
Hardware
Total Non-Blocking Throughput
- 62 Gbps
Switching Capacity
- 124 Gbps
Forwarding Rate
- 92.25 Mpps
Max. Power Consumption
- 550W
Power Method
- 1 x Universal AC input: 100-240VAC, 8.5A Max., 50/60 Hz
- 1 x USP-RPS DC input: 52VDC, 7.7A; 11.5VDC, 8.7A
Power Supply
- AC/DC, Internal, 550W
Management Interface
- Ethernet In-Band
Networking Interfaces
- 12 x 10/100/1000 Mbps RJ45 Ethernet
- 12 x 100/1000/2500 Mbps RJ45 Ethernet
SFP+ Interfaces
- 2 x 1/10G SFP+
PoE Interfaces
- 24 x PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Max. PoE+ Wattage per Port by PSE
- 34.2W
Voltage Range 802.3af Mode
- 44 to 57V
Voltage Range 802.3at Mode
- 50 to 57V
Services
- SMB Layer 3 PoE Gigabit Ethernet Switch
ESD/EMP Protection
- Air: ± 16 kV
- Contact: ± 12 kV
Operating Temperature
- -5°C to 40°C (23°F to 104°F)
Operating Humidity
- 10% – 95% Noncondensing
Certifications
- CE, FCC, IC
LEDs
System
- Bootup Animation: Bootup in Progress
- Firmware Upgrade Icon: Firmware Upgrading
- Steady White: Factory Defaults, Awaiting Adoption
- Steady Blue: Device is Adopted
Ethernet
- White: Link or Activity
SFP+
- White: Link or Activity
Standard Warranty: 1-Year
Only logged in customers who have purchased this product may leave a review.
Related Products
Ubiquiti UniFi 24 Port PoE Pro Switch (USW-Pro-24-POE)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
Ubiquiti UniFi USW Pro 24-POE is a configurable, Gigabit Layer 2 and Layer 3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++.
185 in stock
Ubiquiti USW-PRO-24 UniFi 24-Port Cloud Managed Rackmount Gigabit Switch w/ 2 x 10GbE SFP+ Ports
                The Ubiquiti USW-PRO-24 UniFi 24-Port Cloud Managed Gigabit Switch is a fully managed Layer 3 switch with twenty-four (24) Gigabit Ethernet ports. The two (2) 10GbE SFP+ uplinks offer link aggregation for higher capacity and increased availability. The USW-PRO-24 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi USW-PRO-24 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. The UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
105 in stock

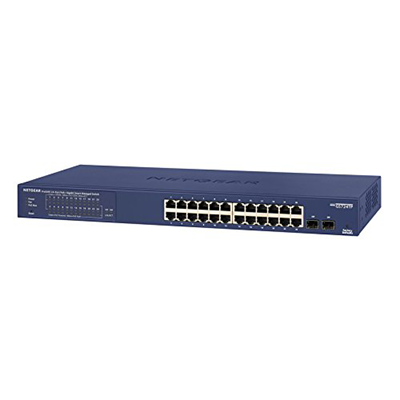

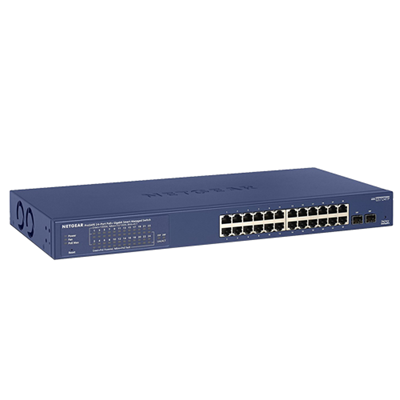

NETGEAR GS724TPv2 ProSAFE 24-Port Smart Gigabit PoE+ Switch w/ 2 x SFP Ports (190W)
As a leading provider of network equipment for SMBs, NETGEAR understands the importance of providing great choice of PoE port counts and power budgets that can adapt to the business’s needs, whether in the hospitality, catering, education or retail domains. The NETGEAR GS724TPv2 ProSAFE 24-Port Smart Gigabit PoE+ Switch with PoE+ and 2 SFP Ports joins the NETGEAR Standalone Smart Managed Pro Switches family, adding full 24 port PoE+ support for deployment of modern high-power PoE devices. Cautious spender organisations can now deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 190W.
281 in stock
NETGEAR JGS524 ProSAFE 24-Port Unmanaged Rackmount Gigabit Switch
NETGEAR JGS524 ProSAFE 24-Port Unmanaged Gigabit Switch enables you to cost-effectively deliver Gigabit Ethernet networking speeds across your entire office network – even directly to the desktop.
Out of stock
Ubiquiti USW-24-POE UniFi Gen2 24-Port Layer 2 Managed Rackmount Gigabit PoE+ Switch w/ 2 x 1GbE SFP Ports & 16 x PoE+ Ports (95W)Â Â Â
Ubiquiti USW-24-POE Gen2 24-Port Managed Gigabit PoE+ Switch is a configurable Gigabit Layer 2 switch with twenty-four (24) Gigabit Ethernet ports including sixteen (16) auto-sensing 802.3at PoE+ ports, and two (2) SFP ports.Â
605 in stock
TP-Link TL-SG1428PE JetStream Easy Smart 24-Port Smart Managed Rackmount Gigabit PoE+ Switch w/ 2 x 1GbE RJ45 Ports & 2 x 1GbE SFP Ports (250W)
TP-Link TL-SG1428PE 24 Port JetStream Easy Smart Managed Gigabit PoE+ Switch, with all twenty-four (24) ports supporting the PoE+ standard.
Out of stock
TP-Link TL-SG3428XMP JetStream 24-Port Smart Managed Rackmount Gigabit PoE+ Switch w/ 4 x 10G SFP+ Ports (384W)
The TP-Link TL-SG3428XMP JetStream 24-Port Smart Managed Rackmount Gigabit PoE+ Switch provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image, mean faster setup and configuration with less downtime. The TL-SG3428XMP provides a reliable, secure solution for enterprise, campus and ISP networks.
Out of stock
Aruba HP 2530-24-PoE+ 24-Port Layer 2 Fast Ethernet PoE+ Switch w/ 2 x 1GbE RJ45 Ports & 2 x 1GbE SFP Ports (195W) J9779A
The HP 2530-24-PoE+ ProCurve Switch (J9779A) is a 24-Port managed Layer 2 edge switch that deliver cost-effective, reliable, secure, and easy-to-use connectivity to business networks. Designed for entry-level to midsize enterprise networks, this Fast Ethernet switch delivers full Layer 2 capabilities combined with PoE+, enhanced access security, traffic prioritisation, and IPv6 host support. This HP 2530-24-PoE+ Switch also offers uplink flexibility with four Gigabit Ethernet uplinks for SFPs.
Out of stock
TP-Link TL-SG3428 JetStream 24-Port Smart Managed Rackmount Gigabit Switch w/ 4 x 1G SFP Ports
The TP-Link TL-SG3428 JetStream 24-Port L2 Managed Rackmount Gigabit Switch provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. This TP-Link JetStream smart managed switch provides a reliable, secure solution for enterprise, campus and ISP networks.
Out of stock
TP-Link TL-SG1024DE JetStream 24-Port Smart Rackmount Gigabit Switch
TP-LINK TL-SG1024DE 24 Port Gigabit Switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management.
Out of stock

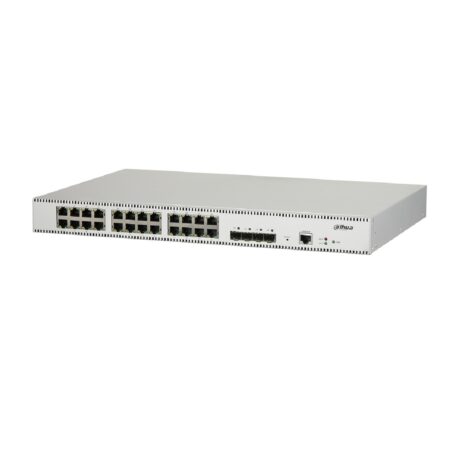

Dahua PFS5428-24GT L2+ Managed Switch
