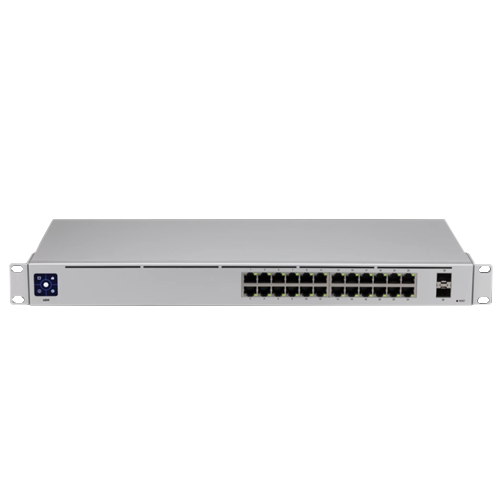

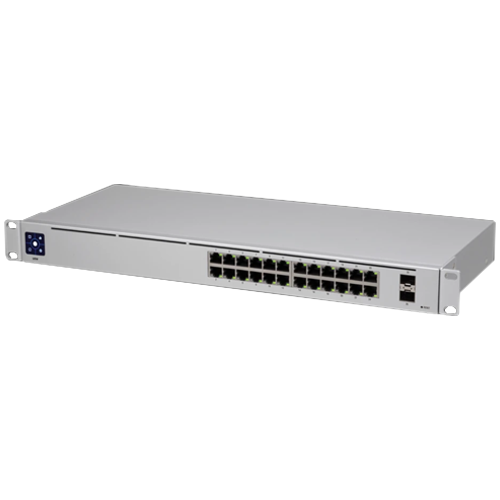

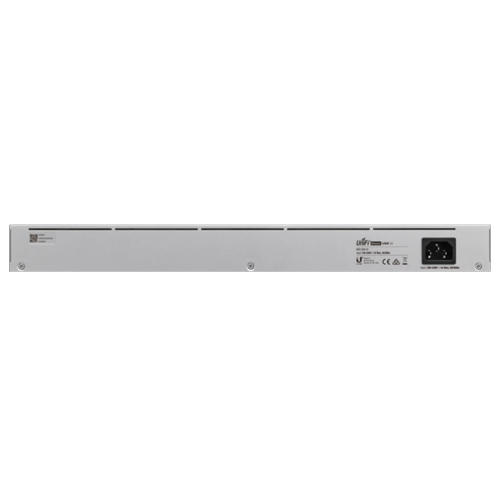

Ubiquiti USW-24 UniFi Cloud Managed Rackmount 24 Port Gigabit Switch
£255.50 inc.VAT / £212.92 exc.VAT
Ubiquiti USW-24 UniFi 24-Port Cloud Managed Rackmount Gigabit Switch w/ 2 x 1GbE SFP Ports           Â
       The Ubiquiti USW-24 UniFi Cloud Managed Rackmount 24 Port Gigabit Switch provides 1 Gbps fibre uplink options to your enterprise network. The USW-24 features a 1.3″ touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis.
Ubiquiti USW-24 UniFi 24-Port Cloud Managed Rackmount Gigabit Switch w/ 2 x 1GbE SFP Ports
Ubiquiti USW-24 UniFi Cloud Managed Rackmount 24 Port Gigabit Switch
The Ubiquiti USW-24 UniFi Cloud Managed Rackmount 24 Port Gigabit Switch provides 1 Gbps fibre uplink options to your enterprise network. The USW-24 features a 1.3″ touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis.
The Ubiquiti USW-24Â is a Layer 2, configurable switch with 24 Gigabit Ethernet ports and 2 SFP ports that provide a 1GBps fibre uplink option to your network. The USW-24 also features a 1.3″ liquid crystal touchscreen display that can show the current switch state and other quick diagnosis information, all housed within a compact, fanless design. Managed and configured by the UniFi Network Controller (version 5.12.32 or higher) with UniFi mobile app support offering an extensive suite of advanced Layer 2 switching protocols and features including operating mode (switching, mirroring, or aggregate) per port.
Key Features
- Twenty-four (24) Gigabit Ethernet ports.
- Two (2) Gigabit SFP ports.
- 1.3″ colour touchscreen for status information.
- Managed by UniFi Network Controller.
- 1U rackmountable (kit included).
Management
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.
Works with UniFi Network Controller
- Manage Your Networks from a Single Control Plane
- Intuitive and Robust Configuration, Control and Monitoring
- Remote Firmware Upgrade
- Users and Guests
- Guest Portal/Hotspot Support
Specifications
Dimensions
- 442.4 x 200 x 43.7 mm (17.42 x 7.87 x 1.72″)
Weight
- Without Mount: 2.70 kg (5.95 lb)
- With Mount: 2.79 kg (6.15 lb)
Enclosure Material
- SGCC Steel
Hardware
Total Non-Blocking Throughput
- 26 Gbps
Switching Capacity
- 52 Gbps
Forwarding Rate
- 38.69 Mpps
Max. Power Consumption
- 25W
Power Method
- Universal AC Input: 100-240VAC, 50/60 Hz
Power Supply
- AC/DC, Internal, 36W
Networking Interfaces
- 24 x 10/100/1000 Mbps Ethernet RJ45 Ports
- 2 x 1 Gbps SFP Ports
Management Interface
- Ethernet In-Band
Modes
- SMB Layer 2 Gigabit Ethernet Switch
ESD/EMP Protection
- Air: ± 16 kV, Contact: ± 12 kV
Operating Temperature
- -5 to 40° C (23 to 104° F)
Operating Humidity
- 10 – 90% Noncondensing
Certications
- CE, FCC, IC
LEDs
System
- Bootup Animation: Bootup in Progress
- Firmware Upgrade Icon: Firmware Upgrading
- Steady White: Factory Defaults, Awaiting Adoption
- Steady Blue: Device is Adopted
Ethernet
- Green: 1G, Amber: 10/100 Mbps
SFP
- Green: 1G
Package Contents
- 1 x Ubiquiti USW-24
- 2 x Rackmount Brackets
- 8 x Bracket Screws
- 4 x Mounting Screws
- 4 x Cage Nuts
- 1 x Power Cord
Standard Warranty: 1-Year
