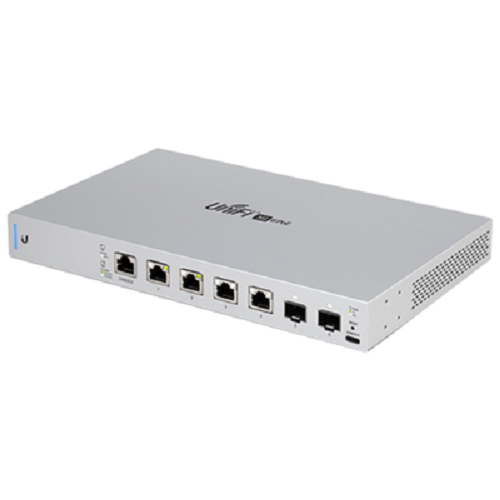

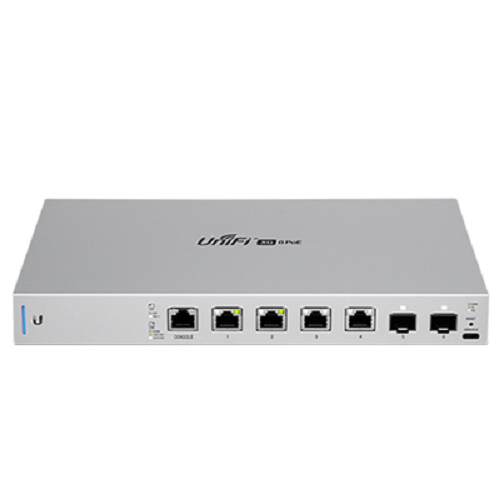

Ubiquiti US-XG-6POE UniFi Cloud Managed PoE++ 5 Port Gigabit Switch
£604.84 inc.VAT / £504.03 exc.VAT
Ubiquiti XG 6POE UniFi 4-Port Cloud Managed Desktop 10-Gigabit PoE++ Switch w/ 2 x 10GbE SFP+ Ports
Ubiquiti US-XG-6POE UniFi Cloud Managed PoE++ 5 Port Gigabit Switch is a fully managed, 4-port, 10-Gigabit switch with 802.3bt PoE++.
Ubiquiti XG 6POE UniFi 4-Port Cloud Managed Desktop 10-Gigabit PoE++ Switch w/ 2 x 10GbE SFP+ Ports
Ubiquiti US-XG-6POE UniFi Cloud Managed PoE++ 5 Port Gigabit Switch
Ubiquiti US-XG-6POE UniFi Cloud Managed PoE++ 5 Port Gigabit Switch is a fully managed, 4-port, 10-Gigabit switch with 802.3bt PoE++.
For deployment versatility, four 10G RJ45 ports offer 802.3bt PoE++ for powering devices, and two SFP+ ports are designed for high capacity fibre uplinks.
The XG 6POE offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss and features a total non-blocking throughput of up to 60 Gbps.
Key Features

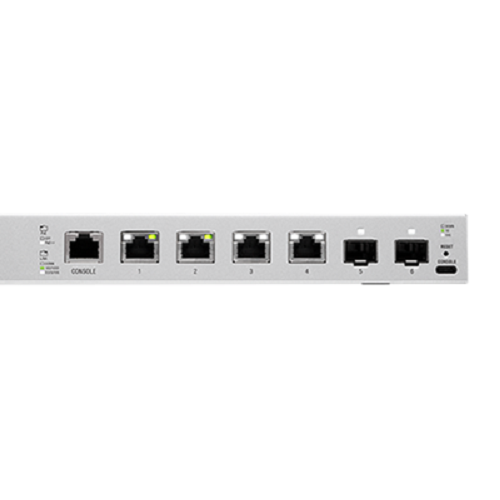

- Four (4) 100/1000 Mbps and 2.5/5/10G RJ45 Ports.
- Two (2) 1/10 SFP+ Ports.
- Four (4) 802.bt PoE++ Ports.
- 60 Gbps non-blocking throughput.
- 120 Gbps switching capacity.
- 89.3 Mpps forwarding rate.
- 40W maximum power consumption.
- External 210W AC/DC Adapter
- DC Input Option (Redundant or Stand-Alone)
- Mount on a desktop or in a rack (rackmount kit sold separately).
802.3bt PoE++ Compatibility
The XG 6POE is compatible with devices requiring 802.3af or 802.3at, as well as UniFi Access Points (APs) which require 802.3bt power.
It offers 802.3bt PoE++ on all four RJ45 ports of up to 60 W per port for devices requiring additional power, such as the UniFi XG APs.
Power Redundancy

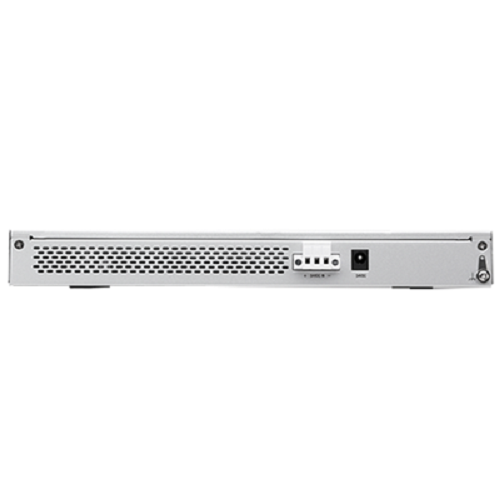

The XG 6POE can be powered by a DC power source or the included power adapter. The optional DC input can be used as a stand-alone or redundant DC power source (not included).
Mounting Versatility
The UniFi Switch XG 6POE can be mounted on a desktop or in a rack (rackmount accessory sold separately).
Deployment Example
Specifications
Dimensions
- 165 x 268.1 x 31.8 mm (6.50 x 10.56 x 1.25 in.)
Weight
- 1.3 kg (2.87 lb.)
Interfaces
- Networking
- 4 x 100/1000 Mbps and 2.5/5/10G RJ45 Ports
- 2 x 1/10G SFP+ Ethernet Ports
- Management
- Ethernet In-Band
- 1 x RJ45 Serial Port Out-of-Band
- 1 x USB Type C Port Out-of-Band
Power Method
- 54VDC, 3.88A Power Adapter (Included)
- Or DC Input with Terminal Block
Power Supply
- External AC/DC Adapter (Included)
- Or DC Power Source
Supported Voltage Range
- 44 to 57VDC
Max. Power Consumption (Excluding PoE Output)
- 40W
LEDs
System
- Status
RJ45 Data Ports
- PoE; Speed/Link/Activity
SFP+ Data Ports
- Link/Activity
ESD/EMP Protection Air
- ± 18 kV, Contact: ± 12 kV
Shock and Vibration
- ETSI300-019-1.4 Standard
Operating Temperature
- -5ºC to 45ºC (23ºF to 113ºF)
Operating Humidity
- 5 to 95% non-condensing
Certifications
- CE, FCC, IC
PoE
PoE Interfaces
- PoE++ IEEE 802.3bt
- (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
Max. 802.3bt Wattage per Port by PSE
- 60W
Voltage Range 802.3af Mode
- 44-57V
Voltage Range 802.3at/bt Mode
- 50-57V

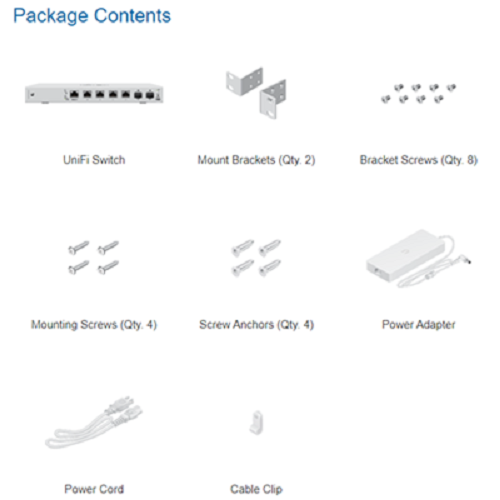

Package Contents
- 1 x Ubiquiti XG 6POE
- 2 x Mount Brackets
- 8 x Bracket Screws
- 4 x Mounting Screws
- 4 x Screw Anchors
- 1 x Power Adapter
- 1 x Power Cord
- 1 x Cable Clip
Convenient management
The UniFi Controller software allows admins to configure and monitor the UniFi Switch and other UniFi devices using a graphical user interface.
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface.
Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:
- Operation mode (switching, mirroring, or aggregate) per port
- Network/VLAN configuration
- Jumbo frame and flow control services
- Network settings
- Storm control setting per port
- Spanning tree configuration
- 802.1x control and RADIUS VLAN
- Debug terminal option for command-line interface
You can also view status information for each port:
- Connection speed and duplex mode
- TX/RX data rates
- Network/VLAN setting
Standard Warranty: 1-Year
