Ubiquiti UniFi UBB-XG 60Ghz

Ubiquiti UniFi UBB-XG 60Ghz WiFi Building-to-Building Bridge

Ubiquiti UniFi UBB-XG 60Ghz

Ubiquiti UniFi UBB-XG 60Ghz is a 60 GHz wireless bridge with a 10 Gbps SFP+ interface. UniFi® Building-to-Building Bridge is the ideal answer for short-range, high-throughput network.

Combination with the UniFi Controller makes connecting two organizations consistent. As a bunch of two radios, UniFi Building-to-Building Bridge contains all you require to get going in no time.

Appreciate straightforward, simple to-utilize gigabit availability anyplace.

Key Features

• 5 GHz backup radio
• Operational range of up to 500 meters
• 6.6 Gbps throughput rate
• Additional GbE RJ45 port with PoE++
• Integrated outer diameter alignment LED for easy setup

Specifications

Mechanical:

Dimensions  Ø191.77 x 58.95 mm (Ø7.56 x 2.32″)
Weight  Without mount: 1.7 kg (3.75 lb)
With mount: 2.85 kg (6.28 lb)
Enclosure materials Aluminum alloy, UV-resistant polycarbonate
Mount material Stainless steel

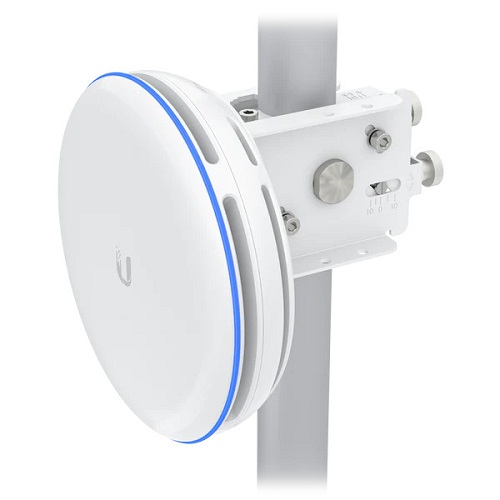

Mounting 60G precision alignment pole mount (included)
Pole compatibility: Ø25.4-63.5 mm (Ø1-2.5″)
Weather proofing IPX6

Hardware:

Management interface  Ethernet & Bluetooth

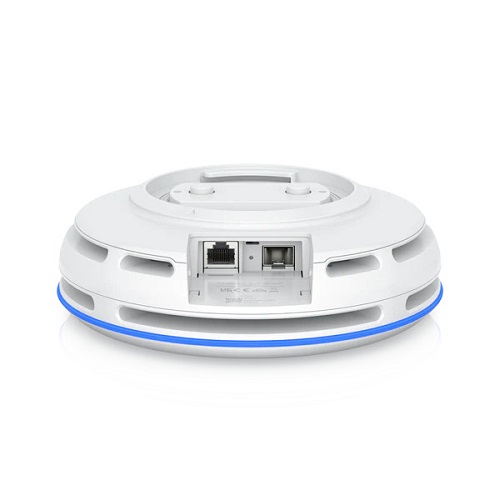

Networking interface (1) GbE RJ45 port  & (1) 1/10G SFP+ port
Button Factory-reset
LED R/G/B
Power method PoE++
Passive PoE [4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)]
Power supply  UniFi PoE switch
48V, 0.65A Gigabit PoE adapter (included)
Supported voltage range 48VDC ± 10%
Max. power consumption 31.2W
Throughput rate
5 GHz – 866.6 Mbps
60 GHz – 6.6 Gbps
Maximum range 500+ m (1,640+ ft)
Operating temperature -40 to 55° C (-40 to 131° F)
Operating humidity 5 – 95% noncondensing
Certifications FCC, IC, CE, terragraph

Software:

WiFi standards  802.11ad/ay  &  802.11ac (WiFi 5)
Wireless security  WPA2 AES (Always On)
Operating modes  PtP
VLAN Management  VLAN only

RF:

Operating frequency*  57 to 66 GHz
*Dependent on regional regulations.
Channel bandwidth  2,160/4,320 MHz (Channel Bonding Enabled)
Operating channels*  58,320/59,400/60,480/61,560/62,640/63,720/64,800 MHz
*Dependent on regional regulations.

Backup RF:

Operating frequency*
US/CA

U-NII-1: 5,150 – 5,250 MHz
U-NII-2A: 5,250 – 5,350 MHz
U-NII-2C: 5,470 – 5,725 MHz
U-NII-3: 5,725 – 5,850 MHz

Worldwide 5,150 – 5,725 MHz
*Dependent on regional regulations.
Channel bandwidth  20/40/80 MHz
