Ubiquiti UniFi Dream Wall Access Point (UDW)

Ubiquiti UniFi Dream Wall (UDW)

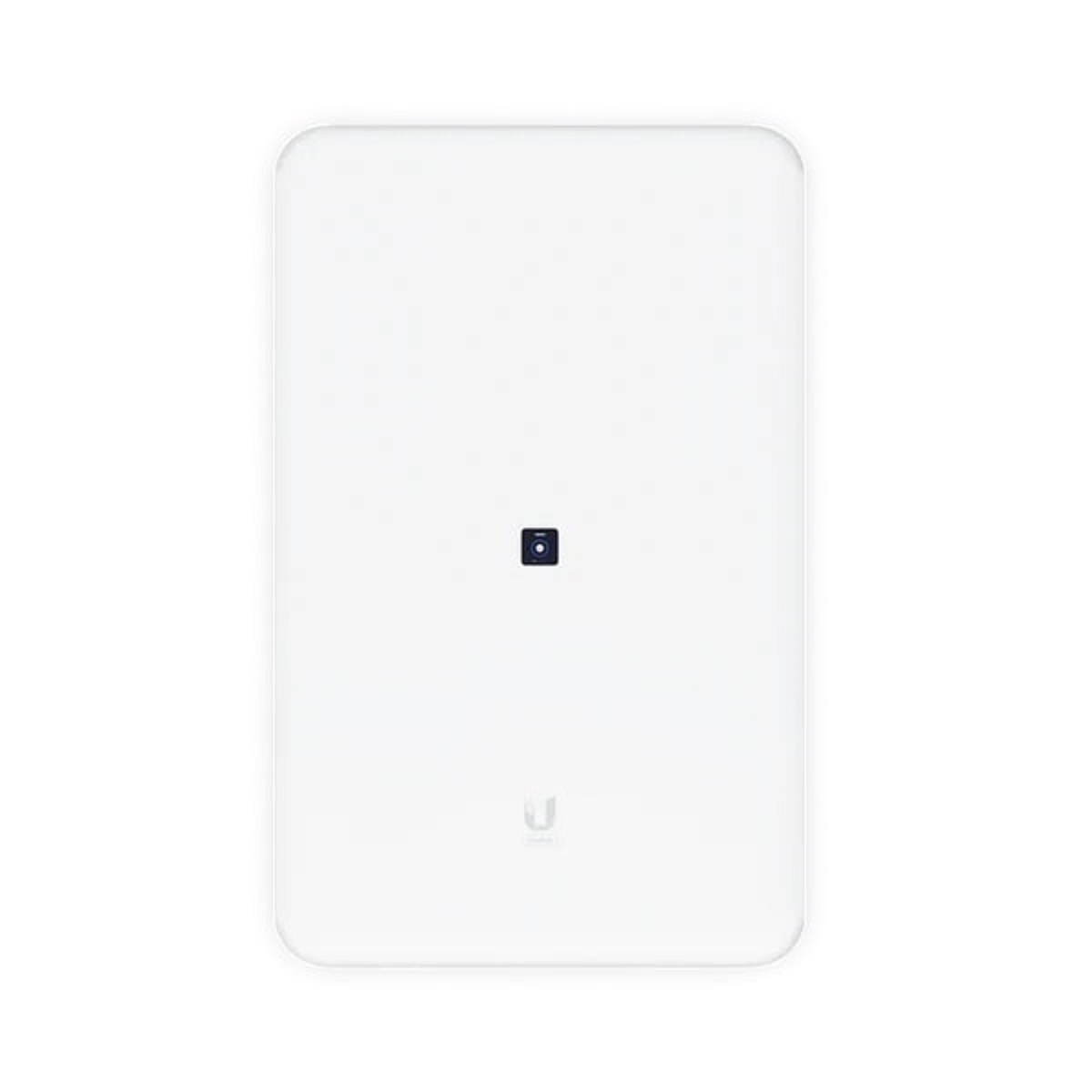

Ubiquiti UniFi Dream Wall (UDW) is a wall-mounted UniFi OS Console with a security gateway, high-speed access point, network video recorder, and a PoE switch with a versatile networking interface.

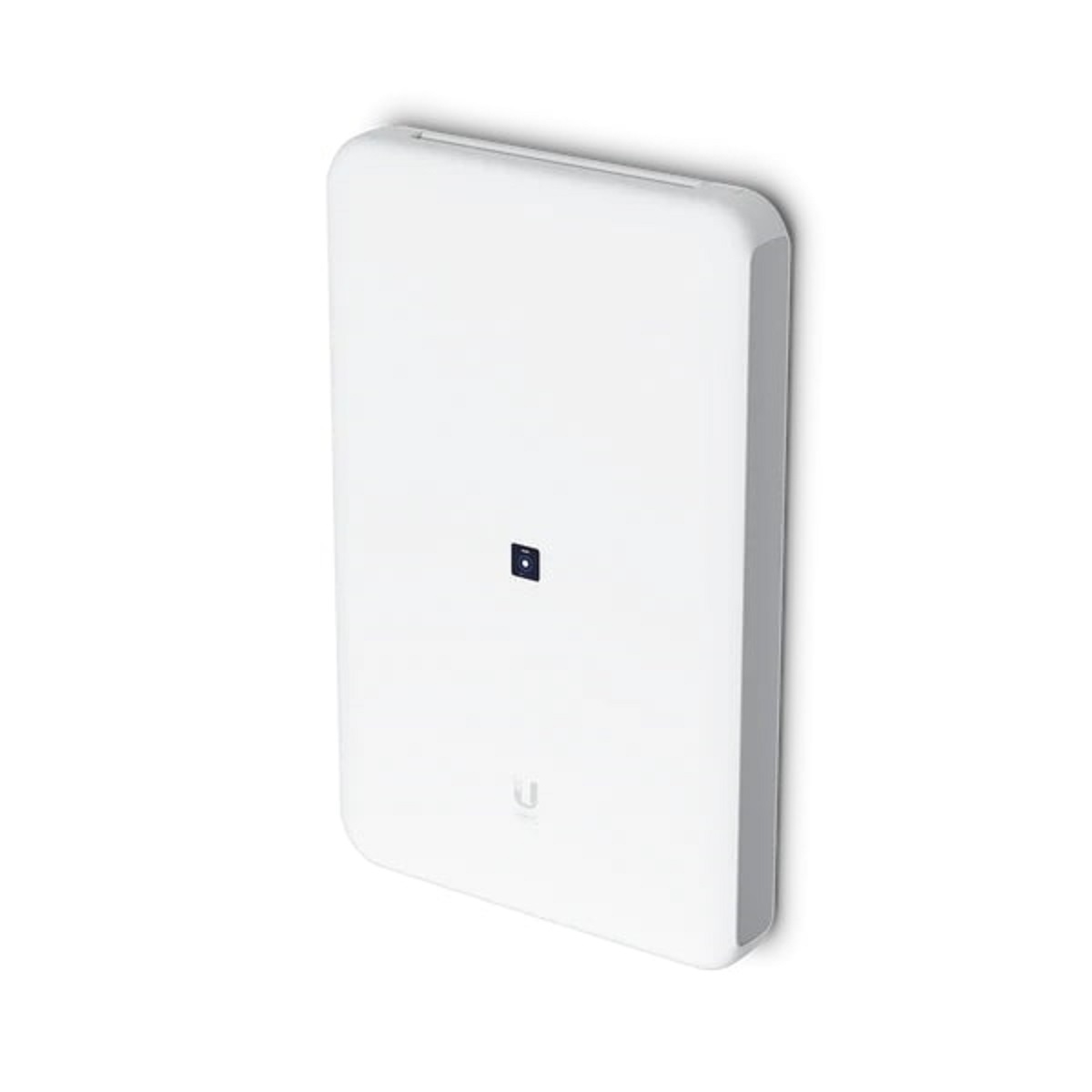

The Dream Wall is wall-mounted UniFi OS Consoles that serve as standalone, space-saving deployment hosting solutions.

Each of these feature-rich, next-gen consoles are equipped with a variety of multi-gigabit WAN/LAN ports to support high-speed connectivity, along with a wealth of GbE RJ45 ports that deliver PoE, PoE+, and PoE++ output.

Key Features

Specifications

Mechanical

• Dimensions 549 x 342 x 62 mm (21.6 x 13.5 x 2.4″)
• Weight 10 kg (22 lb)
• Enclosure materials Polycarbonate, galvanized steel, aluminium alloy
• Mount material Stainless steel

Hardware

• Processor specs Quad-Core ARM® Cortex®-A57 at 1.7 GHz
• System memory 4GB DDR4
• On-board storage 16 GB eMMCIntegrated 128 GB SSD
• Expansion slot Micro SD memory card* (optional) *Requires a memory card with at least 128GB of storage.
• Management interface Ethernet Bluetooth WiFi

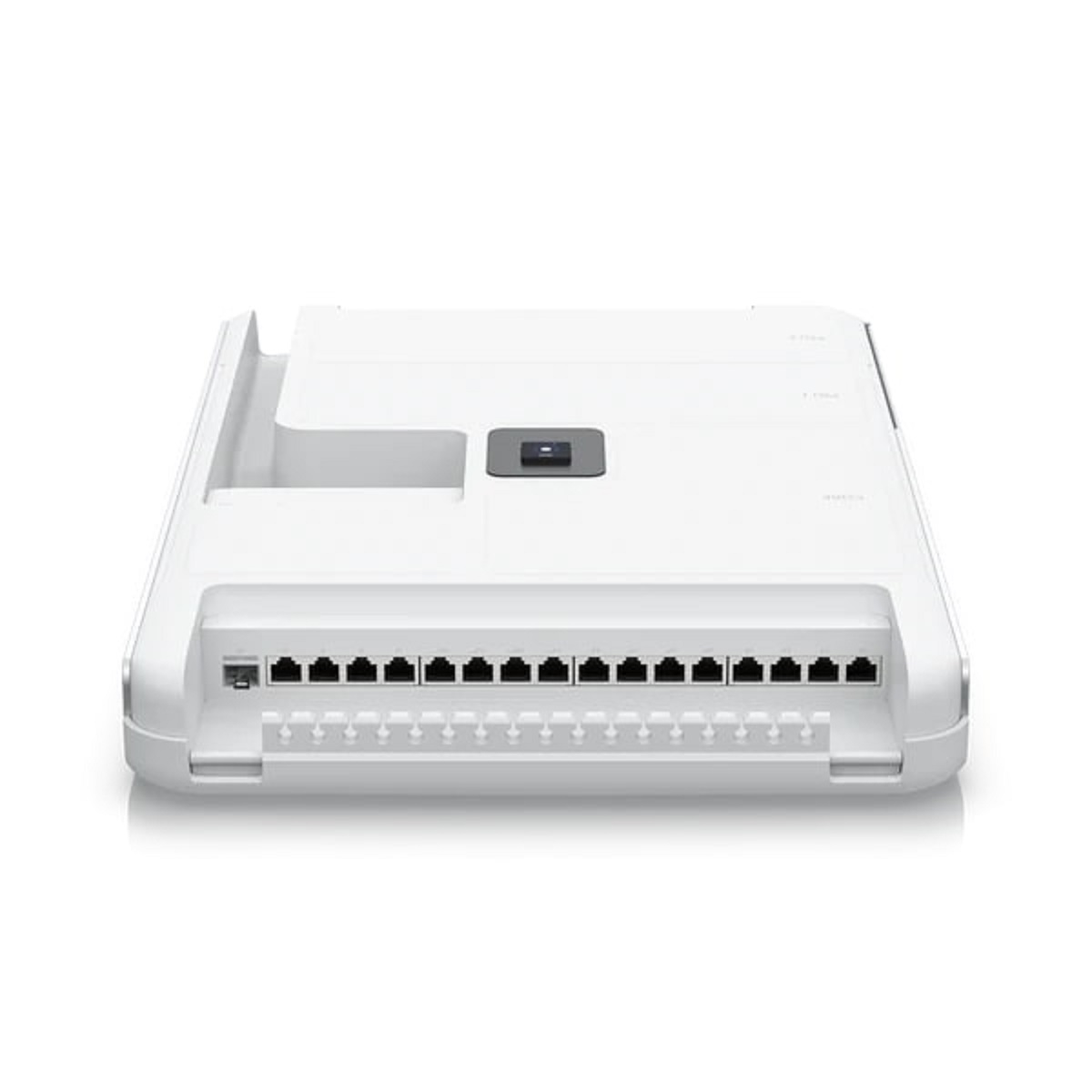

• Networking interfaces (1) WAN: 2.5 GbE RJ45 port(17) LAN: 1 GbE RJ45 ports
• SFP+ interfaces (1) WAN: 10G SFP+(1) LAN: 10G SFP+
• PoE interfaces (4) PoE IEEE 802.3af (pair A 1, 2+; 3, 6-)(4) PoE+ IEEE 802.3at (pair A 1, 2+; 3, 6-)(4) PoE++ IEEE 802.3bt(pair A 1, 2+; 3, 6-) (pair B 4, 5+; 7, 8-)
• LCM display (1) 1.3″ touchscreen Start-up animation: start-up in progress Firmware update icon: rmware updating
• Button Factory-reset
• Power method Universal AC input 100 to 240 VAC, 7A Max, 50/60 Hz
• Power supply (2) Hot-Swappable AC/DC 550 W PSU
• Max. power consumption 532 W
• Max. PoE wattage per port by PSE PoE 802.3af: 15.4W PoE+ 802.3at: 30W PoE++ 802.3bt: 60W
• Voltage range 802.3af mode 44 to 57 V
• Voltage range 802.3at/bt mode 50 to 57 V
• Mounting Wall mount(included)
• ESD/EMP protection Air: ± 8 k V, contact: ± 4 k V
• Operating temperature -10 to 40° C (14 to 104° F)
• Operating humidity 5 – 95% non-condensing
• Certifications CE, FCC, IC
