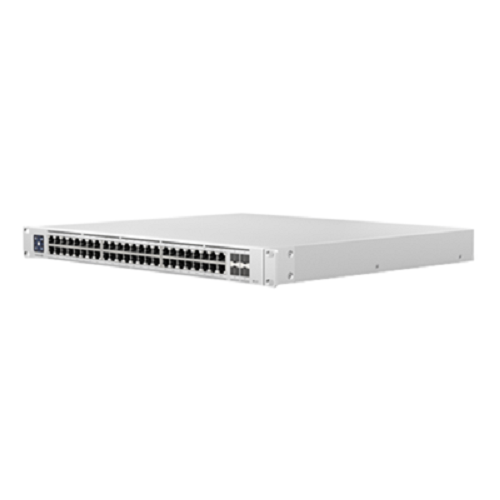

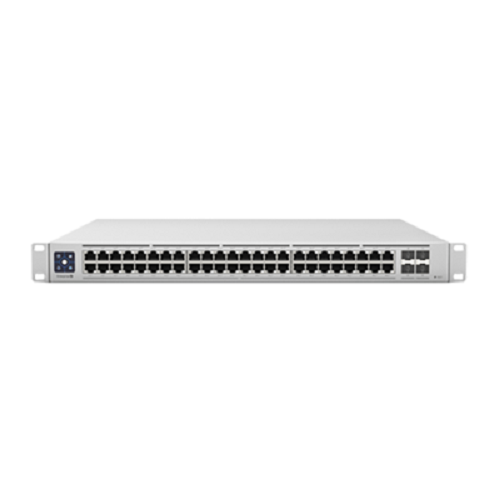

Ubiquiti UniFi USW-48-PoE Switch Technical Specification

Product Specifications

Dimensions: 442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72″)

Weight: 4.52 kg (9.97 lb)

Weight with Brackets: 4.61 kg (10.16 lb)

Interfaces:
– Networking: (48) 10/100/1000 RJ45 Ports, (4) 1G SFP Ethernet Ports
– Management: Ethernet In-Band

Total Non-Blocking Throughput: 52 Gbps

Switching Capacity: 104 Gbps

Forwarding Rate: 77.38 Mpps

Power Method: 100-240VAC, 50/60 Hz, Universal Input

Power Supply: AC/DC, Internal, 240W

Voltage Range: 100 to 240VAC

Max Power Consumption (Excluding PoE Output): 45W

LEDs:
– RJ45 Data Ports: PoE; Speed/Link/Activity
– SFP Data Ports: Link/Activity

ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV

Shock and Vibration: ETSI300-019-1.4 Standard

Operating Temperature: -5 to 40° C (23 to 104° F)

Operating Humidity: 10 – 90% Noncondensing

Certifications: CE, FCC, IC

PoE

Total Available PoE: 195W

PoE Interfaces Ports 1-32: PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)

Max. PoE Wattage per Port by PSE:
– 802.3at: 32W

Voltage Range 802.3af Mode: 44-57V

Voltage Range 802.3at Mode: 50-57V

Fibre Connectivity

The four (4) 1GbE SFP ports enable network uplinks of up to 1 Gbps.

Fanless, Silent Cooling

The UniFi PoE Switch features fanless, silent thermal cooling*, so it can be deployed in areas where fan noise would be distracting.

^{* Fanless switches must not be stacked.}

Switching Performance

The USW-48-PoE UniFi PoE Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

802.3af/at PoE

PoE support simplifies your network infrastructure and cabling. PoE ports offer 802.3af/at to power your PoE devices, such as UniFi APs and cameras.

Innovative Display

The 1.3-inch touchscreen displays status information for easy monitoring and quick troubleshooting.

Scalable UniFi Network Controller

Management Capabilities

The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organised for a simplified, yet powerful, interface.

Network Overview

From a single pane of glass, view network topology and configuration, real-time statistics, and debugging metrics. Monitor your network’s vitals and make on-the-fly adjustments as needed.

Deep Packet Inspection

Ubiquiti’s proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.

Detailed Analytics

The UniFi Network Controller provides configurable reporting and analytics to manage large user populations and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.

Multi-Site Management

A single controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator accounts.

Switch Configuration

You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:

• Operation mode (switching, mirroring, or aggregate) per port
• Network/VLAN configuration
• Jumbo frame and flow control services
• Network settings
• Storm control setting per port
• Spanning tree configuration
• 802.1X control and RADIUS VLAN
• Debug terminal option for command-line interface

Switch Port Status

You can also view status information for each port:

• Connection speed and duplex mode
• TX/RX data rates
• Network/VLAN setting

Software Features

The UniFi Network Controller software offers the following features:

• Centralised configuration management (including configuration cloning)
• Auto-MDIX automatically adjusts as needed for straight through or crossover cable
• 802.1X (RADIUS) authentication and dynamic VLAN

Standard Warranty: 1-Year
