Ubiquiti UDR UniFi Dream Router WiFi 6 Router (AX)
£229.86 inc.VAT / £191.55 exc.VAT
Ubiquiti UDR UniFi Dream Router WiFi 6 Router (3000 Mbps AX)Â Â Â
The Ubiquiti UDR UniFi Dream Router WiFi 6 Router is a next-generation WiFi 6 router that delivers unbeatable performance. Featuring advanced 4×4 MU-MIMO and OFDMA technology.
Ubiquiti UDR UniFi Dream Router WiFi 6 Router (3000Mbps AX)
Ubiquiti UDR UniFi Dream Router WiFi 6 Router (AX)
Ubiquiti UDR UniFi Dream Router WiFi 6 Router (AX) is a next-generation WiFi 6 router that delivers unbeatable performance.
Featuring advanced 4×4 MU-MIMO and OFDMA technology, the UDR has an aggregate wireless throughput rate of up to 3 Gbps over its 2.4 and 5 GHz bands, ensuring quality connectivity for all of your devices.

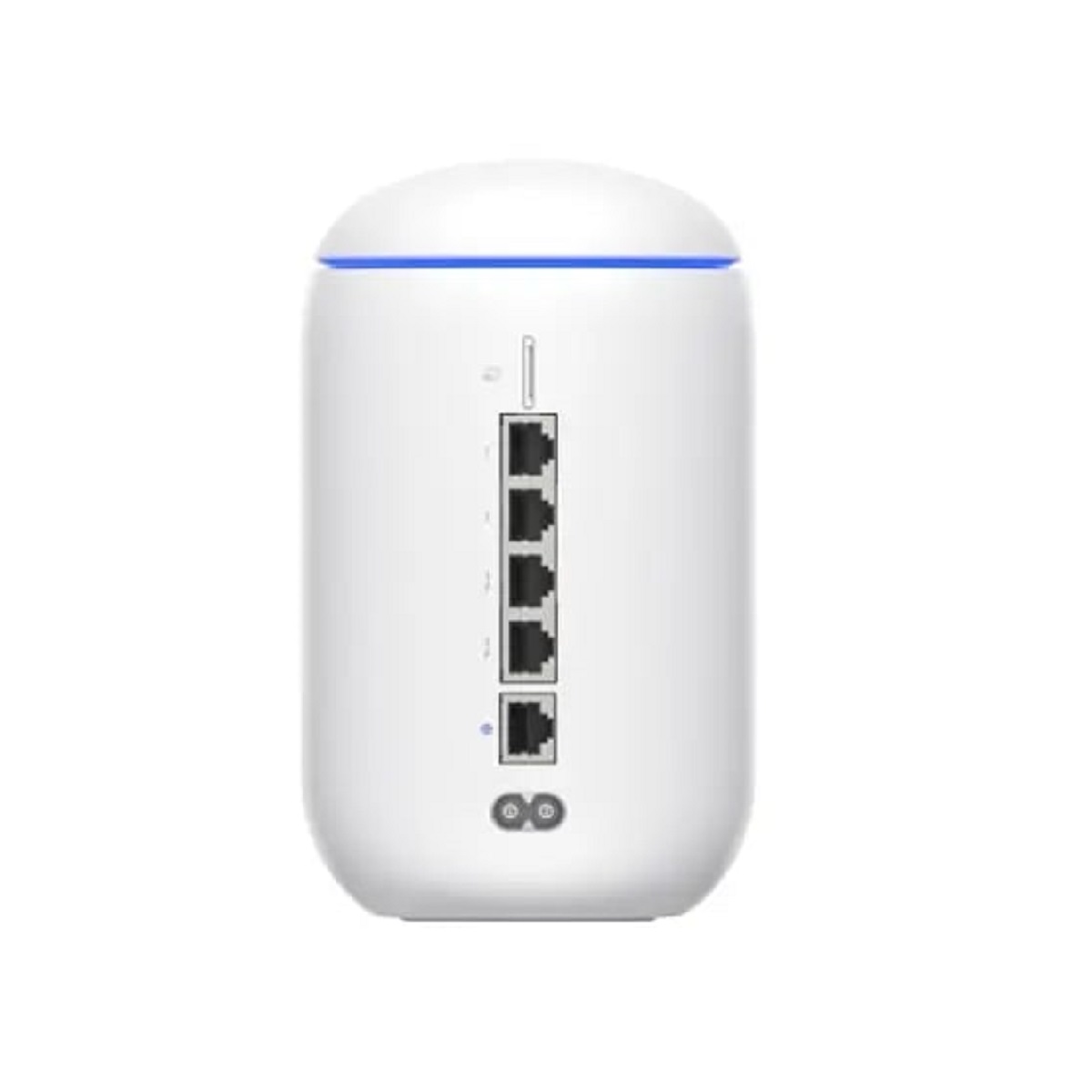

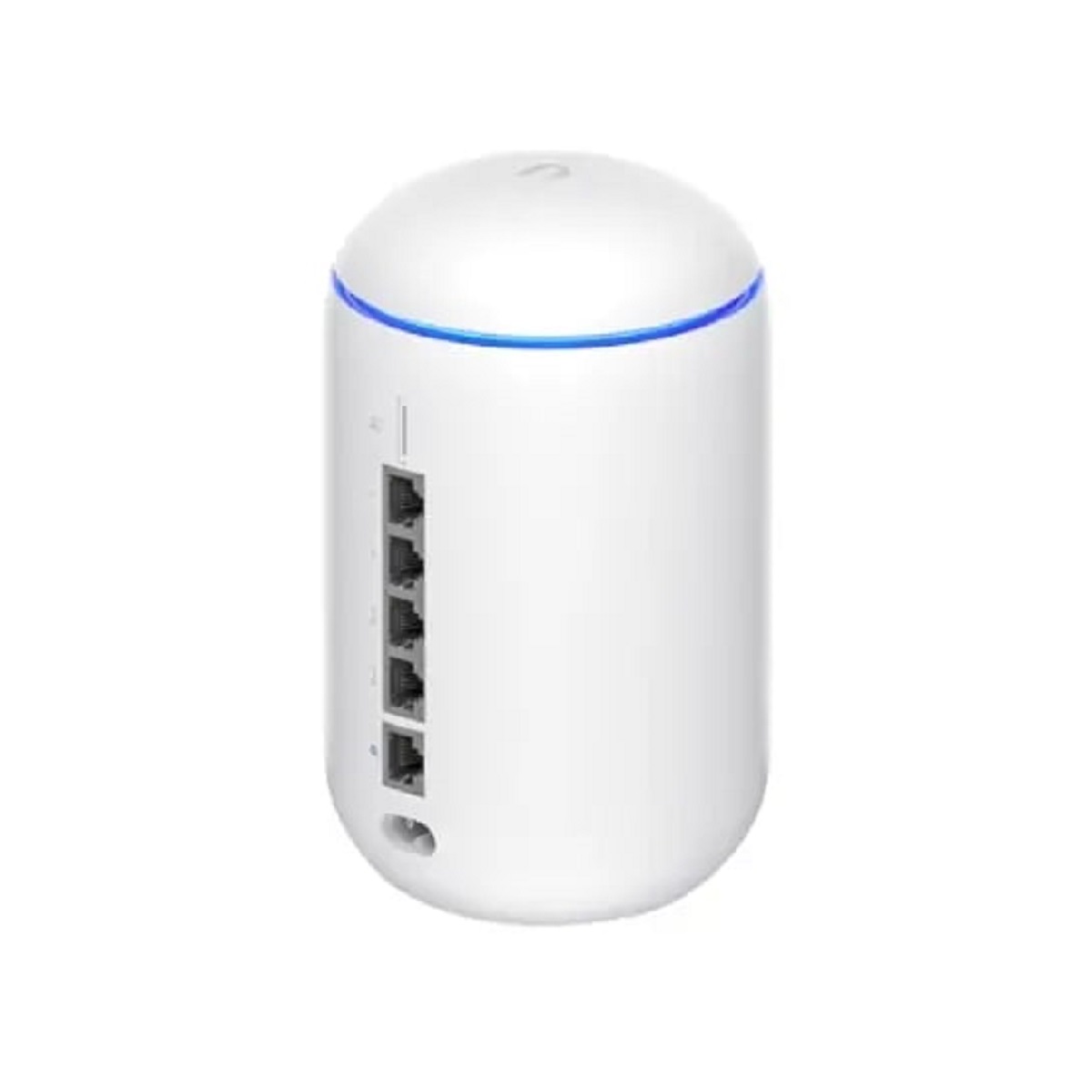

The UDR also has five (5) 1GbE RJ45 ports, including two (2) that supply PoE to compatible devices, and all of its connections can be conveniently monitored from the router’s LCM colour screen.
Designed to be a comprehensive, easy-to-use network hub, the UDR can be set up and configured in minutes via the UniFi Network web application or mobile app.
Dream Router WiFi 6 Router (AX) UDR UniFi
Key Features
- Four-stream WiFi 6 technology.
- 5 GHz band (4×4 MU-MIMO/OFDMA) with a 2.4 Gbps throughput rate.
- 2.4 GHz band (4×4 MIMO) with a 600 Mbps throughput rate.
- 128 GB of internal storage.
- One (1) GbE RJ45 WAN port.
- Four (4) LAN ports, including two (2) 802.3af PoE outputs.
- 0.96-inch LCM colour screen for network and connection monitoring.
- Micro SD memory card expansion slot (requires a memory card with at least 128 GB of storage.)
- Managed with the UniFi Network application: Version 6.17.0 (iOS) or 3.8.5 (Android).
Specifications
Mechanical
Dimensions
- Ø110 x 184.13 mm (Ø4.33 x 7.25 in.)
Weight
- 1.15 kg (2.54 lb.)
Enclosure material
- Polycarbonate
Hardware
Processor specs
- Dual-Core Cortex A53 at 1.35 GHz
System memory
- 2 GB
Expansion slot
- Micro SD memory card (optional)
- Note:Â Requires a memory card with at least 128 GB of storage.
Management interface
- Ethernet
- Bluetooth
Networking interfaces
- 1 x WAN: 1 GbE RJ45 port
- 4 x LAN: 1 GbE RJ45 ports
PoE interfaces
- 2 x PoE IEEE 802.3af
LCM display
- Start-up animation: start-up in progress
- Firmware update icon: firmware updating
Button
- Factory-reset
LED
- White/blue
Power method
- Universal AC input, 100-240VAC, 1.1A Max, 50/60 Hz
Power supply
- AC/DC, Internal, 50W
Supported voltage range
- 100 to 240VDC
Max. power consumption (excluding PoE output)
- 19.37W
PoE budget
- 32W
Max. PoE wattage per port by PSE
- 15.4W
Voltage range 802.3af mode
- 44 to 57VDC
Max. TX power
- 2.4 GHz
- 26 dBm
- 5 GHz
- 26 dBm
MIMO
- 2.4 GHz
- 4 x 4
- 5 GHz
- 4 x 4
Throughput speed
- 2.4 GHz
- 600 Mbps
- 5 GHz
- 2.4 Gbps
Antenna
- 1 x Internal, dual-band, quad-polarity antenna
Antenna gain
- 2.4 GHz
- 3.4 dBi
- 5 GHz
- 4.3 dBi
Operating temperature
- -10°C to 45°C (14°F to 113°F)
Operating humidity
- 5% – 95% noncondensing
Certifications
- CE, FCC, IC
Software
WiFi standards
- 802.11a/b/g
- WiFi 4/WiFi 5/WiFi 6
Wireless security
- WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID
- 8 per radio
VLAN
- 802.1Q
Advanced QoS
- Per-user rate limiting
Guest traffic isolation
- Supported
Concurrent clients
- 300+
Supported Data Rates
802.11a
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
- 1, 2, 5.5, 11 Mbps
802.11g
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)
- 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
802.11ac (WiFi 5)
- 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6)
- 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
Standard Warranty: 1-Year
