Ubiquiti UDM UniFi Dream Machine Network Appliance WiFi 5 Router (AC)
£324.36 inc.VAT / £270.30 exc.VAT
Ubiquiti UDM UniFi Dream Machine WiFi 5 Network Appliance (1700 Mbps AC)
Ubiquiti UDM UniFi Dream Machine Network Appliance WiFi 5 Router (AC) is an all-in-one device with access point, four port switch and security gateway router.
Ubiquiti UDM UniFi Dream Machine WiFi 5 Network Appliance (1700 Mbps AC)
Ubiquiti UDM UniFi Dream Machine Network Appliance WiFi 5 Router (AC)
Ubiquiti UDM UniFi Dream Machine Network Appliance WiFi 5 Router (AC) is an all-in-one device with access point, four port switch and security gateway router.
The UniFi Dream Machine is a simple way to introduce UniFi to homes and businesses. It includes everything you need for a small-scale wired or WiFi network with all the benefits of UniFi, the revolutionary WiFi system from Ubiquiti.
The smooth user experience and effortless networking will amaze you.
Key Features
- High‐Performance Dual Band 802.11ac 4×4 Wave 2 AP
- Managed 4-Port Gigabit Switch
- Advanced Security Gateway with IDS/IPS and DPI
- UniFi Network Controller with Intuitive User Interface
- Scalable Through Additional UniFi Devices Connected to LAN
- Powered by Fast 1.7 GHz Quad-Core Processor
Powered by a fast 1.7GHz quad-core processor, the UDM combines multiple functions into a single elegant device
High-Performance Antenna
802.11ac Wave 2 4×4 MU-MIMO for 5 GHz and 802.11n for 2.4 GHz
Advanced Security
Threat Management with IDS/IPS and DPI
Processor
ARM Cortex-A57 Quad-Core at 1.7 GHz
Ethernet Ports
5 GbE Ports: 1 WAN and 4 LAN
VLAN Support
Security and Traffic Management
Secure Communications
VPN Server
QOS
Enterprise VoIP
UniFi Network Controller with Intuitive User Interface
Centralized management software featuring a graphical user interface offers easy setup and convenient control.
Integrated 4×4 Enterprise access point
The UDM delivers the requisite high-performance WiFi and fits into high-density environments as part of the overall enterprise network.
Integrated Security Gateway
The UDM offers advanced firewall policies and persistent threat management to act as an Intrusion Prevention System (IPS) and Intrusion Detection System (IDS).
Integrated Cloud Key
The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic.
Integrated Gigabit switch
The UDM provides a managed 4-port Gigabit switch so you can easily add network storage or wired client devices.
UniFi Network Controller with intuitive user interface
Manage your UDM via Ubiquiti’s centralized management software, featuring a graphical user interface with easy setup and convenient control. The UniFi Network Controller is an end-to-end system of network devices across different locations — all controlled from a single interface.
Specifications
Dimensions
- Ø 110 x 184.2 mm (Ø 4.33 x 7.25″)
Weight
- 1.05 kg (2.32 lb)
Networking Interface
- 4 x LAN 10/100/1000 RJ45 Ports
- 1 x WAN 10/100/1000 RJ45 Port
Buttons
- Reset
IDS/IPS Throughput
- 1 Gbps
Processor
- ARM Cortex-A57 Quad-Core at 1.7 GHz
System Memory
- 2 GB DDR RAM
On-Board Flash Storage
- 16 GB
Maximum Power Consumption
- 26W
Supported Voltage Range
- 100 – 240VAC
Power Method
- AC Power Cord
Power Supply
- Internal AC/DC Power Adapter (24V, 0.6A, 100 – 240VAC)
Power Save
- Supported
Beamforming
- Supported
TX Power
- 2.4 GHz: 23 dBm
- 5 GHz: 26 dBm
- (Including antenna gain. Maximum TX power level may be limited by user’s country-specific regulations.)
Antenna
- 1 x Dual-Band, Quad-Polarity Antenna
Antenna Gain
- 2.4 GHz: 3 dBi
- 5 GHz: 4.5 dBi
Wi-Fi Standards
- 802.11 a/b/g/n/ac/ac-wave2
Wireless Security
- WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
BSSID
- Up to eight (8) per radio
Operating Temperature
- -10 to 45° C (14 to 113° F)
Operating Humidity
- 5 to 95% Noncondensing
Certifications
- CE, FCC, IC
ADVANCED TRAFFIC MANAGEMENT
VLAN
- 802.1Q
Advanced QoS
- Per-User Rate Limiting
Guest Traffic Isolation
- Supported
WMM
- Voice, Video, Best Effort, and Background
SUPPORTED DATA RATES (MBPS)
802.11a
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
- 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac
- 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80)
- 58 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 160)
802.11b
- 1, 2, 5.5, 11 Mbps
802.11g
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Package Contents
- UniFi Dream Machine x 1
- AC Power Cord x 1
Standard Warranty: 1-Year
Only logged in customers who have purchased this product may leave a review.
Related Products

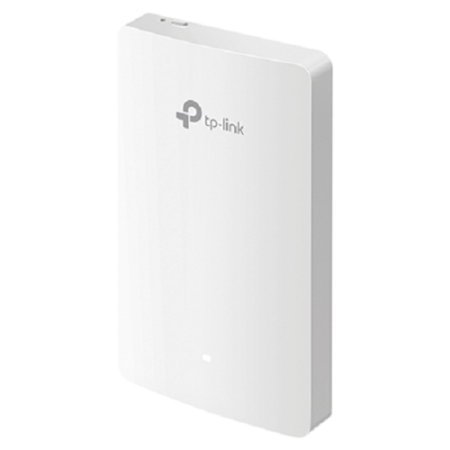

TP-Link EAP235-Wall Omada Wall-Plate WiFi 5 PoE Access Point (1167Mbps AC)

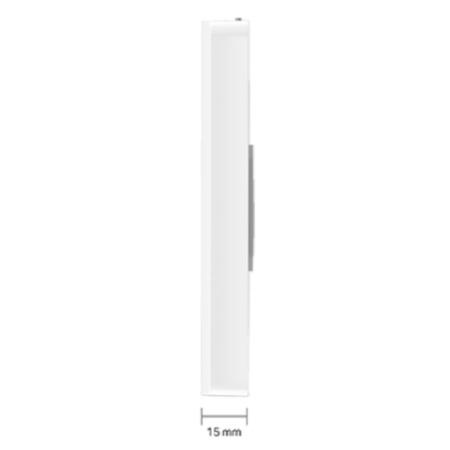

The TP-Link EAP235-Wall Omada Wall-Plate WiFi 5 PoE Access Point has a thin wall plate design at 15mm thick. It features simultaneous dual-band Multi-User MIMO (MU-MIMO), as well as 802.3af/802.3at PoE compatibility. Its low impact design means the EAP235-Wall can seamlessly blend in with any environment. This access point is ideal for room-to-room connections, such as in hotel rooms or university dormitories.
