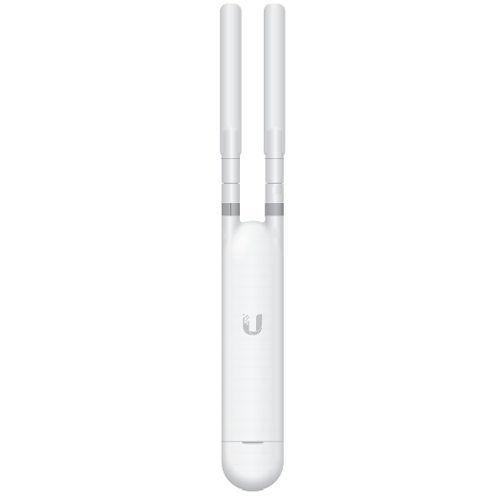

Ubiquiti UAP-AC-M UniFi AP AC Mesh Access Point

Ubiquiti UniFi UAP AC Mesh Access Point

Ubiquiti UAP-AC-M UniFi AP AC Mesh Access Point features high-performance, wide-area WiFi with UniFi Mesh Technology.

The UniFi AC Mesh is also weather resistant, fitting seamlessly into any indoor or outdoor environment.

It includes adjustable, dual-band omni antennas for outdoor or indoor omni directional coverage.

You can also use a 5 GHz omni antenna for spot-beam coverage in high-density locations with numerous access points and clients, or add a 5 GHz sector antenna for broad, outdoor coverage.

Ubiquiti UniFi UAP AC Mesh Access Point Key Features

Ideal for Indoor/Outdoor environment

• 2.4 GHz Speed* 300 Mbps
• 2.4 GHz MIMO 2×2
• 5 GHz Speed* 867 Mbps
• 183 m (600 ft) Range

Compact Form Factor
The UAP-AC-M discreetly integrates into any environment.

Weather-Resistant Enclosure
The UAP-AC-M can be used indoors or outdoors.

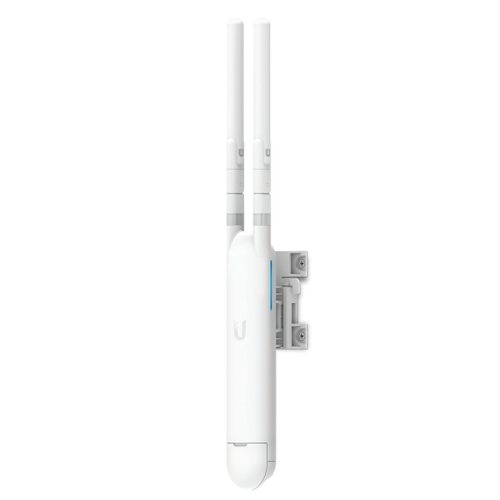

Versatile Mounting
The UniFi AC Mesh AP can be mounted on a wall, pole, or fast-mount of a Ubiquiti high-gain antenna.

Multiple Power Options
The UAP-AC-M is compatible with 802.3af PoE Alternative A and 24V passive PoE. You can power it with the included Gigabit PoE adapter or an 802.3af Alternative A compatible switch, such as the UniFi PoE Switch or Edge Point EP-R6.

Antenna Options
Use the included omni antennas, or use the included fast-mount adapter to install the AP on an optional connectorised antenna for expanded range coverage and customized pattern shaping.

Ubiquiti UniFi UAP AC Mesh Access Point – Technical Specifications

General

• Dimensions: 353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35″)
• Weight: 152 g (5.36 oz) with Antennas
• Networking Interface: 1x 10/100/1000 Ethernet Port
• Buttons: Reset
• Power Method:
  – 24 V Passive PoE (Pairs 4, 5+; 7, 8 Return)
  – 802.3 af Alternative A (Pairs 1, 2+; 3, 6 Return)
  – (Supported Voltage Range: 44 to 57 VDC)
• Power Supply: 24 V, 0.5 A Gigabit PoE Adapter*
• Power Save: Supported
• Maximum Power Consumption: 8.5 W
• Maximum TX Power:
  – 2.4 GHz: 20 dBm
  – 5 GHz: 20 dBm
• Antennas: 2x External Dual-Band Omni Antennas:
  – 2.4 GHz: 3 dBi
  – 5 GHz: 4 dBi
• WiFi Standards: 802.11 a/b/g/n/r/k/v/ac
• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
• BSSID: Up to 8 per Radio
• Mounting: Wall/Pole/Fast-Mount (Kits Included)
• Operating Temperature: -30 to 70° C (-22 to 158° F)
• Operating Humidity: 5 to 95% Non condensing
• Certifications: CE, FCC, IC

Advanced Traffic Management

• VLAN: 802.1Q
• Advanced QoS: Per-User Rate Limiting
• Guest Traffic Isolation: Supported
• WMM: Voice, Video, Best Effort, and Background
• Concurrent Clients: 250+

Supported Data Rates (Mbps)

Standard: Data Rates

• 802.11ac: 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
