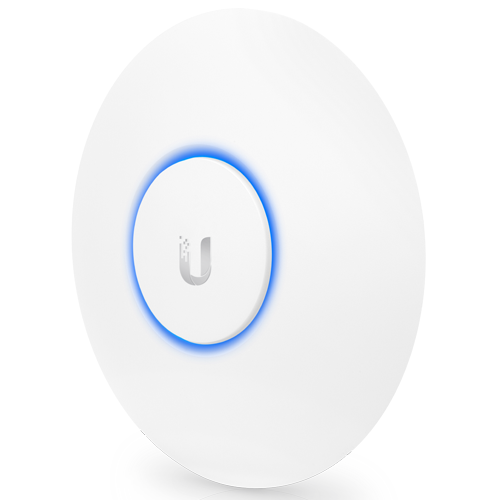

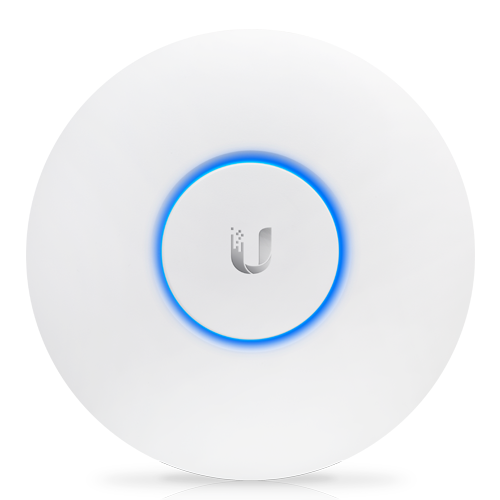

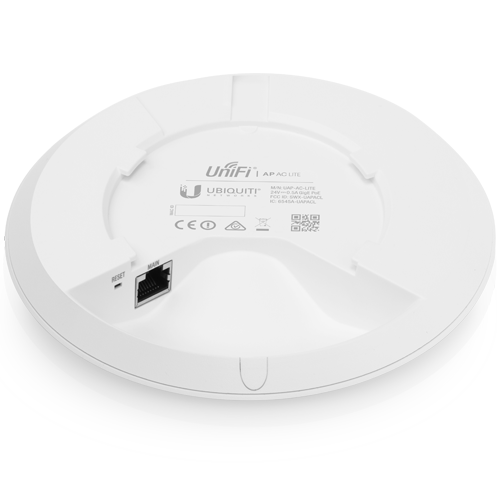

Ubiquiti UAP-AC-Lite UniFi AP AC Lite Indoor Access Point
£117.25 inc.VAT / £97.71 exc.VAT
Ubiquiti UniFi UAP AC Lite Indoor Access Point –Â Gen2 –Â 802.3af/A PoE & 24V PoEÂ Â Â Â Â Â Â Â Â Â Â
The Ubiquiti UniFi UAP AC Lite access point delivers a cost-effective combination of value and performance in a reduced footprint, with an ultra compact design. The UAP-AC-Lite is 25% smaller than the standard UAP. It provides simultaneous, dual-band and 2×2 MIMO technology.
Out of stock
Ubiquiti UniFi UAP AC Lite Indoor Access Point –Â Gen2 –Â 802.3af/A PoE & 24V PoE
The Ubiquiti UniFi UAP AC Lite access point delivers a cost-effective combination of value and performance in a reduced footprint, with an ultra compact design. The UAP-AC-Lite is 25% smaller than the standard UAP. It provides simultaneous, dual-band and 2×2 MIMO technology.
Key Features
802.3af/A PoE & 24V PoE
2 x 2 MIMO
Simultaneous dual-band
2.4GHz throughput of 300Mbps
5GHz throughput of 867Mbps
Range of 122 m (400 ft)
1 Gigabit Ethernet Ports
24v / 48v compatible

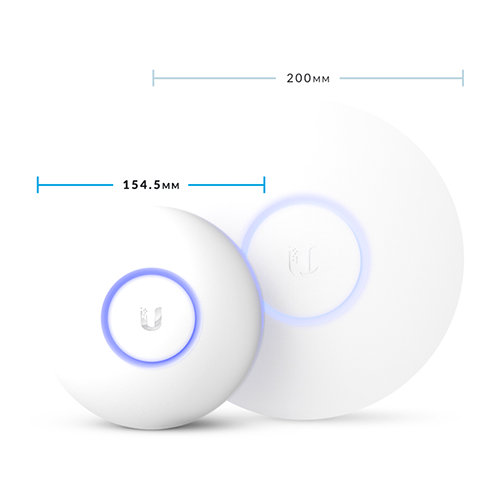

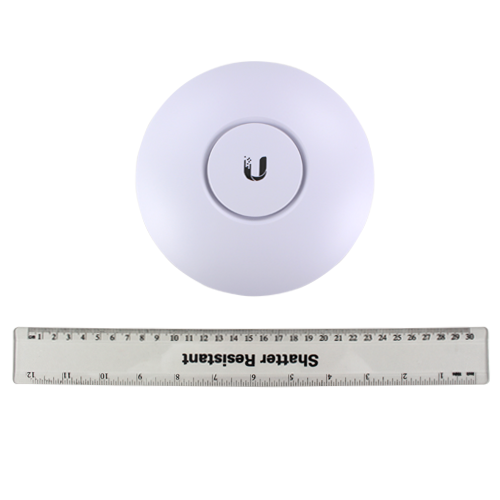

The UAP-AC-Lite has a range of 122m (400ft). The below image shows the size comparison to the standard UniFi model.
Scalable Wi-Fi Management
The UAP-AC-Lite is easily accessible through any standard web browser, and the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.

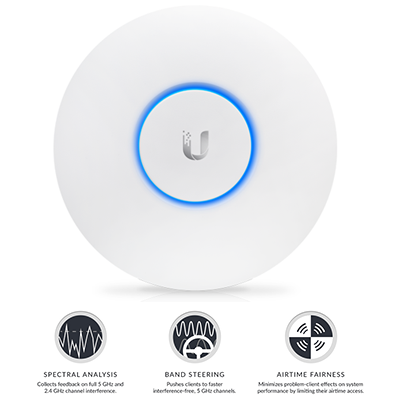

The newly redesigned UniFi Controller optimizes RF performance:
The UniFi Controller v5 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.
Specifications
General
Dimensions 160 x 160 x 31.45 mm (6.30 x 6.30 x 1.24″)
Weight 170 g (6.0 oz) With Mounting Kits 185 g (6.5 oz)
24v / 48v compatible
Networking Interface (1) 10/100/1000 Ethernet Port
Buttons Reset
Antenna (2) Dual-Band Antennas, 3 dBi Each
Wi-Fi Standards 802.3af/A PoE & 24V PoE
Power Method Passive Power over Ethernet (24V), (Pairs 4, 5+; 7, 8 Return)
Power Supply 24V, 0.5A Gigabit PoE Adapter*
Maximum Power Consumption 6.5W
Maximum TX Power 2.4 GHz 20 dBm 5 GHz 20 dBm
BSSID Up to Four per Radio
Power Save Supported
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications CE, FCC, IC

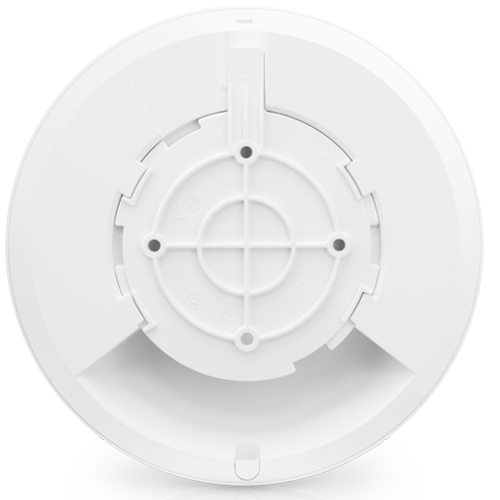

Mounting Wall/Ceiling (Kits Included)
Operating Temperature -10 to 70° C (14 to 158° F)
Operating Humidity 5 to 95% Noncondensing
* Only the single-pack of the UAP-AC-LITE includes a PoE adapter.
Advanced Traffic Management
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest Traffic Isolation Supported
WMM Voice, Video, Best Effort, and Background
Concurrent Clients 200+
Supported Data Rates (Mbps)
Standard Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Only logged in customers who have purchased this product may leave a review.
Related Products

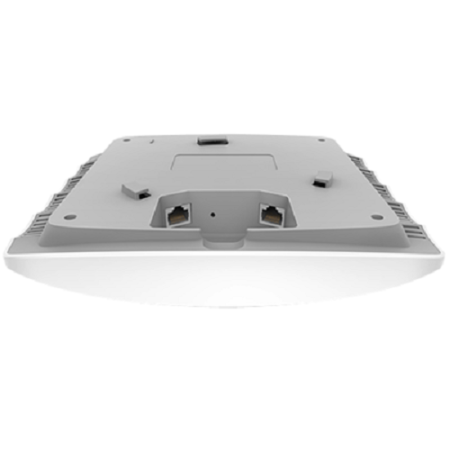

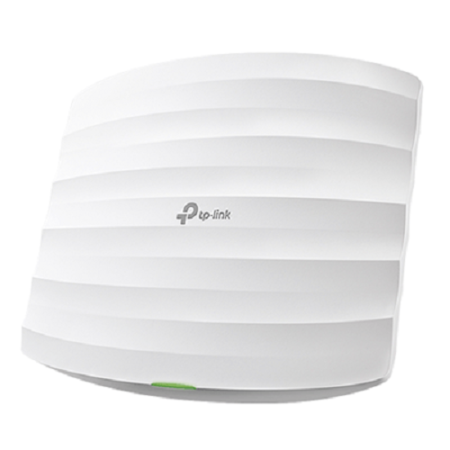

TP-Link EAP245 Omada Ceiling Mounted WiFi 5 Access Point (1750Mbps AC)
The TP-Link EAP245 Omada AC1750 Dual-Band Ceiling Mounted WiFi 5 Access Point provides a business-class wireless network solution that is flexible, manageable, secure, and easy-to-deploy. The included free controller software allows users to manage hundreds of EAPs at multiple sites from a single location. The ability to control, adjust, and visualise the entire network from any connected PC makes centralised business WiFi management more efficient than ever before. This TP-Link EAP245 Omada access point also features captive portal and advanced RF management functions, making it ideal for demanding, high-traffic environments such as campuses, hotels, shopping centres and offices.
Out of stock

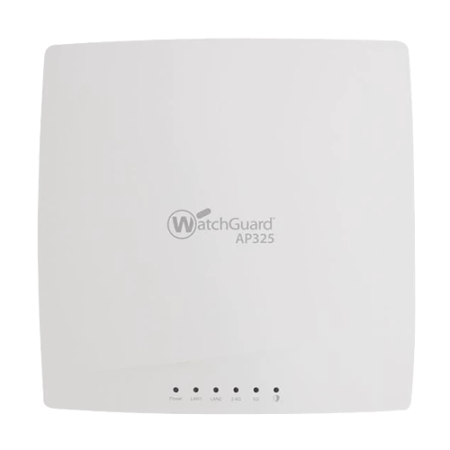

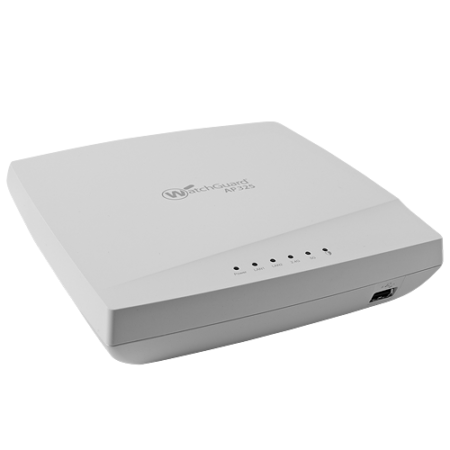

WatchGuard AP325 WiFi 5 Access Point w/ 3-Year Basic WiFi (1200Mbps AC) WGA35703
The WatchGuard AP325 Dual-Band WiFi 5 Access Point is an indoor access point and comes equipped with Multi-User MIMO (MU-MIMO), connecting multiple devices at the same time and enhancing your secure WiFi experience. This access point also offers dual concurrent 5 GHz and 2.4 GHz band radios supporting 802.11a/n/ac Wave 2, 802.11b/g/n, two spatial streams, and data rates of up to 867 Mbps and 300 Mbps respectively. Common use cases include medium-density environments such as K-12 schools, small and midsize businesses, distributed office spaces, small-footprint retail, small meeting rooms, restaurants, and healthcare offices.
Out of stock

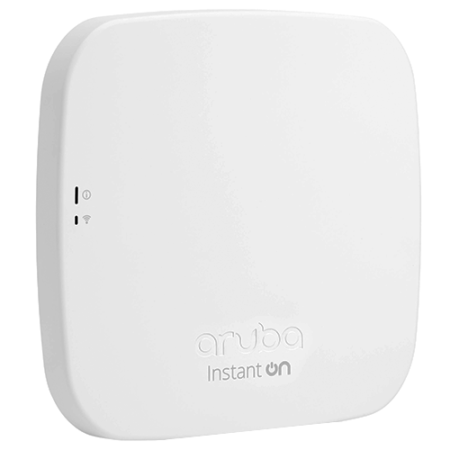

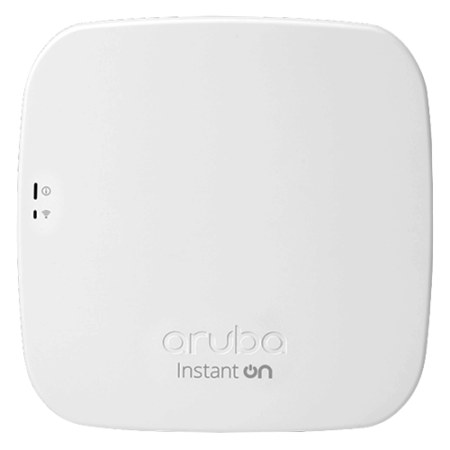

Aruba AP11D Instant On WiFi 5 PoE Access Point (1167Mbps AC) – R2X16A
The Aruba R2X16A Instant On AP11D Dual-Band WiFi 5 PoE Access Point is designed with small businesses in mind. Small businesses are facing a number of challenges due to new and emerging technology, making it pretty overwhelming to keep up. The Instant On AP11D is ideal for such businesses with flexible and easy deployment, and separate guest and employee network.
158 in stock
Aruba AP17 Instant On Outdoor WiFi 5 Access Point (1167Mbps AC) – R2X11A
The Aruba R2X11A Instant On AP17 Outdoor Dual-Band WiFi 5 Access Point is designed with small businesses in mind. Small businesses are facing a number of challenges due to new and emerging technology, making it pretty overwhelming to keep up. The Aruba R2X11A Instant On AP17 Dual-Band PoE WiFi 5 Access Point (AC) is ideal for harsh outdoor environments which could encounter rain, snow, hail or extreme temperatures.
152 in stock
Ubiquiti UAP-FlexHD UniFi Indoor/Outdoor WiFi 5 PoE Access Point (2Gbps AC)
Ubiquiti UAP-FlexHD Indoor/Outdoor PoE WiFi 5 Access Point has a small, sleek design and compact form factor that can easily be deployed indoors or outdoors.
161 in stock
Aruba AP15 Instant On WiFi 5 Access Point (2033Mbps AC) – R2X06A
The Aruba R2X06A Instant On AP15 Dual-Band WiFi 5 Access Point is designed for small business deployments with high-traffic and increased performance demands like hi-tech start-ups, animation and design firms and co-working spaces. Small businesses are facing a number of challenges due to new and emerging technology, making it pretty overwhelming to keep up. The Aruba Instant On AP15 is ideal for such businesses with flexible and easy deployment, and speeds of up to 2033Mbps.
77 in stock
Aruba AP12 Instant On WiFi 5 Access Point (1600Mbps AC) – R2X01A
The Aruba R2X01A Instant On AP12 Dual-Band PoE WiFi 5 Access Point (AC) is designed for medium density small business environments like medical offices, cafés, restaurants and boutique hotels. Small businesses are facing a number of challenges due to new and emerging technology, making it pretty overwhelming to keep up. The Aruba R2X01A Instant On AP12 Dual-Band PoE WiFi 5 Access Point (AC) is ideal for such businesses with flexible and easy deployment, and separate guest and employee network.
69 in stock
Ubiquiti UAP-AC-PRO Uni-Fi Wi-Fi 5 PoE Access Point, Indoor/Outdoor (1750 Mbps AC) Inc Injector   Â
         ( 12 in Stock – Available for next day shipment )
Ubiquiti Uni-Fi UAP-AC-PRO is 802.11ac,3×3 MIMO,Simultaneous dual-band and 2 Gigabit Ethernet Ports.
12 in stock

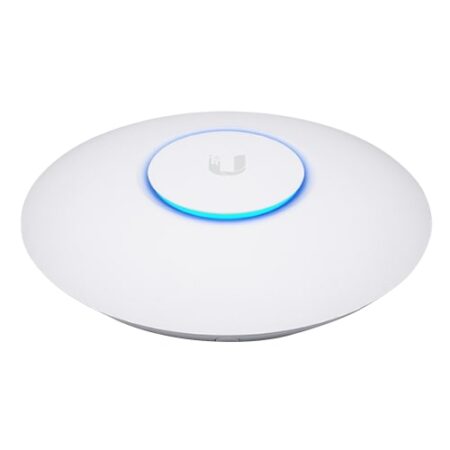

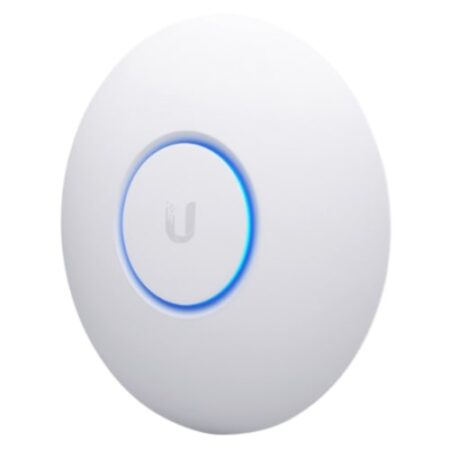

Ubiquiti UniFi Nano HD WiFi 5 PoE Access Point (2033 Mbps AC)
The Ubiquiti UniFi Nano HD WiFi 5 Access Point (AC) features the latest in WiFi 802.11ac Wave 2 MU-MIMO technology and a refined industrial design. The UAP-NanoHD is a scaled-down version of the UAP-AC-HD, however, it is very capable in higher density environments than the UAP-AC-PRO. The UniFi nanoHD AP features simultaneous dual-band, 4×4 MU-MIMO technology and convenient 802.3af PoE compatibility. Available in single, three and five packs.
32 in stock
TP-Link EAP230-Wall Plate WiFi 5 Access Point (1167 Mbps AC)
The TP-Link EAP230-Wall Omada WiFi 5 Access Point, with its unprecedented thin design at 11 mm thick, features simultaneous dual-band Multi-User MIMO (MU-MIMO), as well as 802.3af/802.3at PoE compatibility.Â
Out of stock

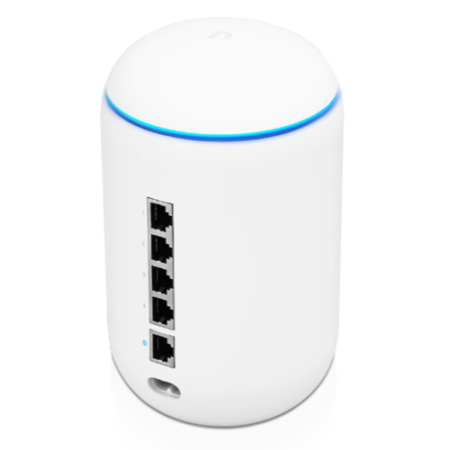

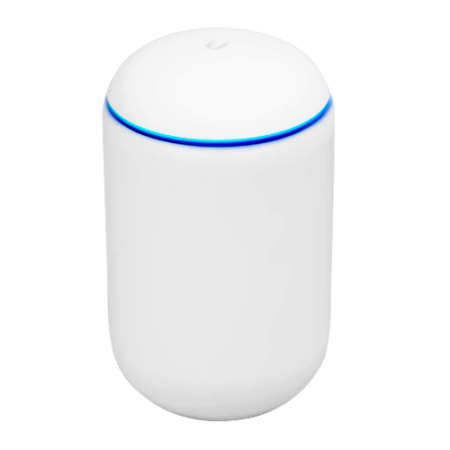

Ubiquiti UDM UniFi Dream Machine WiFi 5 Network Appliance (1700 Mbps AC)Â Â Â Â Â
