Ubiquiti UAP-AC-IW UniFi In-Wall WiFi 5 PoE Access Point (1200Mbps AC)

Ubiquiti UAP-AC-IW UniFi In-Wall WiFi 5 Access Point (AC)

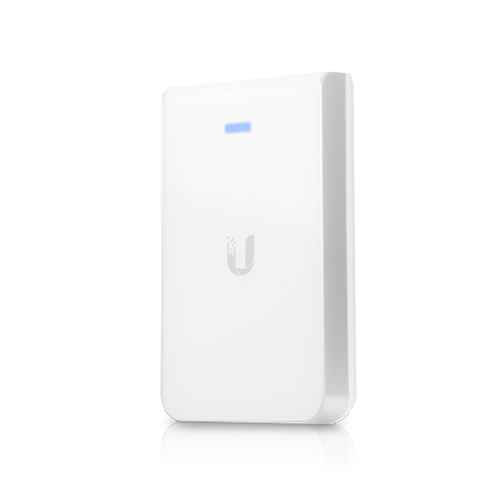

Ubiquiti UAP-AC-IW UniFi In-Wall WiFi 5 Access Point (AC) is a dual-band 802.11AC WiFi Access Point powered from an Ethernet wall connection.

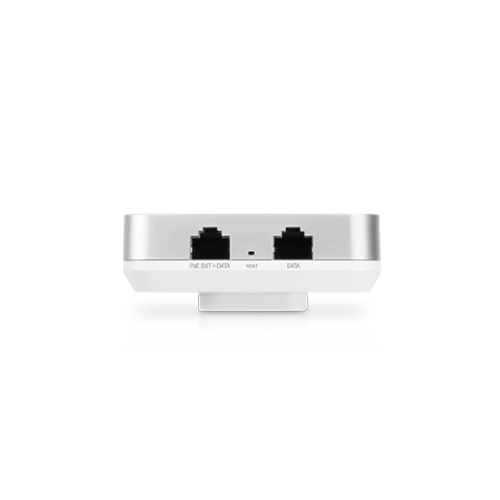

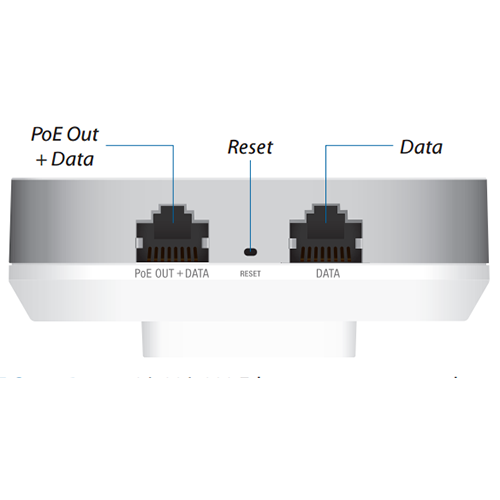

It features two Gigabit Ethernet ports, one of which delivers PoE to power and connect an 802.3af device to the network.

Key Features

• 802.3at PoE+
• 3x 10/100/1000 Ethernet Ports
• 2.4GHz radio rate 300 Mbps
• 5GHz radio rate 867 Mbps
• Dual-band 802.11ac

The Ubiquiti UniFi UAP-AC-IW provides simultaneous, dual-band, 2×2 MIMO technology and is available in single and five packs (PoE adapters not included).

Easier Than You Think

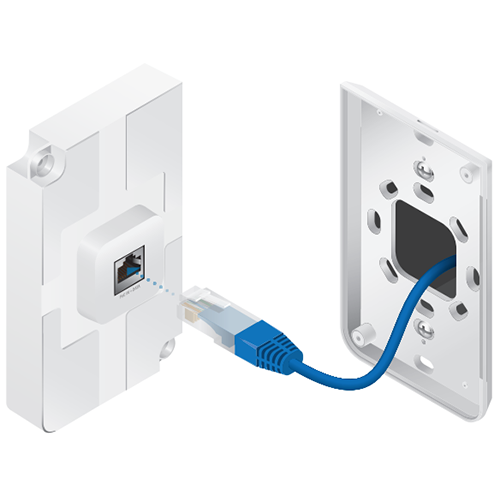

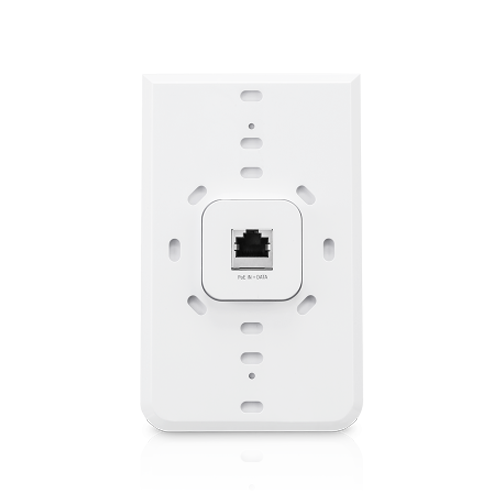

Ideal for new and retrofit installations, the UniFi® AC In-Wall is designed to convert an Ethernet wall jack into a dual-band 802.11ac Wi-Fi access point with two Gigabit Ethernet ports.

The Power of PoE
Turn existing wiring into per-room Wi-Fi with the UniFi PoE Switch series. (Requires Cat5e or higher)

Versatile Data and PoE Output
An Ethernet wall jack becomes an access point, a gigabit switch, and a PoE power source.
Wire a workstation and power a VoIP phone. Or power a US-8 for even more Ethernet ports.

Specifications

General

• Dimensions: 139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01″)
• Weight: 200 g (6.43 oz)
• Networking Interface: (3) 10/100/1000 Ethernet Ports
• Buttons: Reset
• Power Method: 802.3at PoE+ Supported
• Power Supply: UniFi PoE Switch (Not Included)
• Power Save: Supported
• PoE Out: 48V Pass-Through (Pins 1, 2+; 3, 6-)
• Maximum Power Consumption: 7W
• Maximum Power Consumption with PoE Passthrough: 19W*
• Maximum TX Power:
  – 2.4 GHz: 20 dBm
  – 5 GHz: 20 dBm
• Antennas:
  – (1) Dual-Band Antenna, Single-Polarity
  – 2.4 GHz: 1 dBi
  – 5 GHz: 2 dBi
• WiFi Standards: 802.11 a/b/g/n/r/k/v/ac
• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
• BSSID: Up to 8 per Radio
• Mounting: 1-Gang Electrical Wall Box (Not Included)
• Operating Temperature: -10 to 50° C (14 to 122° F)
• Operating Humidity: 5 to 95% Noncondensing
• Certifications: CE, FCC, IC

* Requires 802.3at PoE+ switch

Advanced Traffic Management

• VLAN: 802.1Q
• Advanced QoS: Per-User Rate Limiting
• Guest Traffic Isolation: Supported
• WMM: Voice, Video, Best Effort, and Background
• Concurrent Clients: 250+

Supported Data Rates (Mbps)

Standard: Data Rates

• 802.11ac: 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
