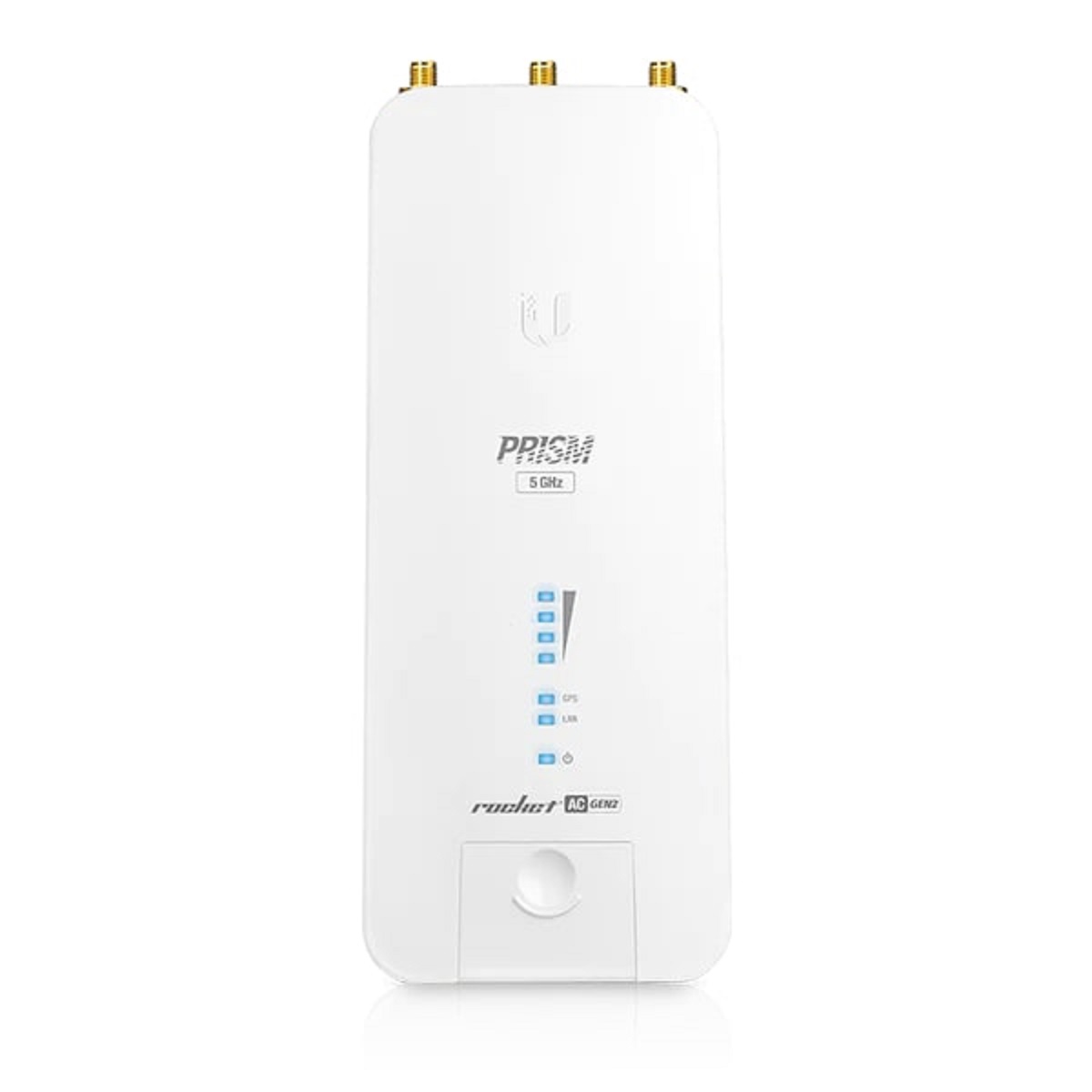

Ubiquiti RP-5AC-GEN2 WiFi 5 PoE Access Point (AC) has been designed with high performance and ease of installation in mind.

The Ubiquiti RP-5AC-Gen2 Rocket Prism features both airMAX ac and airPrism technologies for maximum wireless performance in high-density areas.

The Ubiquiti RP-5AC-Gen2 Rocket Prism can be deployed anywhere in the world and delivers complete coverage on the 5GHz spectrum with a single radio.

Key Features

• Designed to deliver maximum spectral efficiency with upto 500Mbps+ throughput.
• Next-generation airMAX ac technology boosts the advantages of TDMA protocol.
• Designed to support high data rates which require dense modulation.
• Includes built-in rocket mount for easy install with no tools required.
• Set up and use the Rocket Prisms instantly with the UMobile app.
• Features multi-radio architecture to power revolutionary RF analytics.
• Can be deployed for PtP or PtMP links in high RF noise environments.
• Utilizes the latest ESD protection to help protect against power surges.
• Comprehensive array of diagnostic tools including RF Diagnostics.
• Robust die cast aluminium casing to protect against electromagnetic interference.
• Intelligent QoS to allow priority to be assigned to voice for seamless streaming.

Advanced RF Analystics

The Ubiquiti RP-5AC-Gen2 Rocket Prism AC 500 Outdoor 5GHz WiFi Access Point features a multi-radio architecture to power a revolutionary RF analytics engine.

An independent processor on the PCBA powers a second, dedicated radio, which persistently analyses the full 5 GHz spectrum and every received symbol to provide you with the most advanced RF analytics in the industry.

Data from the spectrum analysis and RF performance monitoring is displayed on the Main tab and airView Spectrum Analyser.

airView allows you to identify noise signatures and plan your networks to minimize noise interference. airView performs the following functions:

• Constantly monitors environmental noise.
• Collects energy data points in real-time spectral views.
• Helps optimize channel selection, network design, and wireless performance.

Reduced disruption to the network

airView runs in the background without disabling the wireless link, so there is no disruption to the network. In airView, there are three spectral views, each of which represents different data.

airView provides powerful spectrum analyser functionality, eliminating the need to rent or purchase additional equipment for conducting site surveys.

• Waterfall Aggregate energy collected for each frequency.
• Waveform Aggregate energy collected.
• Ambient Noise Level Background noise energy shown as a function of frequency.

Time Division Multiple Access (TDMA)

Unlike standard WiFi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX ac protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.

This time slot method eliminates hidden node collisions and maximizes airtime efficiency, so airMAX ac technology provides performance improvements in latency, noise immunity, scalability, and throughput compared to other outdoor systems in its class.

Superior performance

The next-generation airMAX ac technology boosts the advantages of our proprietary TDMA protocol. Ubiquiti’s airMAX engine with custom IC dramatically improves TDMA latency and network scalability.

The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Throughput breakthrough

airMAX ac supports high data rates, which require dense modulation: 256 QAM – a significant increase from 64 QAM, which is used in airMAX.

With their use of proprietary airMAX ac technology, airMAX ac products supports up to 500+ Mbps (maximum 80 MHz channel width) real TCP/IP throughput – up to triple the throughput of standard airMAX products.

Accessing airOS via WiFi

The U Mobile App provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play (Android).

UMobile allows you to set up, configure, and manage the Ubiquiti RP-5AC-Gen2 Rocket Prism AC 500 Outdoor 5GHz WiFi Access Point and offers various configuration options once you’re connected or logged in.

Specifications

Standard Warranty: 1-Year
