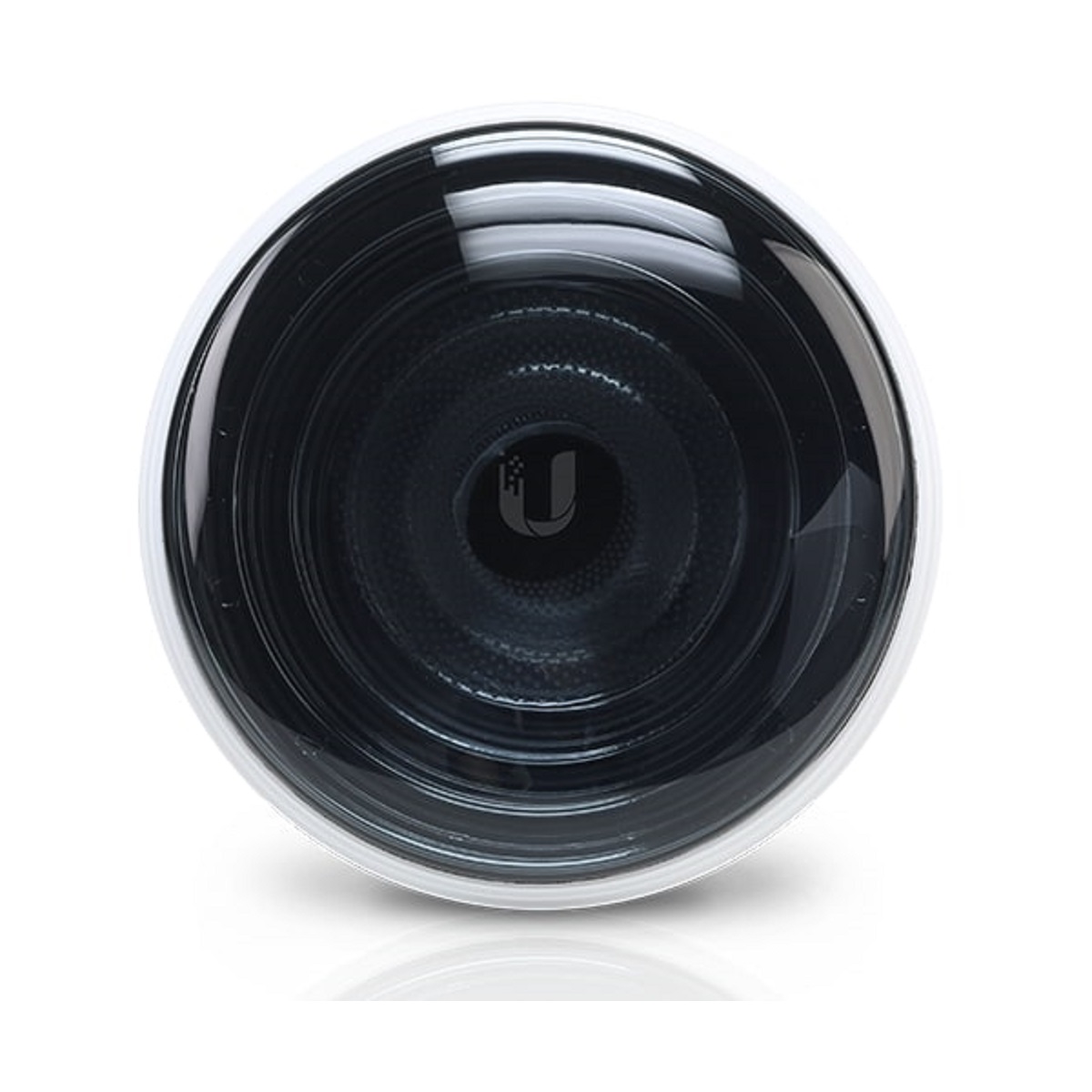

Ubiquiti IS-M5 AC WiFi Access Point
£116.40 inc.VAT / £97.00 exc.VAT
Ubiquiti IS-M5 IsoStation M5 Outdoor 5GHz 14 dBi WiFi 4 PoE Access Point (100Mbps+ N)
Next-generation airMAX ac technology designed to boost advantages of TDMA protocol. UMobile app provides instant accessibility to the airOS configuration interface.
Ubiquiti IS-M5 IsoStation M5 Outdoor 5GHz 14dBi WiFi 4 PoE Access Point (100Mbps+ N)
Ubiquiti IS-M5 AC WiFi Access Point
Ubiquiti IS-M5 AC WiFi Access Point IsoStation M5 Outdoor 5GHz 14dBi PoE Access Point comes with a die-cast aluminium base and interchangeable antenna to bring increased performance to your network using technology that isolates beam communications between your devices.
This Ubiquiti IsoStation M5 delivers throughput speeds of up to 100+ Mbps and integrates a separate WiFi radio for fast and easy setup using your mobile device, making it versatile and cost-effective to deploy.
Key Features
- Providing high throughout and innovative form factor for versatile deployment.
- Supports up to 100+ Mbps throughput – triple the throughput of standard airMAX.
- Intelligent QoS to allows priority assignment to voice/video for seamless streaming.
- Interchangeable antenna for improved beam-shaping for specific deployment.
- UMobile app provides instant accessibility to the airOS configuration interface.
- Integrates separate WiFi radio for fast and easy setup using mobile device.
- Diagnostic tools including RF diagnostics and airView spectrum analyser.
- Next-generation airMAX ac technology designed to boost advantages of TDMA protocol.
- Includes metal strap and mounting bracket for easy mounting and adjustment.
- Asymmetrical horn antennas designed for increased co-location performance.
Improved Noise Immunity
The Ubiquiti IS-M5 IsoStation M5 provides high isolation solutions in fixed beam width increments through interchangeable horn antennas that have been optimized for an urban environment.
The tailored antenna radiation patterns spatially filters both in-band and out-of-band spurious RF emissions to increase the noise immunity of the Ubiquiti IS-M5 IsoStation M5.
This feature is especially important in an increasingly congested RF environment.
Advanced RF analyticsairMAX ac devices feature a multi-radio architecture to power a revolutionary RF analytics engine.
An independent processor on the PCBA powers a second, dedicated radio, which persistently analyses the full 5 GHz spectrum and every received symbol to provide you with the most advanced RF analytics in the industry.
airView allows you to identify noise signatures and plan your networks to minimize noise interference. airView performs the following functions:
- Constantly monitors environmental noise.
- Collects energy data points in real-time spectral views.
- Helps optimise channel selection, network design, and wireless performance.
Ubiquiti’s airMAX engine with custom IC dramatically improves TDMA latency and network scalability.
The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Modular Design
With flexible sectorization for optional antenna beam width, the horn antenna is interchangeable and improves beam-shaping for specific deployment and environment needs.
The Ubiquiti IsoStation M5 uses horn antenna sectors designed for increased co-location performance without sacrificing gain.
Providing high throughput and an innovative form factor, the IsoStation M5 is versatile and cost-effective to deploy.
Symmetrical Antennas
Symmetrical horn antennas (30° and 45° versions) offer breakthrough scalability options for wireless systems.
They are ideal for cluster sector installations with high co-location requirements. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology.
Asymmetrical Antennas Asymmetrical horn antennas (60° and 90° versions) are designed to have attenuated side lobes and extremely low back radiation.
They offer best front-to-back ratio in the industry and the lowest side lobe radiation.
UMobile App
The Ubiquiti IS-M5 IsoStation M5 integrates a separate WiFi radio for fast and easy setup using your mobile device.
Accessing airOS via Wi-Fi The U Mobile App provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play (Android).
UMobile allows you to set up, configure, and manage the Ubiquiti IsoStation M5 and offers various configuration options once you’re connected or logged in.
Specifications
Dimensions
- With Horn 174 x 174 x 150 mm (6.85 x 6.85 x 5.91″)
- Without Horn 131 x 131 x 65 mm (5.16 x 5.16 x 2.56″)
Weight
- With Horn 725.7 g (1.6 lb)
- Without Horn 408.2 g (0.9 lb)
Max. Power Consumption
- 6.5W
Power Supply
- 24V, 0.5A Gigabit PoE Adapter
Power Method
- Passive PoE (Pairs 4, 5+; 7, 8 Return)
Gain
- 14 dBi
Beamwidth
- 45° (Default Horn)
Networking Interface
- (1) 10/100/1000 Ethernet Port
Processor Specs
- MIPS 74 Kc
Memory
- 64 MB DDR2
LED
- (1) Power
Mounting Pole-Mount
- Wind Loading 36 N @ 200 km/h (8.09 lbf @ 125 mph)
- Wind Survivability 200 km/h (125 mph)
ESD/EMP Protection
- ± 24 kV Contact/Air
Environmental
- Operating Temperature -40 to 70° C (-40 to 158° F)
- Operating Humidity 5 to 95% Noncondensing
Certifications
- FCC, IC, CE
Standard Warranty: 1-Year
Only logged in customers who have purchased this product may leave a review.
Related Products
TP-Link TL-WA901N WiFi 4 Access Point (450Mbps N)
The TP-Link TL-WA901N WiFi 4 Passive PoE Access Point is designed to establish or expand a scalable high-speed WiFi 4 network or to connect an Ethernet-enabled device such as a game console, digital media adapter, printer, or network-attached storage device to a wireless network. The TL-WA901N supports a host of different functions that makes your wireless networking experience more flexible than ever before. Now, you can enjoy a better internet experience when downloading, gaming, video streaming or any other application that you may wish to use.
Out of stock
TP-Link EAP115-Wall Plate WiFi 4 Access Point (300Mbps N) w/ 3-Year Omada Hosted Cloud Controller Service
Out of stock

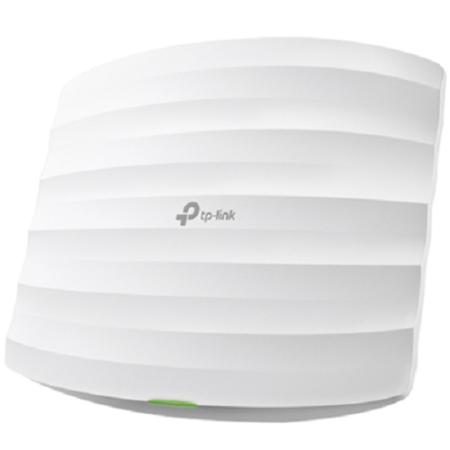

TP-Link EAP110 Ceiling Mounted WiFi 4 Access Point (300Mbps N)
The TP-Link EAP110 Ceiling Mounted WiFi PoE Access Point provides a flexible, easy-to-deploy, manageable and robust security business-class wireless network solution. Simple mounting design to easily mount to a wall or ceiling. WLAN configuration and management are simplified through centralised management software. This TP-Link EAP110 WiFi PoE Access Point also features captive portal and auto RF management, making it ideal for the high-density, intensive demanding businesses environment, include campus, hotels, malls and offices.
Out of stock
DrayTek VigorAP 810 WiFi 4 PoE Access Point (300Mbps N)
The DrayTek Vigor AP-810 is a standalone WiFi access point, ideal for adding wireless connectivity to an existing LAN, or for expanding the range of an existing wireless LAN by using the WDS features. It can also be used as part of the DrayTek managed wireless system. This DrayTek Vigor AP-810 replaces the popular DrayTek Vigor AP-800, adding full compatibility with the DrayTek managed wireless platform.
Out of stock
TP-Link EAP115 Omada Ceiling Mounted WiFi 4 Access Point (300Mbps N)
The TP-Link EAP115 Ceiling Mounted WiFi 4 Access Point provides a flexible, easy-to-deploy, manageable and robust security business-class wireless network solution. The TP-Link EAP115 Ceiling Mounted WiFi 4 Access Point is engineered to handle heavy multi-user usage in large areas without encountering the same stability issues found with standard routers and access points purposed for home use.
Out of stock
TP-Link CPE510 Pharos Outdoor 5Ghz 13dBi WiFi 4 PoE Access Point (300Mbps N)
TP-LINK CPE510 Pharos Outdoor 5Ghz 13dBi WiFi 4 Access Point is part of the Pharos CPE range that is dedicated to cost effective solutions for outdoor wireless networking applications.Â
Out of stock

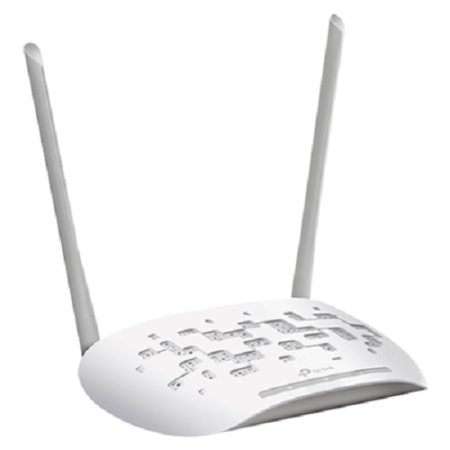

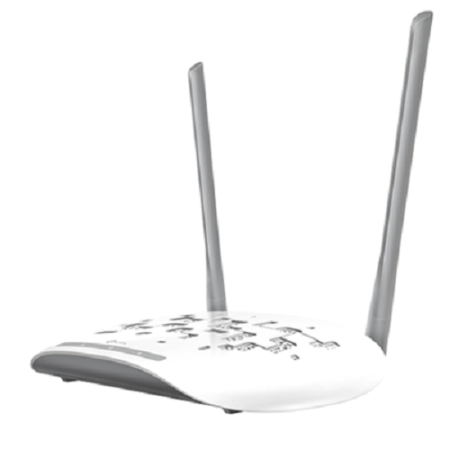

TP-Link TL-WA801N WiFi 4 Access Point (300Mbps N)
The TP-Link TL-WA801N 2.4Ghz Passive PoE WiFi 4 Access Point (N) is designed to establish or expand a scalable high-speed WiFi 4 network or to connect multiple Ethernet-enabled devices such as game consoles, digital media adapters, printers, or network-attached storage devices to a wireless network. The TP-Link TL-WA801N 2.4Ghz Passive PoE WiFi 4 Access Point (N) supports a host of different functions that makes your wireless networking experience more flexible than ever before. Now, you can enjoy a better internet experience when downloading, gaming, video streaming or any other applications that you may wish to use.
Out of stock

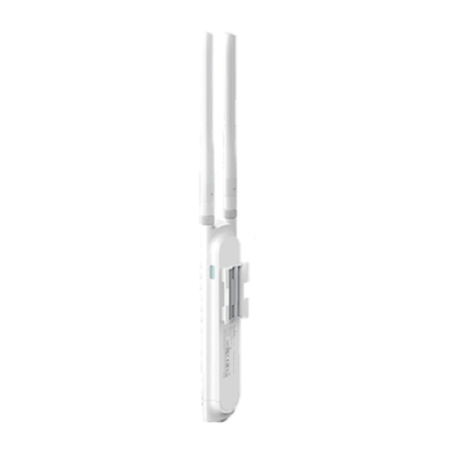

TP-Link Omada EAP110-Outdoor 2.4GHz 5dBi WiFi PoE Access Point (300Mbps N)
With high transmission power and two high-gain omni-directional antennas, the TP-Link Omada EAP110-Outdoor 2.4GHz 3dBi WiFi 4 Access Point is designed to provide stable wireless coverage at a range up to 200 metres in outdoor settings. With incorporated Omada controller software, you can manage hundreds of access points all at once, ideal for small and medium sized business networks.
Out of stock
TP-LINK CPE210 Pharos Outdoor 2.4 Ghz 9 dBi WiFi 4 PoE Access Point (300 Mbps N)
The TP-LINK CPE210 Pharos Outdoor 2.4 Ghz 9 dBi Wireless-N Access Point is part of the Pharos CPE range that is dedicated to cost effective solutions for outdoor wireless networking applications.
Out of stock
Solwise Patriot-2H Outdoor 2.4GHz WiFi 4 Access Point (150Mbps N)
Solwise WL-PATRIOT-2H WiFi 4 Access Point (N) is a Long Range Outdoor AP/CPE also Supports Passive PoE
Out of stock
Ubiquiti NBE-M5-16 NanoBeam M5 Outdoor 5GHz 16dBi WiFi 4 AP/Bridge/Link (150 Mbps N)
Ubiquiti NBE-M5-16 NanoBeam M5 Outdoor 5GHz 16dBi WiFi access point has a compact dish design with uniform beam width, efficient footprint and a faster processor.
50 in stock

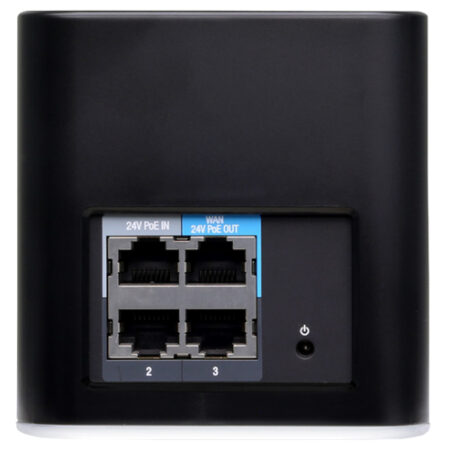

Ubiquiti airCube ACB-ISP airMax Home N300 WiFi 4 PoE Access Point (300Mbps N)
