Ubiquiti ETH-SP-G2 Gigabit Ethernet PoE Surge Protector

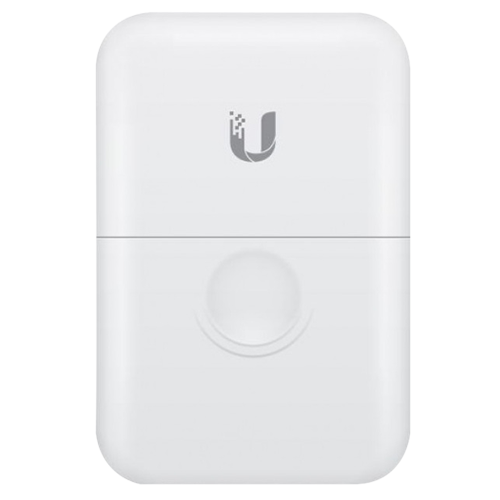

Ubiquiti ETH-SP-G2 Ethernet Surge Protector

Ubiquiti ETH-SP-G2 Ethernet Surge Protector is engineered to protect any Power-over-Ethernet (PoE) or non-PoE device with connection speeds of up to 1 Gbps.

This Ubiquiti ETH-SP-G2 Ethernet Surge Protector diverts damaging electrostatic discharge attacks and surges and safely discharges them into the ground, so network devices are protected.

Key Features

• Protects PoE and non-PoE devices with connection speeds of up to 1 Gbps.
• Two passive, surge-protected RJ45 connections provide equipment compatibility.
• Compatible with 10/100/1000 Mbps networks.
• Low-cost protection and fast installation.
• Protects outdoor Ethernet devices.
• Plug and play installation for easy and fast deployment.
• DC Spark-Over Voltage: 90V @ 100V/s
• Maximum Impulse Spark-over Voltage: 700V @ 1kV/µs
• Discharge Current: 5kA (Maximum) / 0.5kA (Normal)
• Maximum Insulation Resistance: 1G ohm @ 50V
• Maximum Capacitance: 1.0 pF @ 1 MHz

ESD protection for outdoor high-speed networks

This Ubiquiti ETH-SP-G2 Ethernet Surge Protector is a cost-effective solution for protecting outdoor Ethernet devices from damaging electrostatic discharge and surges.

Since all Ubiquiti airMAX devices already have robust ESD protection built in, adding this Ubiquiti ETH-SP-G2 Ethernet Surge Protector to the installation provides an additional layer of protection to the network.

Provides maximum equipment compatibility

This Ubiquiti ETH-SP-G2 Ethernet Surge Protector is engineered to protect Power-over-Ethernet (PoE) or non-PoE devices with connection speeds of up to 1 Gbps.

Two passive, surge-protected RJ45 connections provide maximum equipment compatibility.

Ideal for WISP Networks

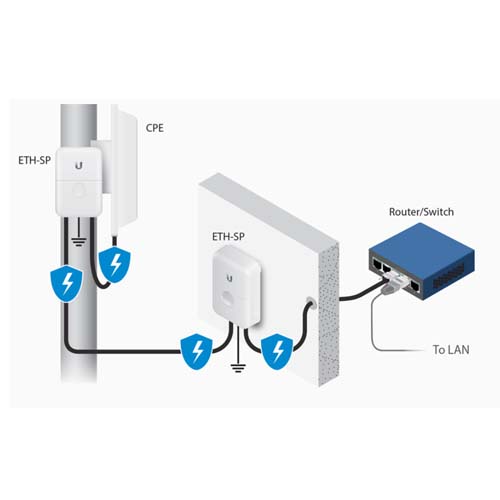

All Ubiquiti airMAX devices are equipped with ESD protection. However, to protect outdoor devices, and to meet certain local code requirements, installing this Ubiquiti ETH-SP-G2 Ethernet Surge Protector is essential. For example, to guard against costly service calls, and to help your subscriber installations meet code requirements, install two of these Ubiquiti ETH-SP-G2 Ethernet Surge Protectors: one near the CPE, and the other at the entry point to the building. Damaging ESD attacks and surges will be absorbed by these Ubiquiti ETH-SP-G2 Ethernet Surge Protectors and safely discharged into the ground.

Specifications

Standard Warranty: 1-Year
