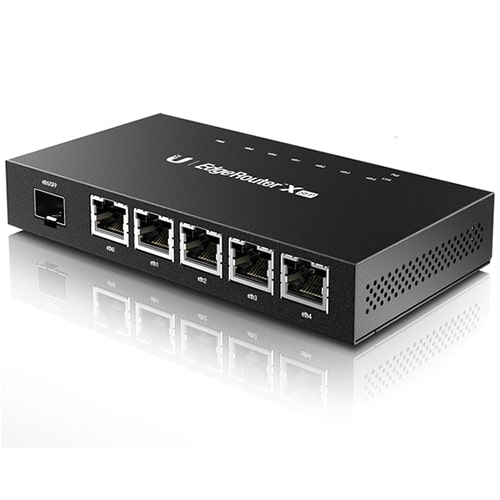

Ubiquiti ER-X-SFP Broadband Routers
£77.92 inc.VAT / £64.93 exc.VAT
Ubiquiti ER-X-SFP EdgeRouter 5-Port Broadband Router w/ 1 x 1GbE SFP Port (50W)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
Ubiquiti Networks introduces the Ubiquiti ER-X-SFP EdgeRouter X 5-Port Broadband Router, part of the EdgeMAX platform, that combines carrier-class reliability with excellent price-to-performance value in an ultra-compact form factor.
Ubiquiti ER-X-SFP EdgeRouter 5-Port Broadband Router w/ 1 x 1GbE SFP Port (50W)
Ubiquiti ER-X-SFP Broadband Routers
Ubiquiti ER-X-SFP Broadband Router while Ubiquiti Networks introduces the EdgeRouter X 5-Port Broadband Router, part of the EdgeMAX platform, that combines carrier-class reliability with excellent price-to-performance value in an ultra-compact form factor. This Ubiquiti ER-X-SFP Broadband Routers also includes a Small Form Factor Plugin (SFP) for network expansion. A passive PoE pass through option is available to support a single airMAX device*.
Key Features

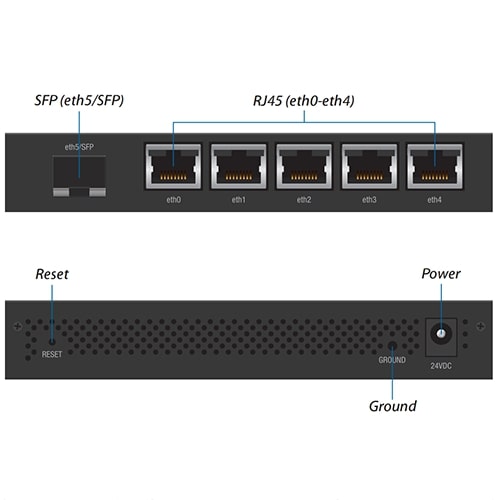

- Five (5) 10/100/1000 Gigabit RJ45 ports
- One (1) Small Form Factor Plugin (SFP) port

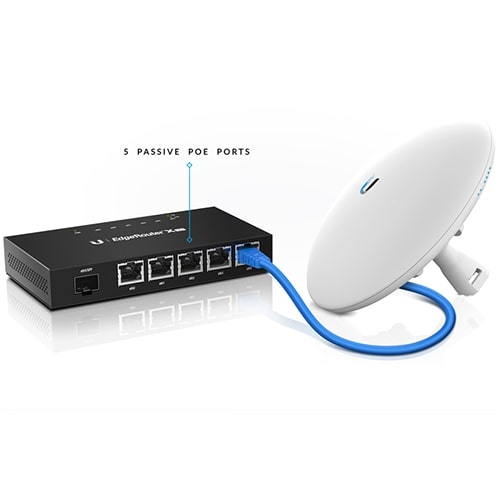

- Passive PoE passthrough option
- Ports configurable for line-rate, Layer-2 switching
- 130 kpps for 64-byte packets
- 1 Gbps for 1518-byte packets
Intuitive User Interface and Configuration
The Ubiquiti ER-X-SFP EdgeRouter X provides a graphical user interface designed for convenient setup and control. Accessed via a network port and web browser, the user-friendly interface provides intuitive management with a virtual view of the ports, displaying physical connectivity, speed, and status. The Dashboard displays detailed statistics: IP information, MTU, transmit and receive speeds, and status for each physical and virtual interface.
Powered by a proprietary and intuitive graphical interface, EdgeOS, every Ubiquiti ER-X-SFP EdgeRouter X can easily be configured for the routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.
Example of a CPE Deployment
Powered by the 24V passive PoE, the ER-X-SFP provides data to the NanoBeam, the UniFi Video Camera Pro, the AP AC, and the computer.
Example of a Service Provider Deployment
Multiple ER-X-SFP devices connect the Internet and three OSPF areas of the service provider’s network.
Powerful Features
The Ubiquiti ER-X-SFP EdgeRouter X provides five independent, Gigabit RJ45 ports that are configurable for switching. It also features EdgeOS, a sophisticated operating system pre-installed with robust features, including:
- VLAN interfaces for network segmentation
- Static routes and support of routing protocols: OSPF, RIP, and BGP
- Firewall policies and NAT rules
- DHCP services
- Quality of Service (QoS)
- Network administration and monitoring tools
- Administrator and operator accounts
- Comprehensive IPv6 support
Specifications
- Dimensions
- 142 x 75 x 23 mm (5.59 x 2.95 x 0.91″)
- Weight
- 215 g (7.58 oz)
- Max. Power Consumption
- 5W
- Max. Total PoE Output
- 50W @ 24V
- PoE Output
- Passive 24V (Pins 4, 5+; 7, 8-)
- Power Input

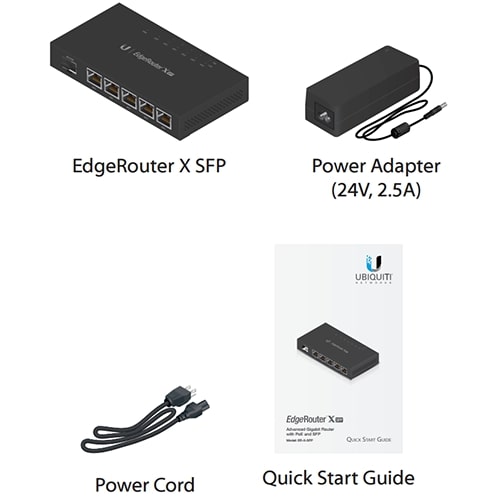

- 24VDC, 2.5A Power Adapter (Included)
- Power Supply
- External AC/DC Adapter
- Supported Voltage Range
- 9 to 26VDC
- Processor
- Dual-Core 880 MHz, MIPS1004Kc
- System Memory
- 256 MB DDR3 RAM
- Code Storage
- 256 MB NAND
- Certifications
- CE, FCC, IC
- Wall-Mount
- Yes
- ESD/EMP Protection Air
- ± 24 kV, Contact: ± 24 kV
- Operating Temperature
- -10 to 45° C (14 to 113° F)
- Operating Humidity
- 10 to 90% Noncondensing
Networking Interfaces
- Data/PoE Output Port
- (5) 10/100/1000 RJ45 Ports
- Data Port
- (1) 100/1000 SFP Port
PoE with 24VDC Power Adapter
- PoE Out Voltage Range
- 2-24VDC
- Max. PoE Wattage Per Data/PoE Output Port
- 12W (24V)
- Max. PoE Wattage Combined (All 5 Data Ports)
- 50W
- PoE Method
- Passive
Interface/Encapsulation Ethernet
- 802.1q VLAN
- PPPoE
- GRE
- IP in IP
- Bridging
- Bonding (802.3ad)
Addressing
- Static IPv4/IPv6 Addressing
- DHCP/DHCPv6
Routing
- Static Routes
- OSPF/OSPFv3
- RIP/RIPng
- BGP (with IPv6 Support)
- IGMP Proxy
Security
- ACL-Based Firewall
- Zone-Based Firewall
- NAT
VPN
- IPSec Site-to-Site and Remote Access
- OpenVPN Site-to-Site and Remote Access
- PPTP Remote Access
- L2TP Remote Access
- PPTP Client
Services
- DHCP/DHCPv6 Server
- DHCP/DHCPv6 Relay
- Dynamic DNS
- DNS Forwarding
- VRRP
- RADIUS Client
- Web Caching
- PPPoE Server
QoS
- FIFO
- Stochastic Fairness Queueing
- Random Early Detection
- Token Bucket Filter
- Deficit Round Robin
- Hierarchical Token Bucket
- Ingress Policing
Management
- Web UI
- CLI (SSH, Telnet)
- SNMP
- NetFlow
- LLDP
- NTP
- UBNT Discovery Protocol
- Logging
Standard Warranty: 1-Year
