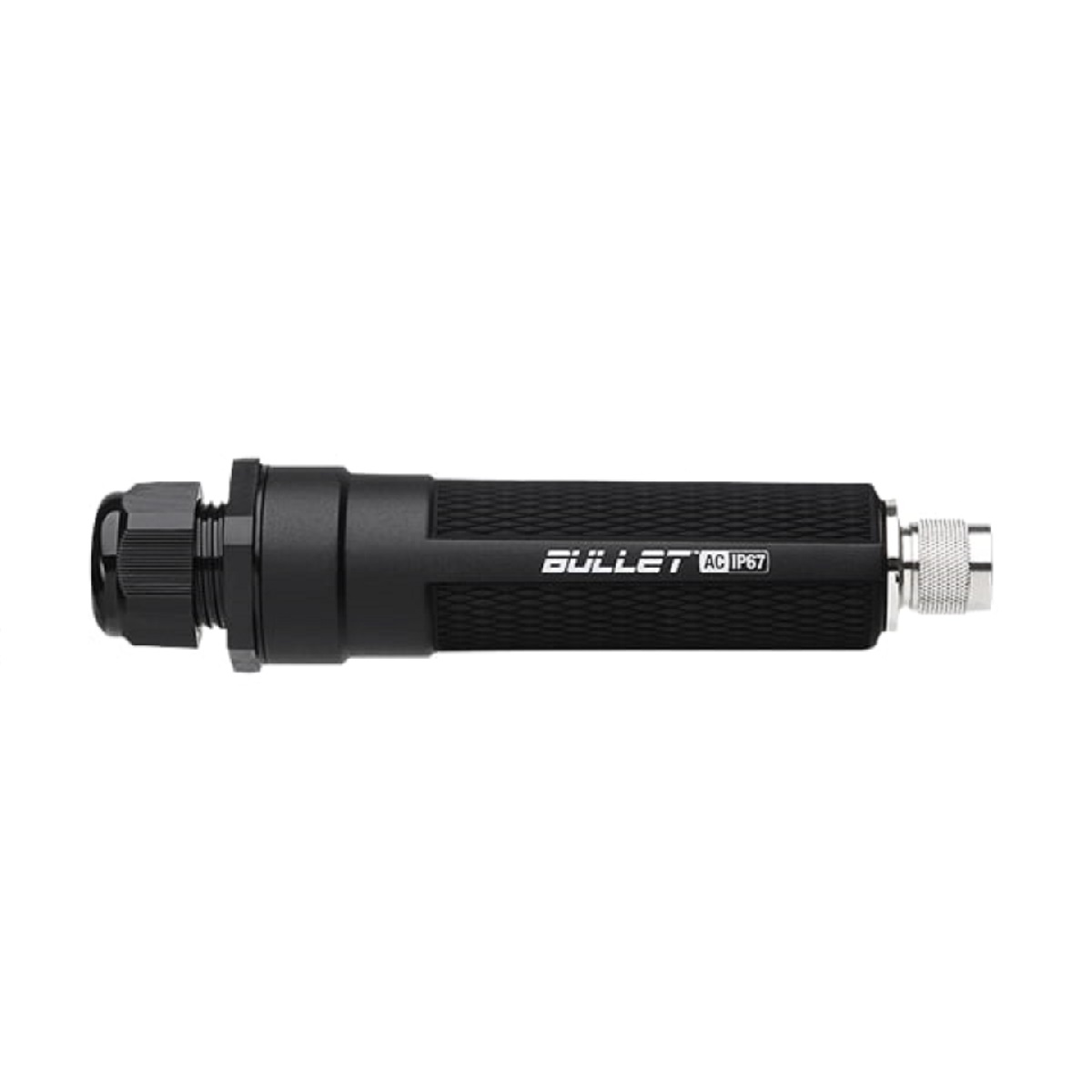

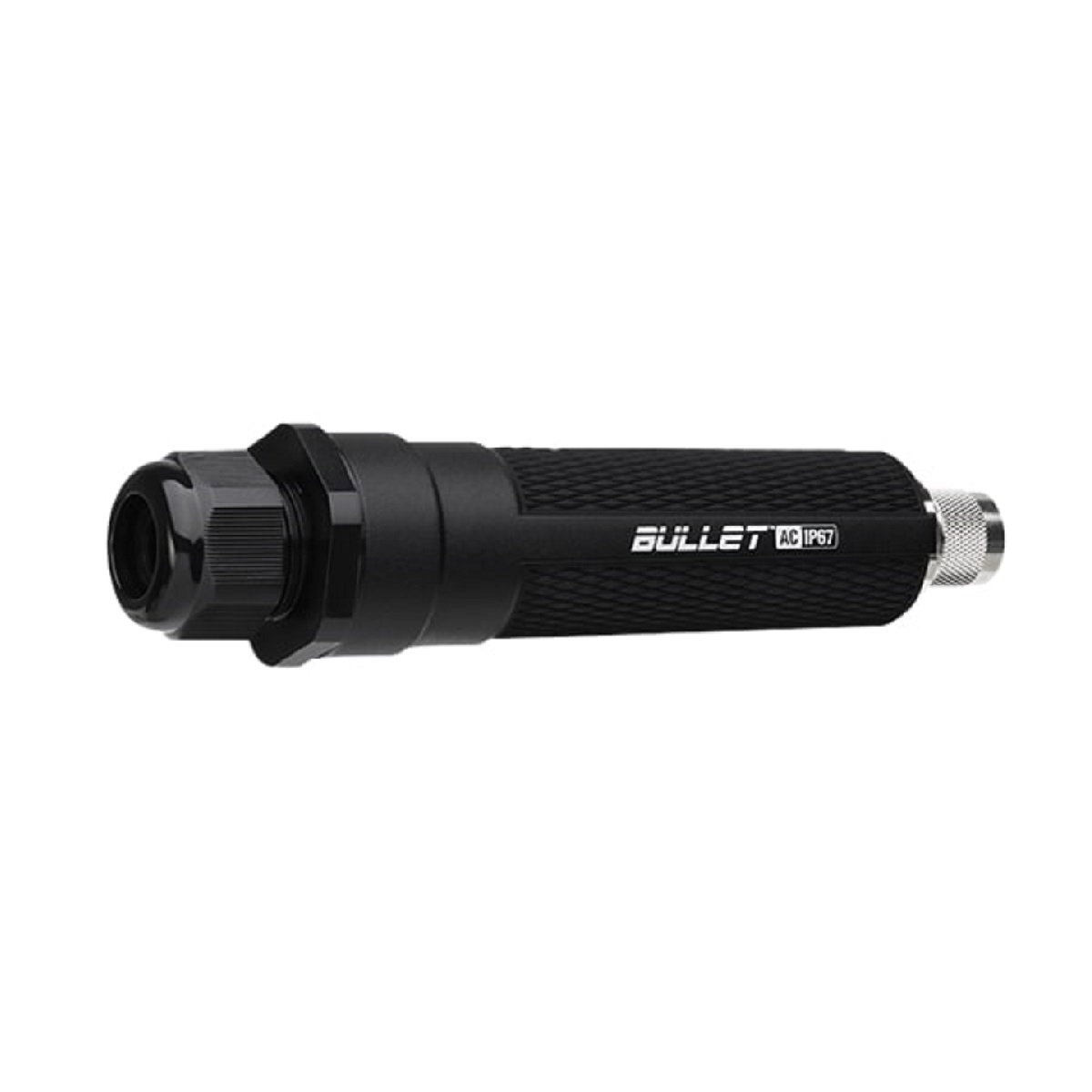

Ubiquiti Bullet AC-IP67 airMAX Outdoor WiFi 5 PoE Access Point, Black (300Mbps AC)

Ubiquiti Bullet AC-IP67 Black WiFi 5 Access Point (AC)

Ubiquiti Bullet AC-IP67 Black WiFi 5 Access Point (AC) Networks-designed airMAX AC radios for high performance and ease of installation.

You have the freedom to deploy the Bullet AC anywhere in the world, as it allows for a high degree of flexibility in configuring channel bandwidths (subject to local country regulations).

The Bullet AC eliminates the need to use RF cables and requires no special antenna or tools to install. No radio card / host board issues. No RF cable quality concerns.

No mechanical stability concerns. No enclosure mounting requirements. With the Bullet AC, operators can just plug and go.

Key Features

• High Performance 802.11a/n radio architecture.
• Access Point PtMP airMAX Mixed Mode
• Works with any suitable antenna.
• Long-Range Point-to-Point (PtP) Link Mode
• Power over Ethernet (PoE) support
  • Please note: No PoE injector is supplied.
• Transmit Power Control: Automatic/Manual
• Automatic Distance Selection (ACK Timing)
• Strongest WPA2 Security

Advanced RF Analytics

AirMAX AC devices feature a multi-radio architecture to power a revolutionary RF analytics engine.

An independent processor on the PCBA powers a second, dedicated radio, which persistently analyses the full 5 GHz spectrum and every received symbol to provide you with the most advanced RF analytics in the industry.

Data from the spectrum analysis and RF performance monitoring is displayed on the Dashboard and airView Spectrum Analyzer.

Real-Time Reporting

AirOS 8 displays the following RF information:

• Persistent RF Error Vector Magnitude (EVM) constellation diagrams
• Signal, Noise and Interference (SNI) diagrams
• Carrier to Interference-plus-Noise Ratio (CINR) histograms

Spectral Analysis

AirView allows you to identify noise signatures and plan your networks to minimize noise interference. airView performs the following functions:

• Constantly monitors environmental noise
• Collects energy data points in real-time spectral views
• Helps optimize channel selection, network design and wireless performance

AirView runs in the background without disabling the wireless link, so there is no disruption to the network. In airView, there are three spectral views, each of which represents different data.

• Waterfall: Aggregate energy collected for each frequency
• Waveform: Aggregate energy collected
• Ambient Noise Level: Background noise energy shown as a function of frequency

AirView provides powerful spectrum analyzer functionality, eliminating the need to rent or purchase additional equipment for conducting site surveys. Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX AC protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.

This time slot method eliminates hidden node collisions and maximizes airtime efficiency, so airMAX AC technology provides performance improvements in latency, noise immunity, scalability and throughput compared to other outdoor systems in its class.

Superior Performance

The next-generation airMAX AC technology boosts the advantages of our proprietary TDMA protocol. Ubiquiti’s airMAX engine with custom IC dramatically improves TDMA latency and network scalability.

The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX AC technology.

Throughput Breakthrough airMAX AC supports high data rates, which require dense modulation: 256QAM – a significant increase from 64QAM, which is used in airMAX.

With their use of proprietary airMAX AC technology, airMAX AC products supports up to 500+ Mbps (maximum 80 MHz channel width) real TCP/IP throughput – up to triple the throughput of standard airMAX products.

UNMS App UNMS

Configuration Screen The Bullet AC integrates a separate Wi-Fi radio for fast and easy setup using the Ubiquiti Network Management System (UNMS) app on your mobile device.

Accessing airOS via Wi-Fi The UNMS app provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play (Android).

UNMS allows you to set up, configure and manage your device and offers various configuration options once you’re connected or logged in.

Specifications

Standard Warranty: 1-Year
