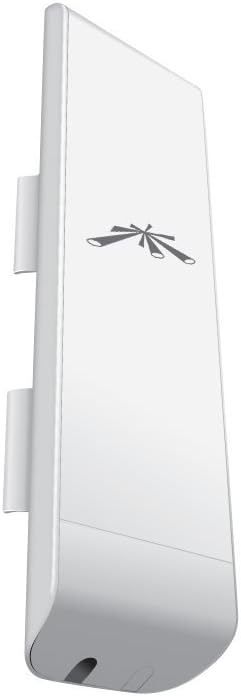

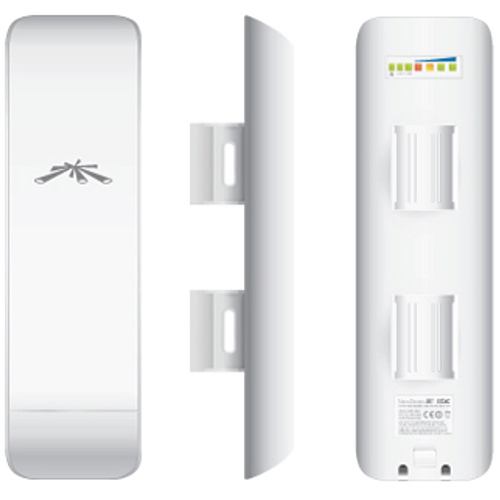

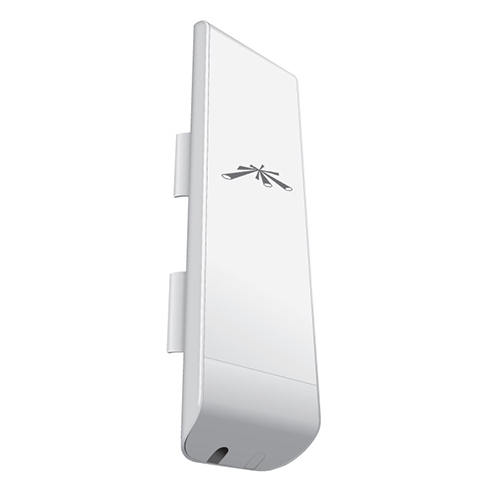

Ubiquiti Networks set the bar for the world’s first low-cost and efficient broadband Customer Premises Equipment (CPE) with the original Ubiquiti airMAX NanoStation M5 . The Ubiquiti NanoStation M5 takes the same concept to the future with sleek and elegant form factor, along with integrated airMAX (MIMO TDMA protocol) technology. The low cost, high performance, and small form factor of this Ubiquiti NanoStation M5 makes it extremely versatile and economical to deploy.

Key Features

• AP mode, client or WDS with Traffic shaping and QoS.
• Between WAN and LAN routing and transparent bridge with or without NAT.

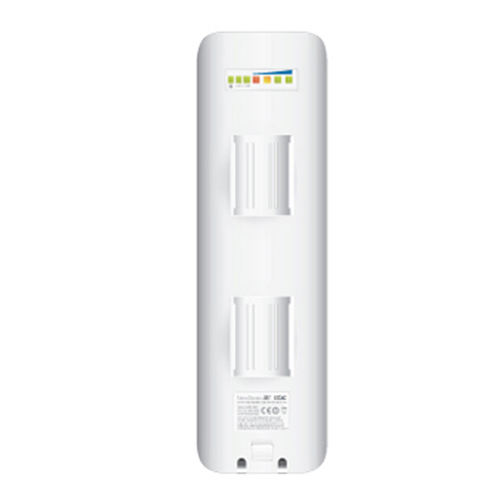

• Signal strength, which is reported by the on-board LED indicator.
• In bridge mode and WDS device supports transparent transmission IPv6.

Utilise airMAX Technology

Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller. This “time slot” method eliminates hidden node collisions and maximises airtime efficiency. It provides many magnitudes of performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.

• Intelligent QoS Priority is given to voice/video for seamless streaming.
• Scalability High capacity and scalability.
• Long Distance Capable of high-speed, carrier-class links.
• Latency Multiple features dramatically reduce noise.

Passive Power over Ethernet (PoE)

The Power over Ethernet (PoE) functionality allows both power and data to be carried over a single Ethernet cable to the Ubiquiti NanaStation M5.

Next-Gen Antenna Design
New antenna array designs featuring 16dBi dual-polarity gain at 5GHz. Optimised cross-polarity isolation and in a compact form-factor.

Integrated AirMax Technology
Unlike standard WiFi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) AirMax protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.

Dual Ethernet Connectivity
The Ubiquiti NanoStation M5 provides a secondary Ethernet port with software enabled PoE output for seamless IP Video integration.

Intelligent PoE
Remote hardware reset circuitry of Ubiquiti NanoStation M5 allows for device to be reset remotely from power supply location. In addition, any Ubiquiti NanoStation M5 can easily become 802.3af 48V compliant through use of Ubiquiti’s Instant 802.3af adapter. Remote reset is an additional option.

AirOS V
Version 5 of Ubiquiti’s airOS builds upon the market leading intuitive user-interface loaded with advanced wireless configurations and routing functionality.

Model

• NSM5

Frequency

• 5 GHz

Gain

• 16 dBi

System Information

Processor Specs

• Atheros MIPS 24KC, 400 MHz

Memory

• 32 MB SDRAM, 8 MB Flash

Networking Interface

• (2) 10/100 Ethernet Ports

Regulatory/Compliance Information

Wireless Approvals

• FCC Part 15.247, IC RS210, CE

RoHS Compliance

• Yes

Physical/Electrical/Environmental

Dimensions (mm)

• 294 x 31 x 80

Weight

• 0.4 kg

Power Supply (PoE)

• 24V, 0.5A

Max. Power Consumption

• 8 W

Gain

• 16 dBi

Polarisation

• Dual Linear

Enclosure Characteristics

• Outdoor UV Stabilized Plastic

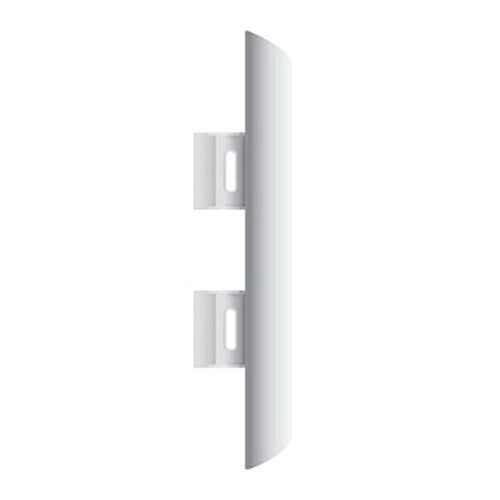

Mounting

• Pole Mounting Kit Included

Power Method

• Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)

Operating Temperature

• -30 to 75C

Operating Humidity

• 5 to 95% Condensing

Shock and Vibration

• ETSI300-019-1.4

Operating Frequency Summary (MHz)

Worldwide

• 5170 – 5875

Warranty

• 1-Year

RF

• Operating Frequency: 5470 – 5825 MHz
• Tx Output Power 11a:
  • 27 dBm @ 1-24 Mbps
  • 25 dBm @ 36 Mbps
  • 23 dBm @ 48 Mbps
  • 22 dBm @ 54 Mbps
• Tx Output Power 11n AirMax:
  • 27 dbm @ MCS0
  • 27 dbm @ MCS1
  • 27 dbm @ MCS2
  • 27 dbm @ MCS3
  • 26 dbm @ MCS4
  • 24 dbm @ MCS5
  • 22 dbm @ MCS6
  • 21 dbm @ MCS7
  • 27 dbm @ MCS8
  • 27 dbm @ MCS9
  • 27 dbm @ MCS10
  • 27 dbm @ MCS11
  • 26 dbm @ MCS12
  • 24 dbm @ MCS13
  • 22 dbm @ MCS14
  • 21 dbm @ MCS15
• Rx Sensitivity 11a:
  • -94 dBm @ 1-24 Mbps
  • -80 dBm @ 36 Mbps
  • -77 dBm @ 48 Mbps
  • -75 dBm @ 54 Mbps
• Rx Sensitivity 11n AirMax:
  • -96 dbm @ MCS0
  • -95 dbm @ MCS1
  • -92 dbm @ MCS2
  • -90 dbm @ MCS3
  • -86 dbm @ MCS4
  • -83 dbm @ MCS5
  • -77 dbm @ MCS6
  • -74 dbm @ MCS7
  • -95 dbm @ MCS8
  • -93 dbm @ MCS9
  • -90 dbm @ MCS10
  • -87 dbm @ MCS11
  • -84 dbm @ MCS12
  • -79 dbm @ MCS13
  • -78 dbm @ MCS14
  • -75 dbm @ MCS15

Antenna

• Antenna Gain: 14.6 – 16.1 dBi
• Cross-pol Isolation: 22 dB minimum
• Polarisation: Dual Linear
• Max VSWR: 1.6:1

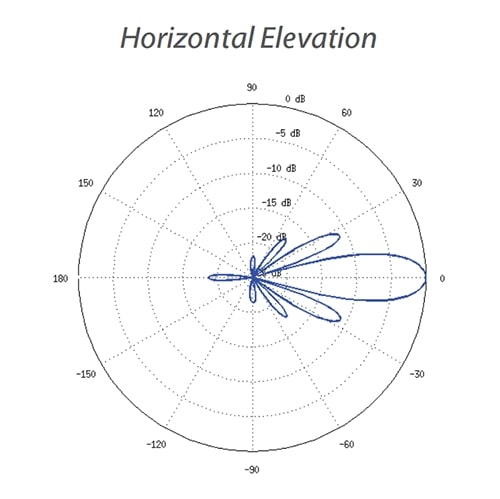

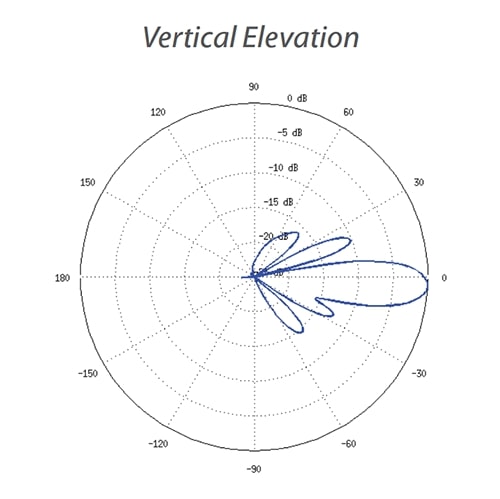

• Beamwidth: 45 deg. (H-pol) / 41 deg (V-pol) / 15 deg (Elevation)

Standard warranty: 1-year
