Ubiquiti airCube airMAX AC Home Wi-Fi Access Point ACB-AC with PoE In/Out

Ubiquiti airCube airMAX AC (ACB-AC)

Ubiquiti airCube airMAX AC Home Wi-Fi Access Point ACB-AC is a Wi-Fi access point for use in your residential customer deployments.

The Ubiquiti airCube AC features 4 x Gigabit Ethernet Ports, 24V PoE Passthrough for airMAX CPE and Dual-Band, 802.11ac, 2×2 MIMO Technology.

Ubiquiti Networks introduces the AirCube, a cost-effective wireless access point. The Dual-band AirCube AC supports 802.11ac standard with 2×2 MIMO technology for maximum wireless performance.

With a sleek and compact design, this Wi-Fi access point is ideal for the home. *Please note this unit is supplied with a UK Adapter for the EU plug that’s included*

The ACB-AC is supplied by Ubiquiti with EU 2-pin plug, but we will also include a fused UK Adapter with this product.

This unit can also be powered by a PoE switch, or alternatively by a PoE injector such as POE-24-12W-G – which is not included with this product.

Intended to be deployed by WISPs, the device is remotely managed using Ubiquiti’s Network Management System (UNMS).

This system allows the consumer to configure, upgrade, monitor and backup the device without even being on the premises.

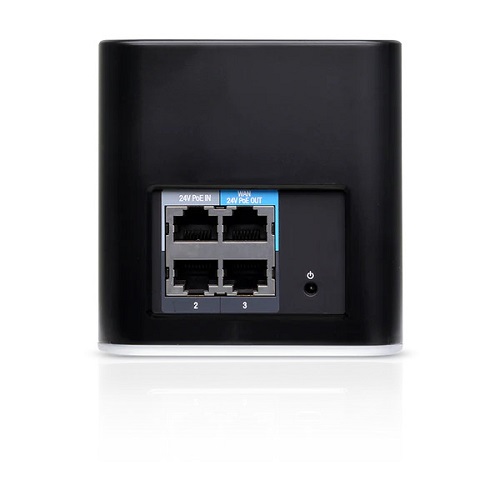

The ACB-AC has 4 gigabit ethernet ports, 1 of which offers 24V PoE in and another offering 24V PoE out (via PoE pass through), this allows your to power a Ubiquiti CPE.

The pass through is achieved using an optional PoE injector or the included 24V power supply. This access point has default bridge mode but with capability for routing mode.

Key Features

• 4 x Gigabit Ethernet Ports
• 24V PoE Passthrough for airMAX CPE
• Dual-Band, 802.11ac, 2×2 MIMO Technology
• Up to 300 Mbps in the 2.4 GHz Radio Band
• Up to 866.7 Mbps in the 5 GHz Radio Band
• Powered by 24V Passive PoE or Included Power Adapter

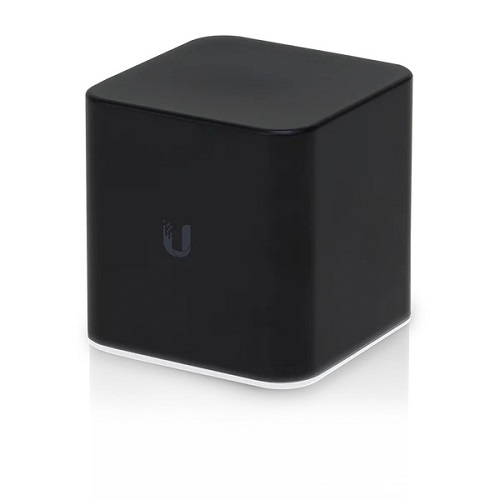

Sleek Design with Super Antenna
The innovative antenna provides wide-area coverage, and the airCube’s elegant design allows you to place it anywhere.Deployment Example
The airMAX® AC BaseStation connects wirelessly to the outdoor CPE, which is wired to the airCube inside the home.UNMS Support
Ubiquiti Network Management System (UNMS) simplifies remote network management.Mobile App for Quick Setup
Use the intuitive mobile app for iOS or Android to install and configure airCube.24V PoE Passthrough
The airCube offers convenient PoE passthrough to power a 24V airMAX CPE device, so you can use a single PoE adapter to power both devices. The airCube AC requires the included power adapter or 24V, 1A PoE input.

Specifications

General

• Dimensions: 87.80 x 89.50 x 89.25 mm (3.46 x 3.52 x 3.51″)
• Weight: 280 g (9.88 oz)
• Power Supply: 24VDC
• Power Method: 24VDC, 0.83A or PoE 24V In on LAN Port 1
• Supported Power Voltage: 22-26V
• Max. Power Consumption: 8.5W
• PoE Out: Controllable 24V PoE Out (+4, 5; -7, 8) on WAN Port
• Management Interface: Wi-Fi / Ethernet
• Networking Interface: (4) Gigabit Ethernet Ports
• LED: Status
• Max. TX Power: 23dbm (5GHz); 19dbm (2.4GHz)
• Antenna Gain:
  – 2.4 GHz: 4 dBi
  – 5 GHz: 5 dBi
• Max. Speeds:
  – 2.4 GHz: 300 Mbps
  – 5 GHz: 866.7 Mbps
• Throughput: 350 Mbps
• Enclosure Characteristics: Black Plastic
• ESD/EMP Protection: ±24 kV Contact / Air
• Operating Temperature: -10 to 50° C (-14 to 122° F)
• Operating Humidity: 5 to 95% Noncondensing
• Certifications: CE, FCC, IC
