The TP-Link TL-WPA8631P KIT AV2 1300 WiFi 5 Powerline/HomePlug Adapter with passthrough allows you to extend AC1200 WiFi to any area in your home. This stable, ultra-fast network can pass through walls and floors, and requires no need for drilling or wire installation. The latest HomePlug AV2 technology delivers speeds of up to 1300 Mbps over Powerline, preventing lost speed during transfers.

What is Powerline?

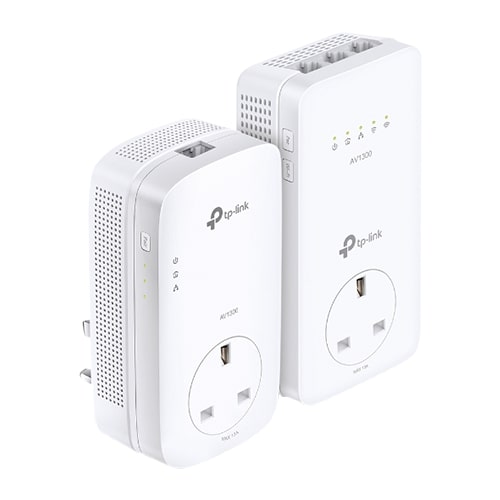

Powerline units turn your home’s electrical wiring into a wired network, moving data right through your walls and floors.The TL-WPA8631P KIT comes with one WiFi powerline adapter and one wired powerline adapter that plug into any power outlet providing strong wired connections as well as fast WiFi, wherever you need it.

* Powerline adapters must be deployed in sets of two or more. Additonal powerline units are sold separately. TL-WPA8631P KIT is compatible with all TP-Link powerline adapters.

Key features

• Powerline Starter Kit
  Includes one (1) TL-PA8010P adapter and one (1) TL-WPA8631P adapter.
• HomePlug AV2 Standard
  Provides ultra-fast powerline transfer speeds of up to 1300 Mbps.
• AC1200 Dual-Band WiFi
  Extends ultra-fast dual-band WiFi with speeds of up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.
• OneMesh
  Works with your OneMesh router (sold separately) to form a unified mesh network for seamless streaming while moving around your home.
• 2 x 2 MIMO
  Establishes multiple simultaneous connections for you to enjoy higher powerline speeds and greater stability.
• One-Touch WiFi Configuration
  One press of the WiFi button copies the network name and password from your router. Any setting changes will be automatically applied to the entire Powerline network.
• WiFi Auto-Sync
  Add additional extenders to your powerline network by pair button, uniformly sync settings such as SSID, password, WiFi Schedule and LED Schedule for all network devices.
• Plug and Play
  Set up your powerline network and start enjoying fast, seamless wired/wireless connections in minutes.
• Extra Power Socket
  Get power from the outlet for your other devices with the integrated power socket.
• Three (3) Gigabit Ports
  Provide secure wired networks for desktops, smart TVs or games consoles.

Enjoy Stable, Seamless OneMesh WiFi

Bothered by dropped connections while moving around your home? With the newest OneMesh technology, the TL-WPA8631P KIT works with your existing OneMesh router (sold separately) to form a unified Mesh network. No more switching WiFi network names, enjoy uninterrupted streaming and truly seamless AC1200 WiFi.

2×2 MIMO Technology for Efficient Transmissions

2×2 MIMO greatly shortens data transmission times, especially during peak hours.

• More Stable Connections
  2×2 MIMO is like adding extra lanes to a highway. It establishes multiple simultaneous connections for you to enjoy higher speeds and greater stability.
• Enhanced Long-Distance Performance
  2×2 MIMO with Beamforming technology also offers the benefit of improved coverage throughout the home, particularly for previously hard-to-reach outlets.

One Tap for a Unified Network

• One-Touch WiFi Configuration
  Instantly copies your network name and password from your router for easy setup.
• WiFi Auto-Sync
  Automatically applies any setting changes across the network. Your existing WiFi settings will synchronize to the new extender instantly.

Plug and Play in Seconds!

Plug the TL-PA8010P Powerline adapter into the wall and connect it to the router. Then plug the TL-WPA8631P adapter into any desired power socket. That’s it. You’re done!

• Note: Press ‘Pair’ for more security.

Don’t Lose an Outlet

The adapter can be used like a traditional electrical socket, ensuring no power socket goes to waste. The built-in noise filter helps prevent electrical signal noise from affecting powerline performance.

More Gigabit Ethernet Ports, More Devices

Equipped with three (3) gigabit Ethernet ports, this adapter provides wired connections for 4K video and IPTV streaming, lag-free gaming, and more.

Hardware Features

Plug Type

• UK

Standards and Protocols

• HomePlug AV2, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b/g/n (2.4 GHz), IEEE 802.11a/n/ac (5 GHz)

Interface

• 3 Gigabit Ethernet Ports, 1 Power Socket

Button

• Pair, LED On/Off, WiFi, Reset

Power Consumption

• TL-WPA8631P:
  • Maximum: 13W
  • Typical: 11W
• TL-PA8010P:
  • Maximum: 4.9W
  • Typical: 4.6W

LED Indicator

• Power, Powerline, Ethernet, WiFi (2.4 GHz), WiFi (5 GHz)

Dimensions (W x D x H)

• TL-WPA8631P: 75 x 42 x 152 mm (3.0 x 1.7 x 6.0 in.)
• TL-PA8010P: 72 x 42 x 131 mm (2.8 x 1.7 x 5.2 in.)

Range

• Up to 300 metres/1000 feet over existing electrical wiring

Compatibility

• Compatible with all HomePlug AV & HomePlug AV2 standard powerline adapters

Transmission Speeds

• Powerline: up to 1300 Mbps
• Ethernet: 10/100/1000 Mbps

Software Features

Security

• Wireless: WPA-PSK/WPA2-PSK, WEP Encryptions
• Powerline: 128-bit AES Encryption

Management

• TP-Link tpPLC App, or download new tpPLC Utility on PCs

Modulation Technology

• OFDM

Other Specifications

Certification

• CE, RoHS

System Requirements

• System Requirements:
  • Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux
• System Requirements for tpPLC Utility:
  • Windows 10/8.1/8/7/Vista/XP and Mac OS X (10.7 or later)

Environment

• Operating Temperature: 0ºC ~ 40ºC (32ºF ~ 104ºF)
• Operating Humidity: 10% ~ 90% non-condensing

Package Contents

• 1 x TL-WPA8631P
• 1 x TL-PA8010P
• 2 x Ethernet Cable
• 1 x Quick Installation Guide

Standard Warranty: 3-Years
