TP-Link TL-SL1226P 24-Port Unmanaged Rackmount Fast Ethernet PoE+ Switch w/ 2 x 1GbE RJ45/SFP Combo Ports (250W)

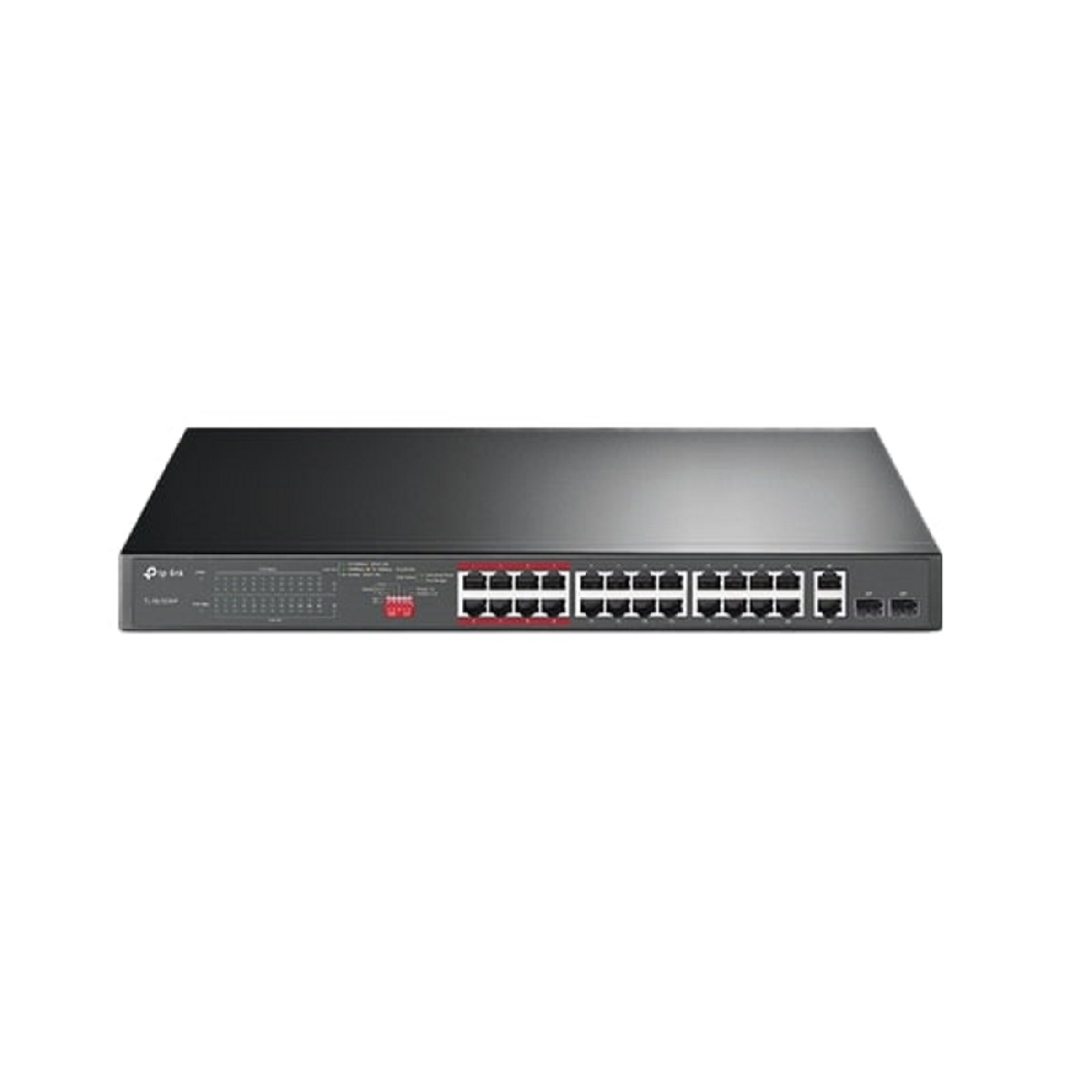

TP-Link TL-SL1226P Unmanaged Rackmount PoE+ 24 Port Ethernet Switch

TP-Link TL-SL1226P Unmanaged Rackmount PoE+ 24 Port Ethernet Switch provides a simple way to expand your wired network while transferring power over the same Ethernet cable at the same time. With up to 30 W per port, the switch can power more high-powered devices such as access points, IP cameras, IP phones and so on.

Moreover, with innovative Extend Mode, devices can get PoE power supply and data transmission from a distance of up to 250 m. Priority Mode ensures high priority for port 1–8, which guarantees the quality of sensitive applications. This switch also supports Isolation Mode that divides traffic for 10/100 Mbps RJ45 ports for higher security and performance.

Ethernet Switch TL-SL1226P Unmanaged Rackmount PoE+ 24 Port

Key Features

• Twenty-four (24) PoE+ 10/100 Mbps RJ45 ports, two (2) Gigabit RJ45 ports, and two (2) combo Gigabit SFP slots.
• High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports.
• Up to 250 m data and power PoE transmission range under Extend Mode, ideal for surveillance systems.
• Priority Mode ensures high priority of ports 1–8 to guarantees the quality of sensitive applications like video monitor.
• Isolation Mode allows one-click client traffic separation for higher security and performance.
• Plug and play, with no configuration and installation needed.

24-Port PoE+ Switch with 250 W PoE Budget

Compliant with the 802.3af/at PoE+ standard, this switch supports up to 30 W on each PoE port. The total 250 W PoE power budget for the twenty-four (24) PoE ports makes it suitable for a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.

Dedicated Design for IP Surveillance

• Priority Video Quality Guaranteed
  Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–8 when one-touch Priority Mode is on.
• One-Click Traffic Separation for Ports 1-24
  With one click, Isolation Mode easily divides traffic for ports 1–24 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.

Smooth HD Video Monitoring

The two (2) Gigabit RJ45 ports and two (2) combo Gigabit SFP ports ensure smooth streaming even when twenty-four (24) HD IP cameras are working simultaneously.

Intelligent Power Management to Prevent Power Overload

When your total power consumption exceeds 250W, intelligent power management automatically cuts lower priority ports’ power to ensure high-priority port’s power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

Wide Operating Temperature with Good Heat Dissipation

The durable metal casing and professional heat dissipation design ensure a wide operating temperature (0–50°C) with reliability.

Specifications

Standard Warranty: Limited Lifetime
