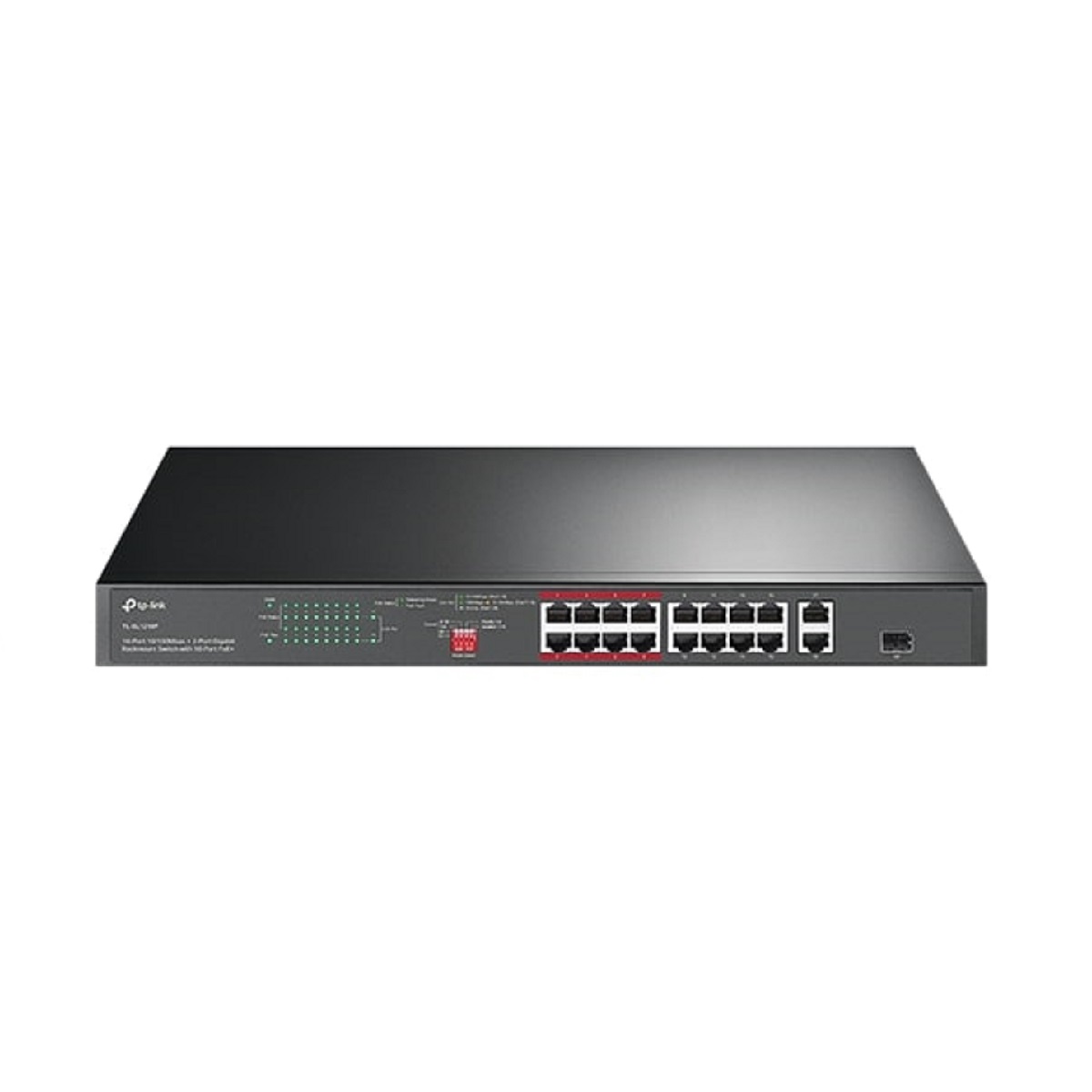

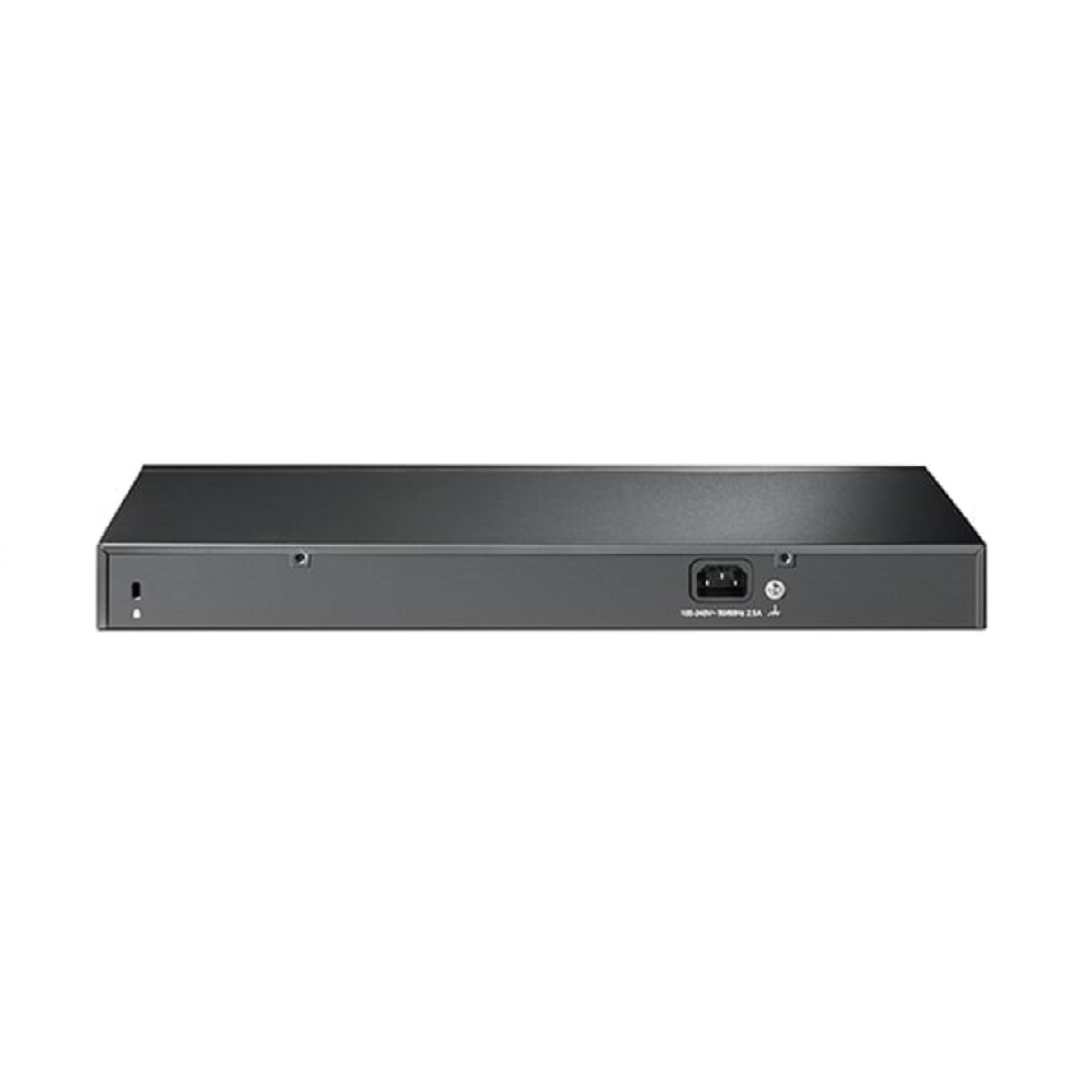

TP-Link TL-SL1218P 16-Port Unmanaged Rackmount Fast Ethernet PoE+ Switch w/ 1 x 1GbE RJ45 Port & 1 x 1GbE RJ45/SFP Combo Port (150W)

TP-Link TL-SL1218P Unmanaged Fast Ethernet PoE 16 Port Ethernet Switch

TP-Link TL-SL1218P Unmanaged Fast Ethernet PoE 16 Port Ethernet Switch features PoE+ support on sixteen (16) of its ports, providing a simple way to expand the wired network while transferring power over the same Ethernet cable at the same time.

With a total power budget of 150W, and up to 30W per port, the TL-SL1218P can power more high-powered devices such as access points, IP cameras, IP phones and so on. Plus, with the innovative Extend Mode, devices can get PoE+ power supply and data transmission from 250m distance. Priority mode ensures high priority for ports 1-8, which guarantees the quality of sensitive applications.

Ethernet Switch TL-SL1218P Unmanaged Fast Ethernet PoE 16 Port

Key Features

• Sixteen (16) PoE+ 10/100 Mbps RJ45 ports.
• One (1) Gigabit RJ45 port and one (1) combo Gigabit RJ45/SFP slot.
• High PoE power budget with up to 30 W for each PoE port and 150 W for all PoE ports.
• Up to 250 m data and power transmission under extend mode specially designed for surveillance systems.
• Priority mode for ports 1–8 to guarantee the quality of sensitive applications like video monitors.
• Isolation Mode allows one-click client traffic separation for higher security and performance.
• Easy to use, with no configuration or installation needed.

Dedicated 16-Port PoE+ Switch

This switch is compliant with the 802.3af/at PoE+ standards, supporting up to 30 W on each PoE port. The total 150 W PoE power budget across sixteen (16) PoE+ ports makes it suitable for a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.

Up to 250m Transmission

With extend mode, the PoE transmission distance is extended from 100m up to 250 m — perfect for IP camera deployment in large areas. The speed of the ports in extend mode is reduced to 10 Mbps in order to reach a longer distance.

Higher Performance and Security

Priority Mode and Isolation Mode make surveillance smoother and safer.

Priority Video Quality Guaranteed

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–8 when one-touch Priority Mode is on.

One-Click Traffic Separation for Ports 1-16

With one click, Isolation Mode easily divides traffic for ports 1–16 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.

Smooth HD Video Monitoring

One (1) Gigabit RJ45 port and one (1) combo Gigabit RJ45/SFP slot ensure smooth streaming even when you have sixteen (16) HD IP cameras working simultaneously.

Intelligent Power Management

When your total power consumption exceeds 150 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply, as well as protect the device from power overload. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

Wide Operating Temperature

The durable metal casing and professional heat dissipation design ensure a wide operating temperature (0ºC – 50ºC) with reliability.

• Durable Metal Casing
• Wide Operating Temperature
• Rackmount
• Green Technology

Multiple Application Scenarios

The TL-SL1218P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.

• Surveillance
  Works with IP Cameras
• Conference Calls
  Works with IP Phones
• WiFi Coverage
  Works with access points
• Wired Connections
  Works with PCs and Printers

Specifications

Standard Warranty: Limited Lifetime
