Hardware Features

Interface

• 48× 10/100/1000 Mbps RJ45 PoE+ Ports
• 4× 10G SFP+ Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port

Fan Quantity

• 3

Power Supply

• 100-240 V AC~50/60 Hz

PoE+ Ports(RJ45)

• Standard: 802.3at/af compliant
• PoE+ Ports: 48 Ports, up to 30 W per port
• Power Budget: 500 W

Dimensions ( W x D x H )

• 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)

Mounting

• Rack Mountable

Max Power Consumption

• 49.19 W (110V/60Hz) ( no PD device connected)
• 635.7 W (110V/60Hz) ( with 500 W PD device connected)

Max Heat Dissipation

• 167.85 BTU/hr (110 V/60 Hz) (no PD connected)
• 2169.2 BTU/hr (110 V/60 Hz) (with 500 W PD connected)

Performance

Switching Capacity

• 176 Gbps

Packet Forwarding Rate

• 130.9 Mpps

MAC Address Table

• 16 K

Packet Buffer Memory

• 12 Mbit

Jumbo Frame

• 9 KB

Software Features

Quality of Service

• 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling
  • SP (Strict Priority)
  • WRR (Weighted Round Robin)
  • SP+WRR

• Bandwidth Control
  • Port/Flow based Rating Limiting

• Smoother Performance
• Action for Flows
  • Mirror (to supported interface)
  • Redirect (to supported interface)
  • Rate Limit
  • QoS Remark

L2 and L2+ Features

• Link Aggregation
  • Static link aggregation
  • 802.3ad LACP
  • Up to 8 aggregation groups, containing 8 ports per group

• Spanning Tree Protocol
  • 802.1d STP
  • 802.1w RSTP
  • 802.1s MSTP
  • STP Security: TC Protect, BPDU Filter, Root Protect

• Loopback Detection
  • Port based
  • VLAN based

• Flow Control
  • 802.3x Flow Control
  • HOL Blocking Prevention

• Mirroring
  • Port Mirroring
  • CPU Mirroring
  • One-to-One
  • Many-to-One
  • Tx/Rx/Both

L2 Multicast

• IGMP Snooping
  • IGMP v1/v2/v3 Snooping
  • Fast Leave
  • IGMP Snooping Querier
  • IGMP Authentication

• IGMP Authentication
• MLD Snooping
  • MLD v1/v2 Snooping
  • Fast Leave
  • MLD Snooping Querier
  • Static Group Config
  • Limited IP Multicast

• MVR
• Multicast Filtering: 256 profiles and 16 entries per profile

VLAN

• VLAN Group
  • Max 4K VLAN Groups

• 802.1Q Tagged VLAN
• MAC VLAN: 30 Entries
• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
• Private VLAN
• GVRP
• VLAN VPN (QinQ)
  • Port-Based QinQ
  • Selective QinQ

• Voice VLAN

Access Control List

• Time-based ACL
• MAC ACL
  • Source MAC
  • Destination MAC
  • VLAN ID
  • User Priority
  • Ether Type

• IP ACL
  • Source IP
  • Destination IP
  • Fragment
  • IP Protocol
  • TCP Flag
  • TCP/UDP Port
  • DSCP/IP TOS
  • User Priority

• Combined ACL
• Packet Content ACL
• IPv6 ACL
• Policy
  • Mirroring
  • Redirect
  • Rate Limit
  • QoS Remark

• ACL apply to Port/VLAN

Security

• IP-MAC-Port Binding
  • 512 Entries
  • DHCP Snooping
  • ARP Inspection
  • IPv4 Source Guard: 100 Entries

• IPv6-MAC-Port Binding
  • 512 Entries
  • DHCPv6 Snooping
  • ND Detection
  • IPv6 Source Guard: 100 Entries

• DoS Defend
• Static/Dynamic Port Security
  • Up to 64 MAC addresses per port

• Broadcast/Multicast/Unicast Storm Control
  • kbps/ratio control mode

• 802.1X
  • Port base authentication
  • Mac base authentication
  • VLAN Assignment
  • MAB
  • Guest VLAN
  • Support Radius authentication and accountability

• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC based access control

IPv6

• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACL
• IPv6 Interface
• Static IPv6 Routing
• IPv6 neighbour discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
  • DHCPv6 Client
  • Ping6
  • Tracert6
  • Telnet (v6)
  • IPv6 SNMP
  • IPv6 SSH
  • IPv6 SSL
  • Http/Https
  • IPv6 TFTP

L3 Features

• 16 IPv4/IPv6 Interfaces
• Static Routing
  • 48 static routes

• Static ARP
  • 128 Static Entries

• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay
  • DHCP Interface Relay
  • DHCP VLAN Relay

• DHCP L2 Relay

Advanced Features

• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule

MIBs

• MIB II (RFC1213)
• Interface MIB (RFC2233)
• Ethernet Interface MIB (RFC1643)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• RMON MIB (RFC2819)
• RMON2 MIB (RFC2021)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIB

Management

Omada App

• Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller (sold separately), or Omada Software Controller.

Centralized Management (sold separately)

• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access

• Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller (sold separately), or Omada Software Controller.

Zero-Touch Provisioning

• Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features

• Web-based GUI
• Command Line Interface (CLI) through the console port, telnet
• SNMP v1/v2c/v3
  • Trap/Inform
  • RMON (1,2,3,9 groups)

• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log

Others

Certification

• CE, FCC, RoHS

System Requirements

• Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.

Environment

• Operating Temperature: 0°C – 40°C (32°F – 104°F)
• Storage Temperature: -40°C – 70°C (-40°F – 158°F)
• Operating Humidity: 10 – 90% RH non-condensing
• Storage Humidity: 5 – 90% RH non-condensing

Package Contents

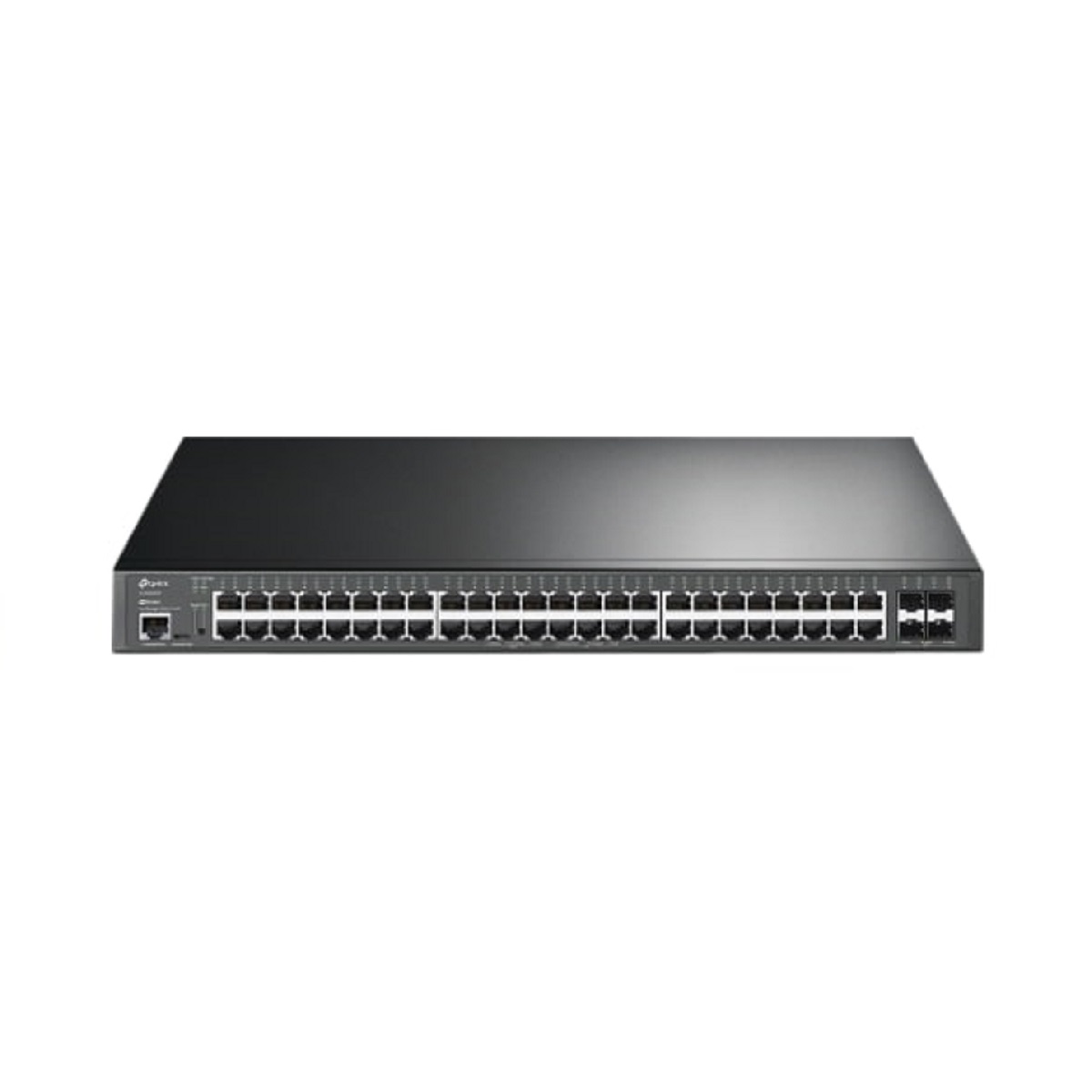

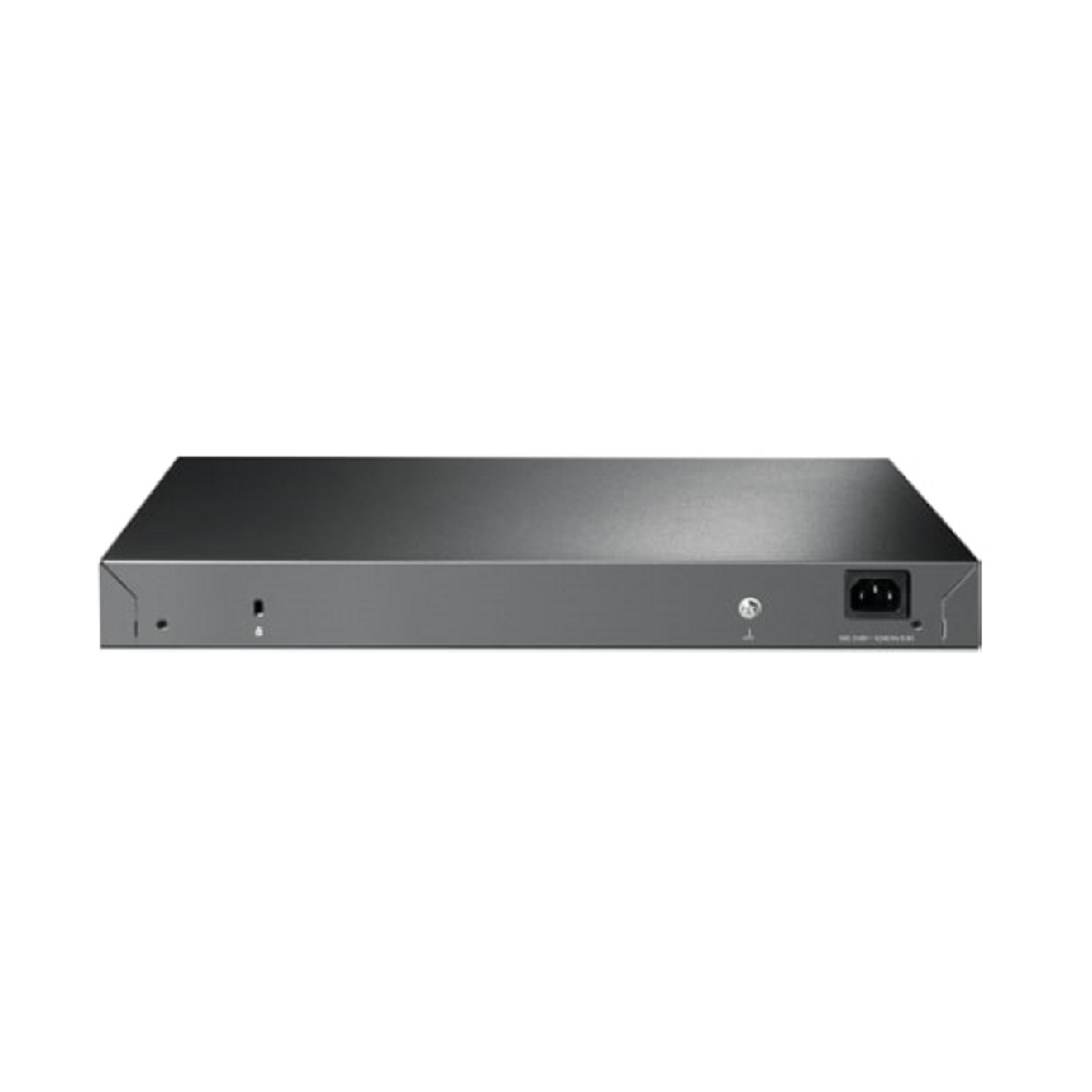

• 1 x TL-SG3452XP Switch
• 1 x Power Cord
• 1 x Rackmount Kit
• 1 x Rubber Feet
• 1 x Quick Installation Guide
