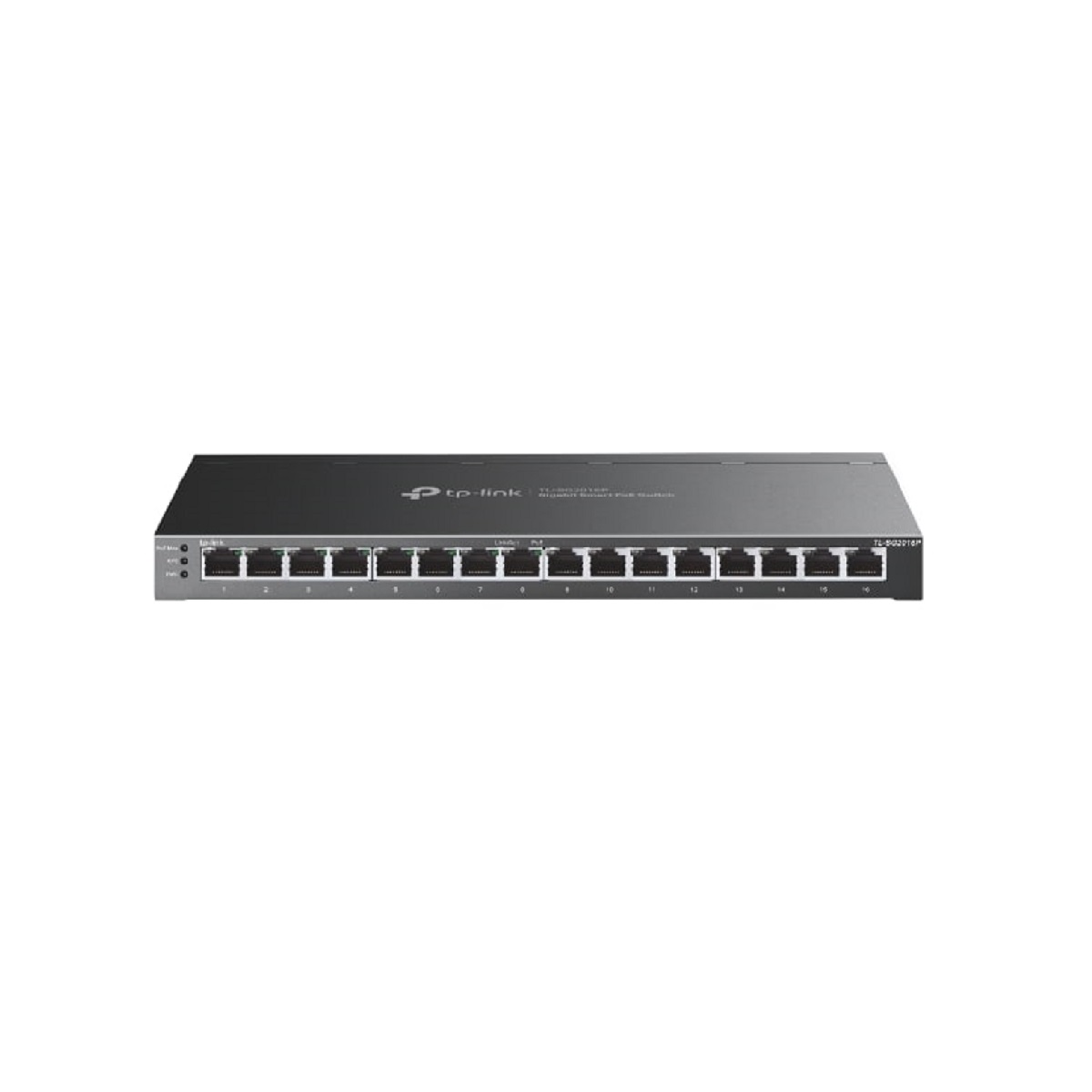

TP-Link TL-SG2016P JetStream 16-Port Smart Managed Gigabit PoE+ Switch
£248.71 inc.VAT / £207.26 exc.VAT
TP-Link TL-SG2016P JetStream 16-Port Smart Managed Desktop Gigabit Switch w/ 8 x PoE+ Ports (120W)
TP-Link TL-SG2016P JetStream 16-Port Smart Managed Gigabit PoE+ Switch features sixteen (16) ports in total, with eight (8) 802.3af/at compliant PoE+ ports and up to 120W total PoE power budget.
Out of stock
TP-Link TL-SG2016P JetStream 16-Port Smart Managed Desktop Gigabit Switch w/ 8 x PoE+ Ports (120W)
TP-Link TL-SG2016P JetStream 16-Port Smart Managed Gigabit PoE+ Switch
TP-Link TL-SG2016P JetStream 16-Port Smart Managed Gigabit PoE+ Switch features sixteen (16) ports in total, with eight (8) 802.3af/at compliant PoE+ ports and up to 120W total PoE power budget.
Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.
Gigabit PoE+ Switch TL-SG2016P JetStream 16-Port Smart Managed
Key Features
- 120W PoE Budget
Eight (8) of the ports support 802.3at/af PoE+ with a total power supply of 120W. - Full Gigabit Ports
Eight (8) gigabit PoE+ ports and eight (8) gigabit non-PoE ports provide a total of sixteen (16) high-speed connections. - Integrated into Omada
Zero-Touch Provisioning, Centralized Cloud Management, and Intelligent Monitoring. - Centralized Management
Cloud access and Omada app for ultra convenience and easy management. - Robust Security Strategies
IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more. - Optimize Voice and Video Applications
L2/L3/L4 QoS and IGMP snooping.
Value-Added Features
- Access Control List (ACL)
ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user-defined network rules and help you create the network regulations you need. - QoS for Lag-Free Experience
Designate the priority of traffic based on QoS, ensuring latency sensitive applications like voice and video, remain clear and lag-free. - VLAN for Security
Use VLAN to achieve logical grouping management of devices in different physical LANs, improve information security, and reduce data congestion.
Omada Cloud Solution for Business Networking
Omada platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
- Hassle-Free Centralized Cloud Management: 100% centralized cloud management of whole network from different sites — all controlled from a single interface anywhere, anytime.
Easy Management With the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Assign Different Management Roles
Multi-user privilege assignment is available to increase management efficiency and security. Multi-person management, multi-level permissions, and the ability to add admins as needed, enable flexible network operation and maintenance.
Easy and Intelligent Network Monitoring
The easy-to-use dashboard makes it easy to see your real-time network status; check network usage and traffic distribution; receive network condition logs, abnormal event warnings, and notifications; or even track key data for better business results. Network topology helps IP admins quickly see and troubleshoot connections at a glance.
Advanced QoS features
To integrate voice, data and video service on one network, the switch applies rich QoS policies. The administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN that the switches support, Voice Applications will perform better and smoother.
Abundant L2 and L2+ features
TP-Link JetStream smart switches support a complete lineup of L2 features, including IGMP Snooping/MLD Snooping, 802.1Q/MAC/Protocol VLAN, STP/RSTP/MSTP, Link Aggregation Group (LAG), Port Isolation, Port Mirroring, and 802.3x Flow control function. IGMP Snooping ensures the multicast stream be forwarded intelligently to the appropriate subscribers by the switch, while IGMP Throttling & Filtering restricts each subscriber on a certain level to prevent unauthorized multicast access.
Besides, these smart switches also support L2+ features like static routing. It is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic to be more efficient.
Enterprise Level Management Features
This TP-Link JetStream smart switch supports multiple user-friendly standard management features such as intuitive web-based Graphical User Interface (GUI), industry standard Command Line Interface (CLI), and SNMP (v1/v2c/v3).
This switch supports RMON (Remote Network Monitoring), which enables the switch to be polled for valuable status information and send traps when encountering abnormal events. This switch also supports Dual Image function, which allows for less ‘down-time’ during upgrades/downgrades.
IPv6 Support
This TP-Link JetStream smart switch supports comprehensive IPv6 features including IPv6 management, ACL, QoS and MLD Snooping. All of these features help to ensure a smooth migration to an IPv6-based network without needing to change switches in the future.
Specifications
Hardware Features
Standards and Protocols
- IEEE 802.3i, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface
- 16× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 Support 802.3at/af PoE+)
- Auto-Negotiation/Auto MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity
- Fanless
Power Supply
- External Power Adapter (Output: 53.5 VDC/ 1.31 A)
PoE Ports (RJ45)
- Standard: 802.3af/at compliant
- PoE Ports: 8 Ports
- Power Supply: 120W
Dimensions (W x D x H)
- 11.3 x 4.4 x 1.0 in (286 x 111.7 x 25.4 mm)
Max Power Consumption
- 146.5 W (110 V/60 Hz) (with 120 W PD connected)
Max Heat Dissipation
- 499.98 BTU/hr (110 V/60 Hz) (with 120 W PD connected)
Performance
Bandwidth/Backplane
- 16 Gbps
MAC Address Table
- 8k
Packet Buffer Memory
- 4.1 Mbit
Jumbo Frame
- 9 KB
Software Features
Quality of Service
- 802.1p CoS/DSCP priority
- 8 priority queues
- Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- Queue Weight Config
- Bandwidth Control
- Port/Flow-based Rating Limit
- Smoother Performance
- Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features
- DHCP Relay
- DHCP VLAN Relay
- DHCP L2 Relay
- Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports per group
- Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter/Protect, Root Protect
- Loopback Detection
- Flow Control
- 802.3x Flow Control
- Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both
- Device Link Detect Protocol (DLDP)
- 802.1ab LLDP/ LLDP-MED
L2 Multicast
- 511 IPv4, IPv6 shared multicast groups
- IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Queries
- Static Group Config
- Multicast VLAN Registration (MVR)
- Multicast Filtering
- MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Queries
- Static Group Config
- Limited IP Multicast (256 profiles and 16 entries per profile)
IPv6 Support
- IPv6 Dual IPv4/IPv6
- Multicast Listener Discovery (MLD) Snooping
- IPv6 neighbor discovery (ND)
- Path maximum transmission unit (MTU) discovery
- Internet Control Message Protocol (ICMP) version 6
- TCPv6/UDPv6
- IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
VLAN
- VLAN Group
- Max. 4K VLAN Groups
- 802.1Q tag VLAN
- MAC VLAN: 12 Entries
- Protocol VLAN
- GVRP
- Voice VLAN
Access Control List
- Support up to 230 entries
- Time-Range
- Time Slice
- Week Time-Range
- Absolute Time-Range
- Holiday
- Time-based ACL
- MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
- IP ACL
- Source IP
- Destination IP
- IP Protocol
- TCP Flag
- TCP/UDP Source Port
- TCP/UDP Destination Port
- DSCP/IP TOS
- IPv6 ACL
- Combined ACL
- Rule Operation
- Permit/Deny
- Policy Action
- Mirror
- Rate Limit
- Redirect
- QoS Remark
- ACL Rules Binding
- Port Binding
- VLAN Binding
- Actions for flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
Security
- AAA
- 802.1X
- Port-based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and accountability
- IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
- IP Source Guard
- 253 Entries
- Source IP+Source MAC
- IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
- DoS Defend
- Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
- Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
- Port Isolation
- Secure web management through HTTPS with SSLv3/TLS 1.2
- Secure Command Line Interface (CLI) management with SSHv1/SSHv2
- IP/Port/MAC-based access control
Advanced Features
- Automatic Device Discovery
- Batch Configuration
- Batch Firmware Upgrading
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
MIBs
- MIB II (RFC1213)
- Bridge MIB (RFC1493)
- P/Q-Bridge MIB (RFC2674)
- Radius Accounting Client MIB (RFC2620)
- Radius Authentication Client MIB (RFC2618)
- Remote Ping, Traceroute MIB (RFC2925)
- Support TP-Link private MIBs
- RMON MIB(RFC1757, rmon 1,2,3,9)
Management
Omada App
- Via:
- Omada Cloud-Based Controller
- OC300 (sold separately)
- OC200 (sold separately)
- Omada Software Controller
Centralized Management
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300, sold separately)
- Omada Hardware Controller (OC200, sold separately)
- Omada Software Controller
Cloud Access
- Via:
- Omada Cloud-Based Controller
- OC300 (sold separately)
- OC200 (sold separately)
- Omada Software Controller
Zero-Touch Provisioning
- Yes (requires Omada Cloud-Based Controller)
Management Features
- Web-based GUI
- Command Line Interface (CLI) through telnet
- SNMPv1/v2c/v3
- SNMP Trap/Inform
- RMON (1,2,3,9 groups)
- SDM Template
- DHCP/BOOTP Client
- Dual Image, Dual Configuration
- CPU Monitoring
- Cable Diagnostics
- EEE
- SNTP
- System Log
Others
Certification
- CE, FCC, RoHS
System Requirements
- Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
Environment
- Operating Temperature: 0°C – 40°C (32°F – 104°F)
- Storage Temperature: -40°C – 70°C (-40°F – 158°F)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
Package Contents
- 1 x TL-SG2016P
- 1 x Power Adapter
- 1 x Installation Guide
- 1 x Rubber Feet
Standard Warranty: Limited Lifetime
