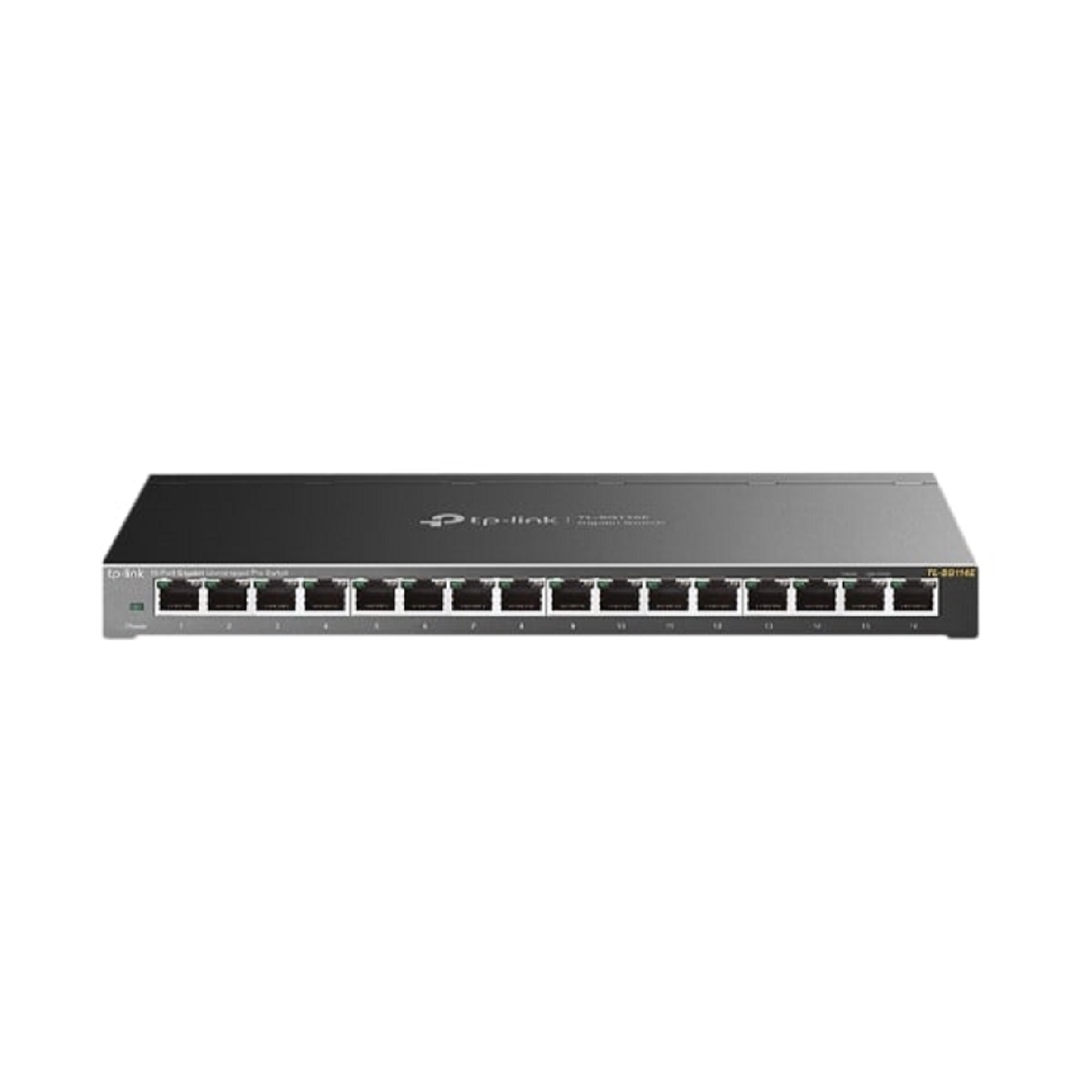

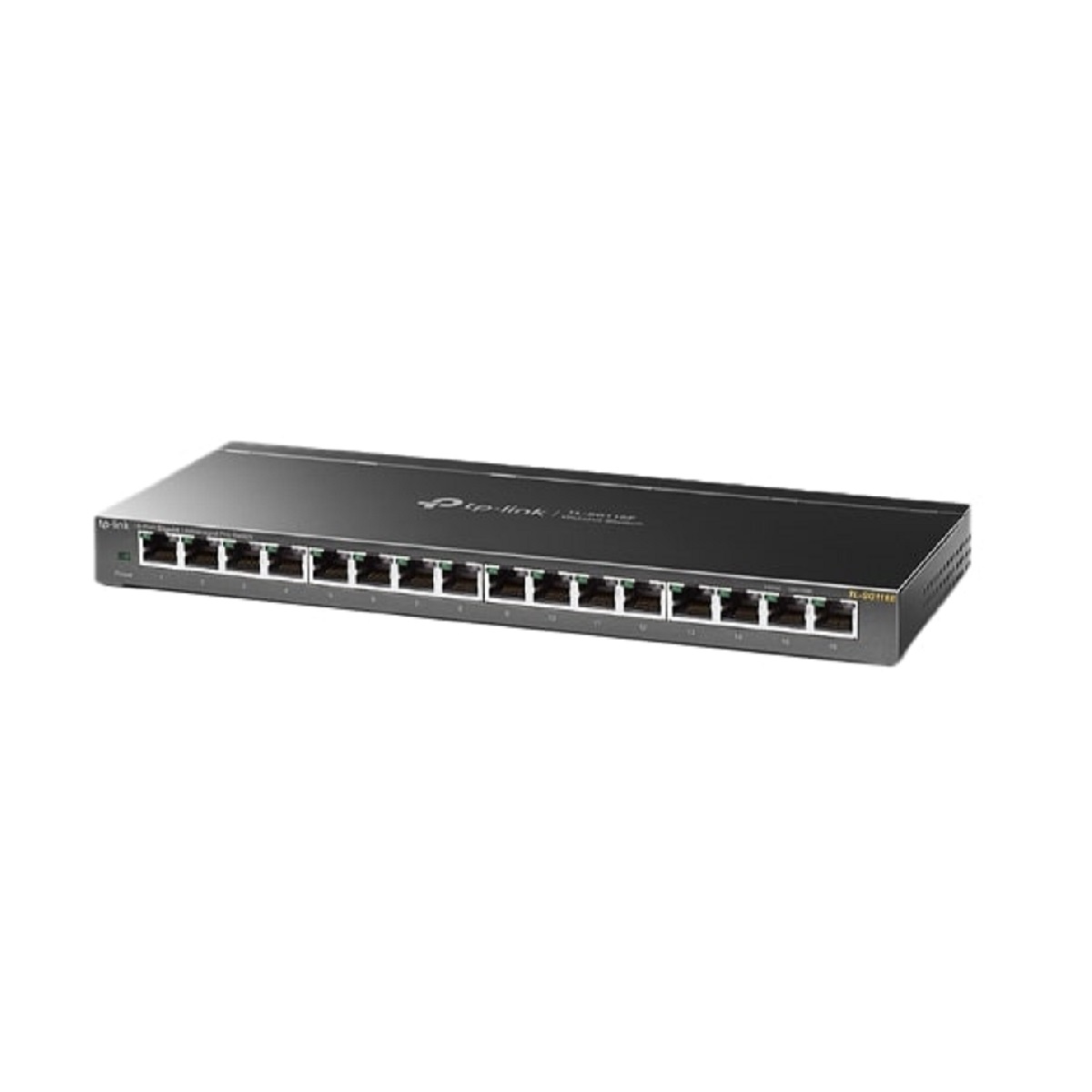

TP-Link TL-SG116E Unmanaged Pro Desktop 16 Port Gigabit Switch
£77.04 inc.VAT / £64.20 exc.VAT
TP-Link TL-SG116E 16-Port Unmanaged Desktop Gigabit Switch
TP-Link TL-SG116E Unmanaged Pro Desktop 16 Port Gigabit Switch provides you with an easy way to increase the speed of your network server and backbone connections.
Out of stock
TP-Link TL-SG116E 16-Port Unmanaged Desktop Gigabit Switch
TP-Link TL-SG116E Unmanaged Pro Desktop 16 Port Gigabit Switch
TP-Link TL-SG116E Unmanaged Pro Desktop 16 Port Gigabit Switch provides you with an easy way to increase the speed of your network server and backbone connections.Whether you are at home or in the office, the TL-SG116E can always help you deal with your business quickly and easily.
Gigabit Switch TL-SG116E Unmanaged Pro Desktop 16 Port
Key Features
- Sixteen (16) 10/100/1000Mbps RJ45 ports.
- Increase your network speed and save energy.
- Link your devices to create convenient business.
- Plug and play, with no configuration required.
- Durable metal casing of superior quality and professional appearance.
- Intelligent management via a web user interface and downloadable utility.
- Green technology reduces power consumption.
More features, more choices
Administrators can designate the priority of traffic based on QoS to ensure that voice and video applications remain clear and lag-free. IGMP Snooping optimises multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
Durable metal casing
The interior components of the TL-SG116E are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, the TL-SG116E delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.
Go green with your Ethernet
The TP-Link TL-SG116E 16-Port Unmanaged Pro Gigabit Switch makes use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!
Specifications
Hardware Features
Standards and Protocols
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface
- 16 x 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100 ohms STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100 ohms STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100 ohms STP (maximum 100m)
Fan Quantity
- Fanless
Power Supply
- External Power Adapter (Output: 9VDC/0.6A)
Dimensions (W x D x H)
- 286 x 111.7 x 25.4 mm (11.3 x 4.4 x 1.0 in.)
Max Power Consumption
- 9.19W(220V/50Hz)
Max Heat Dissipation
- 31.36BTU/h
Performance
Switching Capacity
- 32Gbps
Packet Forwarding Rate
- 23.81Mpps
MAC Address Table
- 8K
Packet Buffer Memory
- 4.1Mb
Jumbo Frame
- 9KB
Software Features
Quality of Service
- Support Port-based/802.1p/DSCP priority
- Support 4 priority queues
- Rate Limit
- Storm Control
L2 Features
- IGMP Snooping V1/V2/V3
- Static Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
- VLAN
- Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
- MTU/Port/Tag VLAN
Transmission Method
- Store-And-Forward
Others
Certification
- FCC, CE, RoHS
System Requirements
- Microsoft Windows for running Utility
Environment
- Operating Temperature: 0ºC ~ 40ºC (32ºF ~ 104ºF)
- Storage Temperature: -40ºC ~ 70ºC (-40ºF ~ 158ºF)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 90% non-condensing
Package Contents
- 1 x TP-Link TL-SG116E
- 1 x Power Cord
- 1 x Installation Guide
- 1 x Rubber Feet
Standard Warranty: Limited Lifetime
