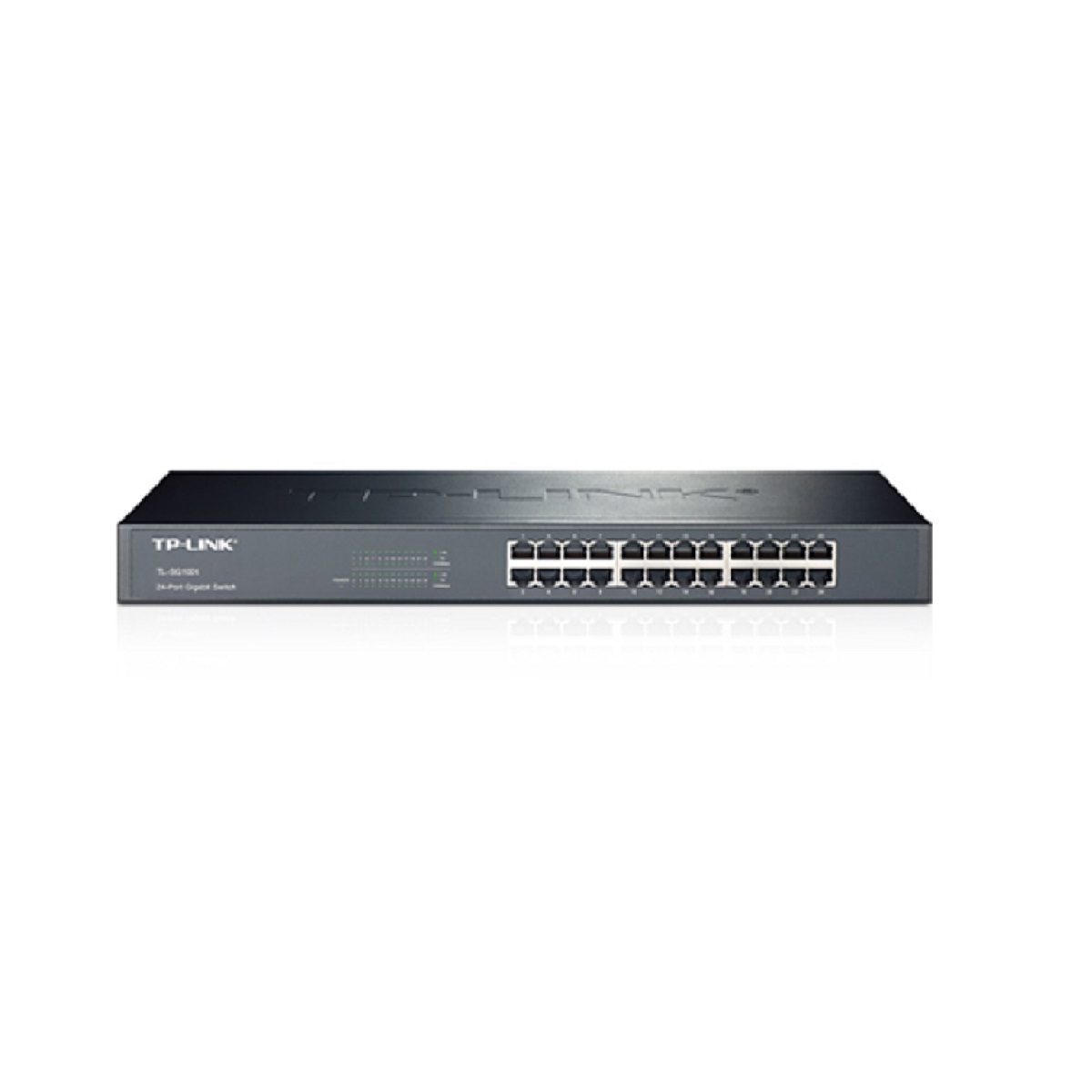

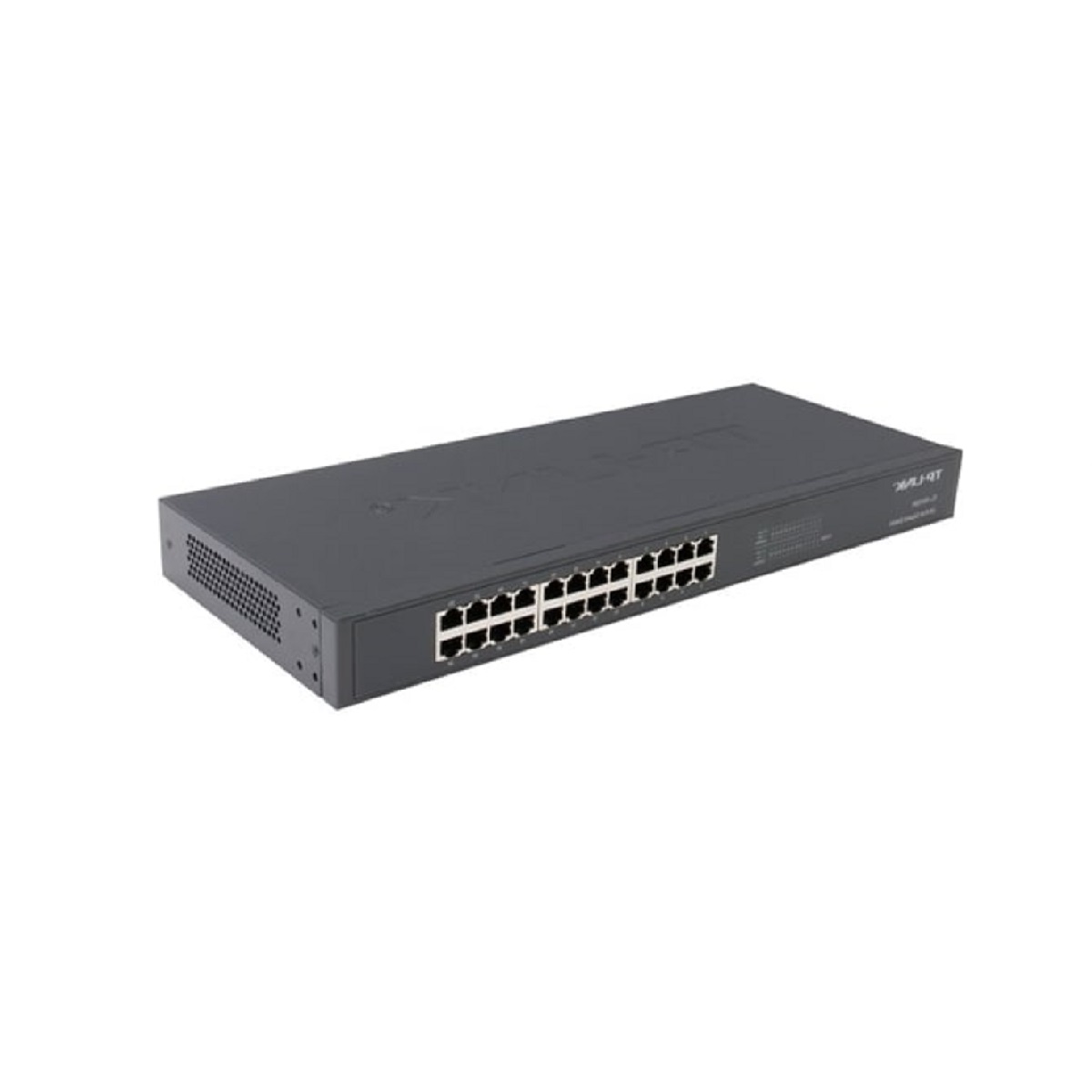

TP-Link TL-SG1024 Unmanaged Rackmount 24 Port Gigabit Switch
£108.01 inc.VAT / £90.01 exc.VAT
TP-Link TL-SG1024 24-Port Unmanaged Rackmount Gigabit Switch
TP-Link TL-SG1024 Unmanaged Rackmount 24 Port Gigabit Switch is specially designed for Ethernet (10Mbps), Fast Ethernet (100Mbps) and Gigabit Ethernet (1000Mbps) with seamless link.
Out of stock
TP-Link TL-SG1024 24-Port Unmanaged Rackmount Gigabit Switch
TP-Link TL-SG1024 Unmanaged Rackmount 24 Port Gigabit Switch
TP-Link TL-SG1024 Unmanaged Rackmount 24 Port Gigabit Switch is specially designed for Ethernet (10Mbps), Fast Ethernet (100Mbps) and Gigabit Ethernet (1000Mbps) with seamless link. Each port supports up to 2000Mbps throughput in full duplex mode. This switch is the perfect choice to improve the performance of offices and workgroup networks.
Gigabit Switch TL-SG1024 Unmanaged Rackmount 24 Port
Key Features
- Twenty-four (24) Gigabit Ethernet 10/100/1000M RJ45 ports.
- All ports support full/half duplex transfer mode for 10Mbps/100Mbps, and full duplex transfer mode for 1000Mbps.
- Supports Auto-MDI/MDIX function.
- Supports IEEE 802.3X flow control for full-duplex mode and back pressure flow control for half-duplex mode.
- Store and forward switching scheme.
- Standard 19-inch rack-mountable steel case.
Gigabit switch
Featuring twenty-four (24) 10/100/1000Mbps ports, the TP-Link TL-SG1024 Switch greatly expands your network capacity, enabling instant large files transferring. Users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go green with your Ethernet
This TP-Link TL-SG1024 24-Port Gigabit switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power*. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Power down idle ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TP-Link TL-SG1024 can automatically detect the link status of each port and reduce the power consumption of ports that are idle.
Power budget according to cable length
Ideally, shorter cables would use less power because of less power degradation over their length – this is not the case with most devices, however, as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TP-Link TL-SG1024 analyses the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.
Easy to use
The auto features of this TP-Link TL-SG1024 Gigabit switch make installation plug and play and hassle-free. No configuration is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100 Mbps or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Specifications
Standards and Protocols
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Interface
- 24 x 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media
- 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity
- Fanless
Physical Security Lock
- No
Power Supply
- 100-240VAC, 50/60Hz
Dimensions (WxDxH)
- 17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm)
Mounting
- Rack Mountable
Max Power Consumption
- 13.08W(220V/50Hz)
Max Heat Dissipation
- 44.63BTU/h
Switching Capacity
- 48Gbps
Packet Forwarding Rate
- 35.7Mpps
MAC Address Table
- 8k
Jumbo Frame
- 10KB
QoS
- 802.1p/DSCP QoS (only for V11 and later version)
Green Technology
- Yes
Transfer Method
- Store-and-Forward
LED Indicators
- Power
- Link/Act
Certification
- FCC
- CE
- RoHS
Environment
- Operating Temperature: 0°C~40°C (32°F~104°F)
- Storage Temperature: -40°C~70°C (-40°F~158°F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Package Contents
- TL-SG1024
- Power Cord
- Installation Guide
- Rackmount Kit
- Rubber Feet
Standard Warranty: Limited Lifetime
