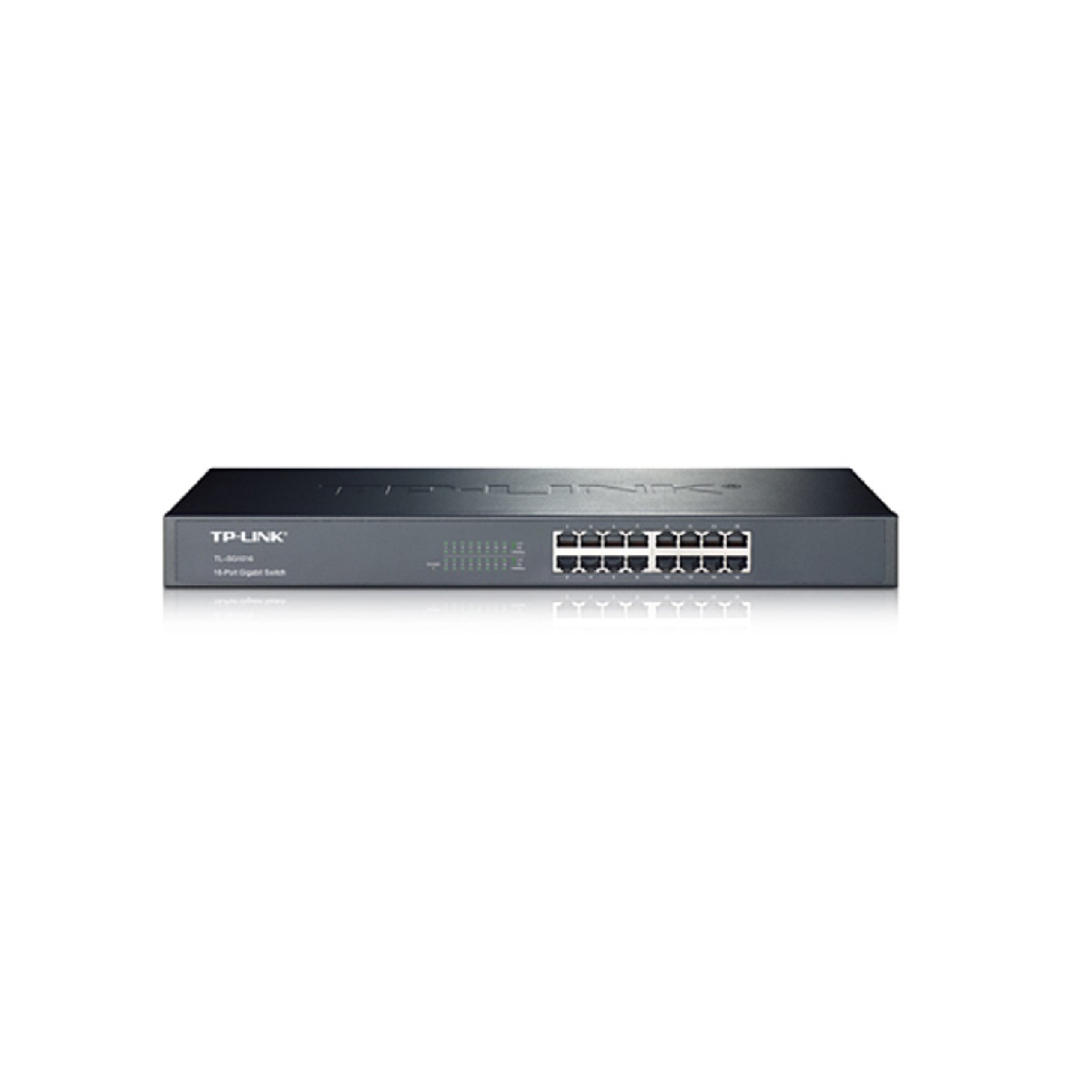

TP-LINK TL-SG1016 16 Port Gigabit Switch
£64.66 inc.VAT / £53.88 exc.VAT
TP-Link TL-SG1016 16-Port Unmanaged Rackmountable Gigabit Switch
TP-LINK TL-SG1016 16 Port Gigabit Switch is specially designed for Ethernet (10Mbps), Fast Ethernet (100Mbps) and Gigabit Ethernet (1000Mbps) with seamless link.
Out of stock
TP-Link TL-SG1016 16-Port Unmanaged Rackmountable Gigabit Switch
TP-LINK TL-SG1016 16 Port Gigabit Switch
TP-LINK TL-SG1016 16 Port Gigabit Switch is specially designed for Ethernet (10Mbps), Fast Ethernet (100Mbps) and Gigabit Ethernet (1000Mbps) with seamless link. Each port supports up to 2000Mbps throughput in full duplex mode.
It is the perfect choice to improve the performance of Offices and Workgroups networks. The TP-Link TL-SG1016 is a simple plug and play switch within the TP-Link range of networking products, with no software configuration, while providing high performance ports that allow for simple and effective expansion od small and medium sized enterprise networks, making work that much more efficient.
Gigabit Switch TL-SG1016 16 Port
Key Features
- 16 10/100/1000M RJ45 ports.
- Supports MAC address self-learning and auto MDI/MDIX.
- Standard 19-inch rack-mountable steel case.
- All ports support Full/half duplex transfer mode for 10Mbps/100Mbps and Full duplex transfer mode for 1000Mbps.
- Supports Auto-MDI/MDIX function.
- Supports IEEE 802.3X flow control for full-duplex mode and back pressure flow control for half-duplex mode.
- Store and forward Switching scheme.
Go Green with your Ethernet
This new TP-Link TL-SG1016 Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power.
When a computer or other piece of network equipment is off, the TP-Link TL-SG1016 switch can automatically detect the link status of each port and reduce the power consumption of ports that are idle.
The switch also analyses the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution, saving the power that would otherwise be wasted.
Easy to Use
The automatic features of this TP-Link TL-SG1016 switch makes plug and play installation efficient and hassle-free.
Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Specifications
Standards and Protocols
- IEEE802.3, 802.3u, 802.3ab, 802.3x
- CSMA/CD, TCP/IP
Basic Function
- Wire-speed Performance
- MAC Address Auto-Learning and Auto-aging
- IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth
- 32Gbps
MAC Address Table
- 8k
Forwarding Rate
- 10BASE-T: 14880pps/port
- 100BASE-TX: 148800pps/port
- 1000BASE-T: 1488000pps/port
Transmission Method
- Store-and-Forward
Ports
- 16 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media
- 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ù STP (maximum 100m)
- 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ù STP (maximum 100m)
- 1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED Indicators
- Power, Link/Act
Safety & Emission
- FCC, CE
Dimensions (W*D*H)
- 17.3*7.1*1.7 in. (440*180*44 mm)
Environment
- Operating Temperature:
- 0°C~40°C (32°F~104°F)
- Storage Temperature:
- -40°C~70°C (-40°F~158°F)
- Operating Humidity:
- 10%~90% non-condensing
- Storage Humidity:
- 5%~90% non-condensing
Power
- 100-240VAC, 50/60Hz
Warranty
- 5-Years
Standard warranty: limited lifetime
