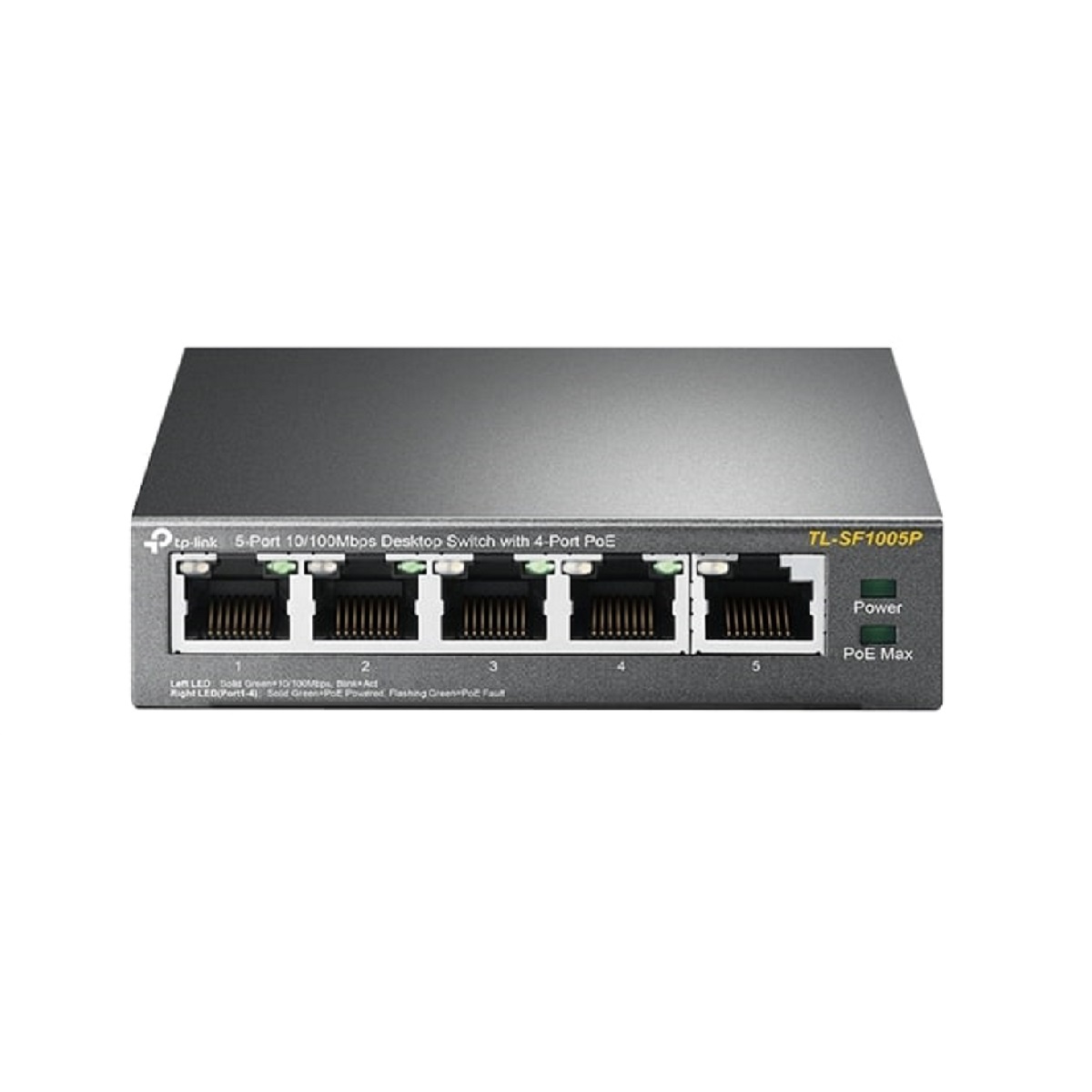

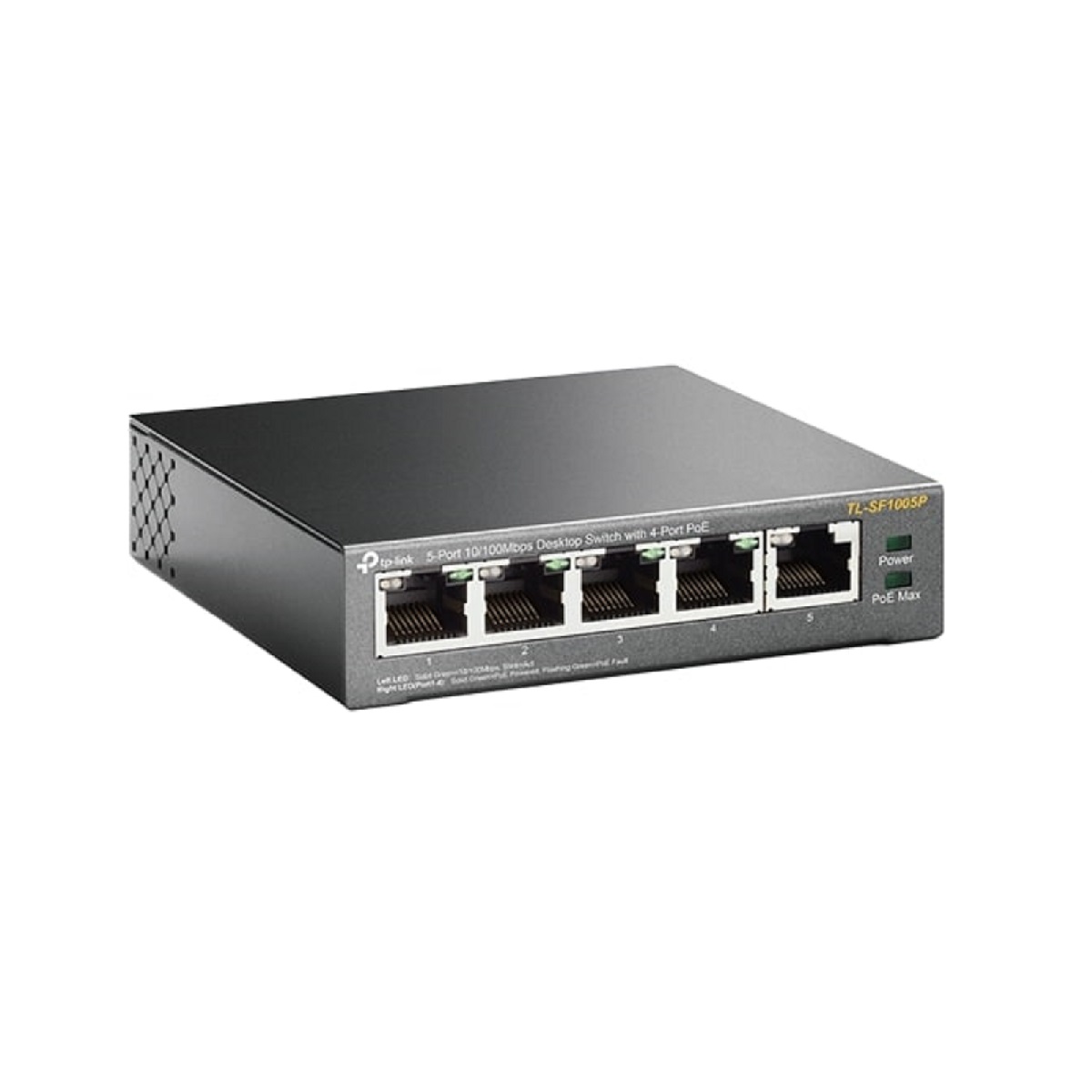

TP-Link TL-SF1005P 5-Port Unmanaged Desktop Fast Ethernet PoE Switch (58W)
TP-LINK TL-SF1005P 5 Port Ethernet Switch
TP-LINK TL-SF1005P 5 Port Ethernet Switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs).
In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Ethernet Switch TL-SF1005P 5 Port
Key Features
- Five (5) 10/100Mbps RJ45 ports
- Four (4) PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- Supports PoE Power up to 15.4W for each PoE port
- Supports PoE Power up to 58W for all PoE ports
- Requires no configuration and installation
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Overload Arrangement
The TP-Link TL-SF1005P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 58W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Port Priority Function
Priority (port-1=port-2=port-3>port-4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 58W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total.
If there is an additional PD inserted to Port 3 with 12W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 12W, no power will be supplied to Port 4.
Easy To Use
The TP-Link TL-SF1005P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-Link TL-SF1005P 5-Port 10/100Mbps Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.
Specifications
Hardware Specifications
Interface
- 5 10/100Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity
- Fanless
External Power Supply
- External Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45)
- Standard: 802.3 af compliant
- PoE Ports: Port1- Port4
- Power Supply: 58W
Mac Address Table
- 2K
Switching Capacity
- 1Gbps
Dimensions ( W x D x H )
- 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
Transmission Distance
- Store-And-Forward
Max Power Consumption
- 63.51W (max. with 58w PD connected)
- 1.70W (max. no PD connected)
Software Specifications
Transmission Method
- Store-And-Forward
Advanced Functions
- Compatible With IEEE 802.3af Compliant PDs
- Priority Function
- Mac Address Auto-Learning And Auto-Aging
- IEEE802.3x Flow Control For Full-Duplex Mode And Back-pressure For Half-Duplex Mode
Others
Certification
- FCC, CE, RoHS
Package Contents
- TL-SF1005P, Power Adapter, User Guide
Consumption
- 1.70 watts (max. no PD connected)
- 63.51 watts (max. with 58w PD connected)
Environment
- Operating Temperature: 0?~40? (32?~104?)
- Storage Temperature: -40?~70? (-40?~158?)
- Operating Humidity: 10%~90%RH non-condensing
- Storage Humidity: 5%~90%RH non-condensing
Standard Warranty: 3-Years (Register to activate 3rd year)
