Hardware Features

Interface

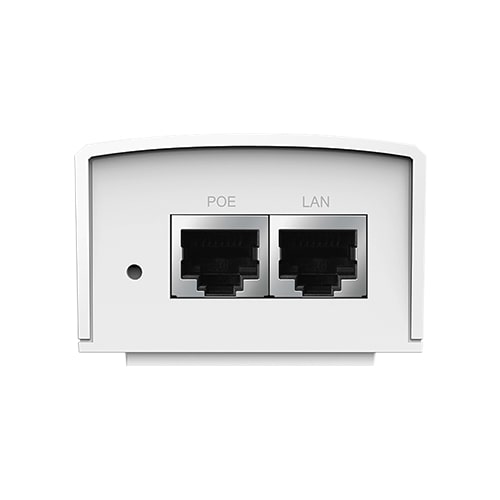

• 1 x 10/100/1000Mbps RJ45 Shielded Data IN Port
• 1 x 10/100/1000Mbps RJ45 Shielded Passive PoE Port
• 1 x 100~240V / 50~60Hz AC Power Input Port

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
• EIA/TIA-568 100O STP (Max 100m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100m)
• EIA/TIA-568 100O STP (Max 100m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

LED Indicator

• PWR

Dimensions (W x D x H)

• 110 x 57 x 38.8 mm (4.3 x 2.3 x 1.5 in.)

Other Specifications

Certification

• FCC, CE, RoHS

Environment

• Operating Temperature: 0ºC ~ 40ºC (32ºF ~ 104ºF)
• Storage Temperature: -40ºC ~ 70ºC (-40ºF ~ 158ºF)
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 90% non-condensing

Package Contents

• 1 x TL-POE4824G
• 1 x Power Cord
• 1 x Wall Mounting Kit
