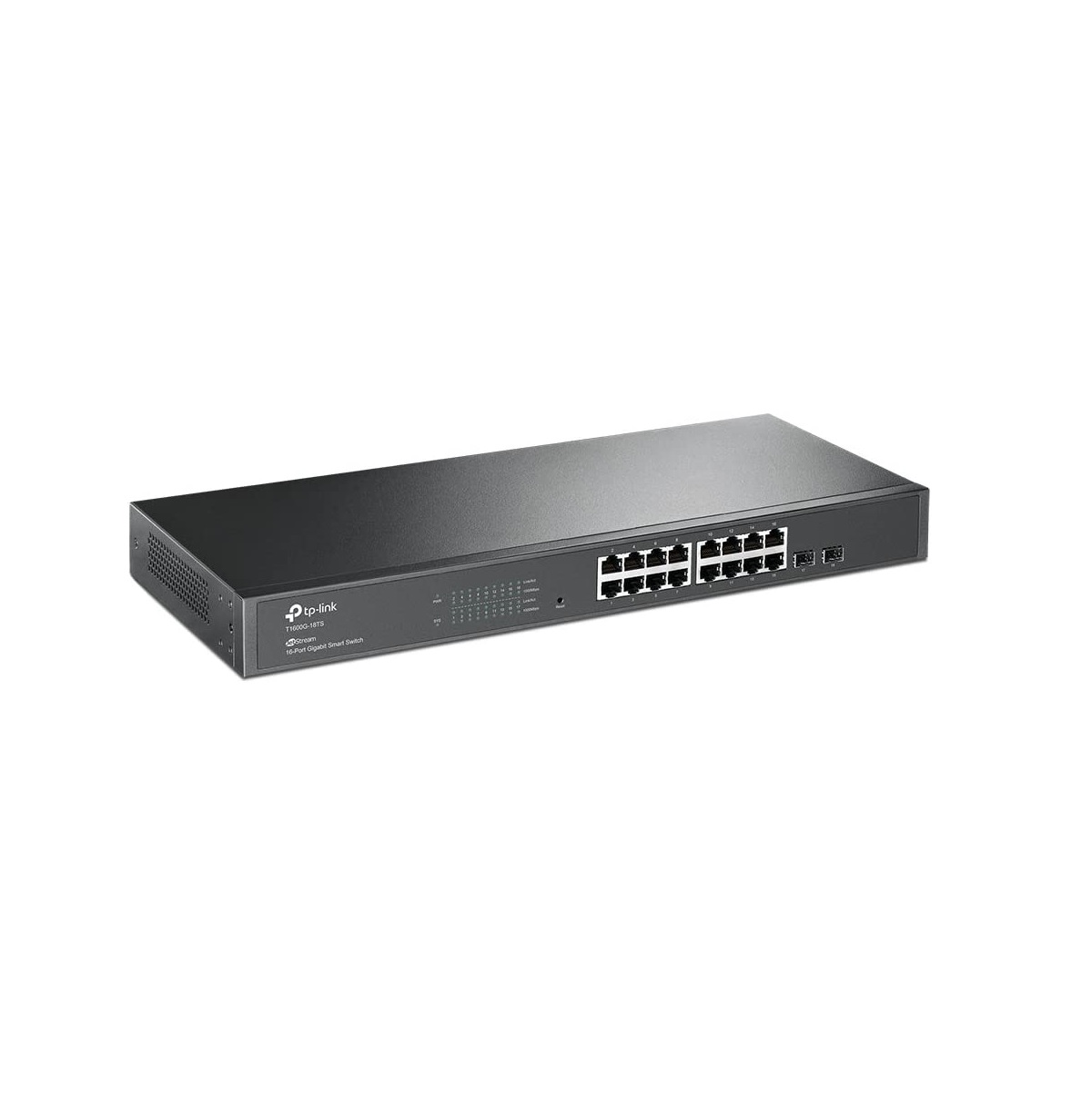

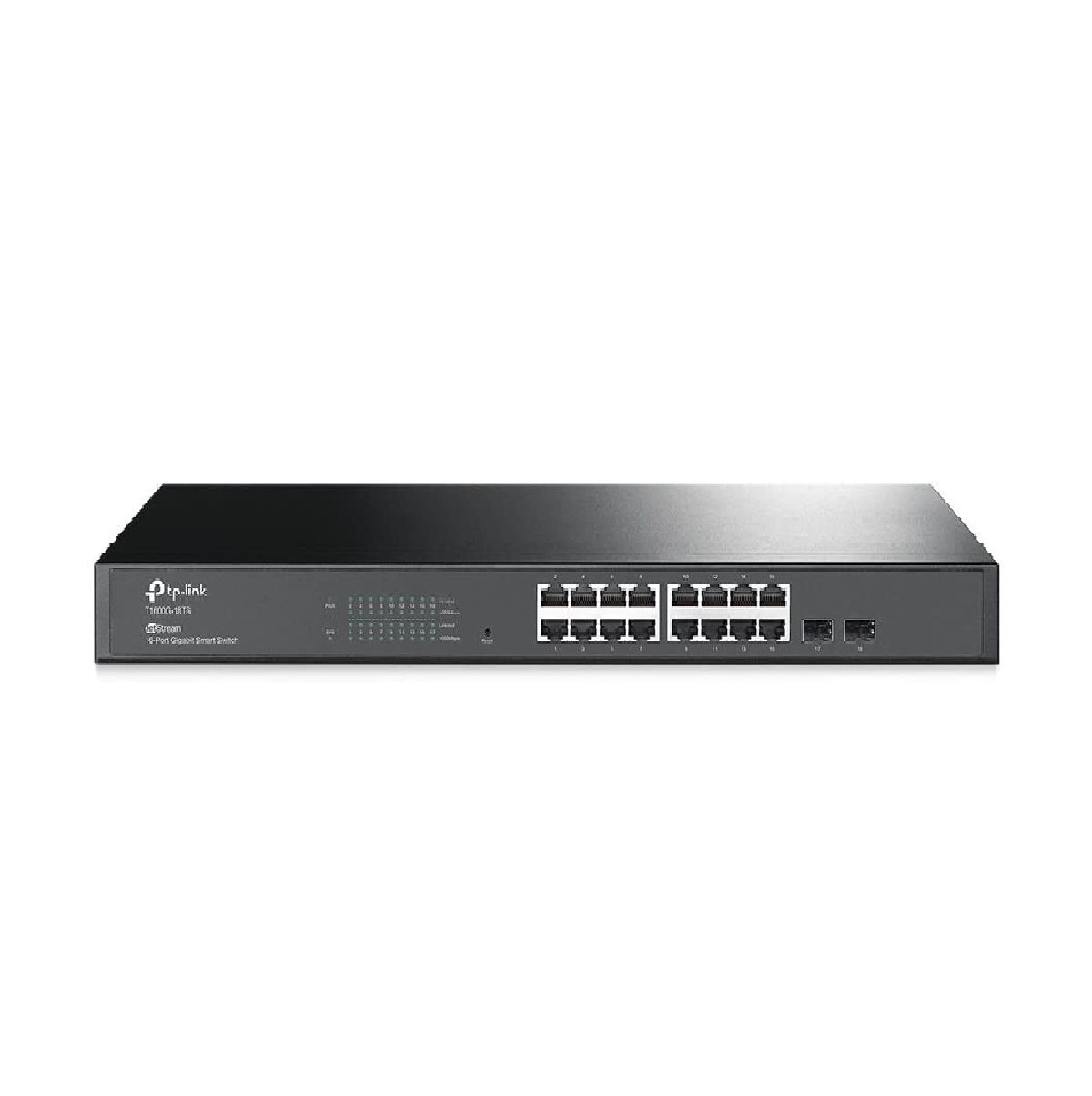

TP-Link T1600G-18TS (TL-SG2216) JetStream Business 16-Port Gigabit Smart Managed Switch with 2 SFP Slots

TP Link T1600G-18TS (TL-SG2216) JetStream 16 Port GB Smart Switch

TP Link T1600G-18TS (TL-SG2216) JetStream 16 Port GB Smart Switch is a cost-effective product solution for small and medium-sized business which provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS and useful security strategies.

JetStream T1600G-18TS (TL-SG2216) 16 Port GB Smart Switch

Key Features

• Gigabit Ethernet connections on all ports provide full speed of data transferring.
• L2+ Feature——Static Routing, helps route internal traffic for more efficient use of network resources.
• Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment.
• L2/L3/L4 QoS and IGMP snooping optimize voice and video applications.
• IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.
• WEB/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features.

Specification

HARDWARE FEATURES

Standards and Protocols

• IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z,
• IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
• IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Interface

• 16 10/100/1000Mbps RJ45 Ports
• (Auto Negotiation/Auto MDI/MDIX)
• 2 Gigabit SFP Slots

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable(maximum 100m)
• 1000BASE-X: MMF, SMF

Fan Quantity

• Fanless

Physical Security Lock

• Yes

Power Supply

• 100~240VAC, 50/60Hz

Power Consumption

• 12.3W

Dimensions

• ( W x D x H ) 17.3*7.1*1.7 in. (440*180*44 mm)

Mounting

• Rack Mountable

Max Power Consumption

• 12.3W (220V/50Hz)

Max Heat Dissipation

• 41.97 BTU/h

PERFORMANCE

• Bandwidth/Backplane 36Gbps
• Packet Forwarding Rate 26.8Mpps
• MAC Address Table 8K
• Jumbo Frame 9KB

SOFTWARE FEATURES

Quality of Service

• Support 802.1p CoS/DSCP priority
• Support 8 priority queues
• Queue scheduling: SP, WRR, SP+WRR
• Port/Flow- based Rate Limiting
• IPv6 QoS
• Voice VLAN

L2 and L2+ Features

• Static Routing
• DHCP Relay
• IGMP Snooping V1/V2/V3
• 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
• Spanning Tree STP/RSTP/MSTP
• BPDU Filtering/Guard
• TC/Root Protect
• Loopback detection
• 802.3x Flow Control
• LLDP, LLDP-MED

VLAN

• Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
• MAC/Protocol-based VLAN

Access Control

• List L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports
  IPv6 ACL

Security

• AAA
• Port Security
• DHCP Snooping
• IP-MAC-Port Binding
• ARP Inspection
• 802.1x and Radius Authentication
• SSH v1/v2
• SSL v3/TLSv1
• Broadcast/Multicast/Unknown-unicast Storm Control
• Dos Defend

IPv6

• Dual IPv4/IPv6 stack
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum tra nsmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6

IPv6 Applications

• DHCPv6 Client
• Ping6
• Tracert6
• Telnet (v6)
• IPv6 SNMP
• IPv6 SSH
• IPv6 SSL
• Http/Https
• IPv6 TFTP

Management

• Web-based GUI and CLI management
• SNMP v1/v2c/v3,compatible with public MIBs and
• TP-LINK private MIBs
• RMON (1, 2, 3, 9 groups)
• CPU Monitoring
• Port Mirroring
• Firmware Upgrade: TFTP & Web
• System Diagnose: VCT
• SYSLOG & Public MIBS
• Dual Image

OTHERS
Certification

• CE, FCC, RoHS

Package Contents

• T1600G-18TS
• Power Cord
• Installation Guide
• Resource CD
• Rackmount Kit
• Rubber Feet

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.

Environment

• Operating Temperature: 0℃~40℃ (32℉~104℉);
• Storage Temperature:     -40℃~70℃ (-40℉~158℉)
• Operating Humidity:      10%~90% non-condensing
• Storage Humidity:          5%~90% non-condensing
