TP-Link EAP225 Omada AC1350 Dual-Band WiFi 5 Access Point (AC)
£85.89 inc.VAT / £71.58 exc.VAT
TP-Link EAP225 Omada Ceiling Mounted WiFi 5 Access Point (1317Mbps AC)
The TP-Link EAP225 Omada access point provides a business-class wireless network solution that’s flexible, manageable, secure, and easy-to-deploy. The free Omada Controller software allows users to manage hundreds of EAPs at multiple sites, all from a single location. The ability to control, adjust and visualise the entire network from any connected PC makes centralised business WiFi management more efficient than ever before. The TP-Link Omada EAP also features captive portal and advanced RF management functions, which make them ideal for demanding, high-traffic environments such as campuses, hotels, malls and offices.
Out of stock
TP-Link EAP225 Omada Ceiling Mounted WiFi 5 Access Point (1317Mbps AC)
TP-Link EAP225 Omada AC1350 Dual-Band WiFi 5 Access Point (AC)
The TP-Link EAP225 Omada AC1350 Dual-Band WiFi 5 Access Point (AC) provides a business-class wireless network solution that’s flexible, manageable, secure, and easy-to-deploy. The free Omada Controller software allows users to manage hundreds of EAPs at multiple sites, all from a single location. The ability to control, adjust and visualise the entire network from any connected PC makes centralised business WiFi management more efficient than ever before. The TP-Link EAP225 Omada AC1350 Dual-Band WiFi 5 Access Point (AC)also features captive portal and advanced RF management functions, which make them ideal for demanding, high-traffic environments such as campuses, hotels, malls and offices.
Key Features
- Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps WiFi speeds.
- Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations.
- Free cloud centralised management and Omada app for ultra convenience and easy management.
- Compatibility with 802.3af and Passive PoE (PoE adapter included) support makes deployment effortless and flexible.
- Secure guest network with multiple authentication options such as SMS/Facebook WiFi/Voucher, etc.
- Band Steering automatically moves dual band devices onto the wider 5GHz band for faster connections.
- MU-MIMO means access points simultaneously transfer data with multiple devices, speeding up connections.
- Beamforming concentrates signal towards where you need it most, providing a fast and stable WiFi experience.
- Schedules can be set so access points automatically reboot and WiFi turns on/off at the times you choose.
Superior WiFi Speeds with MU-MIMO technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band WiFi speeds of up to 1317 Mbps to multiple devices at the same time. MU-MIMO (Multi-User MIMO) simultaneously sends data to multiple devices for faster speed.
Free cloud centralised management
The Omada OC200 Cloud Controller (sold separately, see accessories tab) and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy management with the Omada app
Follow the configuration instructions on the free Omada app (available on the iOS App Store and Google Play Store) to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Secure Guest Network with Facebook WiFi and SMS Authentication
Captive portal helps maintain only authorised guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant WiFi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

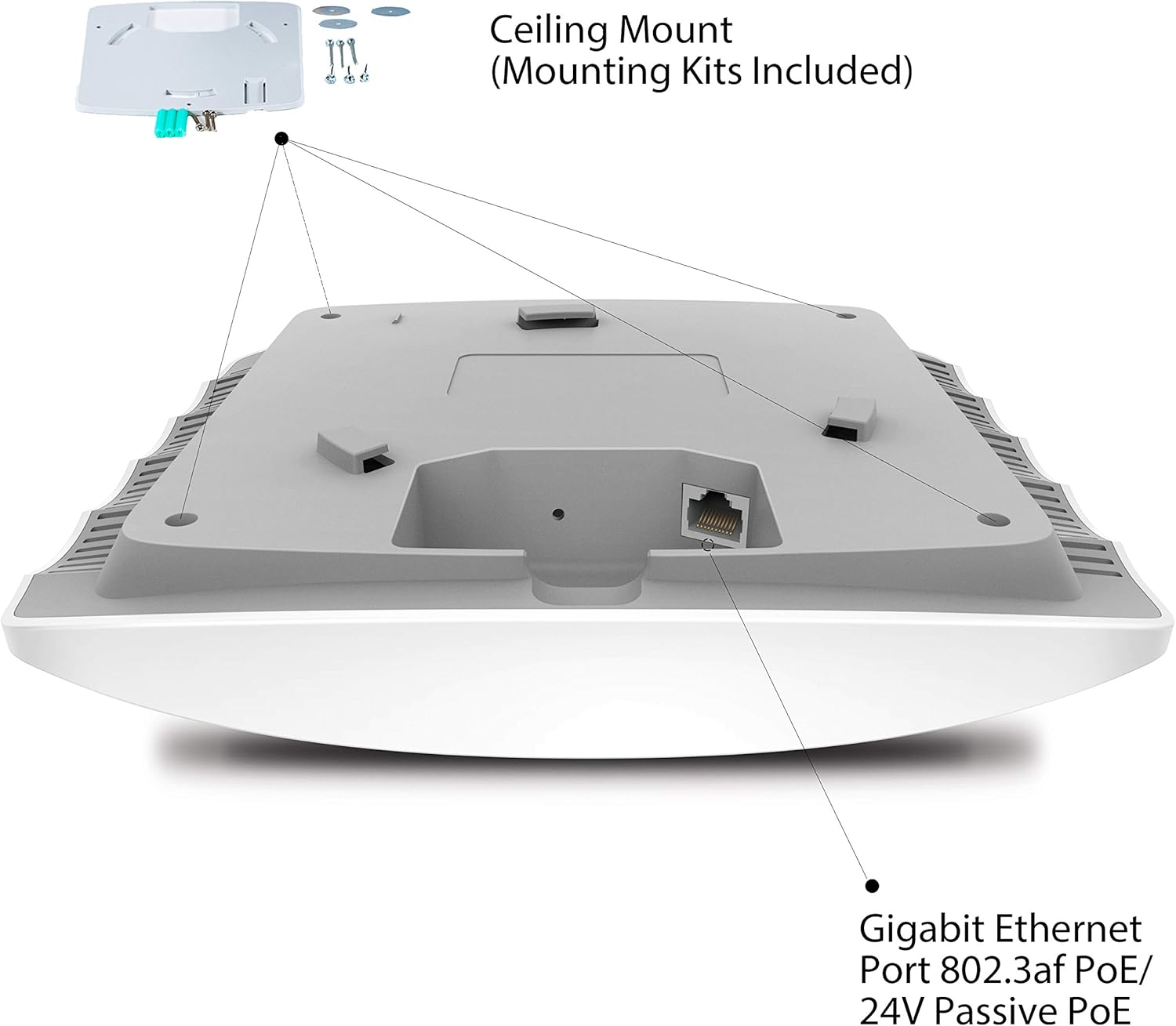

Multiple PoE options for easy installation
The EAP225 supports both 802.3af PoE and Passive PoE power supply, and can be either powered by a PoE switch (sold separately) or the provided PoE adapter, making deployment effortless and flexible.
Specifications
Interface
- 1 x Gigabit Ethernet (RJ45) Port
- Note:Â Supports IEEE802.3af PoE and Passive PoE
Physical Security Lock
- Yes
Button
- Reset
Power Supply
- 802.3af/A PoE
- 24V Passive PoE (+4,5pins; -7,8pins. PoE adapter included)
Power Consumption
- 10.5 W
Dimensions (W x D x H)
- 205.5 x 181.5 x 37.1 mm (8.1 x 7.1 x 1.5 in.)
Antenna Type
- 3 x Internal Omni
- 2.4GHz: 4dBi
- 5GHz: 5dBi
Mounting
- Ceiling/Wall (kits included)
Hardware Watch Dog
- Yes
Wireless Standards
- IEEE 802.11ac/n/g/b/a
Frequency
- 2.4GHz and 5GHz
Signal Rate
- 5GHz: Up to 867Mbps
- 2.4GHz: Up to 450Mbps
Wireless Functions
- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- Band Steering
- Load Balance
- MU-MIMO
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
Transmission Power
- CE:
- <20dBm(2.4GHz,EIRP)
- <23dBm(5GHz,EIRP)
- FCC:
- <24dBm(2.4GHz)
- <22dBm(5GHz)
Cloud Access
- Yes (through the Omada Software Controller or OC200 – sold separately, see accessories tab)
Omada App
- Yes
Omada Cloud Controller
- Yes
Omada Controller Software
- Yes
EAP Controller Software
- Yes
Email Alerts
- Yes
LED ON/OFF Control
- Yes
Management MAC Access Control
- Yes
SNMP
- v1,v2c
System Logging Local/Remote Syslog
- Local/Remote Syslog
Telnet
- Yes
SSH
- Yes
Web-based Management
- HTTP/HTTPS
L3 Management
- Yes
Multi-site Management
- Yes
Management VLAN
- Yes
Certification
- CE, FCC, RoHS
System Requirements
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment
- Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
- Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 90% non-condensing
Package Contents
- 1 x TP-Link EAP225
- 1 x Passive PoE Adapter
- 1 x Power Cord
- 1 x Installation Guide
- 1 x Mounting Kits
Standard Warranty: Limited Lifetime
