TP-Link AX90 Archer AX6600 Tri-Band WiFi 6 Router (AX)
£397.52 inc.VAT / £331.27 exc.VAT
TP-Link Archer AX90 Tri-Band WiFi 6 Router (6579Mbps AX)

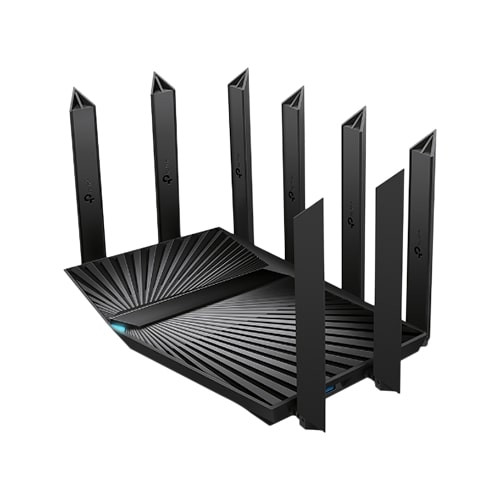

This TP-Link Archer AX90 Tri-Band WiFi 6 Router combines tri-band WiFi with high-tech WiFi 6 and provides eight simultaneous data streams to open up more bandwidth and help your devices operate at full speed. Eight high gain antennas not only deliver boosted WiFi signals to every corner of your home, but also bring a sense of aesthetics.
Out of stock
TP-Link Archer AX90 Tri-Band WiFi 6 Router (6579Mbps AX)
TP-Link AX90 Archer AX6600 Tri-Band WiFi 6 Router (AX)
This TP-Link Archer AX90 Tri-Band WiFi 6 Router combines tri-band WiFi with high-tech WiFi 6 and provides eight simultaneous data streams to open up more bandwidth and help your devices operate at full speed. Eight high gain antennas not only deliver boosted WiFi signals to every corner of your home, but also bring a sense of aesthetics.
Key Features
- Faster AX6600 Tri-Band WiFi
4804 Mbps (5 GHz) + 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz). - Eight (8) Streams for More Devices
Eight (8) WiFi streams utilise OFDMA and MU-MIMO to bring more available bandwidth and less congestion for all devices. - Save Smart Devices’ Power
Target Wake Time schedules the connection time of battery-powered devices to reduce their power consumption. - Backwards Compatible
Take your WiFi to the next level while being backwards compatible with 802.11a/b/g/n/ac WiFi standards. - Network Protection
Detect cyber threats to keep your privacy and connected devices well protected. - Quality of Service (QoS)
Prioritise your bandwidth needs to get a faster networking experience. - Parental Controls
Manage online time and block inappropriate content to keep families safe online. - Comprehensive Reports
Gain full statistics and insights to help you know your home network better.
Go Faster — Wired or Wireless
In addition to stunning wireless speeds of more than 6.6 Gbps, AX90 also provides premium wired connections. One (1) 2.5 Gbps port and one (1) 1 Gbps port make full use of Gigabit speeds from your local ISP. Break through the 1G bottleneck and drive your devices to peak performance. WAN/LAN support gives you remarkable flexibility to tailor both ports to fit your network’s needs.
Secure Your Home
Customise your home network with enhanced security using TP-Link HomeShield’s kit of built-in features. Whether you’re identifying network security holes, limiting the time your children spend online, or blocking websites, HomeShield gives you the tools you need to fully manage your network.
- Home Network Scanner:Â The security threats to your home network are continually evolving as your WiFi usage grows. HomeShield provides a home network scanner for your private WiFi to detect potential threats and alert you of security issues.
- Parental Controls: Whether you want to block inappropriate websites, set daily limits for the total time spent online, see which sites your kids are using, or pause the internet, you can do it with parental controls — all from the convenience of an app.
- Quality of Service:Â Choose devices or activities you want to prioritise on your network with Quality of Service (QoS). In just a few taps, make sure your laptop or movie stream is first in line for WiFi or Ethernet.
- Comprehensive Reports:Â HomeShield constantly monitors your home network security, keeps an eye on your WiFi usage, and generates weekly and monthly reports. This helps you gain insight and better control of your home network.
TP-Link OneMesh
OneMesh is a simple way to form a Mesh network with a single WiFi name for seamless whole-home coverage. Just connect a OneMesh range extender (sold separately) to a OneMesh router. No more searching around for a stable connection.
- WiFi Dead-Zone Killer:Â Eliminate weak signal areas with WiFi coverage for the whole house.
- Smart Roaming:Â Uninterrupted streaming when moving around your home.
- One WiFi Name:Â No more switching WiFi network names.
- Unified Management:Â Manage the whole-home WiFi by managing the central node via Tether app/Web UI.
Specifications
Wireless Standard
- WiFi 6
- IEEE 802.11ax/ac/n/a 5 GHz
- IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds
- AX6600
- 5 GHz: 4804 Mbps (802.11ax)
- 5 GHz: 1201 Mbps (802.11ax)
- 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range
- 8 × Fixed High-Performance Antennas
- Multiple antennas form a signal-boosting array to cover more directions and large areas
- Beamforming
- Concentrates wireless signal strength towards clients to expand WiFi range
- High-Power FEM
- Improves transmission power to strengthen signal coverage
WiFi Capacity
- Tri-Band
- Allocate devices to different bands for optimal performance
- 4×4 MU-MIMO
- Simultaneously communicates with multiple MU-MIMO clients
- OFDMA
- Simultaneously communicates with multiple WiFi 6 clients
- Airtime Fairness
- Improves network efficiency by limiting excessive occupation
- DFS
- Access an extra band to reduce congestion
- 8 Streams
- Connect your devices to more bandwidth
Working Modes
- Router Mode
- Access Point Mode
HARDWARE
Processor
- 1.5 GHz Quad-Core CPU

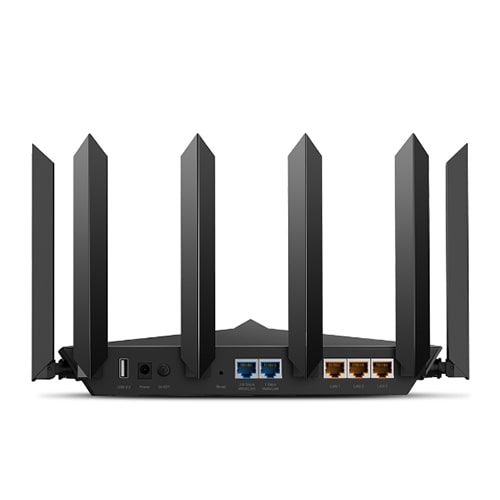

Ethernet Ports
- 1 × 2.5 Gbps WAN/LAN Port
- 1 × 1 Gbps WAN/LAN Port
- 3 × 1 Gbps LAN Ports
USB Support
- 1 × USB 3.0 Port
- 1 × USB 2.0 Port
- Supported Partition Formats:
- NTFS, exFAT, HFS+, FAT32
- Supported Functions:
- Apple Time Machine
- FTP Server
- Media Server
- Samba Server
Buttons
- WiFi On/Off Button
- Power On/Off Button
- LED On/Off Button
- WPS Button
- Reset Button
Power
- 12 V = 3.3 A
SECURITY
WiFi Encryption
- WPA
- WPA2
- WPA/WPA2-Enterprise (802.1x)
- WPA3
Network Security
- SPI Firewall
- Access Control
- IP & MAC Binding
- Application Layer Gateway
- HomeShield Security
- Home Network Scanner
Guest Network
- 1 × 5 GHz-1 Guest Network
- 1 × 5 GHz-2 Guest Network
- 1 × 2.4 GHz Guest Network
VPN Server
- OpenVPN
- PPTP
SOFTWARE
Protocols
- IPv4
- IPv6
Service Kits
- HomeShield
OneMesh
- OneMesh Supported
- Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.
HomeShield Parental Controls
- Custom Profiles
- URL Filtering
- Time Limit
- Time Schedule (Bedtime)
- Log Insight
- Monthly/Weekly Report
WAN Types
- Dynamic IP
- Static IP
- PPPoE
- PPTP
- L2TP
Quality of Service
- QoS by Device
Cloud Service
- Auto Firmware Upgrade
- TP-Link ID
- DDNS
NAT Forwarding
- Port Forwarding
- Port Triggering
- DMZ
- UPnP
- Virtual Server
IPTV
- IGMP Proxy
- IGMP Snooping
- Bridge
- Tag VLAN
DHCP
- Address Reservation
- DHCP Client List
- Server
DDNS
- TP-Link
- NO-IP
- DynDNS
Management
- Tether App
- Webpage
PHYSICAL
Dimensions (W×D×H)
- 12.2 × 8.1 × 6.8 in (311 × 207 × 174 mm)
OTHER
System Requirements
- Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
- Cable or DSL Modem (if needed)
- Subscription with an internet service provider (for internet access)
Certifications
- FCC, CE, RoHS
Environment
- Operating Temperature: 0?~40? (32? ~104?)
- Storage Temperature: -40?~70? (-40? ~158?)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power
- CE:
- <20dBm{2.4GHz}
- <23dBm{5.15GHz~5.35GHz}
- <30dBm{5.47GHz~5.725GHz}
- FCC:
- <24dBm{5.47GHz~5.725GHz }
- <30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }
WiFi Reception Sensitivity
- 2.4GHz:
- 11n HT20 MCS0:-95dBm
- 11ax HE20 MCS11:-64dBm
- 11ax HE40 MCS11:-62dBm
- 5GHz-1:
- 11ac VHT20 MCS0:-92dBm
- 11ax HE20 MCS11:-61dBm
- 11ax HE40 MCS11:-58dBm
- 11ax HE80 MCS11:-55dBm
- 5GHz-1:
- 11ac VHT20 MCS0:-95dBm
- 11ax HE20 MCS11:-61dBm
- 11ax HE40 MCS11:-58dBm
- 11ax HE80 MCS11:-55dBm
- 11ax HE160 MCS11:-53dBm
Package Contents
- 1 x TP-Link Archer AX90
- 1 x Power Adapter
- 1 x RJ45 Ethernet Cable
- 1 x Quick Installation Guide
