The TP-LINK ARCHER VR600 AC1600 Simultaneous Dual Band Gigabit VDSL/ADSL Modem Router unlocks the full potential of your internet connection by providing combined dual band Wi-Fi speeds of up to 1.6 Gbps and impressive broadband speeds of up to 100 Mbps, helping all your devices reach peak performance. The TP-Link Cloud service helps you easily manage your home network when you are out and about via the Tether app on your smartphone or tablet, keeps you informed of the latest firmware updates, and allows you to manage multiple TP-Link Cloud devices from a single TP-Link ID.

With multiple inputs, the Archer VR600 provides you with a variety of internet connection options. As a backup, the LAN/WAN port accepts connections from Cable Modem or Fibre Modem via Ethernet cable. Additionally, USB port supports 3G/4G dongle connections to always stay connected.

Beamforming detects the location of your connected devices and concentrates the Archer VR600’s Wi-Fi towards them to create stronger overall connections.

Key Features

• 3 x 10/100/1000 Mbps RJ45 LAN ports and 1 x 10/100/10 RJ45 WAN/LAN port.
• Ultimate Wireless Speed – Combined wireless speeds of up to 300 Mbps (over 2.4GHz) and 1300 Mbps (over 5GHz).
• 802.11 ac – Provides a data transfer rate 3 times faster than 802.11n for each stream.
• Ultimate Range Wi-Fi – 3 dual band detachable antennas ensure widespread Wi-Fi coverage and a stable connection.
• Dual Band – Separate Wi-Fi bands enable more devices to connect to your network without a drop in performance.
• QoS – Device/Application-based QoS makes it easier for you to prioritise the internet traffic.
• Access Control – Establish a whitelist or blacklist to allow or block certain devices from accessing the internet.
• Guest Network – Keep your main network secure by creating a separate network for friends and visitors.

Versatile Connectivity

With multiple inputs, the Archer VR600 provides you with a variety of internet connection options. As a backup, the LAN/WAN port accepts connections from Cable Modem or Fibre Modem via Ethernet cable. Additionally, USB port supports 3G/4G dongle connections to always stay connected.

Beamforming for Better Coverage

Beamforming detects the location of your connected devices and concentrates the Archer VR600’s Wi-Fi towards them to create stronger overall connections.

Router Features

• Speed
  • Ultimate Wireless Speed – Combined wireless speeds of up to 300 Mbps (over 2.4GHz) and 1300 Mbps (over 5GHz).
  • 802.11 ac – Provides a data transfer rate 3 times faster than 802.11n for each stream.
• Wi-Fi Range
  • Ultimate Range Wi-Fi – 3 dual band detachable antennas ensure widespread Wi-Fi coverage and a stable connection.
  • Wi-Fi with Beamforming – Beamforming technology locates the connected devices and further improves the Archer VR600’s range and the signal strength to each mobile device, delivering a more reliable and efficient wireless connection.
• Reliability
  • Dual Band – Separate Wi-Fi bands enable more devices to connect to your network without a drop in performance .
  • QoS – Device/Application-based QoS makes it easier for you to prioritise the internet traffic .
• Ease of Use
  • Intuitive Web UI– Ensures quick and simple installation without hassle<./li>
  • Fast Connection – Connect wireless devices securely with the press of WPS button..
  • Easy On/Off – Turn On/Off power, wireless radio and LEDs separately using the Power On/Off, Wi-Fi On/Off and LED On/Off buttons.
  • Remote Management with TP-Link ID – Manage your home network from your smartphone or tablet via a single TP-Link ID, no matter where you find yourself.
  • Hassle-free Management with Tether App – Network management is made easy with the TP-Link Tether App, available on any Android or iOS device.
  • Online Upgrade – Keeps you informed of the latest firmware and allows online updating.
• Security
  • Guest Network – Keep your main network secure by creating a separate network for friends and visitors.
  • Access Control – Establish a whitelist or blacklist to allow or block certain devices from accessing the internet.
  • Parental Controls – Manage when and how connected devices can access the internet.
  • VPN Server – OpenVPN, PPTP VPN and IPSec VPN are supported, making it easy to set up a secure connection between your private network and the internet.
  • Encryptions for Secure Network – WPA-PSK/WPA2- PSK encryptions provide active protection against security threats.
• Easy Sharing
  • USB Port for Fast Sharing – With a USB port, you can access and share a printer as well as your files and media locally. Through the modem router’s FTP server, you can also access your files and media from network devices remotely.
  • Built-in Print Server – Allows wireless printing from multiple computers (works in conjunction with a USB printer).
  • Built-in Media Server – Allows you to play music, watch videos and view photos from any device on your network.

Hardware

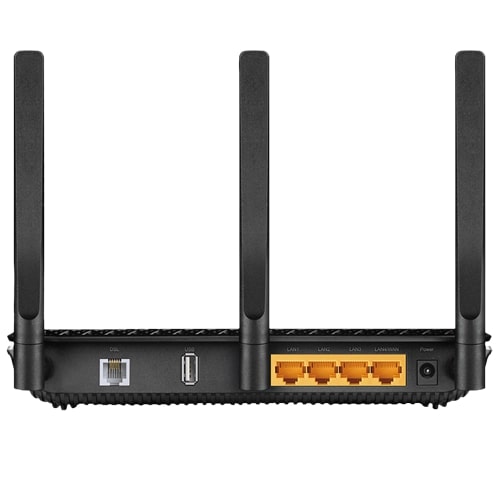

Ethernet Ports:

• 3 10/100/1000Mbps RJ45 LAN Ports,
• 1 10/100/1000Mbps RJ45 WAN/LAN Port,
• 1 RJ11 Port

USB Port:

• 1 USB 2.0

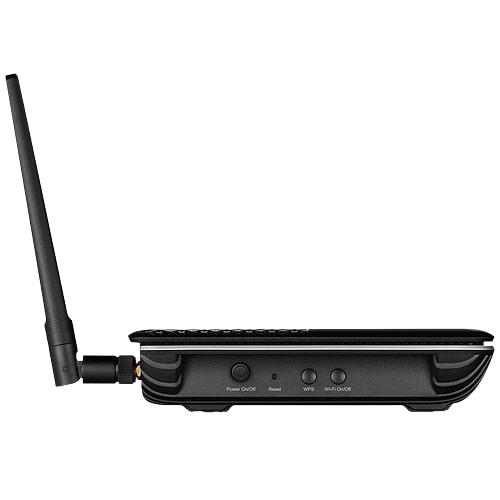

Button:

• WPS Button
• Wi-Fi On/Off Button
• Reset Button
• LED Button
• Power On/Off Button

External Power Supply:

• 12V/1.5A

Dimensions (W x D x H):

• 216 × 164 × 36.8 mm (8.5× 6.5 × 1.4 in)

IEEE Standards:

• IEEE 802.3, IEEE 802.3u, 802.3ab

VDSL2 Standards:

• ITU G.993.2, Up to 17a profile (POTS)
• ITU-T G.993.5 (G.vector)
• ITU-T G.998.4 (G.INP)

ADSL Standards:

• Full-rate ANSI T1.413 Issue 2
• ITU-T G.992.1(G.DMT)
• ITU-T G.992.2(G.Lite)
• ITU-T G.994.1 (G.hs)

ADSL2 Standards:

• ITU-T G.992.3 (G.DMT.bis)

ADSL2+ Standards:

• ITU-T G.992.5

Antenna Type:

• 3 external detachable dual band antennas (RP-SMA)

Antenna Gain:

• 3 x 2dBi for 2.4GHz and 3 x 3dBi for 5GHz

Wireless

Wireless Standards:

• IEEE 802.11ac/n/a 5GHz
• IEEE 802.11b/g/n 2.4GHz

Frequency:

• 2.4GHz
• 5GHz

Signal Rate:

• 1300Mbps at 5GHz,
• 300Mbps at 2.4GHz

Transmit Power:

• <20dBm (2.4GHz)
• <23dBm (5GHz)

Wireless Function:

• Enable/Disable Wireless Radio
• WDS Bridge
• WMM
• Wireless Statistics

Wireless Security:

• 64/128-bit WEP
• WPA/WPA2
• WPA-PSK/WPA-PSK2 encryptions

Wireless Schedule:

• Support 2.4GHz and 5GHz Wireless Schedule

Software

Operation Modes:

• VDSL/ADSL Modem Router,
• Wireless Router,
• 3G/4G Router

DHCP:

• Server
• Client
• DHCP Client List
• Address Reservation
• DHCP Relay

Quality of Service:

• ATM QoS,
• Traffic Control (IP QoS)

Port Forwarding:

• Virtual Server
• Port Triggering
• DMZ
• ALG
• UPnP

Dynamic DNS:

• DynDns
• NO-IP
• TP-Link

VPN:

• OpenVPN
• PPTP VPN
• IPSec VPN

ATM/PPP Protocols:

• ATM Forum UNI3.1/4.0
• PPP over ATM (RFC 2364)
• PPP over Ethernet (RFC2516)
• IPoA (RFC1577/2225)
• MER\IPoE (RFC 1483 Routed)
• Bridge (RFC1483 Bridge)
• PVC – Up to 8 PVCs

Security:

• NAT Firewall
• SPI Firewall
• Access Control
• Service Filtering
• Denial of Service (DoS)
• SYN Flooding
• Ping of Death
• IP and MAC Address Binding

Advanced Functions:

• Parental Controls,
• Network Address Translation (NAT)
• Port Mapping (Grouping)
• Static Routing
• RIP v1/v2 (optional)
• DNS Relay
• DDNS
• IGMP V1/V2/V3

USB Sharing:

• Support Samba (Storage)
• FTP Server
• Media Server
• Printer Server
• 3G/4G Modem
• SFTP Server
• Web Storage

Management:

• Web Based Configuration (HTTP / HTTPS )
• Remote management
• Command Line Interface
• SSL for TR-069
• SNMP v1/2c
• Firmware Upgrade
• Diagnostic Tools
• Free Online Firmware Update

Guest Network:

• 2.4GHz guest network
  5GHz guest network

IPSec VPN:

• Supports up to 10 IPSec VPN tunnels

Protocols:

• Supports IPv4 and IPv6

Certification:

• CE
• RCM
• RoHS

System Requirements:

• Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, Mac OS, NetWare, UNIX or Linux
• Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
• Subscription with an internet service provider (for internet access)

Environment

• Operating Temperature: 0ºC~40ºC (32ºF ~104ºF)
• Storage Temperature: -40ºC~70ºC (-40ºF ~158ºF)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

Package Contents

• AC1600 Wireless Gigabit VDSL/ADSL Modem Router Archer VR600
• External Splitter
• RJ11 DSL Cable
• RJ45 Ethernet Cable
• Power Adapter
• Quick Installation Guide
