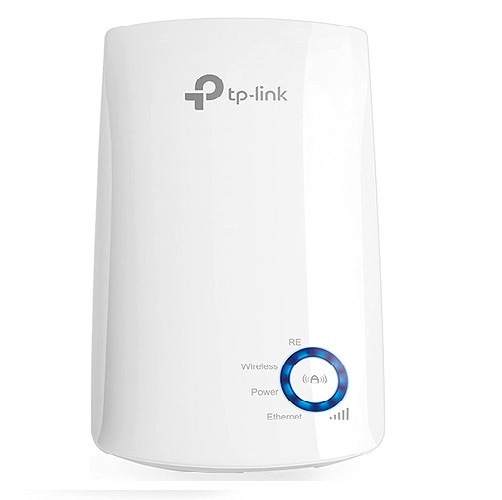

TP-Link 300 Mbps Universal Wi-Fi Range Extender (TL-WA850RE)

TP-LINK 300 Mbps Universal Wi-Fi Range Extender (TL-WA850RE)

TP-LINK 300 Mbps Universal Wi-Fi Range Extender (TL-WA850RE) is designed to conveniently extend the coverage and improve the signal strength of an existing wireless network to eliminate “dead zones”.

With 300 Mbps wireless N speeds, Range Extender button, miniature size and wall mounting design, extending a wireless network has never been easier.

What’s more, its Ethernet port allows the TP-LINK 300 Mbps Universal Wall-Plug Wi-Fi Range Extender (TL-WA850RE) to act as a wireless adapter to turn a wired device into a wireless one.

Key Features:

• Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly

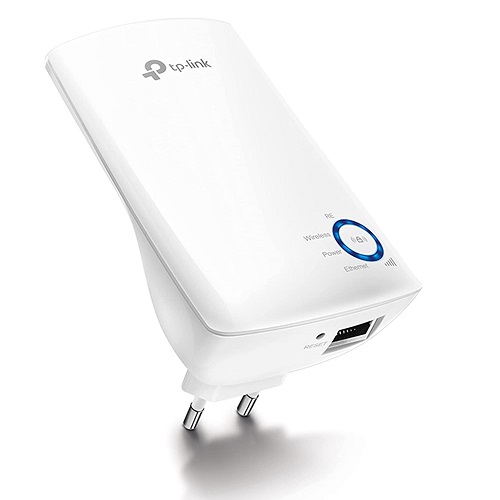

• Miniature size and wall-mounted design make it easy to deploy and move flexibly
• Easily expand wireless coverage at a push of Range Extender button
• Ethernet port allows the Extender to function as a wireless adapter to connect wired devices
• Tether App allows easy access and management using any mobile device
• LED Control function includes a Night Mode for peaceful sleep

Specification:

HARDWARE FEATURES

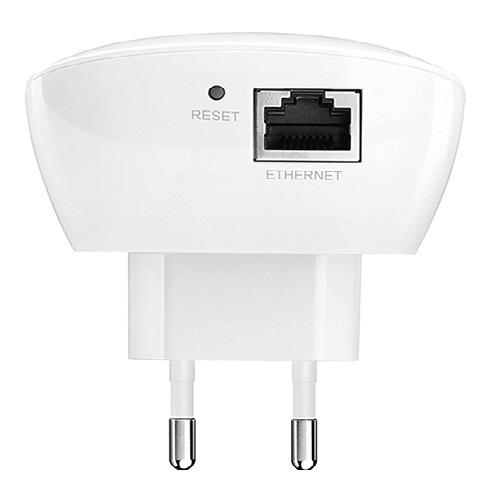

• Interface: 1 * 10/100 M Ethernet Port (RJ45)
• Buttons: RE (Range Extender) Button, Reset Button
• Power Consumption: About 3 W
• Antennas: 2 * internal
• Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Dimensions ( W x D x H ): 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2 mm)

WIRELESS FEATURES

• Frequency: 2.4~2.4835 GHz
• Signal Rate:
  11n: Up to 300 Mbps (dynamic)
  11g: Up to 54 Mbps (dynamic)
  11b: Up to 11 Mbps (dynamic)
• Reception Sensitivity :
  270M: -68dBm@10% PER
  130M: -68dBm@10% PER
  108M: -68dBm@10% PER
  54M: -68dBm@10% PER
  11M: -85dBm@8% PER
  6M: -88dBm@10% PER
  1M: -90dBm@8% PER
• Transmit Power: < 20 dBm (EIRP)
• Wireless Modes: Range Extender
• Wireless Functions:
• WMM (Wi-Fi Multimedia)
• Wireless MAC Address Filtering
• Wireless Statistic
• Domain Login Function
• Wireless Security: 64/128/152-bit WEP   | WPA-PSK / WPA2-PSK

OTHERS

• Certification: CE, RoHS
• Package Contents:
• 300Mbps Universal Wi-Fi Range Extender TL-WA850RE
• RJ-45 Ethernet Cable
• Resource CD
• Quick Installation Guide
• System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS,
• NetWare®, UNIX® or Linux.
• Environment:
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
