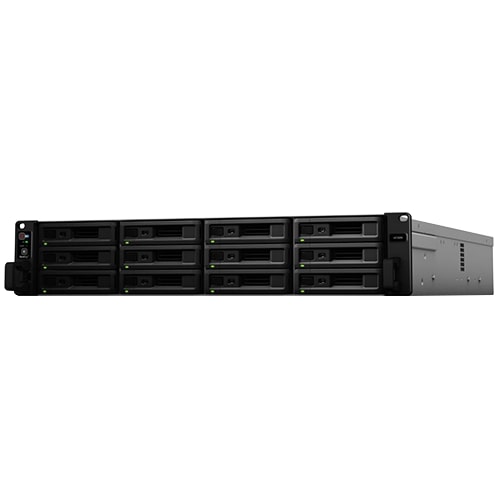

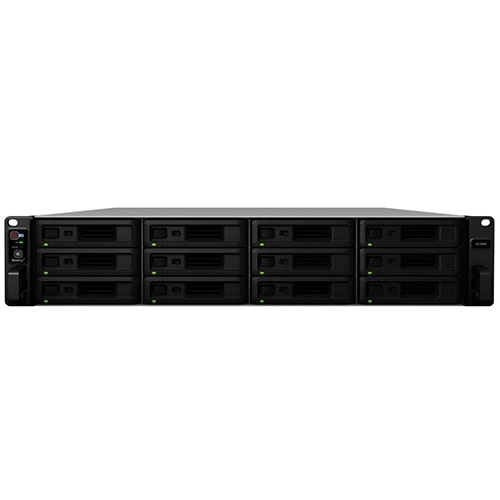

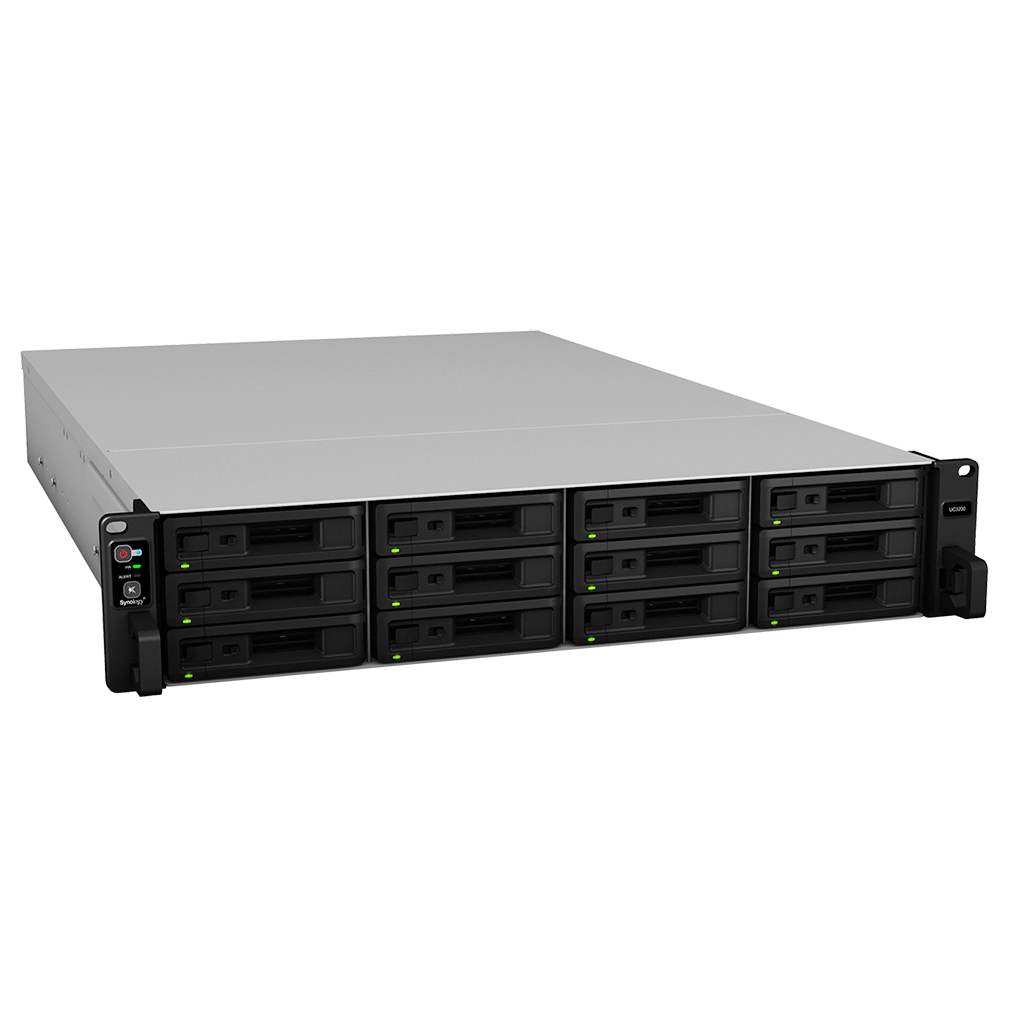

Synology UC3200 Unified Controller IP SAN Enclosure 12-Bay Rack mount, designed for high-availability IP SAN requirements, offers active-active architecture for non-disruptive iSCSI services.It provides resilient data protection solutions with a simplified management interface while maximizing up time for critical services.

Active-active SAN for mission-critical environments

Powerful and flexible scalability

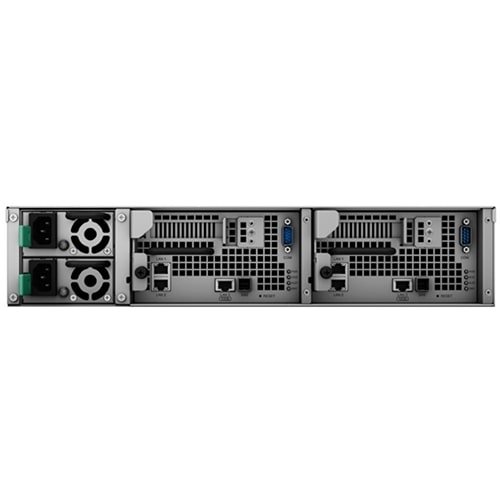

The UC3200 is an affordable yet reliable IP SAN solution for mission-critical environments. Within the 2U chassis are active-active controller nodes, each powered by an Intel Xeon D-1521 4-core processor and 8GB DDR4 ECC UDIMM (expandable up to 64GB). It delivers outstanding performance of over 143,000 4K Random Write IOPS. The UC3200 allows you to start small and grow in the future. It holds twelve (12) 3.5″/2.5″ SAS interface drive slots by default, and can be further scaled up to thirty-six (36) SAS drives when connected with two (2) RXD1219sas expansion units (sold separately). It comes with single 10GbE and dual 1GbE RJ45 ports per controller and supports 10GbE / 25GbE network interface card expansion (sold separately) with PCIe 3.0, boosting network bandwidth with Link Aggregation.

Uncompromising reliability

The active-active controller design maximizes the system up time for your important applications. The inter-connectivity through high-speed NTB (Non-Transparent Bridge) between the two controllers allows one of them to seamlessly take over the service when the other breaks down. In addition, the UC3200 syncs all cached data between the two controllers, avoiding data loss in case of controller failure before data is written into the drives. The built-in SATA-DOM on each controller is solely used for running the operating system, allowing system partition to be separated from data to optimize system stability.

Active-Active design

The UC3200 offers non-disruptive iSCSI services through its active-active design, meeting enterprise’s demand for mission-critical environments.

Rock-solid data protection

The UC3200 supports Synology Snapshot Replication, which provides schedulable, near-instantaneous data protection for mission-critical services. It supports up to 4,096 system-wide replications to offsite servers and local volumes, allowing for application-aware snapshot protection and instant recovery of virtual machines in iSCSI LUNs in the event of a disaster.

Snapshot replication

Snapshot Replication provides schedulable and near-instantaneous data protection. It can replicate snapshots to a remote site to ensure data integrity in case of disaster.

Non-disruptive iSCSI service for virtualization

The UC3200 enhances work efficiency with a simple management interface. VMware vSphere 6.5 and VAAI integration helps offload storage operations and optimizes computational efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rates, while support for OpenStack Cinder transforms your UC3200 into a block-based storage component.

The UC3200 also complies with the iSCSI industrial standard ALUA, allowing hosts to identify optimized paths to increase transfer performance and efficiency.

Virtualization-ready

The UC3200 is an optimized and certified storage solution for various virtualization environments.

Simple and intuitive management

Powered by DSM UC operating system, the UC3200 offers comprehensive functionalities while keeping the intuitive DSM experience to ease the learning curve. The simplified management interface allows you to manage the two controllers from a single management portal. The built-in monitor function gives the most updated status in real time and provides prompt notifications when important events occur, allowing IT administrators to respond accordingly.

Key Features

• High performance, active-active storage solution to provide non-disruptive iSCSI services.
• Over 143,000 4K Random Write IOPS, enterprise-class performance with low latency.
• Flexible capacity, able to scale up to thirty-six (36) drives with two (2) RXD1219sas expansion units (sold separately).
• Virtualization-ready with VMware vSphere, Citrix XenServer and OpenStack Cinder compatibility.
• Resilient cache protection mechanism to prevent data loss.
• Instant data protection with built-in snapshot and replication technologies.
• Simple and unified user interface to effortlessly manage data and storage tasks.

Standard Warranty: 5-Years
