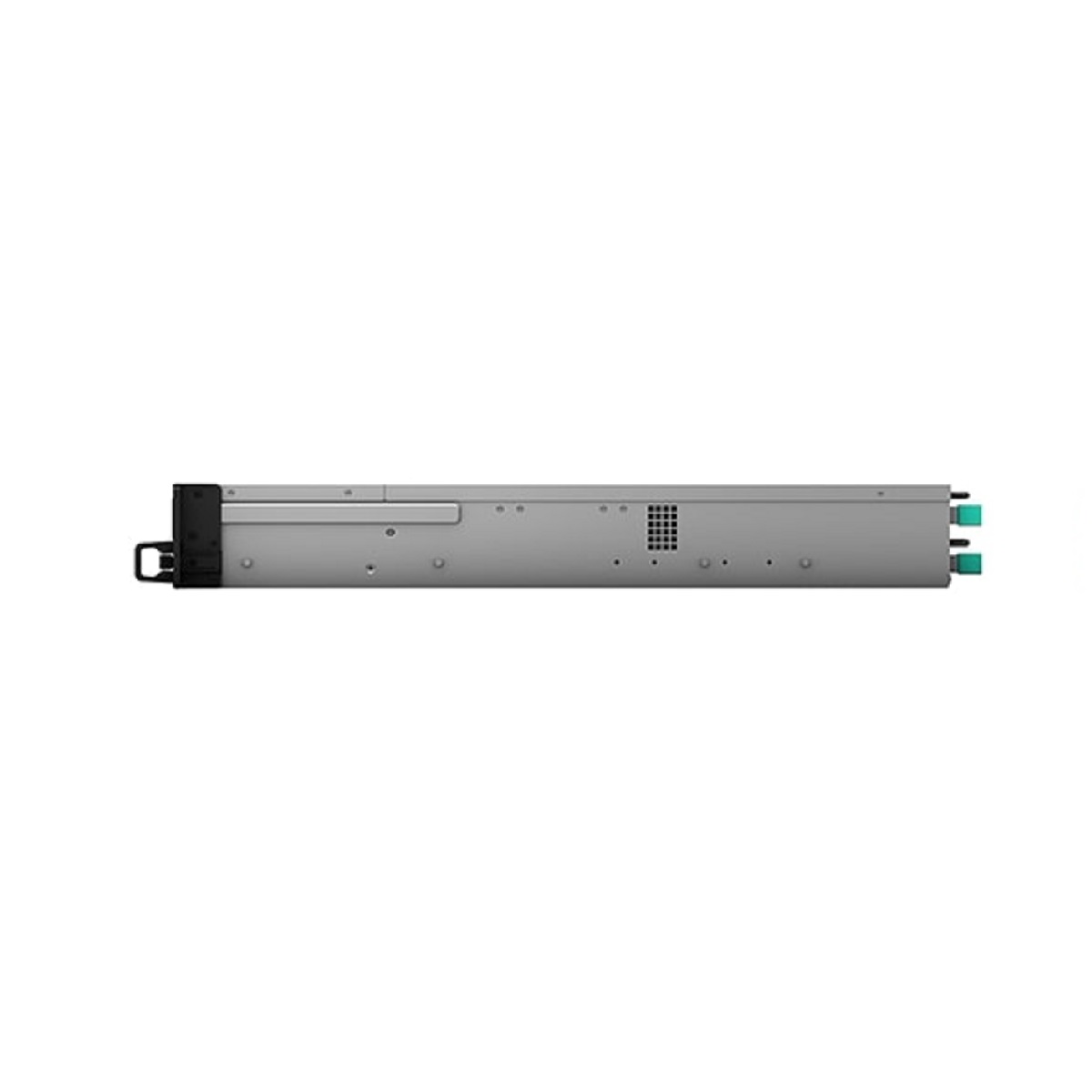

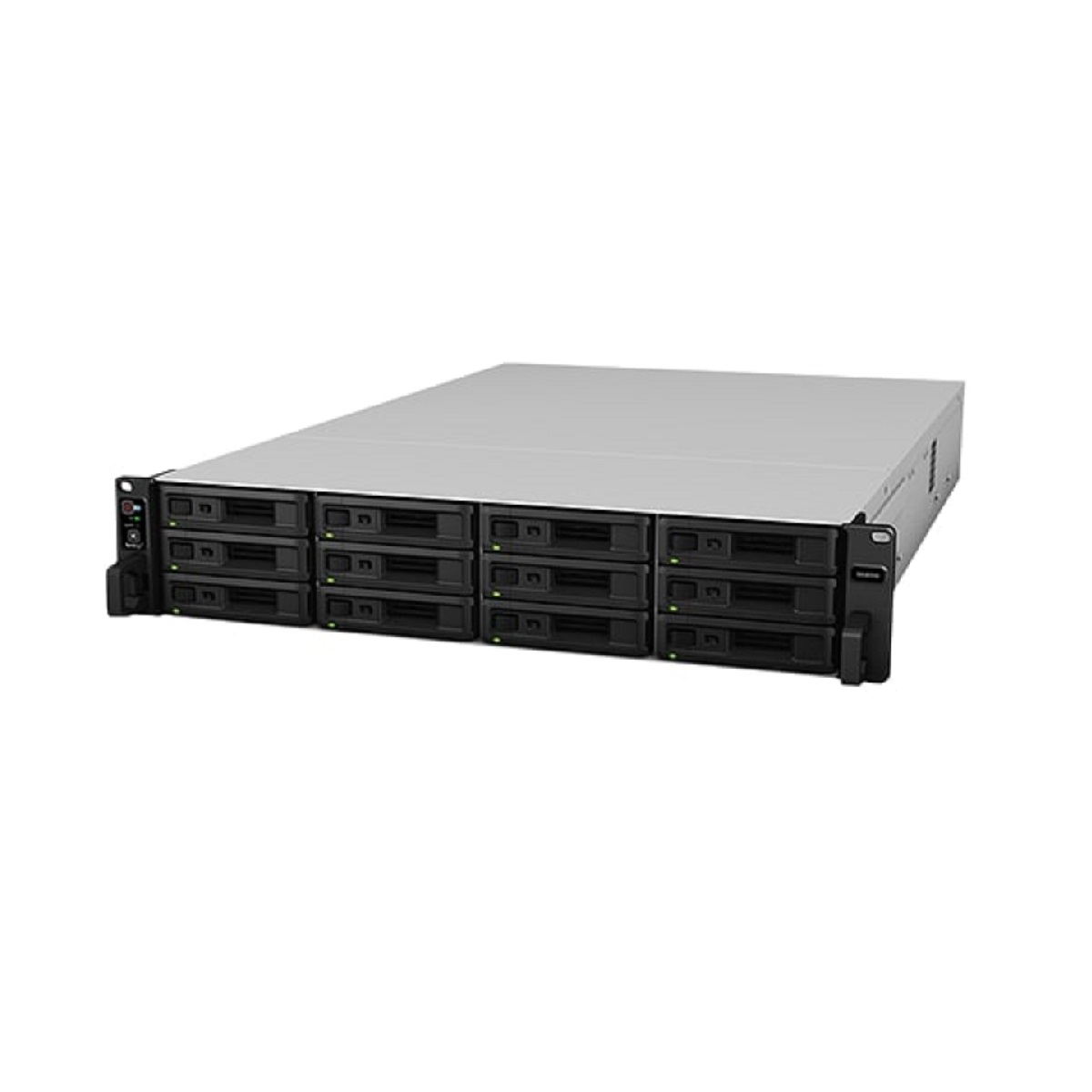

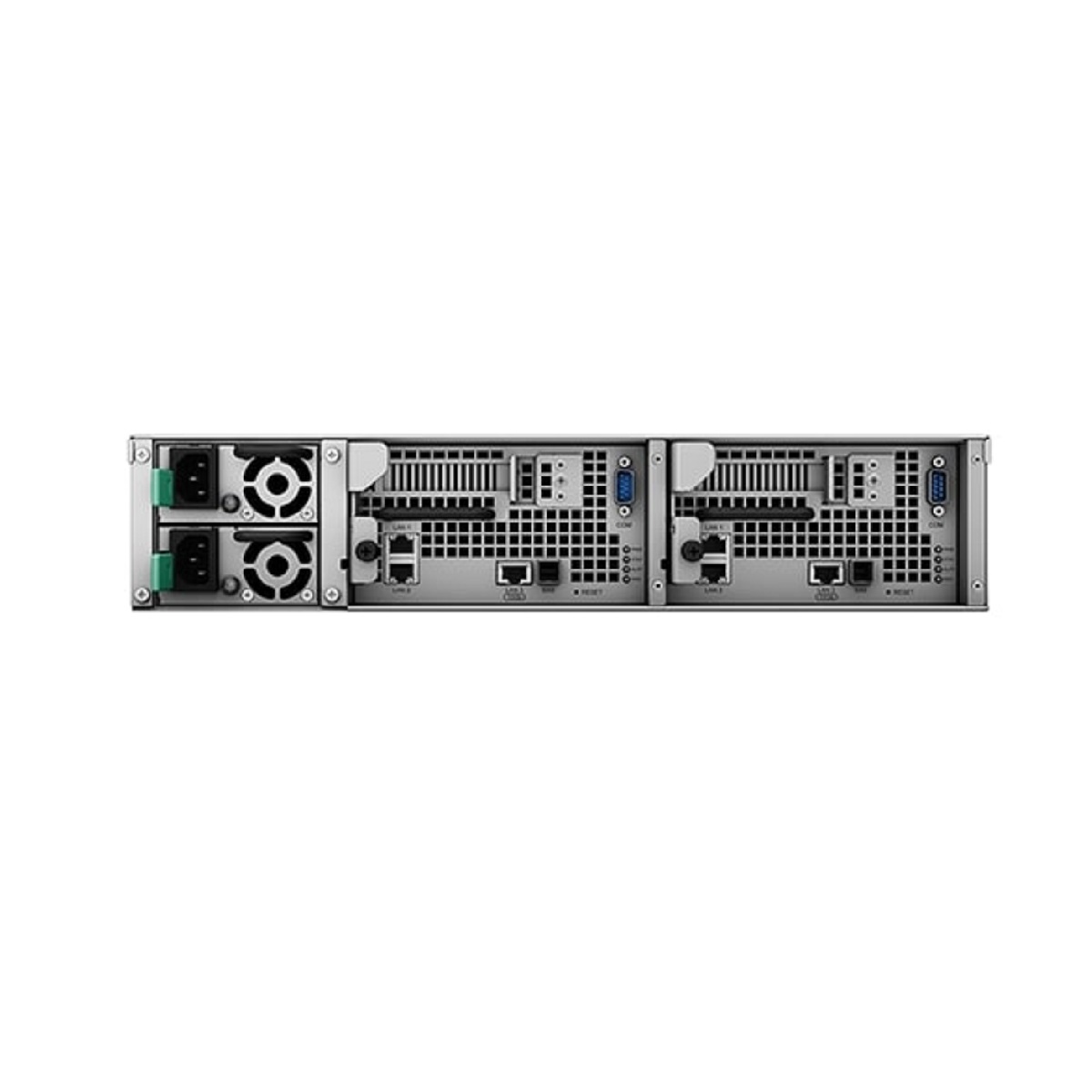

Synology SA3200D 12-Bay 8GB RAM Network Storage Enclosure
Synology SA3200D 12-Bay NAS Enclosure (8GB RAM)
Synology SA3200D 12-Bay NAS Enclosure (8GB RAM) Attached NAS Storage Enclosure features a dual controller architecture to ensure operations and core business functions are not severely impacted by a disaster or unplanned incident that take critical systems offline.
The hardware redundancy mechanism leverages controllers, power supplies, and fans to prevent a single point of failure.
Powered by the intuitive and feature-rich operating system DiskStation Manager (DSM), the SA3200D provides comprehensive protection for network, file services, and applications.
Give your business the data protection and service availability it needs
Key Features
- Un-populated twelve (12) bay rackmount network attached NAS storage enclosure.
- Active-passive dual controller design in a single chassis, maximising service availability with minute-level failover time.
- A scalable shared storage architecture of more than 500 TB raw capacity with minimal performance impact.
- Automatic failover mechanism, protecting services in real-time and prevent a single point of failure.
- Easy to deploy and manage data services intuitively with DiskStation Manager (DSM), providing a unified experience across Synology platforms and support comprehensive software applications.
- Certified virtualization solution with licence-free workload protection.
Designed with High Availability and Scalability
The Synology SA3200D is a cost-effective yet highly available data management solution for enterprises. Underneath the 2U chassis are dual controller modules in an active-passive architecture, each connected to the other by the reliable, high-speed Non-Transparent Bridge (NTB) with low latency.
Service continuity is also backed up by the hardware redundancy mechanism of modularised power supplies and fans to prevent a single point of failure.
With the SA3200D, you can start small and grow in the future. It supports up to twelve (12) 3.5″/2.5″ SAS interface drive slots by default, and the capacity can be further scaled up to 576 TB using two (2) RXD1219sas expansion units (sold separately), with minimal performance impact.
Data replication is not needed for the shared storage design, saving valuable rack space and network bandwidth when compared with two devices using Synology High Availability.
Real-Time Protection with Automatic Failover
With an active-passive design consisting of dual controller modules and the built-in Synology High Availability (SHA) service, the SA3200D is built to provide a real-time, system-level protection to maximize service availability.
It actively monitors network status and critical file services of CIFS, iSCSI, AFP, FTP, NFS, and Synology Directory Server.
Once a controller module or the service is unavailable, the system will fail over automatically within a minute to minimize system interruption and ensure service continuity.
Easy to Deploy, Easy to Manage
The SA3200D is designed to help IT administrators easily deploy and manage a highly available data management infrastructure.
The system features straightforward, wizard-based GUI setup processes that allow you to build up a highly available service environment within minutes.
Service status monitoring is made easy and intuitive. Powered by DiskStation Manager (DSM), an intuitive, user-friendly web-based operating system across Synology hardware platforms, the SA3200D provides IT administrators a unified user experience without the need to adapt to different user interfaces and complex configuration settings.
With a full suite of software applications supported in the Package Centre, you can download and install a variety of packages including backup, data protection, and virtualization.
Built for Your SAN Storage Needs
The Synology SA3200D provides a fully certified virtualization solution with VMware vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack Cinder.
It supports both iSCSI and NFS protocols and integrates with VMware VAAI and Microsoft ODX, allowing IT administrators to effectively deploy and facilitate storage operations in various virtualization environments.
IT administrators can efficiently manage virtualised workloads through built-in DSM features and addon plugins for VMware and Windows environments.
Features including fast clone, NFS v4.1, and thin provisioning delivers more flexibility to accommodate to administration needs.
With no additional licence fees required, your virtualised workload can be further protected by a complete suite of data protection applications including Synology Snapshot Replication, Hyper Backup, and Active Backup for Business to cover various protection scenarios.
Virtualise Workloads Flexibly in a Protected Environment
Synology Virtual Machine Manager (VMM) is an intuitive hypervisor software application allowing you to easily set up virtual machines and run various operating systems, including Windows, Linux, and Virtual DSM.
By integrating the computing and the storage nodes into one system, single vendor support experience is achieved to lower the management cost.
With VMM, each virtual machine can be fully protected by a set of disaster recovery features including instant snapshot, replication, clone, and restore, safeguarding your virtual machines without additional cost.
Specifications
Hardware
Number of controller module
- 2
CPU (per controller)
- Intel Xeon D-1521 4-core 2.4 GHz, Turbo Boost up to 2.7 GHz
Hardware encryption engine
- Yes (AES-NI)
Memory (per controller)
- 8 GB DDR4 ECC UDIMM (expandable up to 64 GB)
Compatible drive type
- 12 x 3.5″/2.5″ SAS SSD/HDD (drives not included)
Hot swappable drive
- Yes
External port (per controller)
- 1 x Expansion port
Size (HxWxD)
- 88 x 430.5 x 692 mm
- 88 x 482 x 724 mm (with server ears)
Weight
- 19.7 kg
LAN (per controller)
- 2 x 1GbE RJ45
- 1 x 10GbE RJ45 (10GBASE-T)
PCIe 3.0 slot (per controller)
- 1 x 8-lane x8 slot
- High-performance network interface card support
System fan (per controller)
- 2 (60 x 60 x 51 mm)
AC input power voltage
- 100 V to 240 V AC
Power frequency
- 50/60 Hz, single phase
Operating temperature
- 0°C to 35°C (32°F to 95°F)
Storage temperature
- -20°C to 60°C (-5°F to 140°F)
Relative humidity
- 5% to 95% RH
Maximum operating altitude
- 5,000 m (16,400 ft)
General DSM specifications
Networking protocol
- SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN™, L2TP)
File system
- Btrfs, ext4
Supported RAID type
- Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, Synology RAID F1
Storage management
- Maximum single volume size: 108TB/200TB (at least 32 GB RAM required, for RAID 5 or RAID 6 groups only)
- Maximum system snapshots: 65,5365
- Maximum internal volume: 64
SSD cache
- Read/write cache support
File sharing capability
- Maximum local user account: 16,000
- Maximum local group: 512
- Maximum shared folder: 512
- Maximum concurrent SMB/NFS/AFP/FTP connection: 1,200
Privilege
- Windows Access Control List (ACL), application privilege
Directory service
- Windows AD integration: Domain users login via SMB/NFS/AFP/FTP/File Station, LDAP integration
Virtualisation
- VMware vSphere 6.5, Microsoft Hyper-V, Citrix, OpenStack
Security
- Firewall, encryption shared folder, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let’s Encrypt support, HTTPS (customisable cipher suite)
Supported client
- Windows 7 onwards, Mac OS X 10.11 onwards
Supported browser
- Chrome, Firefox, Edge, Internet Explorer 10 onwards, Safari 10 onwards, Safari (iOS 10 onwards), Chrome (Android 6.0 onwards) on tablets
Interface language
- English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svensk, Nederlands, Russian, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Ceský,
Packages and Applications
File Server & Synchronization
Synology Drive
- Provide a universal portal to synchronize your files across various platforms, including Windows, macOS, Linux, Android and iOS. The built-in universal portal allows you to access data anytime and anywhere.
- Maximum number of hosted files: 3,000,000
- Maximum number of concurrent connections for PC clients: 1,800
File Station
- Virtual drive, remote folder, Windows ACL editor, compressing/extracting archived files, bandwidth control for specific users or groups, creating sharing links, transfer logs
FTP Server
- Bandwidth control for TCP connections, custom FTP passive port range, anonymous FTP, FTP SSL/TLS and SFTP protocol, boot over the network with TFTP and PXE support, transfer logs
Presto File Server
- High-speed data transfer over WAN with exclusive SITA technology between Synology NAS and desktop
Cloud Sync
- One or two-way synchronisation with public cloud storage providers including Alibaba Cloud OSS, Amazon Drive, Amazon S3-compatible storage, Backblaze B2, Baidu Cloud, Box, Dropbox, Google Cloud Storage, Google Drive, hubiC, MegaDisk, Microsoft OneDrive, OpenStack Swift-compatible storage, Tencent COS, WebDAV servers, Yandex Disk
Universal Search
- Offer global search into applications and files
iSCSI Storage & Virtualization
iSCSI Manager
- Maximum iSCSI target: 256
- Maximum iSCSI LUN: 512
- iSCSI LUN clone/snapshot support
Virtual Machine Manager
- Deploy and run various virtual machines on Synology NAS, including Windows, Linux, or Virtual DSM
Data Protection & Backup Solution
Hyper Backup
- Support local backup, network backup, and backup data to public clouds
Backup tools
- DSM configuration backup, macOS Time Machine support, Synology Drive Client desktop application Shared folder sync – maximum task number: 32
Snapshot Replication
- Maximum of shared folder snapshots: 1,024
- Maximum of replication: 64
Active Backup for G Suite
- Support G Suite My Drive and Team Drive backup and restoration
Active Backup for Office 365
- Support Office 365 OneDrive for Business, mail, contacts, and calendar backup and restoration
Active Backup for Business
- All-in-one backup solution designed for heterogeneous business IT environment, enabling IT admins to remotely manage and monitor protection over PC, servers and VM on one centralised console
Productivity & Collaboration
Collaboration tools
- Collaborate with instant message service Synology Chat, online editor Synology Office, and scheduling assistant Synology Calendar
- Chat maximum user: 4,000
- Office maximum user: 2,800
- Calendar: support CalDAV and access via mobile devices
Note Station
- Rich-text note organisation and versioning, encryption, sharing, media embedding and attachments
Surveillance
Surveillance Station
- Maximum IP camera: 100 (total of 3,000 FPS at 720p, H.264) (Including two free camera licences. Additional cameras require the purchasing of additional licences)
All-in-One Server
Synology Directory Server
- Provide a flexible and cost-effective domain controller solution
Central Management System
- Provide a single interface to manage and monitor multiple Synology NAS
VPN Server
- Maximum connection: 40. Supported VPN protocol: PPTP, OpenVPN, L2TP/IPSec
Mail Server
- Supported Mail Server Protocols: POP3, SMTP, IMAP. LDAP/AD account support
Mail Station
- Webmail interface for Mail Server to receive emails from multiple POP3 mailboxes, customisable SMTP server
Web Station
- Virtual host (up to 30 websites), PHP/MariaDB, third-party applications support
Other packages
- DNS Server, RADIUS Server, Log Centre
Others
Storage Analyser
- Volume and quota usage, total size of files, volume usage and trends based on past usage, size of shared folders, large files, most recently modified files, least recently accessed files
Antivirus Essential
- Full system scan, scheduled scan, white list customisation, virus definition auto update
Security Advisor
- Malware detection/removal, user account/password, network, system-related security scan
Other packages
- Additional 3rd-party packages available on Package Centre
Environment and Packaging
Environment safety
- RoHS compliant
Package content
- 1 x Synology SA3200D Enclosure
- 1 x Quick Installation Guide
- 1 x Accessory Pack
- 2 x AC Power Cord
Standard Warranty: 5-Years
Only logged in customers who have purchased this product may leave a review.
Related Products
Synology DS218 2-Bay 2GB RAM Network Storage Enclosure
A high-performance and versatile 2-bay NAS designed for small offices and home users to effectively manage, protect & share data.
Out of stock

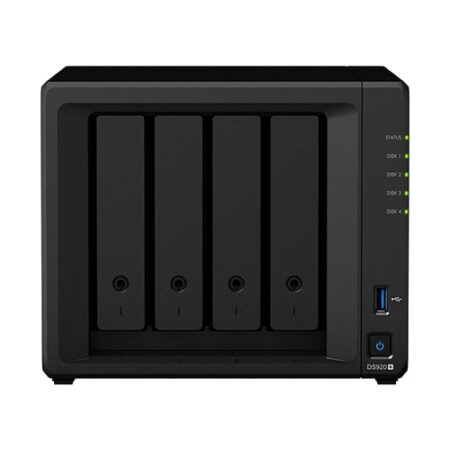

Synology DS923+ 4-Bay NAS Enclosure w/ 2 x M.2 NVMe Slots (4GB RAM)
Powered by Synology DiskStation Manager (DSM), it offers a flexible all-in-one solution for data sharing, synchronisation, backup, and surveillance.
Out of stock

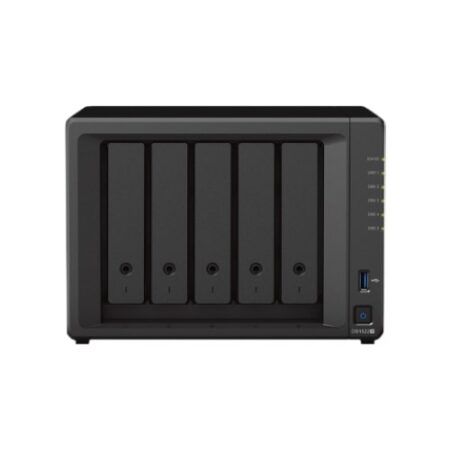

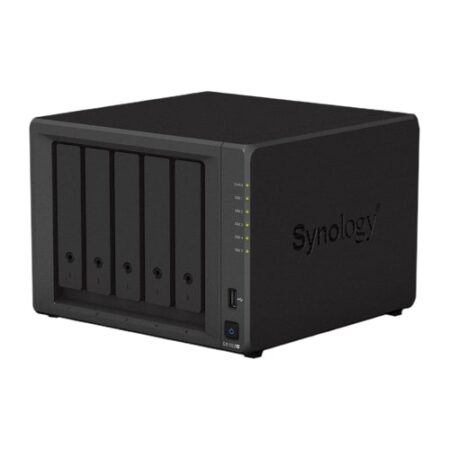

Synology DS1522+ 5-Bay NAS Enclosure w/ 2 x M.2 NVMe Slots (8GB RAM)
Synology DS1522+ 5-Bay NAS Enclosure device is easy to scale and expand as your needs change, with optional support for up to 15 drives, 10GbE networking, and NVMe SSD caching.
Out of stock

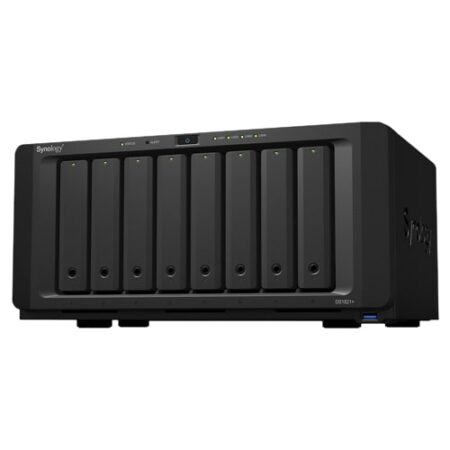

Synology DS1821+ DiskStation 8-Bay NAS Enclosure w/ 2 x M.2 NVMe Slots (4GB RAM)
Synology DS1821+ DiskStation 8-Bay Network Storage Enclosure is a powerful 8-bay network attached storage solution designed to store and protect mission-critical data.
Out of stock

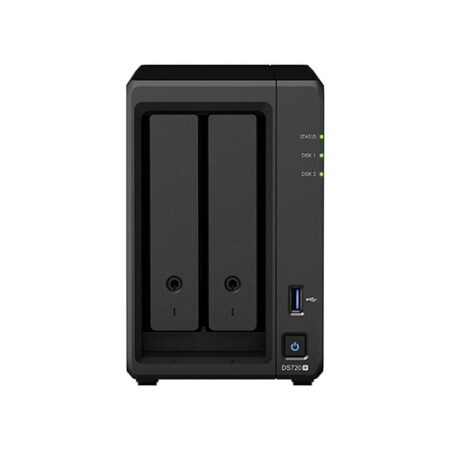

Synology DS720+ DiskStation 2-Bay NAS Enclosure w/ 2 x M.2 NVMe Slots (2GB RAM)
Synology DS720+ DiskStation 2-Bay NAS Enclosure Device is a compact network-attached storage solution to streamline data and multimedia management.
Out of stock

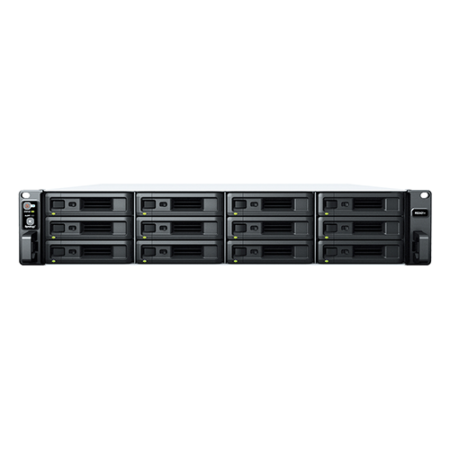

Synology RS2421+ 12-Bay NAS Enclosure (4GB RAM)
The Synology RS2421+ RackStation 12-Bay Rackmount NAS features cost-effective file management, sharing, and backup capabilities, specially designed for small business and remote office deployments. Powered by Synology’s DiskStation Manager (DSM), RS2421+ units come with powerful built-in business services and can easily be expanded with SSD cache and 10/25GbE networking capabilities.
Out of stock

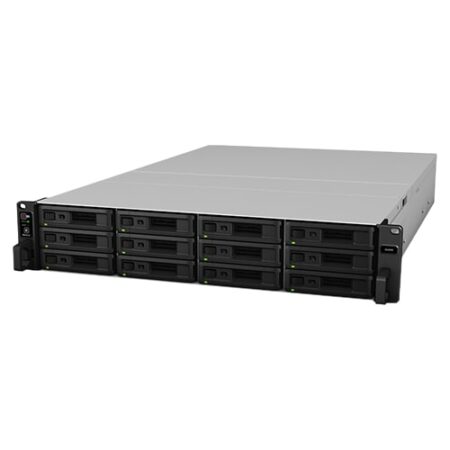

Synology SA3600 12-Bay 16 GB RAM Rackmount Network Storage Enclosure (16 GB RAM)
Synology SA3600 12-Bay NAS Enclosure Rackmount Network Attached is designed for large-scale data storage. Its comprehensive data protection solutions, including multi-version backup for server and virtual machines, hybrid cloud integration, and high-availability technology support, make it a reliable server for massive storage deployment.
Out of stock

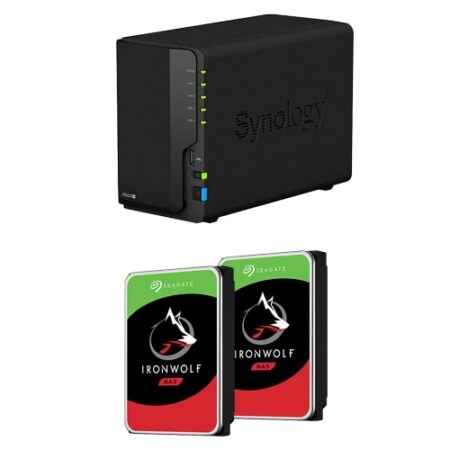

Synology DS220+ 2-Bay 8TB NAS w/ 2x4TB IronWolf
Synology DS220+ 2-Bay 8TB Network Storage Bundle is a compact network-attached storage solution designed to streamline your data and multimedia management.
Out of stock
Synology RS2423+ 12-Bay NAS Enclosure (8GB RAM)
Synology RS2423+ 12-Bay NAS Enclosure is a high-performance storage solution designed for businesses that require reliable and scalable storage for their growing data needs.
Out of stock

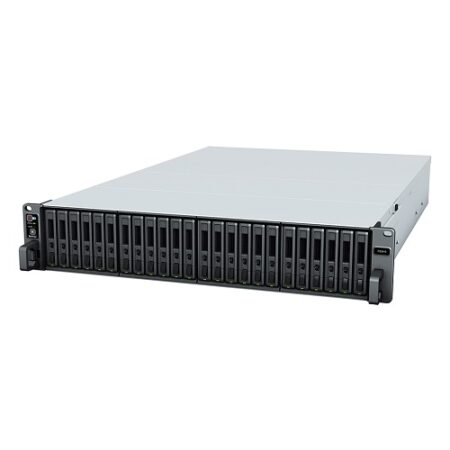

Synology 24-Bay FlashStation FS3410 (Diskless)
